Brand: Jaclo

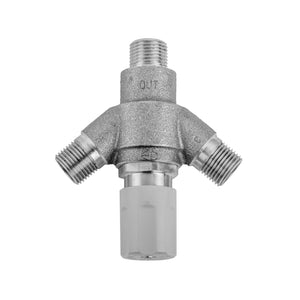

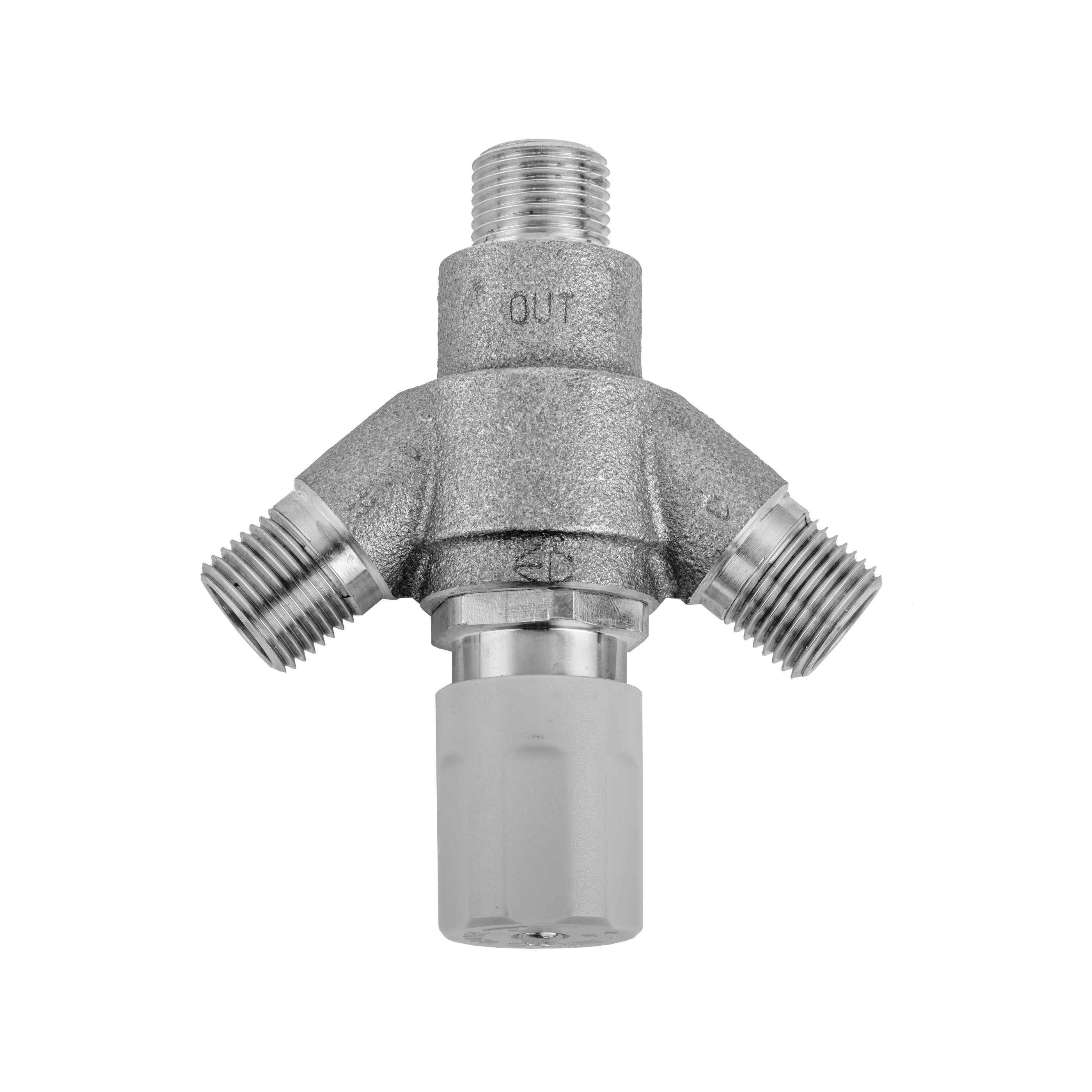

Jaclo J-TP603 Thermostatic Mixing Valve For Sensor Faucet (560-Esf & 884-Esf)
Jaclo J-TP603 Thermostatic Mixing Valve For Sensor Faucet (560-Esf & 884-Esf)
SKU: J-TP603
$266.25
Unit price
per
$355.00
Save 25%
Free Shipping Included
5-7 Days
contact us for more details
Designers and ProfessionalsCall to Discuss Your Project 877-744-7260
NEED ASSISTANCE?
Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.
Product Info
Description
Thermostatic Mixing Valve for Sensor Faucet (560-ESF & 884-ESF)
Mixing Valve to be used with Sensor Faucet or Optional Mixing Valve to be used with wall mounted Tub Fillers
Controls and regulates faucet water temperature
Minimum flow rate: 0.5 GPM
Pressure loss at minimum flow rate: 0.5 PSI
Hot water inlet temperature range: 120-180 Degree F (48.8-82.2 Degree C)
Cold water inlet temperature range: 39-84 Degree F (3.9-28.8 Degree C)
Outlet temperature range: 80-120 Degree F (26.7-48.8 Degree C)
Outlet temperature factory settings: 100.4 Degree F (38 Degree C)
Inlet/Outlet Spec: 1/2" NPS threaded male fittings
Mixing Valve to be used with Sensor Faucet or Optional Mixing Valve to be used with wall mounted Tub Fillers
Controls and regulates faucet water temperature
Minimum flow rate: 0.5 GPM
Pressure loss at minimum flow rate: 0.5 PSI
Hot water inlet temperature range: 120-180 Degree F (48.8-82.2 Degree C)
Cold water inlet temperature range: 39-84 Degree F (3.9-28.8 Degree C)
Outlet temperature range: 80-120 Degree F (26.7-48.8 Degree C)
Outlet temperature factory settings: 100.4 Degree F (38 Degree C)
Inlet/Outlet Spec: 1/2" NPS threaded male fittings
