DESCRIPTION
For shower stalls, pools surrounds, patios, balconies, driveways, and storm drainage, Infinity Drain linear drain systems offer limitless possibilities for your project.

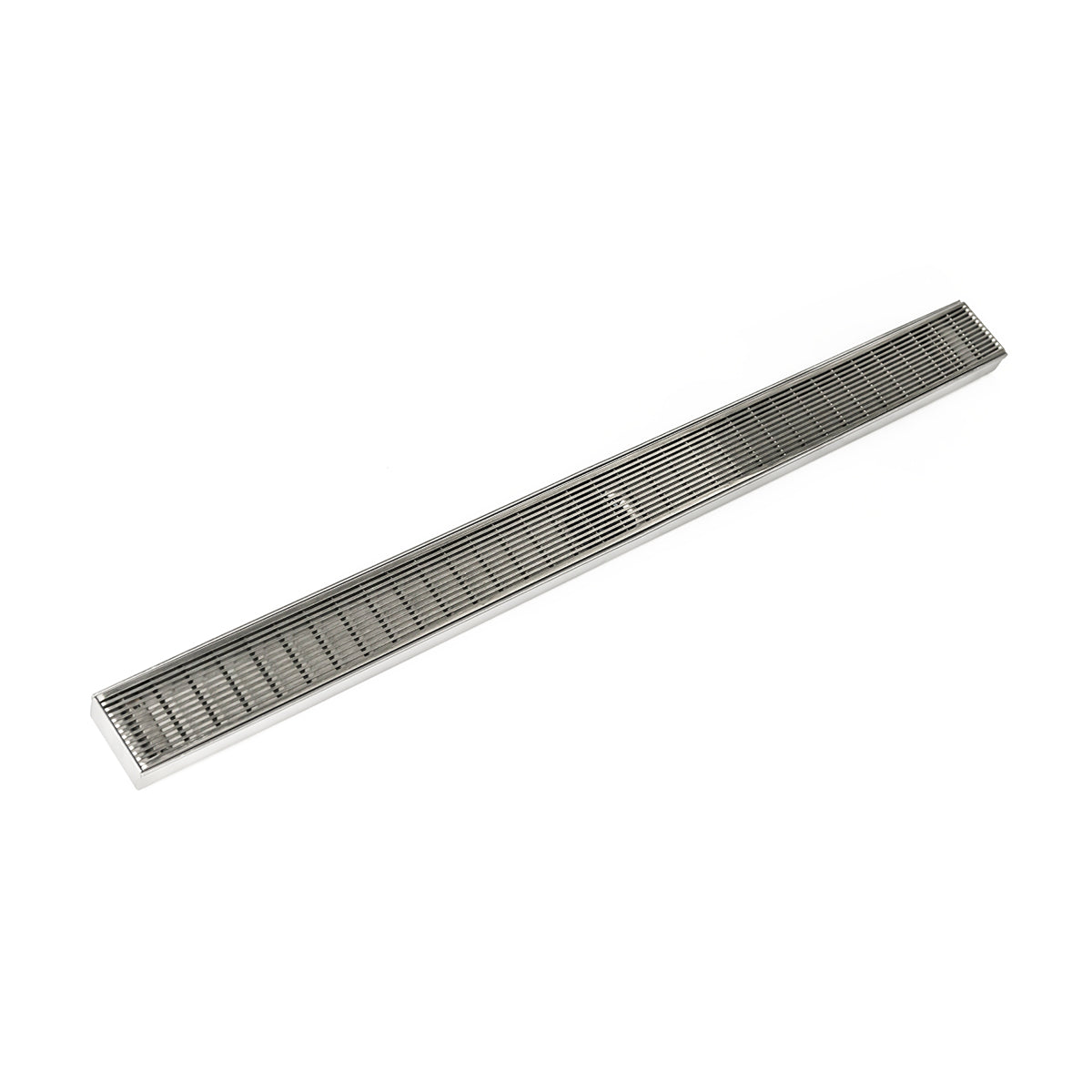

Infinity Drain FXAS 6532 32"
Infinity Drain FXAS 6532 32"
- Fixed Length: Pre-pitched channel with set length with center outlet location
- Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
- 12 gauge, 316 stainless steel wedge wire top grate with stainless steel channel
- Overall width: 2-7/8", Min. height above waterproofing: 1-3/16"
- Capacity: 9 gallons per minute

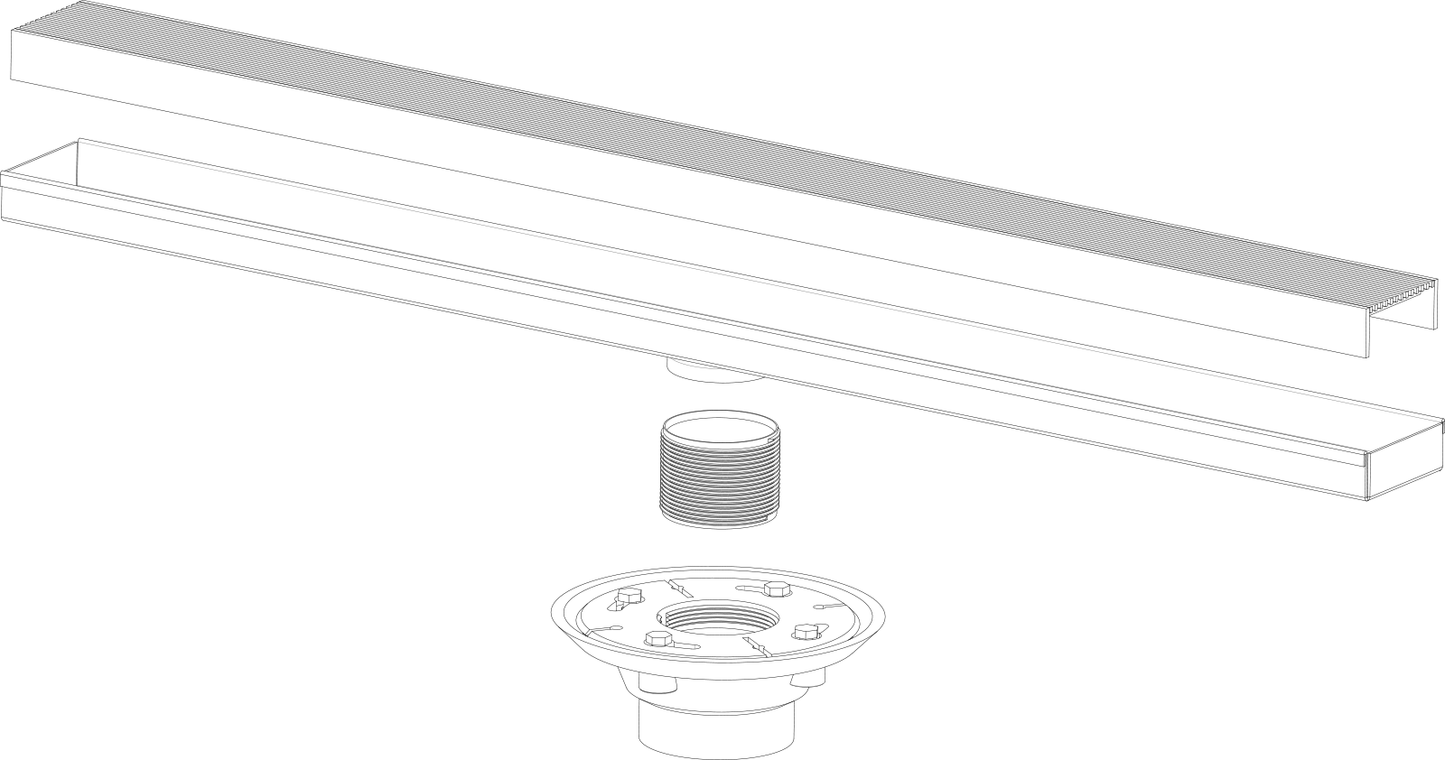

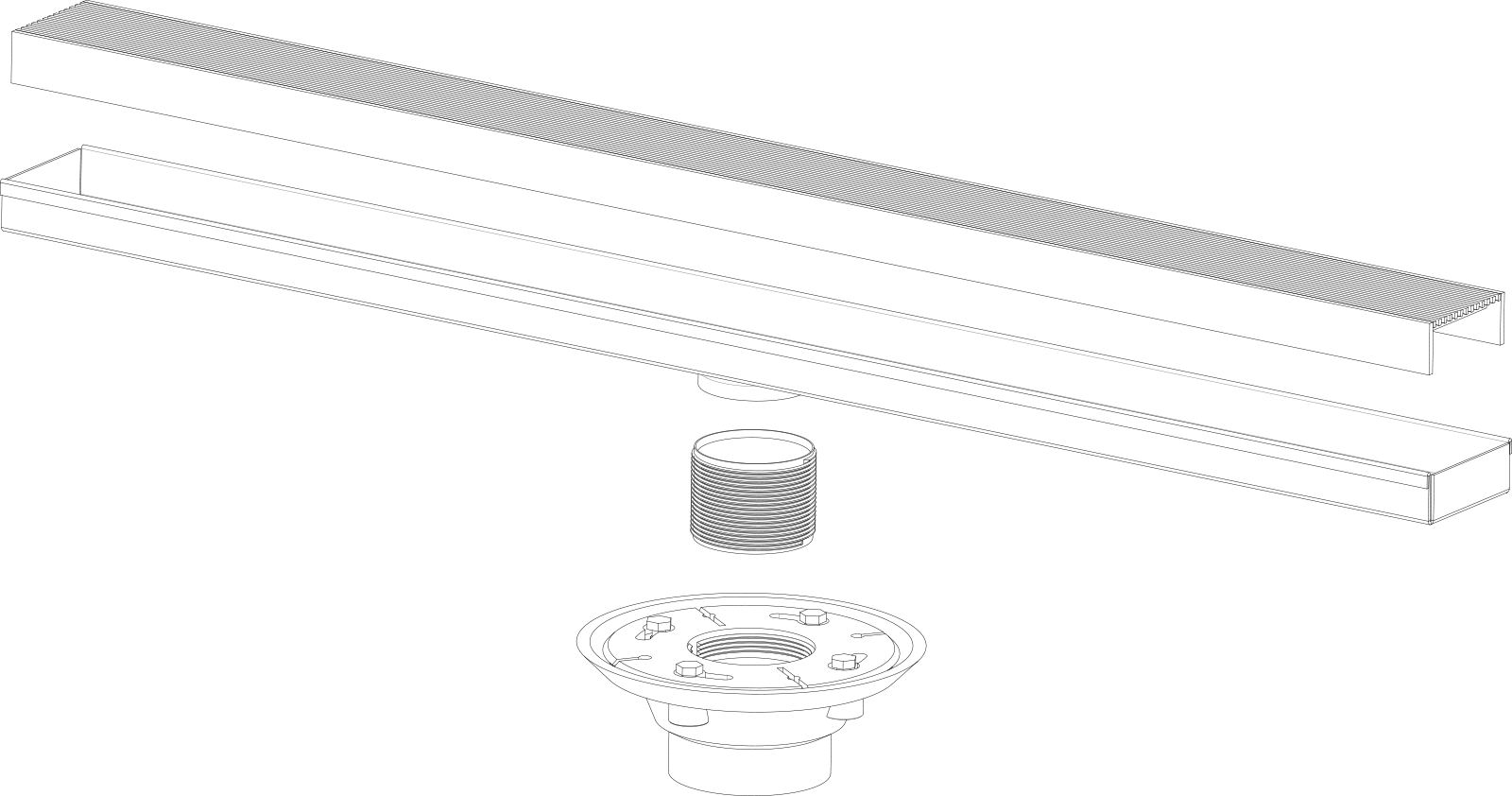

- Requires 2" clamp down floor drain with 2" throat (strainer size). Not included in complete kit
- Product Dimensions: 32 1/8" L x 2 7/8" W x 1" H
Product Options
,FXAS 6532 BK,FXAS 6532 PS,FXAS 6532 SS,FXAS 6532 WH,FXAS 6532 SB|,Black,Polished Stainless,Satin Stainless,White,Satin Bronze|,1145.00,1145.00,935.00,955.00,1145.00|,801.50,801.50,654.50,668.50,801.50|,0,0,0,0,0|,29020665839721,29020665872489,29020665905257,29020665938025,29020665970793|,4,4,4,4,4- Brand:Infinity Drain
- Includes:See Description
- MPN:FXAS 6532
- Material:Stainless Steel
