Shop the Collection: Vaia
Brand: Dornbracht

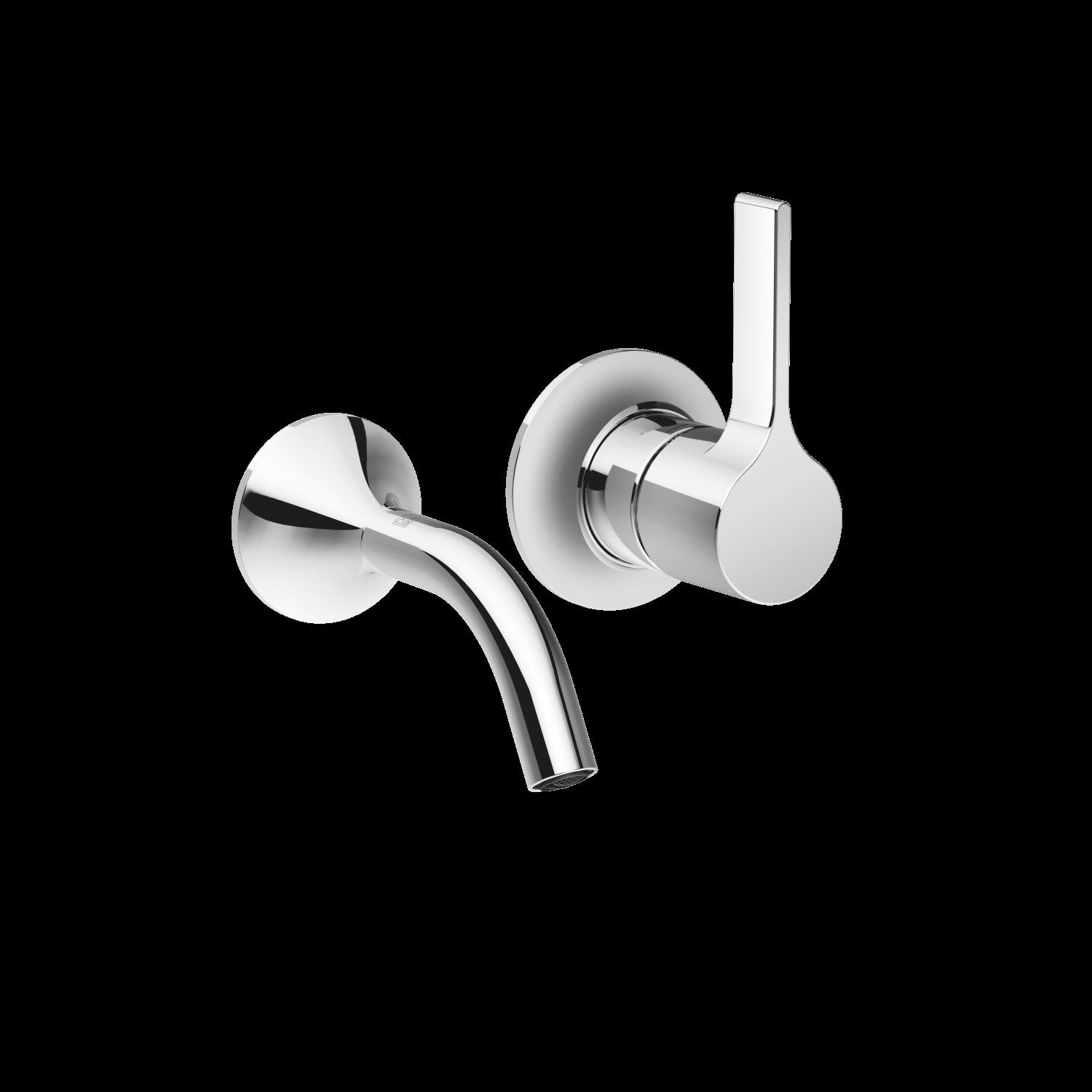

Dornbracht 36867809 Vaia Wall-Mounted Single-Lever Mixer Without Drain

Dornbracht 36867809 Vaia Wall-Mounted Single-Lever Mixer Without Drain

SKU: 36867809
$1,228.80
$1,536.00 Save 20%
Free Shipping Included
DESIGNERS AND PROFESSIONALSCALL TO DISCUSS YOUR PROJECT888-421-1941
{"name":"Finish","position":1,"values":["Chrome","Brushed Platinum","Platinum","Brushed Durabrass 23kt Gold","Brushed Dark Brass PVD","Brushed Bronze PVD","Brushed Dark Bronze PVD","Brushed Champagne 22kt Gold","Champagne 22kt Gold","Brushed Dark Platinum"]}
Finish: Chrome Item # 36867809-000010 View Specifications
TrustGuard
NEED ASSISTANCE?

Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.

Product Info

Description

  • 125mm projection
  • fixed spout
  • circular, air-enriched flow
  • hole diameter spout 37 mm
  • hole diameter single-lever mixer 57 mm
  • rosette for single-lever mixer Ø 78mm
  • rosette for spout Ø 60mm
  • max. flow 4.5 l/min
  • lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Connection dimension (DN/G): via separate concealed rough part
  • Drain fitting (with/without): without pop-up waste
  • Total height (mm): 141
  • Total width (mm): 169
  • Total Depth (mm): 133
  • Throat (mm): 125
  • Flow rate (l/min): 4.5
  • Recommended hot water temperature (°C): 60
  • Permissible flow pressure: 1 - 5 bar
  • Recommended flow pressure: 3 bar
  • Thermal disinfection (5:00 min.) ≤ 70 °C
  • Low pressure: No
  • Weight (kg): 1,01
  • 5 year guarantee

Additional Info

  • Brand:Dornbracht
  • Manufacturer Part #:36867809

Product Options

,DNB-36867809-000010,DNB-36867809-060010,DNB-36867809-080010,DNB-36867809-280010,DNB-36867809-460010,DNB-36867809-470010,DNB-36867809-990010,DNB-36867809-390010,DNB-36867809-420010,DNB-36867809-430010|,Chrome,Brushed Platinum,Platinum,Brushed Durabrass 23kt Gold,Brushed Champagne 22kt Gold,Champagne 22kt Gold,Brushed Dark Platinum,Brushed Dark Brass PVD,Brushed Bronze PVD,Brushed Dark Bronze PVD|,1536.00,2457.70,2457.70,3686.40,3686.40,3686.40,2457.70,2410.80,2457.70,2764.80|,1228.80,1966.16,1966.16,2949.12,2949.12,2949.12,1966.16,1928.64,1966.16,2211.84||,43279742992575,43279743025343,43279743058111,43279743090879,43279743123647,43279743156415,43279743189183|,28,28,28,28,28,28,28,28,28,28|,36867809-000010,36867809-060010,36867809-080010,36867809-280010,36867809-460010,36867809-470010,36867809-990010,36867809-390010,36867809-420010,36867809-430010
