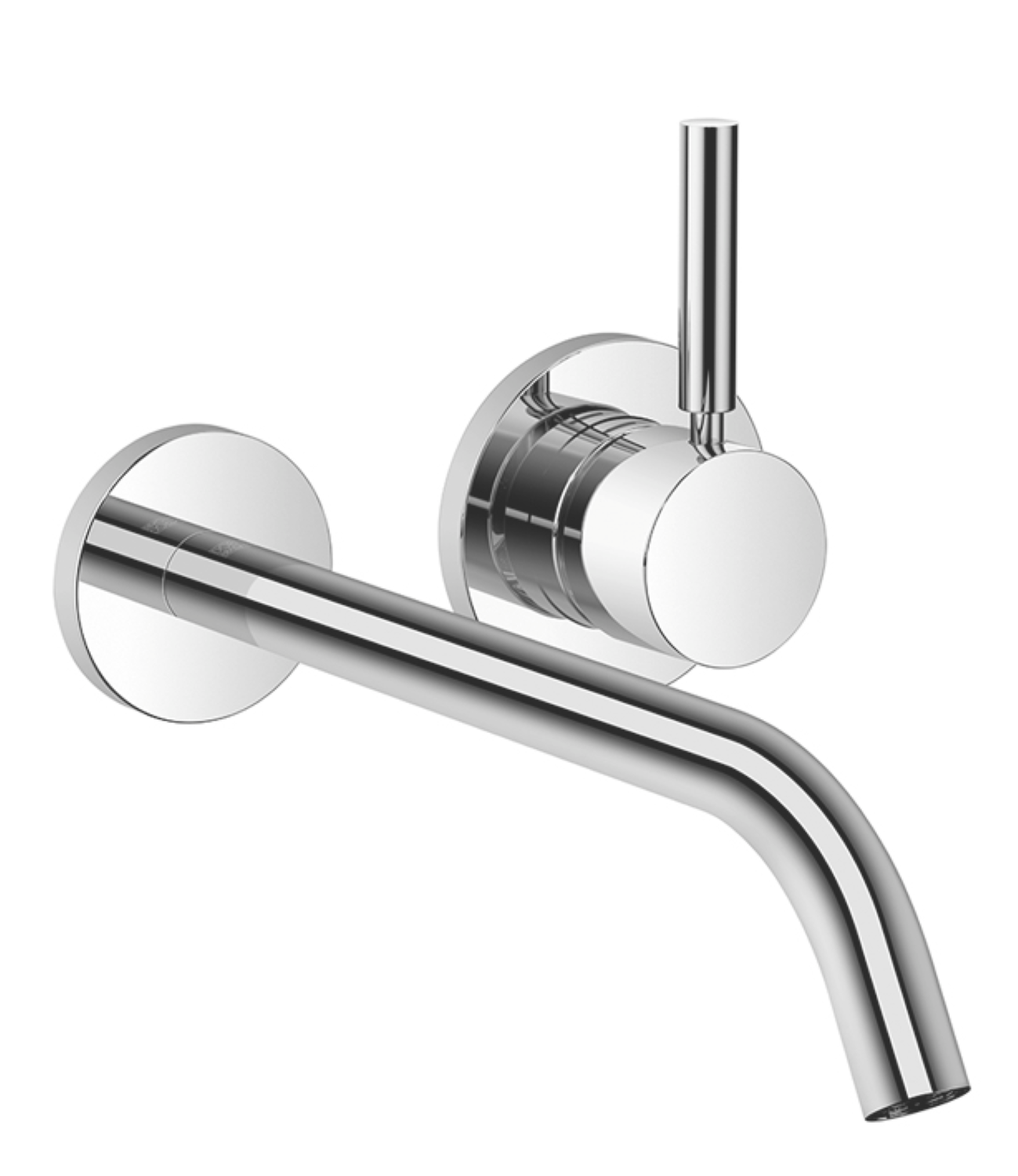

Dornbracht 36861660 Meta Wall-Mounted Single-Lever Mixer Without Drain

Dornbracht 36861660 Meta Wall-Mounted Single-Lever Mixer Without Drain

SKU: 36861660
$1,122.56
$1,403.20 Save 20%
Free Shipping Included
DESIGNERS AND PROFESSIONALSCALL TO DISCUSS YOUR PROJECT888-421-1941
{"name":"Finish","position":1,"values":["Polished Chrome","Platinum Matte","Dark Chrome","Light Gold PVD","Brushed Light Gold PVD","Matte Black","Brushed Gold PVD","Brushed Dark Brass PVD","Brushed Bronze PVD","Brushed Dark Bronze PVD","Chrome Matte","Brushed Dark Platinum"]}
Finish: Polished Chrome Item # 36861660-000010 View Specifications
TrustGuard
NEED ASSISTANCE?

Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.

Product Info

Description

  • 250mm projection
  • fixed spout
  • circular, air-enriched flow
  • hole diameter spout 37 mm
  • hole diameter single-lever mixer 57 mm
  • rosette for spout Ø 55mm
  • rosette for mixer Ø 78mm
  • max. flow 4.5 l/min
  • lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Connection dimension (DN/G): via separate concealed rough part
  • Drain fitting (with/without): without pop-up waste
  • Total height (mm): 137
  • Total width (mm): 169
  • Total Depth (mm): 258
  • Throat (mm): 250
  • Flow rate (l/min): 4.5
  • Recommended hot water temperature (°C): 60
  • Permissible flow pressure: 1 - 5 bar
  • Recommended flow pressure: 3 bar
  • Thermal disinfection (5:00 min.) ≤ 70 °C
  • Low pressure: No
  • Weight (kg): 0,93
  • 5 year guarantee
  • Required miscellaneous: Alternatives 1: 1 x

Additional Info

  • Brand:Dornbracht
  • Manufacturer Part #:36861660
