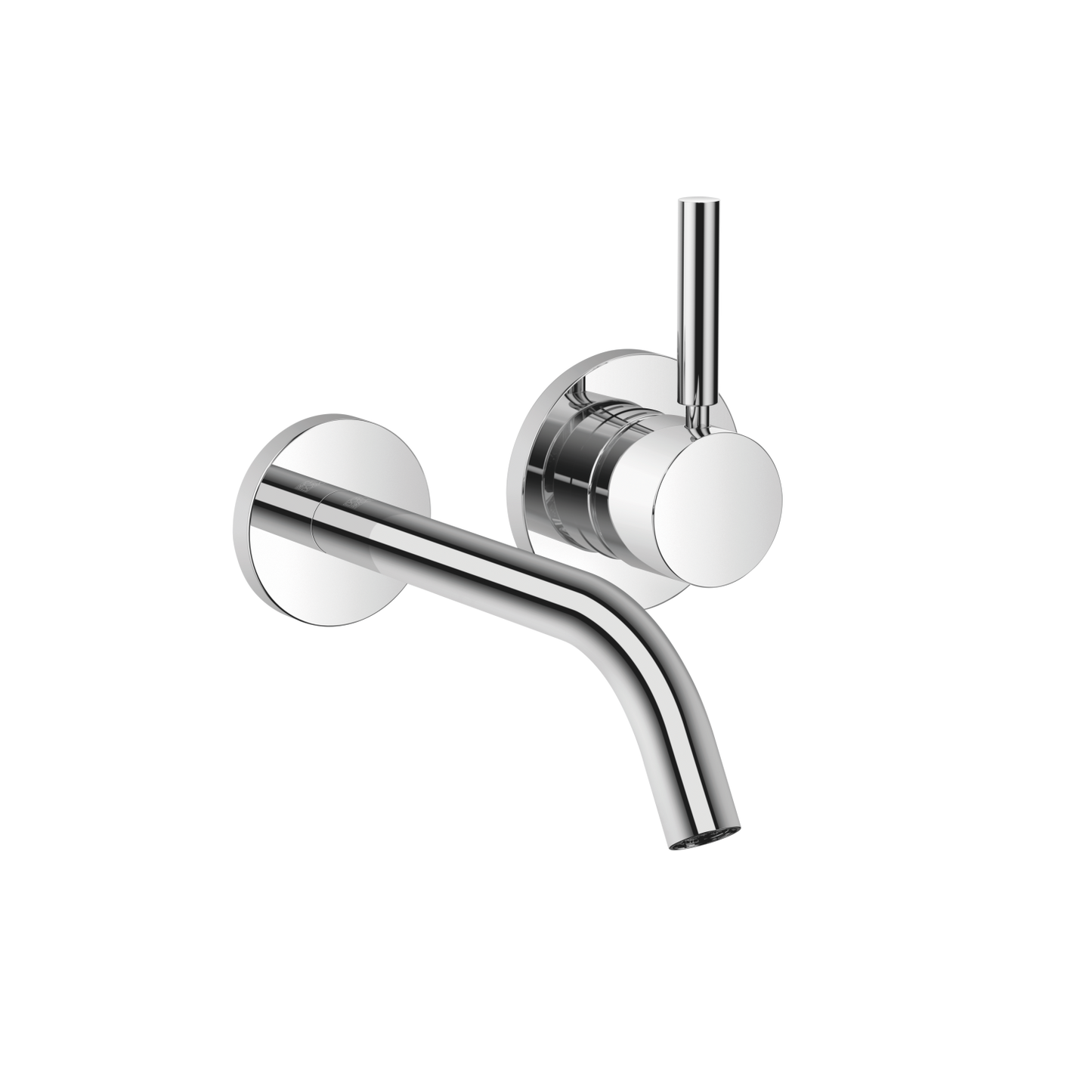

Dornbracht 36860660 Meta Wall-Mounted Single-Lever Mixer Without Drain
Dornbracht 36860660 Meta Wall-Mounted Single-Lever Mixer Without Drain
SKU: 36860660
$1,020.64
Unit price
per
$1,275.80
Save 20%
Free Shipping Included
5-7 Days
contact us for more details
NEED ASSISTANCE?
Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.
Product Info
Description
- 190mm projection
- fixed spout
- circular, air-enriched flow
- hole diameter spout 37 mm
- hole diameter single-lever mixer 57 mm
- rosette for spout Ø 55mm
- rosette for mixer Ø 78mm
- max. flow 4.5 l/min
- lead-free
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- Connection dimension (DN/G): via separate concealed rough part
- Drain fitting (with/without): without pop-up waste
- Total height (mm): 137
- Total width (mm): 169
- Total Depth (mm): 198
- Throat (mm): 190
- Flow rate (l/min): 4.5
- Recommended hot water temperature (°C): 60
- Permissible flow pressure: 1 - 5 bar
- Recommended flow pressure: 3 bar
- Thermal disinfection (5:00 min.) ≤ 70 °C
- Low pressure: No
- Weight (kg): 1,24
- 5 year guarantee
- Required miscellaneous: Alternatives 1: 1 x
| Application area | Basin |
|---|---|
| Country of origin | DEU |
| Article width | 169 mm |
| Article height | 137 mm |
| Article depth | 198 mm |
| Flow rate 3 bar | 4.5 l/min |
| Flow rate Max. | 4.5 l/min |
| Net weight | 1,24 kg |
Additional Info
- Brand:Dornbracht
- Manufacturer Part #:36860660
Product Options
,DNB-36860660-000010,DNB-36860660-190010,DNB-36860660-330010,DNB-36860660-930010,DNB-36860660-060010,DNB-36860660-260010,DNB-36860660-270010,DNB-36860660-370010,DNB-36860660-390010,DNB-36860660-420010,DNB-36860660-430010,DNB-36860660-990010|,Polished Chrome,Dark Chrome,Matte Black,Chrome Matte,Platinum Matte,Light Gold (PVD),Brushed Light Gold (PVD),Brushed Gold (PVD),Brushed Dark Brass (PVD),Brushed Bronze (PVD),Brushed Dark Bronze (PVD),Brushed Dark Platinum|,1275.80,1913.50,1722.10,1658.40,2041.10,1913.50,1913.50,1913.70,2041.20,2041.10,2296.40,2041.10|,1020.64,1530.80,1377.68,1326.72,1632.88,1530.80,1530.80,1530.96,1632.96,1632.88,1837.12,1632.88||,43279738732735,43279738896575,43279738962111,43279739093183,43279739125951|,28,28,28,28,28,28,28,28,28,28,28,28|,36860660-000010,36860660-190010,36860660-330010,36860660-930010,36860660-060010,36860660-260010,36860660-270010,36860660-370010,36860660-390010,36860660-420010,36860660-430010,36860660-990010
