Shop the Collection: Meta Square
Brand: Dornbracht

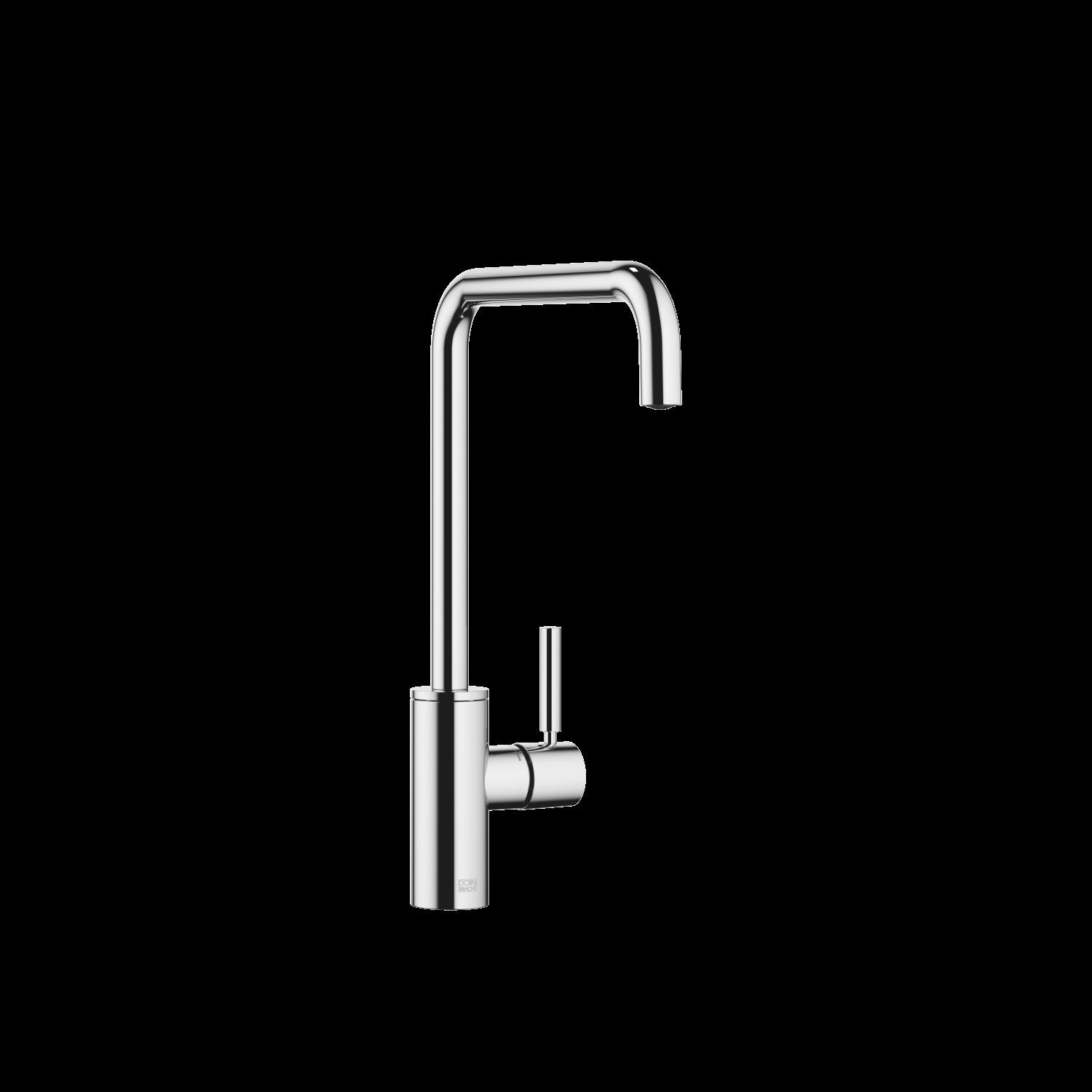

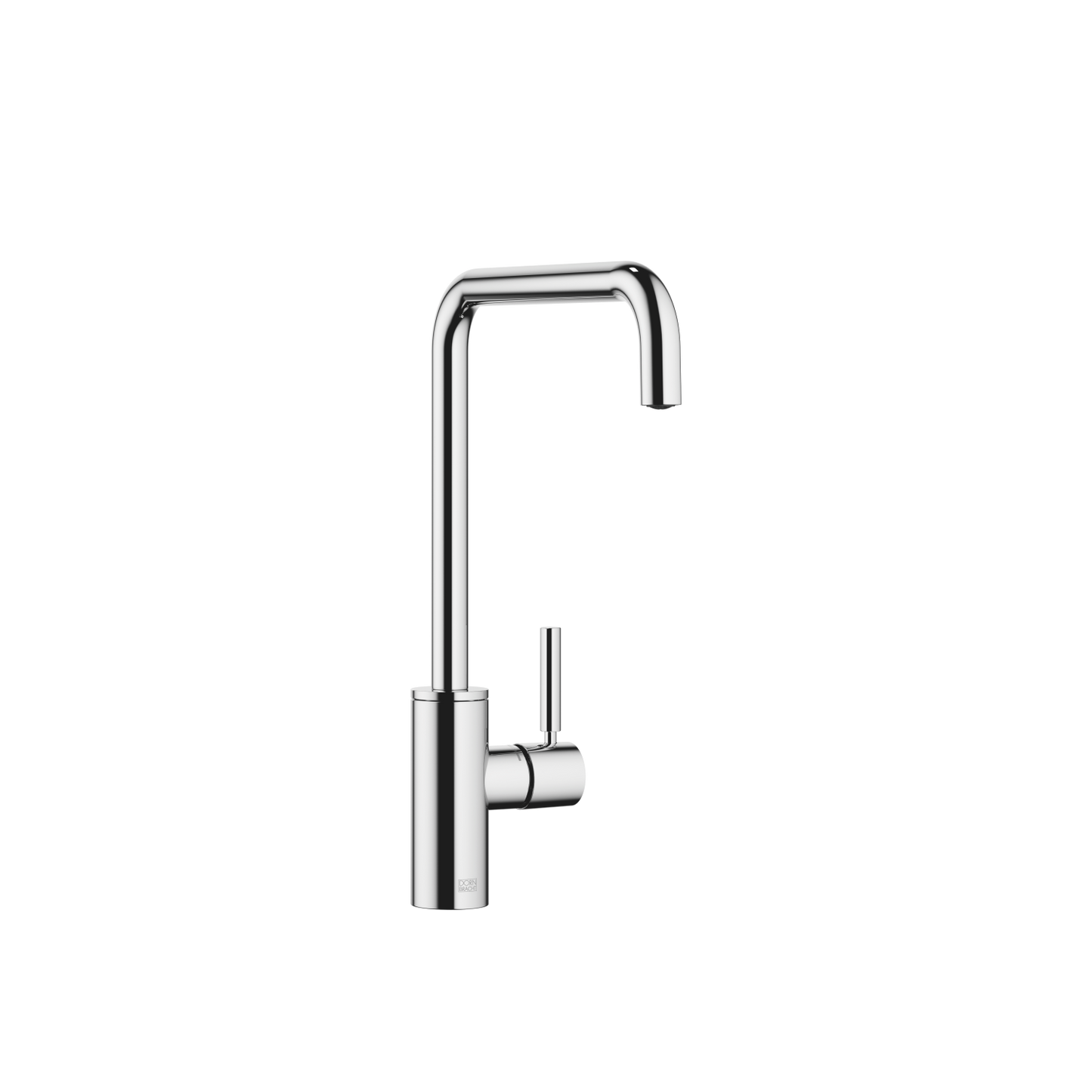

Dornbracht 33815861 Meta Square Single-Lever Mixer

Dornbracht 33815861 Meta Square Single-Lever Mixer

SKU: 33815861
$1,213.84
$1,517.30 Save 20%
Free Shipping Included
DESIGNERS AND PROFESSIONALSCALL TO DISCUSS YOUR PROJECT888-421-1941
{"name":"Finish","position":1,"values":["Chrome","Brushed Platinum","Platinum","Dark Chrome","Brushed Durabrass 23kt Gold","Matte Black","Brushed Dark Brass PVD","Brushed Bronze PVD","Brushed Champagne 22kt Gold","Champagne 22kt Gold","Brushed Chrome","Brushed Dark Platinum"]}
Finish: Chrome Item # 33815861-000010 View Specifications
TrustGuard
NEED ASSISTANCE?

Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.

Product Info

Description

  • 235mm projection
  • pivotable spout 360°
  • Optional swivel limiter available with swivel limiter set 12 820 970 90
  • air-enriched flow
  • height of mixer 357 mm
  • height up to aerator 282 mm
  • hole diameter 35 mm
  • 2 x pressure hose with 3/8" cap nut
  • max. flow 5.7 l/min at 3 bar flow pressure
  • lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Not compatible with a rinse spray set.
  • Mounting type: Floor mounting
  • Tap hole variant: 1 tap hole
  • Throat (mm): 235
  • Height to aerator (mm): 282
  • Swivel range: pivoting
  • Flow rate (l/min): 5.7
  • Recommended hot water temperature (°C): 60
  • Permissible flow pressure: 1 - 5 bar
  • Recommended flow pressure: 3 bar
  • Thermal disinfection (5:00 min.) ≤ 70 °C
  • Low pressure: No
  • Weight (kg): 3,08
  • 5 year guarantee

Additional Info

  • Brand:Dornbracht
  • Manufacturer Part #:33815861

Product Options

,DNB-33815861-190010,DNB-33815861-280010,DNB-33815861-330010,DNB-33815861-460010,DNB-33815861-470010,DNB-33815861-930010,DNB-33815861-990010,DNB-33815861-390010,DNB-33815861-420010,DNB-33815861-000010,DNB-33815861-060010,DNB-33815861-080010|,Dark Chrome,Brushed Durabrass 23kt Gold,Matte Black,Brushed Champagne 22kt Gold,Champagne 22kt Gold,Brushed Chrome,Brushed Dark Platinum,Brushed Dark Brass PVD,Brushed Bronze PVD,Chrome,Brushed Platinum,Platinum|,2276.00,3641.50,2048.40,3641.50,3641.50,1972.50,2427.70,2427.70,2427.70,1517.30,2427.70,2427.70|,1820.80,2913.20,1638.72,2913.20,2913.20,1578.00,1942.16,1942.16,1942.16,1213.84,1942.16,1942.16||,43210438836415,43210438901951,43210438934719,43210438967487,43210439033023,43210439098559,43210439164095,43210438705343,43210438738111,43210438770879|,28,28,28,28,28,28,28,28,28,28,28,28|,33815861-190010,33815861-280010,33815861-330010,33815861-460010,33815861-470010,33815861-930010,33815861-990010,33815861-390010,33815861-420010,33815861-000010,33815861-060010,33815861-080010
View full details
