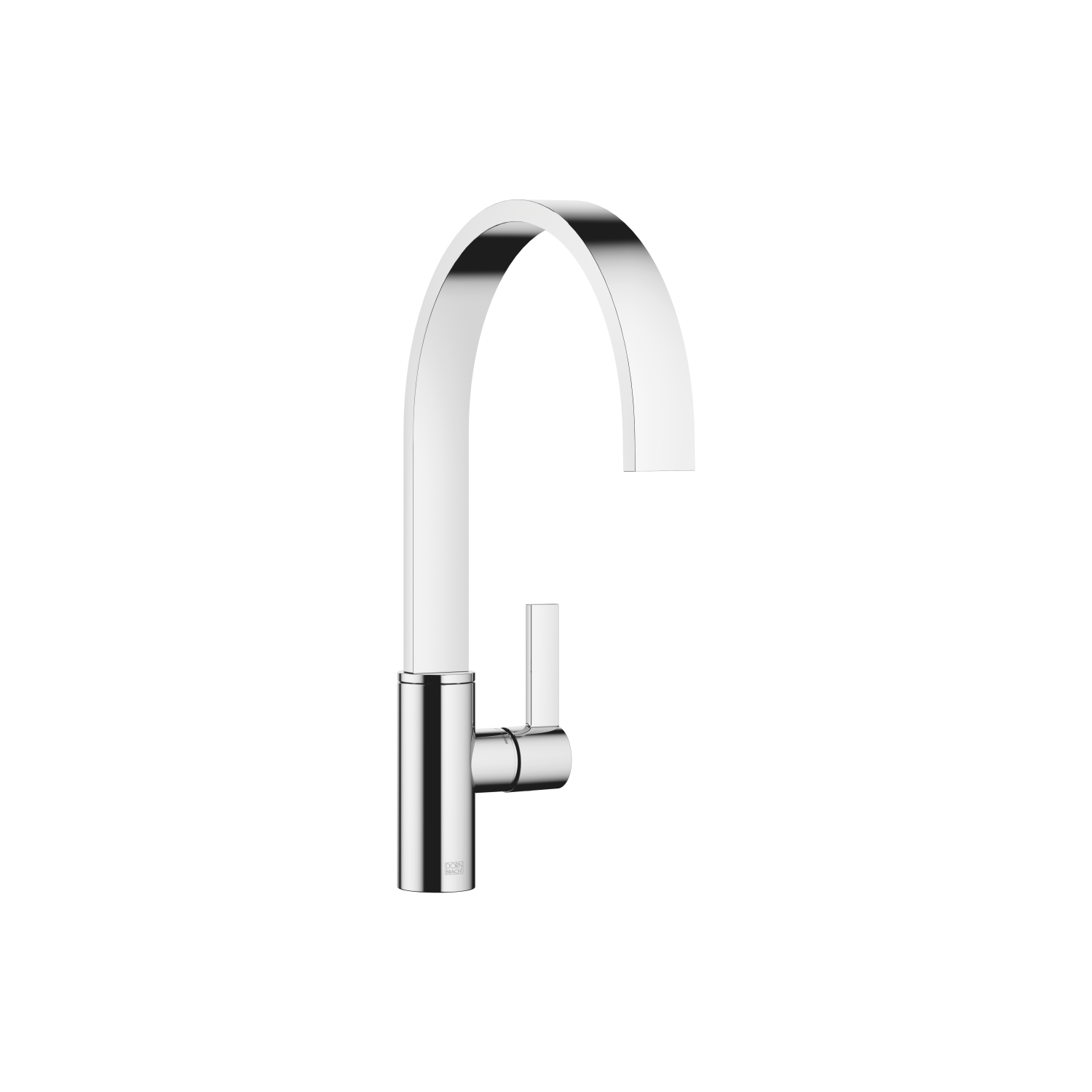

Dornbracht 33815682 Mem Single-Lever Mixer

Dornbracht 33815682 Mem Single-Lever Mixer

SKU: 33815682
$1,624.00
$2,030.00 Save 20%
Free Shipping Included
DESIGNERS AND PROFESSIONALSCALL TO DISCUSS YOUR PROJECT888-421-1941
{"name":"Finish","position":1,"values":["Chrome","Brushed Platinum","Platinum","Dark Chrome","Brushed Durabrass 23kt Gold","Matte Black","Brushed Bronze PVD","Brushed Champagne 22kt Gold","Champagne 22kt Gold","Brushed Chrome","Brushed Dark Platinum"]}
Finish: Chrome Item # 33815682-000010 View Specifications
TrustGuard
NEED ASSISTANCE?

Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.

Product Info

Description

  • 241mm projection
  • pivotable spout 360°
  • Optional swivel limiter available with swivel limiter set 12 820 970 90
  • air-enriched flow
  • height of mixer 382 mm
  • height up to aerator 241 mm
  • hole diameter 35 mm
  • 2 x pressure hose with 3/8" cap nut
  • max. flow 5.7 l/min at 3 bar flow pressure
  • lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Mounting type: Floor mounting
  • Tap hole variant: 1 tap hole
  • Throat (mm): 241
  • Height to aerator (mm): 241
  • Swivel range: pivoting
  • Flow rate (l/min): 5.7
  • Recommended hot water temperature (°C): 60
  • Permissible flow pressure: 1 - 5 bar
  • Recommended flow pressure: 3 bar
  • Thermal disinfection (5:00 min.) ≤ 70 °C
  • Low pressure: No
  • Weight (kg): 1,52
  • 5 year guarantee

Additional Info

  • Brand:Dornbracht
  • Manufacturer Part #:33815682

Product Options

,DNB-33815682-000010,DNB-33815682-080010,DNB-33815682-190010,DNB-33815682-280010,DNB-33815682-330010,DNB-33815682-460010,DNB-33815682-470010,DNB-33815682-930010,DNB-33815682-990010,DNB-33815682-060010,DNB-33815682-420010|,Chrome,Platinum,Dark Chrome,Brushed Durabrass 23kt Gold,Matte Black,Brushed Champagne 22kt Gold,Champagne 22kt Gold,Brushed Chrome,Brushed Dark Platinum,Brushed Platinum,Brushed Bronze PVD|,2030.00,3247.90,3044.90,4872.00,2740.40,4872.00,4872.00,2638.90,3044.90,3247.90,3247.90|,1624.00,2598.32,2435.92,3897.60,2192.32,3897.60,3897.60,2111.12,2435.92,2598.32,2598.32||,43279745810623,43279745843391,43279745908927,43279745941695,43279746072767,43279746138303,43279746203839,43279746236607,43279746302143,43279746367679|,28,28,28,28,28,28,28,28,28,28,28|,33815682-000010,33815682-080010,33815682-190010,33815682-280010,33815682-330010,33815682-460010,33815682-470010,33815682-930010,33815682-990010,33815682-060010,33815682-420010
