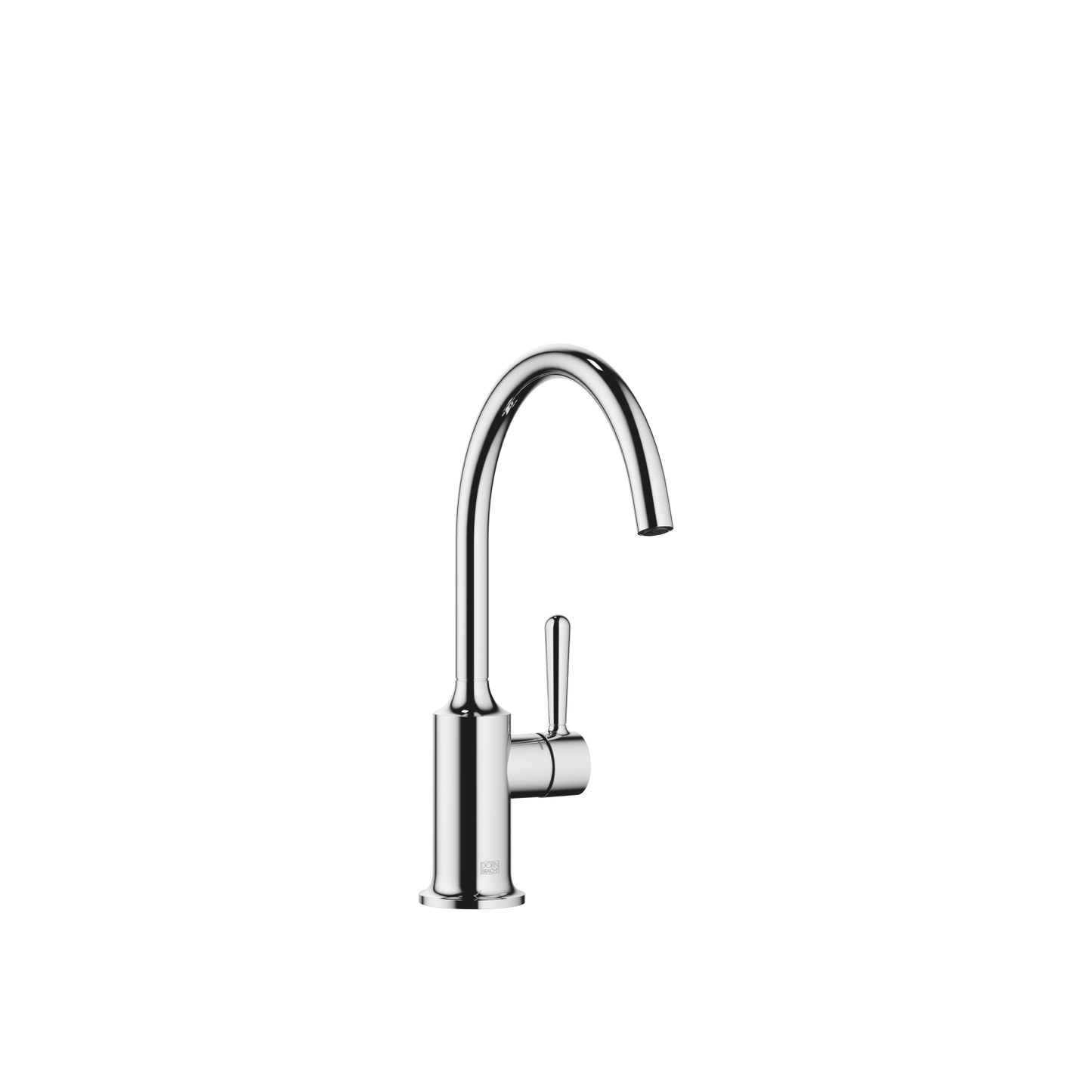

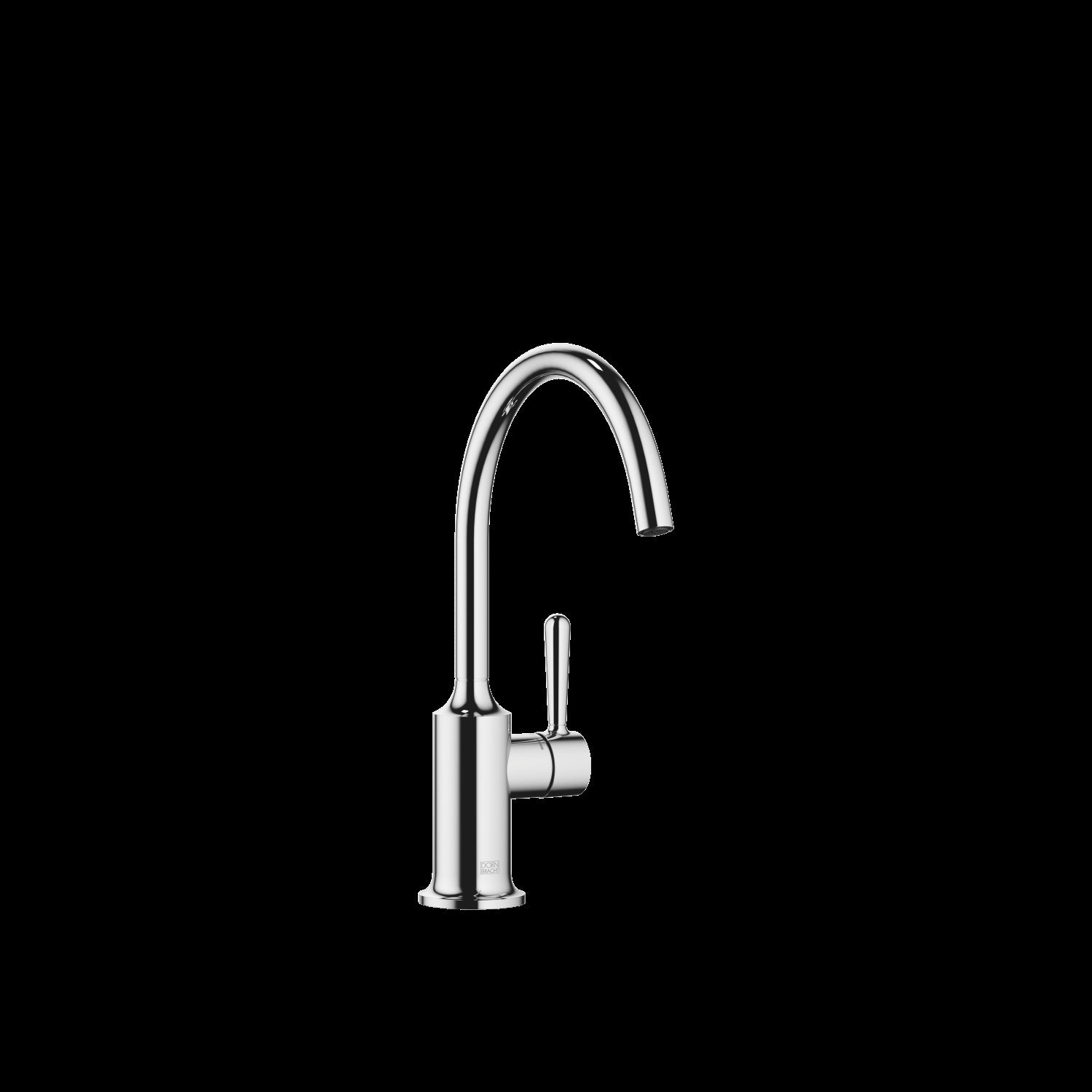

Dornbracht 33800809 Vaia Single-Lever Mixer
Dornbracht 33800809 Vaia Single-Lever Mixer
SKU: 33800809
No reviews
$1,472.72
Unit price
/
per
$1,840.90
Save 20%
Free Shipping Included
5-7 Days
contact us for more details
{"name":"Finish","position":1,"values":["Chrome","Brushed Platinum","Platinum","Durabrass 23kt Gold","Dark Chrome","Brushed Durabrass 23kt Gold","Matte Black","Brushed Dark Brass PVD","Brushed Bronze PVD","Brushed Champagne 22kt Gold","Champagne 22kt Gold","Brushed Chrome","Brushed Dark Platinum"]}
Couldn't load pickup availability
NEED ASSISTANCE?
Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.
Product Info
Description
- 202mm projection
- pivotable spout 360°
- air-enriched flow
- height of mixer 314 mm
- height up to aerator 215 mm
- hole diameter 35 mm
- 2 x pressure hose with 3/8" cap nut
- max. flow 5.6 l/min at 3 bar flow pressure
- lead-free
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- Mounting type: Floor mounting
- Tap hole variant: 1 tap hole
- Total height (mm): 314
- Total width (mm): 92
- Total Depth (mm): 240
- Throat (mm): 202
- Height to aerator (mm): 215
- Flow rate (l/min): 5.6
- Recommended hot water temperature (°C): 60
- Permissible flow pressure: 1 - 5 bar
- Recommended flow pressure: 3 bar
- Thermal disinfection (5:00 min.) ≤ 70 °C
- Low pressure: No
- Weight (kg): 1,95
- 5 year guarantee
Additional Info
- Brand:Dornbracht
- Manufacturer Part #:33800809
