Shop the Collection: Mem
Brand: Dornbracht

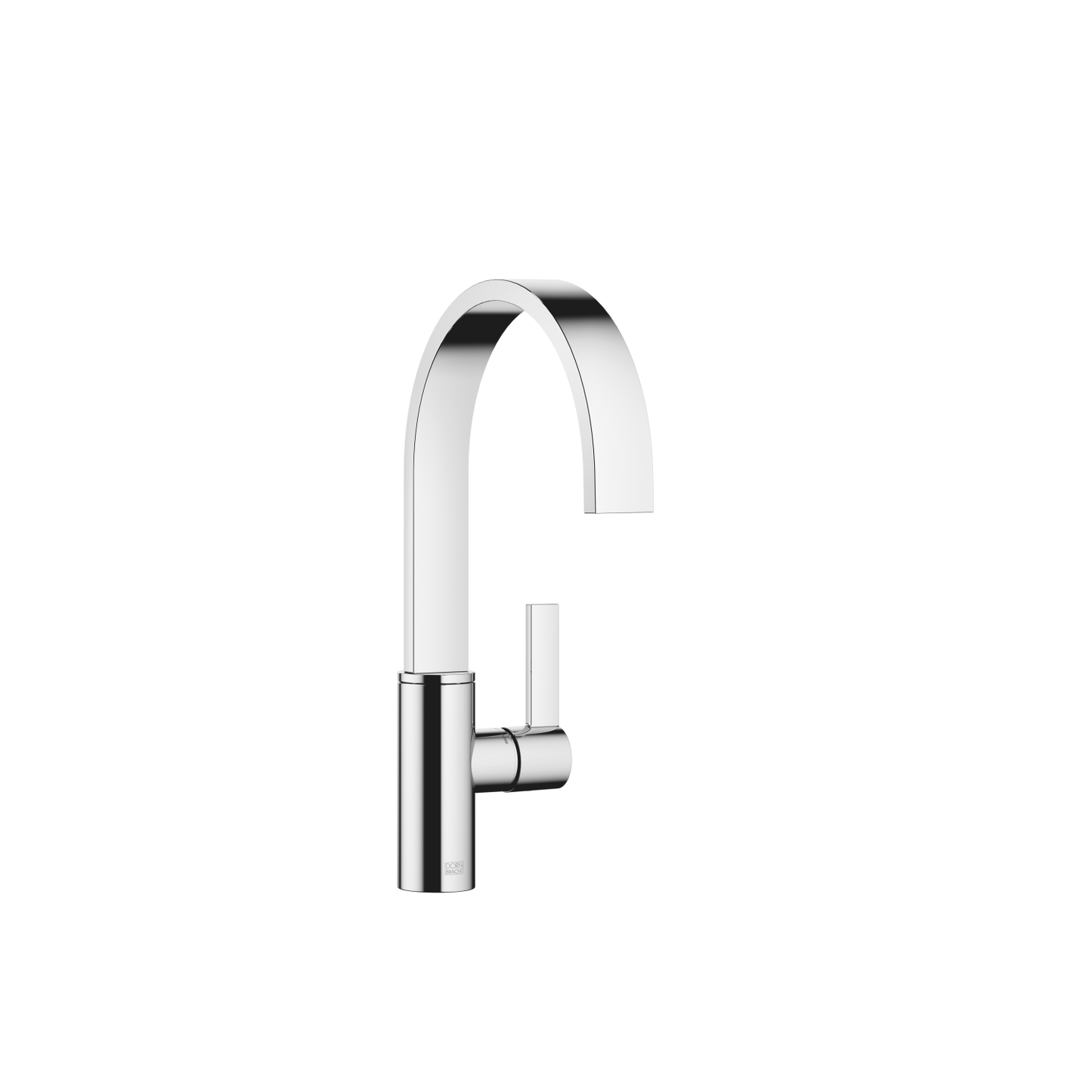

Dornbracht 33800682 Mem Single-Lever Mixer

Dornbracht 33800682 Mem Single-Lever Mixer

SKU: 33800682
$1,482.08
$1,852.60 Save 20%
Free Shipping Included
DESIGNERS AND PROFESSIONALSCALL TO DISCUSS YOUR PROJECT888-421-1941
{"name":"Finish","position":1,"values":["Chrome","Brushed Platinum","Platinum","Dark Chrome","Brushed Durabrass 23kt Gold","Matte Black","Brushed Bronze PVD","Brushed Champagne 22kt Gold","Champagne 22kt Gold","Brushed Chrome","Brushed Dark Platinum"]}
Finish: Chrome Item # 33800682-000010 View Specifications
TrustGuard
NEED ASSISTANCE?

Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.

Product Info

Description

  • 201mm projection
  • pivotable spout 360°
  • Optional swivel limiter available with swivel limiter set 12 820 970 90
  • air-enriched flow
  • height of mixer 340 mm
  • height up to aerator 218 mm
  • hole diameter 35 mm
  • 2 x pressure hose with 3/8" cap nut
  • max. flow 5.7 l/min at 3 bar flow pressure
  • lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Mounting type: Floor mounting
  • Tap hole variant: 1 tap hole
  • Total height (mm): 340
  • Total width (mm): 100
  • Total Depth (mm): 229
  • Throat (mm): 201
  • Height to aerator (mm): 218
  • Swivel range: pivoting
  • Flow rate (l/min): 5.7
  • Recommended hot water temperature (°C): 60
  • Permissible flow pressure: 1 - 5 bar
  • Recommended flow pressure: 3 bar
  • Thermal disinfection (5:00 min.) ≤ 70 °C
  • Low pressure: No
  • Weight (kg): 1,52
  • 5 year guarantee

Additional Info

  • Brand:Dornbracht
  • Manufacturer Part #:33800682
