Shop the Collection: Lot
Brand: Dornbracht

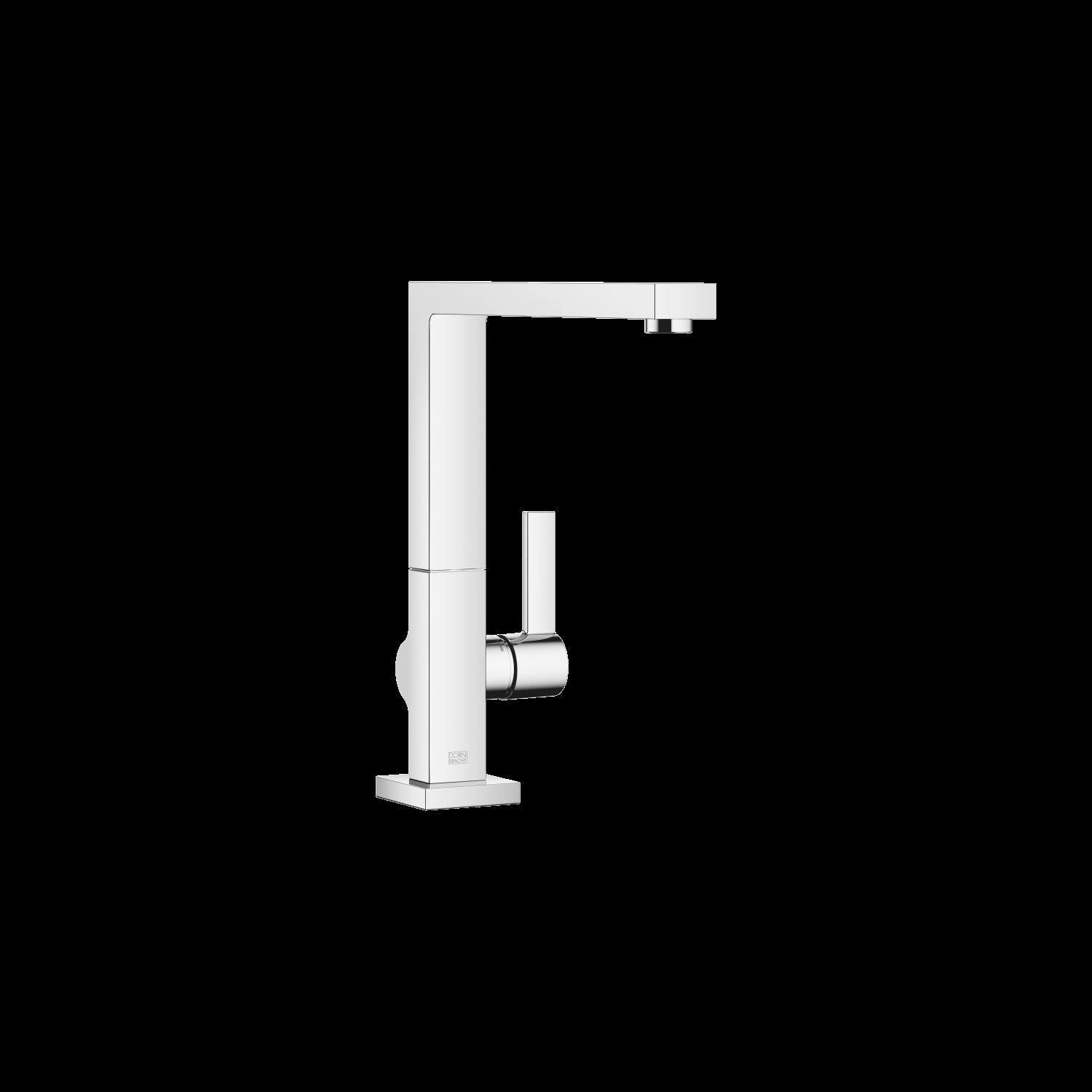

Dornbracht 33800680 Lot Single-Lever Mixer

Dornbracht 33800680 Lot Single-Lever Mixer

SKU: 33800680
$2,125.44
$2,656.80 Save 20%
Free Shipping Included
DESIGNERS AND PROFESSIONALSCALL TO DISCUSS YOUR PROJECT888-421-1941
{"name":"Finish","position":1,"values":["Chrome","Brushed Platinum","Platinum","Dark Chrome","Brushed Durabrass 23kt Gold","Brushed Bronze PVD","Brushed Champagne 22kt Gold","Champagne 22kt Gold","Brushed Dark Platinum"]}
Finish: Chrome Item # 33800680-000010 View Specifications
TrustGuard
NEED ASSISTANCE?

Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.

Product Info

Description

  • 236mm projection
  • pivotable spout 360°
  • air-enriched flow
  • height of mixer 292 mm
  • height up to aerator 267 mm
  • hole diameter 35 mm
  • 2 x pressure hose with 3/8" cap nut
  • max. flow 5.7 l/min at 3 bar flow pressure
  • lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Mounting type: Floor mounting
  • Tap hole variant: 1 tap hole
  • Total height (mm): 292
  • Total width (mm): 101
  • Total Depth (mm): 281
  • Throat (mm): 236
  • Height to aerator (mm): 267
  • Swivel range: pivoting
  • Flow rate (l/min): 5.7
  • Recommended hot water temperature (°C): 60
  • Permissible flow pressure: 1 - 5 bar
  • Recommended flow pressure: 3 bar
  • Thermal disinfection (5:00 min.) ≤ 70 °C
  • Low pressure: No
  • Weight (kg): 3,86
  • 5 year guarantee

Additional Info

  • Brand:Dornbracht
  • Manufacturer Part #:33800680

Product Options

,DNB-33800680-000010,DNB-33800680-060010,DNB-33800680-080010,DNB-33800680-190010,DNB-33800680-280010,DNB-33800680-460010,DNB-33800680-470010,DNB-33800680-990010,DNB-33800680-420010|,Chrome,Brushed Platinum,Platinum,Dark Chrome,Brushed Durabrass 23kt Gold,Brushed Champagne 22kt Gold,Champagne 22kt Gold,Brushed Dark Platinum,Brushed Bronze PVD|,2656.80,4250.80,4250.80,3985.10,6376.30,6376.30,6376.30,4250.80,4250.80|,2125.44,3400.64,3400.64,3188.08,5101.04,5101.04,5101.04,3400.64,3400.64||,43210453909695,43210454040767,43210454073535,43210454106303,43210454139071,43210454171839,43210454204607,43210454237375|,28,28,28,28,28,28,28,28,28|,33800680-000010,33800680-060010,33800680-080010,33800680-190010,33800680-280010,33800680-460010,33800680-470010,33800680-990010,33800680-420010
