Shop the Collection: Vaia
Brand: Dornbracht

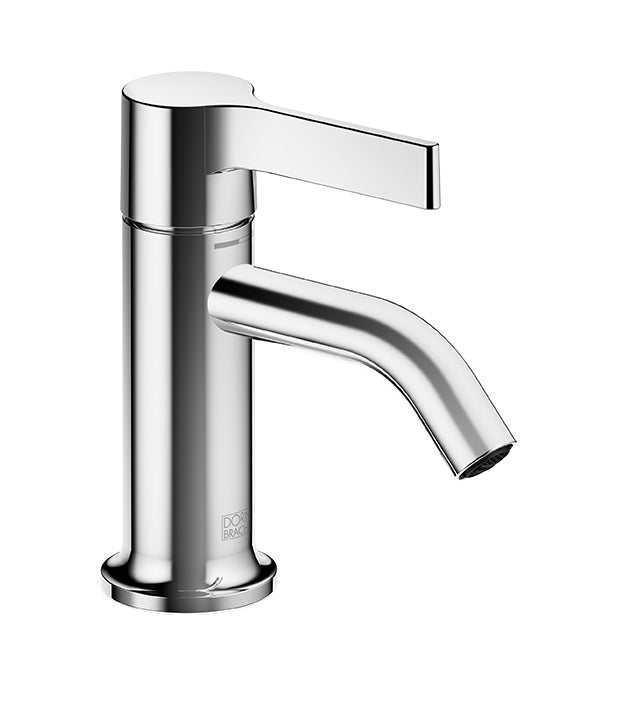

Dornbracht 33522809 Vaia Single-Lever Lavatory Mixer Without Drain

Dornbracht 33522809 Vaia Single-Lever Lavatory Mixer Without Drain

SKU: 33522809
$1,005.36
$1,256.70 Save 20%
Free Shipping Included
DESIGNERS AND PROFESSIONALSCALL TO DISCUSS YOUR PROJECT888-421-1941
{"name":"Finish","position":1,"values":["Chrome","Brushed Platinum","Platinum","Brushed Durabrass 23kt Gold","Brushed Dark Brass PVD","Brushed Bronze PVD","Brushed Dark Bronze PVD","Brushed Champagne 22kt Gold","Champagne 22kt Gold","Brushed Dark Platinum"]}
Finish: Chrome Item # 33522809-000010 View Specifications
TrustGuard
NEED ASSISTANCE?

Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.

Product Info

Description

  • 106mm projection
  • fixed spout
  • circular, air-enriched flow
  • height of mixer 141 mm
  • height up to aerator 56 mm
  • hole diameter 35 mm
  • 2 x pressure hose with 3/8" cap nut
  • max. flow 4.5 l/min
  • lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Mounting type: Floor mounting
  • Tap hole variant: 1 tap hole
  • Drain fitting (with/without): without pop-up waste
  • Total height (mm): 141
  • Total width (mm): 48
  • Total Depth (mm): 136
  • Throat (mm): 106
  • Height to aerator (mm): 56
  • Flow rate (l/min): 4.5
  • Recommended hot water temperature (°C): 60
  • Permissible flow pressure: 1 - 5 bar
  • Recommended flow pressure: 3 bar
  • Thermal disinfection (5:00 min.) ≤ 70 °C
  • Low pressure: No
  • Weight (kg): 1,28
  • 5 year guarantee

Additional Info

  • Brand:Dornbracht
  • Manufacturer Part #:33522809
