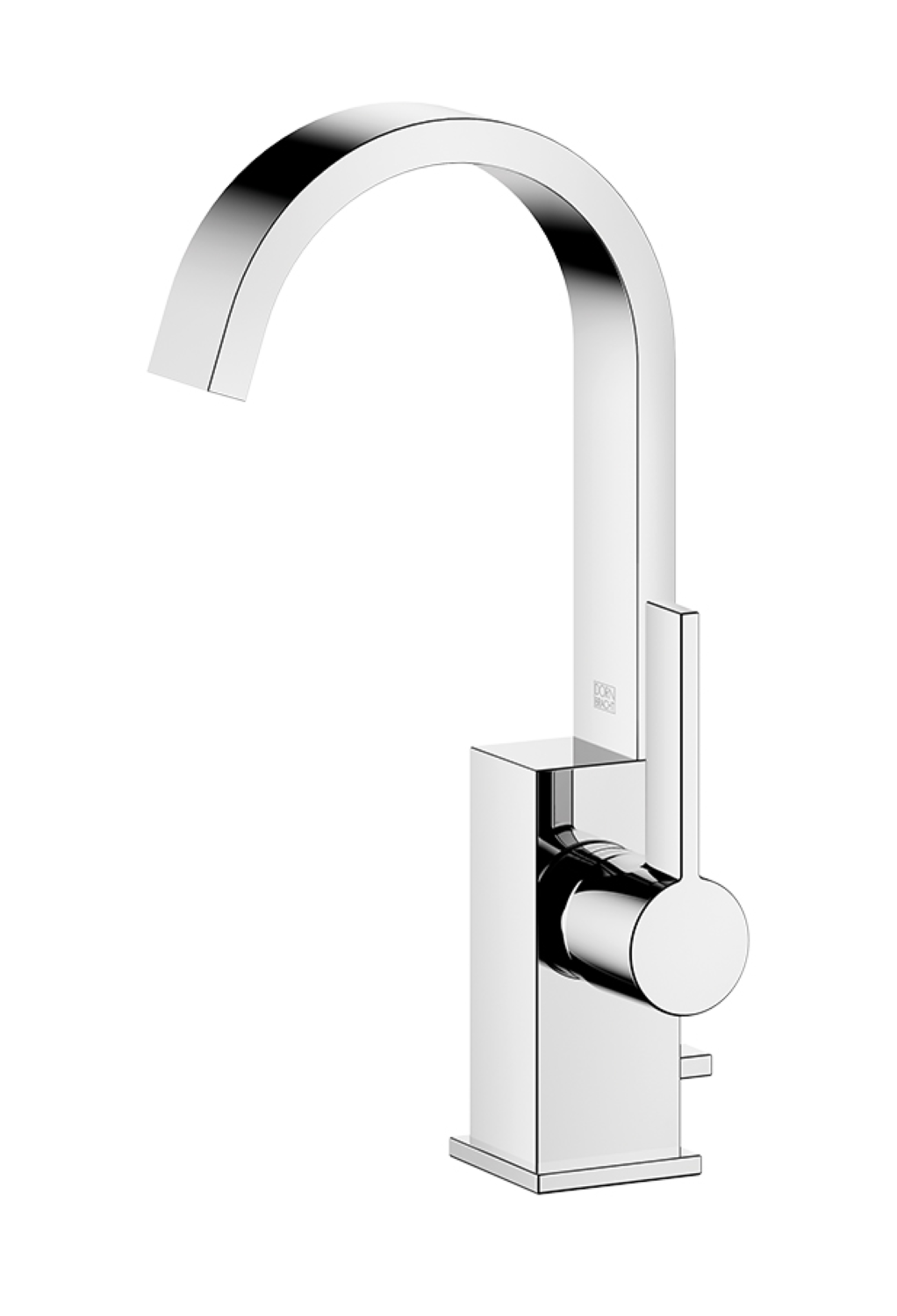

Dornbracht 33502782 Mem Single-Lever Lavatory Mixer With Drain
Dornbracht 33502782 Mem Single-Lever Lavatory Mixer With Drain
SKU: 33502782
$2,066.80
Unit price
per
$2,583.50
Save 20%
Free Shipping Included
5-7 Days
contact us for more details
NEED ASSISTANCE?
Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.
Product Info
Description
- 113mm projection
- 1 1/4" pop-up waste
- fixed spout
- rectangular, air-enriched flow
- height of mixer 284 mm
- height up to aerator 216 mm
- hole diameter 35 mm
- 2x screw-in M 10 x 1 pressure hose, leak-tested
- 2x US pressure hose, 3/8"
- max. flow 4.5 l/min
- lead-free
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- Only suitable for basins with an overflow.
- Mounting type: Floor mounting
- Tap hole variant: 1 tap hole
- Drain fitting (with/without): 1" US pop-up waste with pull-rod activation
- Total height (mm): 284
- Total width (mm): 88
- Total Depth (mm): 157
- Throat (mm): 113
- Height to aerator (mm): 216
- Flow rate (l/min): 4.5
- Recommended hot water temperature (°C): 60
- Permissible flow pressure: 1 - 5 bar
- Recommended flow pressure: 3 bar
- Thermal disinfection (5:00 min.) ≤ 70 °C
- Low pressure: No
- Weight (kg): 2,66
- 5 year guarantee
| Application area | Basin |
|---|---|
| Construction type | Floor mounting |
| Hole version | 1 tap hole |
| Country of origin | DEU |
| Article width | 88 mm |
| Article height | 284 mm |
| Article depth | 157 mm |
| Flow rate 3 bar | 4.5 l/min |
| Flow rate Max. | 4.5 l/min |
| Net weight | 2,66 kg |
Additional Info
- Brand:Dornbracht
- Manufacturer Part #:33502782
