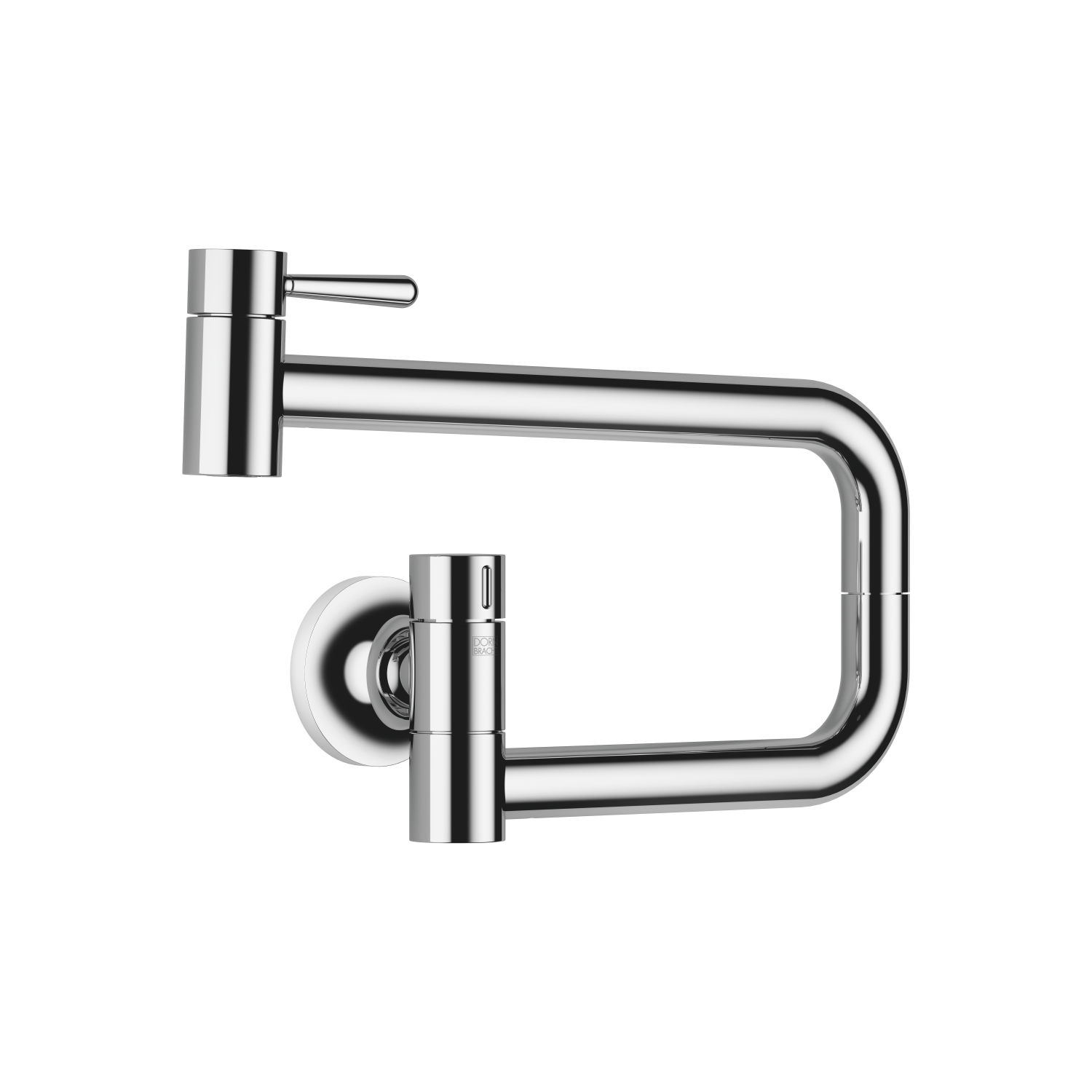

Dornbracht 30805809 Vaia Pot Filler Cold Water Valve

Dornbracht 30805809 Vaia Pot Filler Cold Water Valve

SKU: 30805809
$2,711.12
$3,388.90 Save 20%
Free Shipping Included
DESIGNERS AND PROFESSIONALSCALL TO DISCUSS YOUR PROJECT888-421-1941
{"name":"Finish","position":1,"values":["Chrome","Brushed Platinum","Platinum","Durabrass 23kt Gold","Dark Chrome","Brushed Durabrass 23kt Gold","Brushed Dark Brass PVD","Brushed Bronze PVD","Brushed Dark Bronze PVD","Brushed Champagne 22kt Gold","Champagne 22kt Gold","Brushed Chrome","Brushed Dark Platinum"]}
Finish: Chrome Item # 30805809-00 View Specifications
TrustGuard
NEED ASSISTANCE?

Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.

Product Info

Description

  • 500mm projection
  • pivoting spout
  • laminar flow
  • cold water only
  • max. flow 5.7 l/min at 3 bar flow pressure
  • two valves
  • min. recess depth 125 mm
  • max. recess depth 80 mm
  • lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • WRAS
  • Mounting type: Floor mounting
  • Tap hole variant: 1 tap hole
  • Throat (mm): 500
  • Flow rate (l/min): 5.7
  • Recommended hot water temperature (°C): 60
  • Permissible flow pressure: 1 - 5 bar
  • Recommended flow pressure: 3 bar
  • Thermal disinfection (5:00 min.) ≤ 70 °C
  • Low pressure: No
  • Weight (kg): 4,19
  • 5 year guarantee
  • Required miscellaneous: Alternatives 1: 1 x

Additional Info

  • Brand:Dornbracht
  • Manufacturer Part #:30805809

Product Options

,DNB-30805809-00,DNB-30805809-06,DNB-30805809-08,DNB-30805809-09,DNB-30805809-46,DNB-30805809-47,DNB-30805809-93,DNB-30805809-99,DNB-30805809-19,DNB-30805809-28,DNB-30805809-39,DNB-30805809-42,DNB-30805809-43|,Chrome,Brushed Platinum,Platinum,Durabrass 23kt Gold,Brushed Champagne 22kt Gold,Champagne 22kt Gold,Brushed Chrome,Brushed Dark Platinum,Dark Chrome,Brushed Durabrass 23kt Gold,Brushed Dark Brass PVD,Brushed Bronze PVD,Brushed Dark Bronze PVD|,3388.90,5422.10,5422.10,8133.40,8133.40,8133.40,4405.50,5083.30,5083.30,8133.40,5422.20,5422.10,6100.00|,2711.12,4337.68,4337.68,6506.72,6506.72,6506.72,3524.40,4066.64,4066.64,6506.72,4337.76,4337.68,4880.00||,43279744303295,43279744336063,43279744368831,43279744401599,43279744467135,43279744499903,43279744565439,43279744630975,43279744696511,43279744762047|,28,28,28,28,28,28,28,28,28,28,28,28,28|,30805809-00,30805809-06,30805809-08,30805809-09,30805809-46,30805809-47,30805809-93,30805809-99,30805809-19,30805809-28,30805809-39,30805809-42,30805809-43
