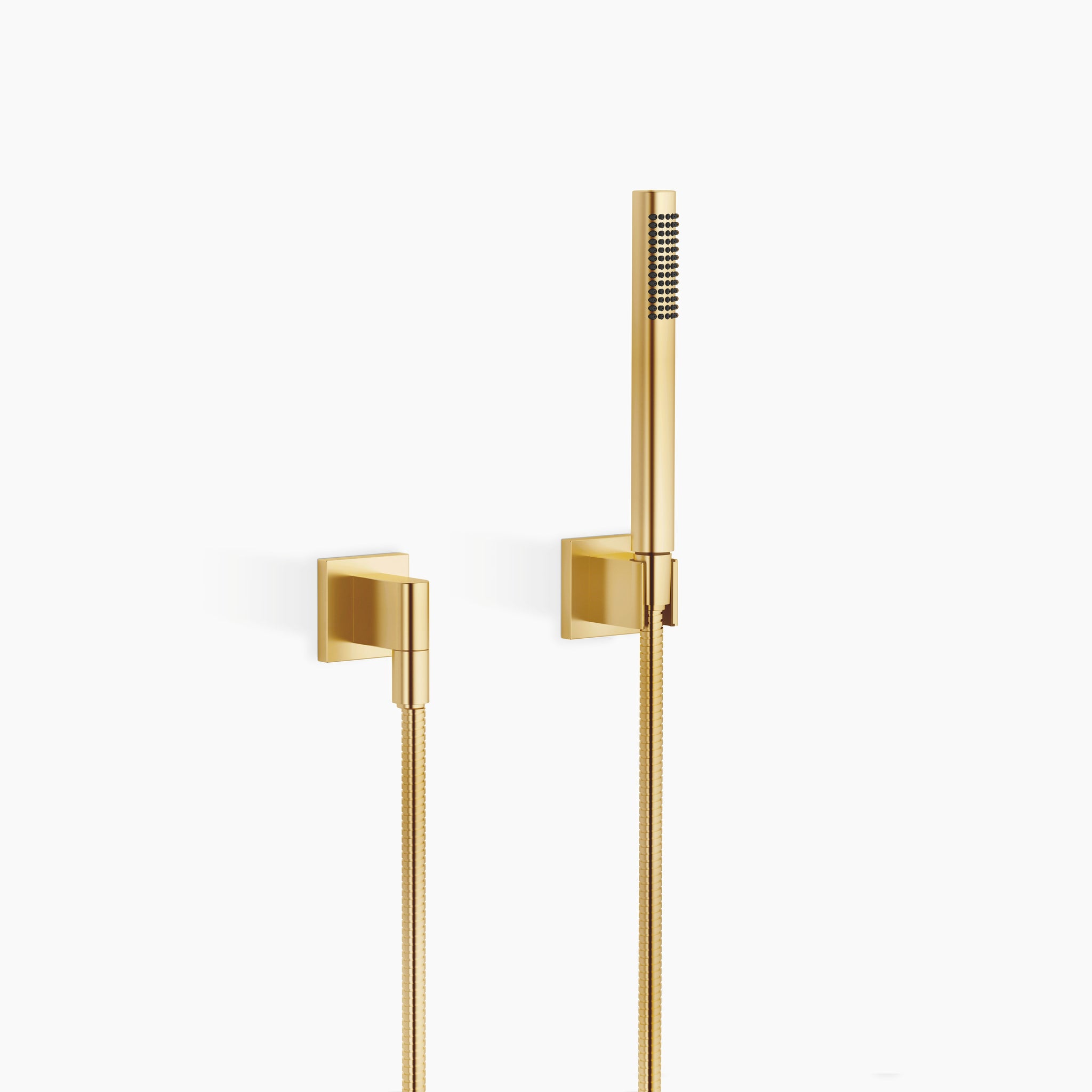

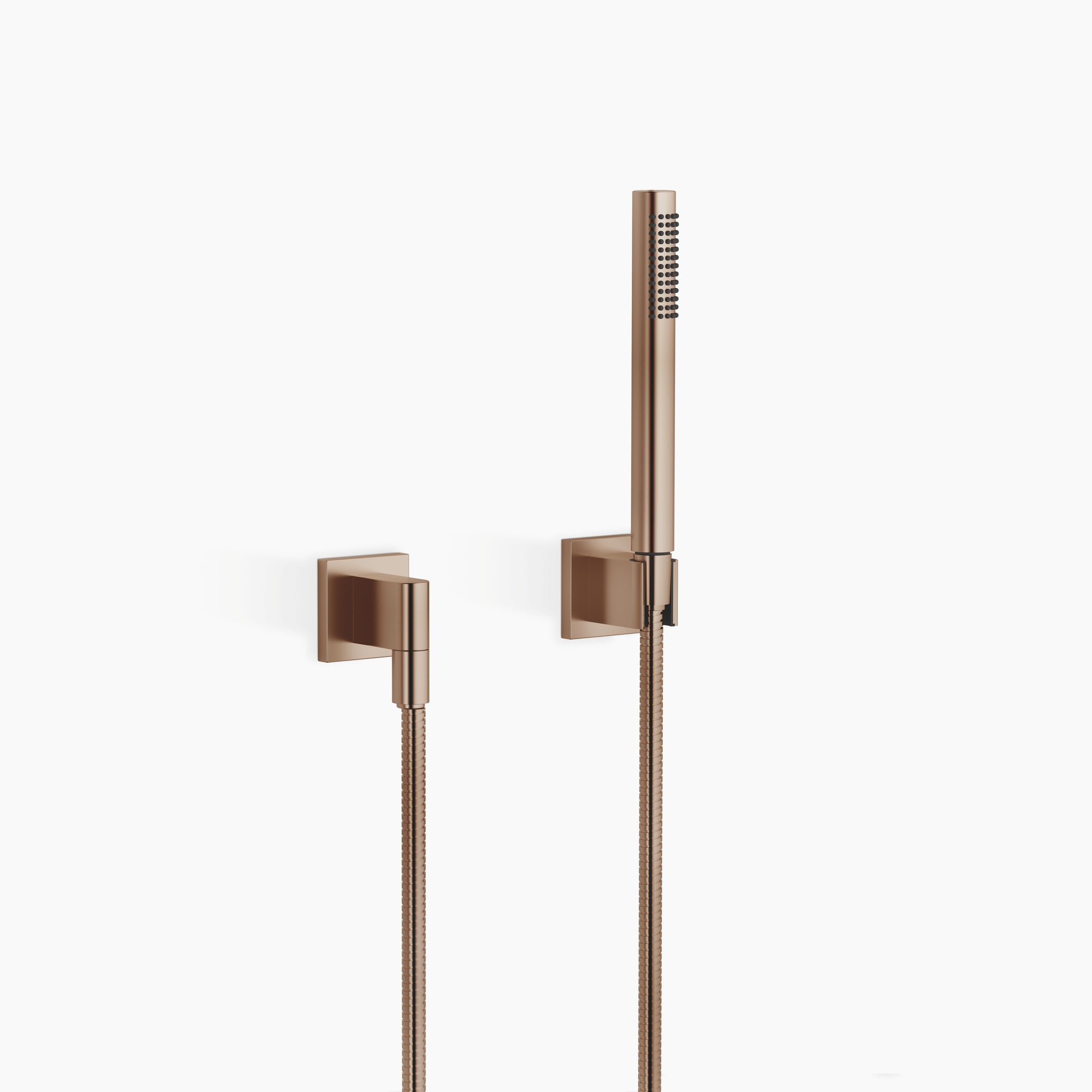

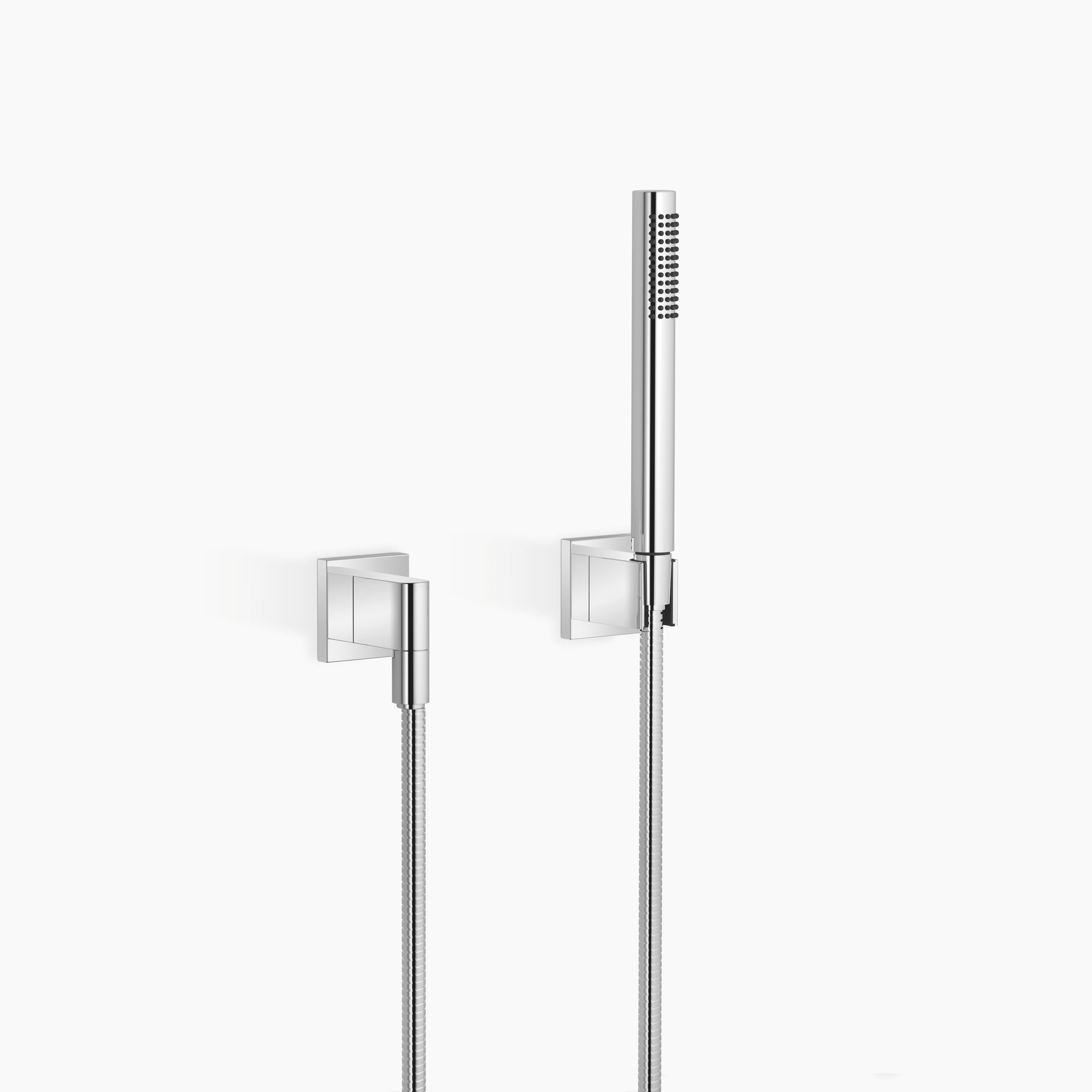

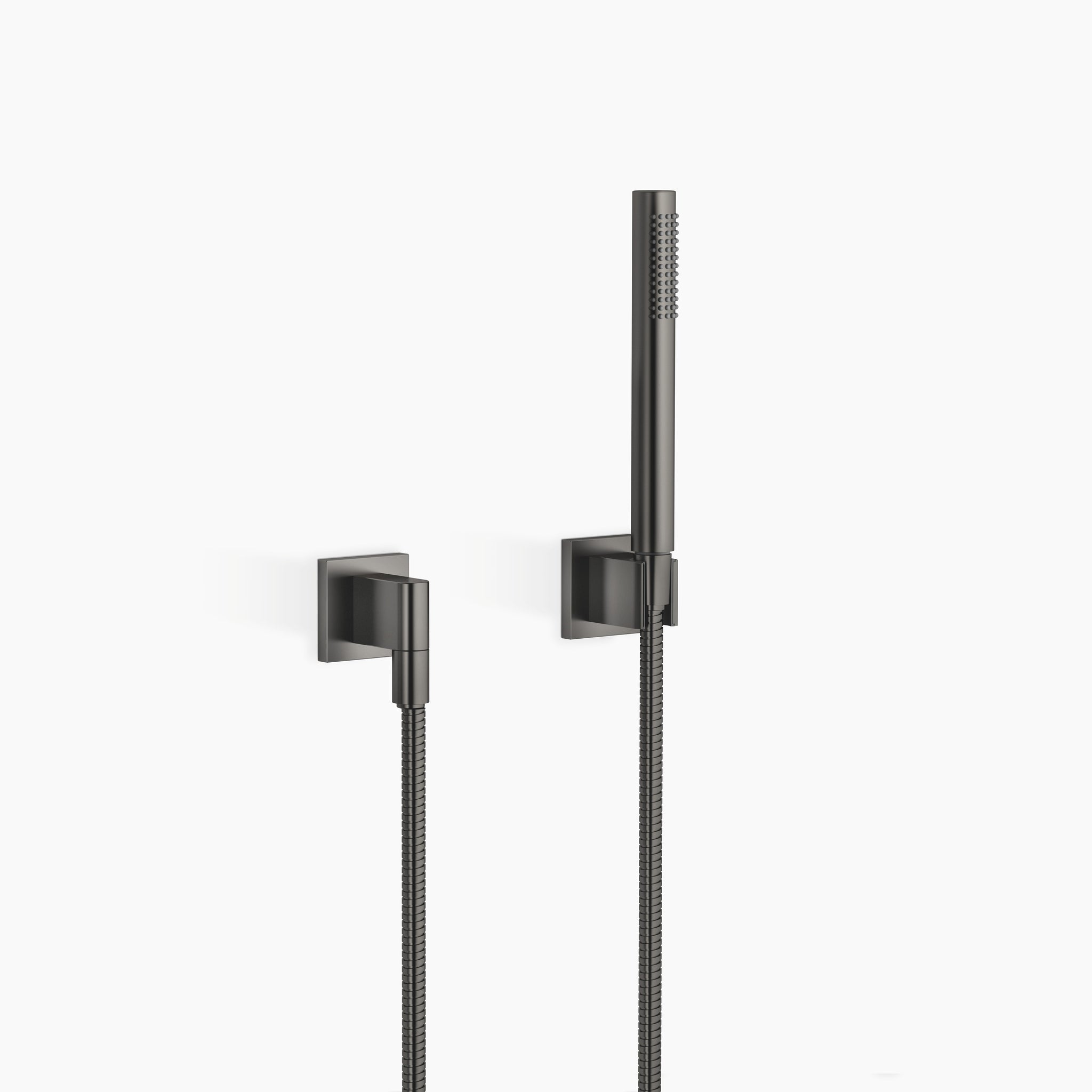

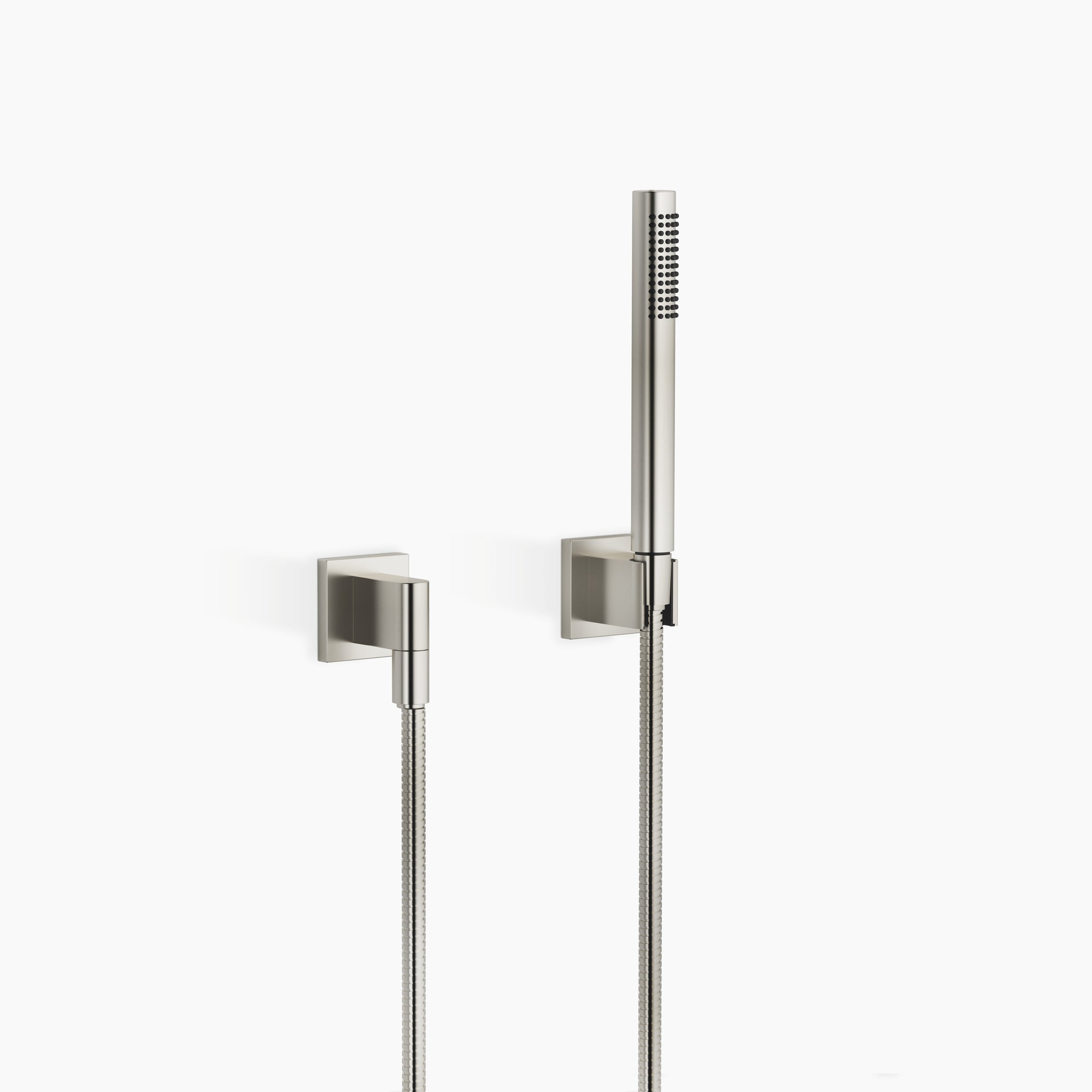

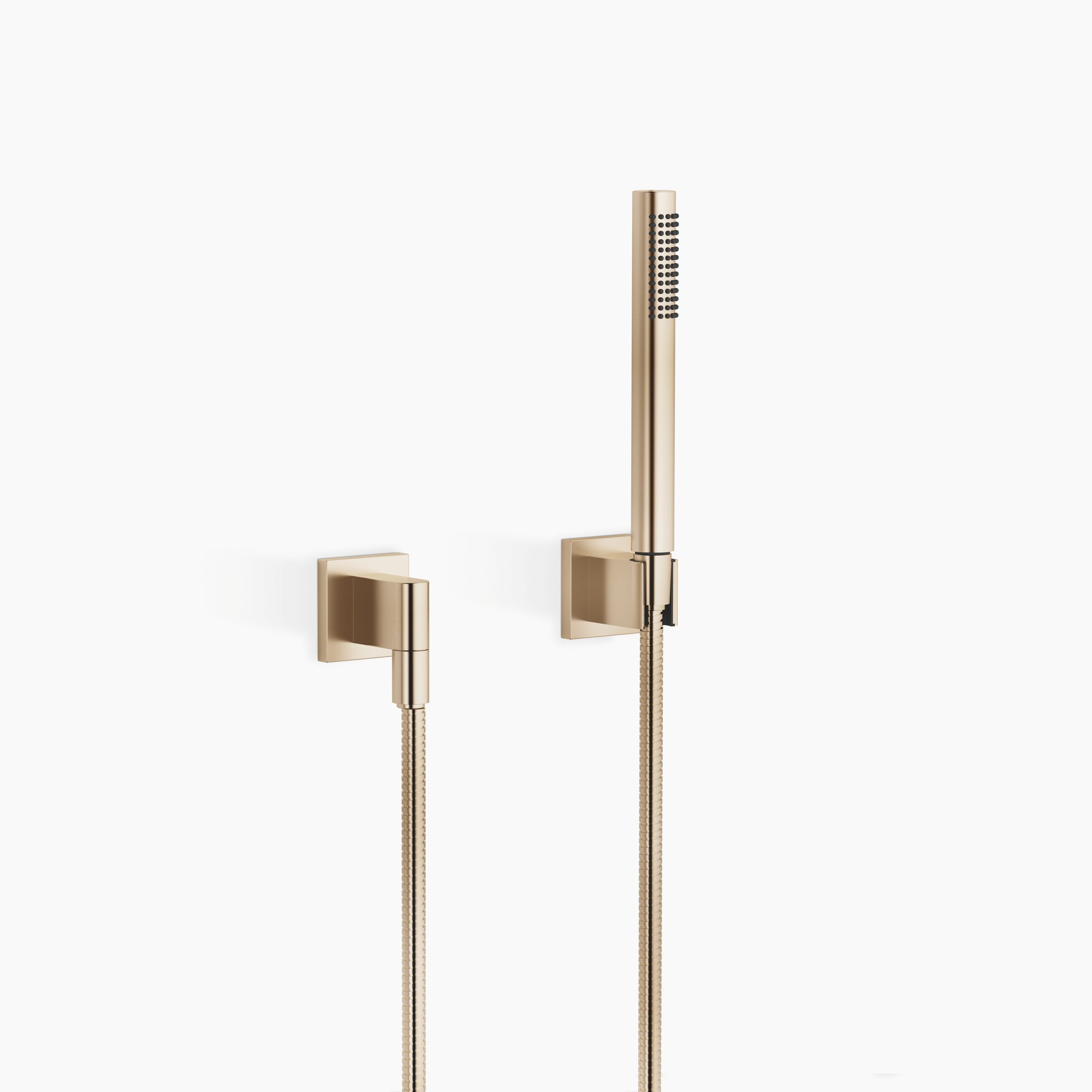

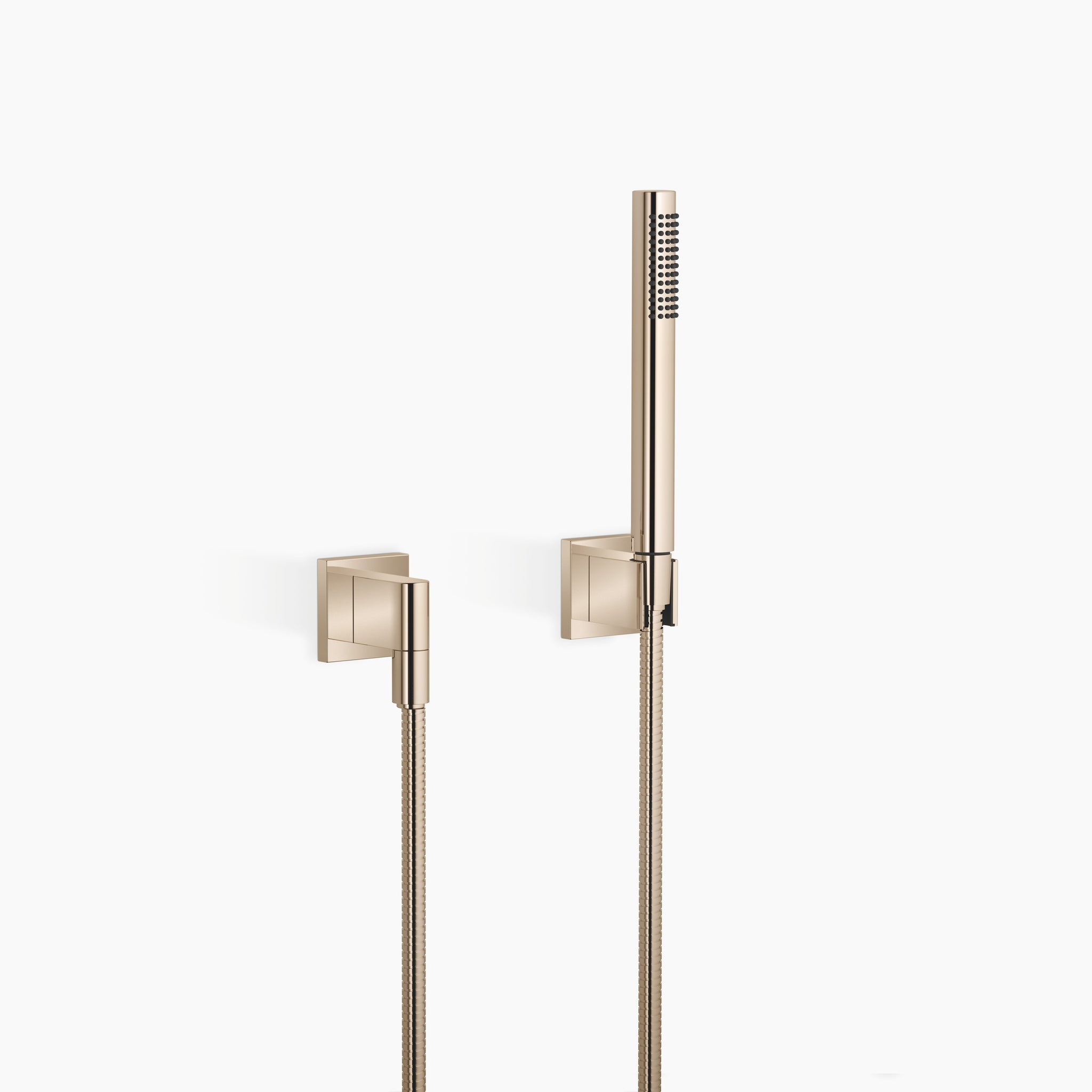

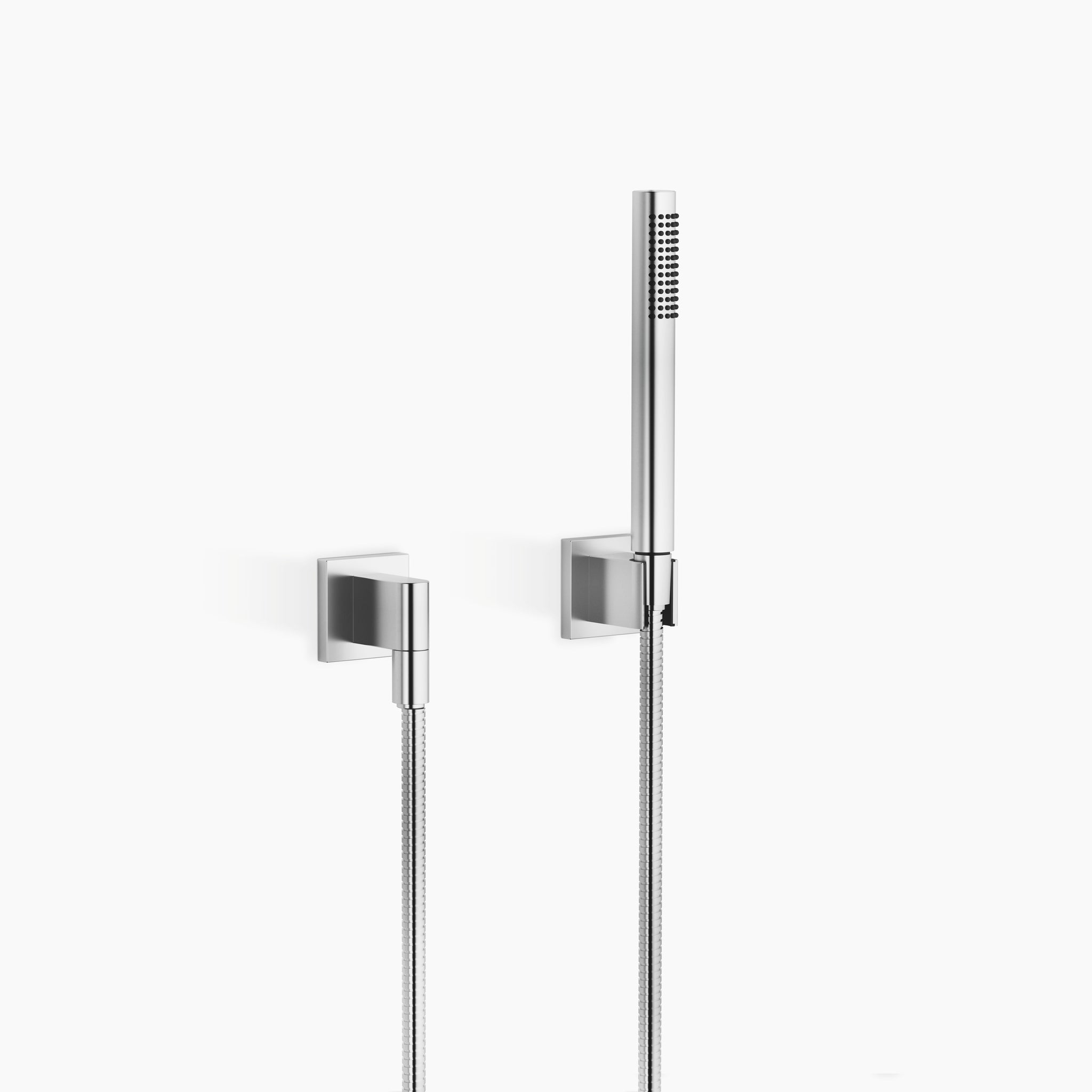

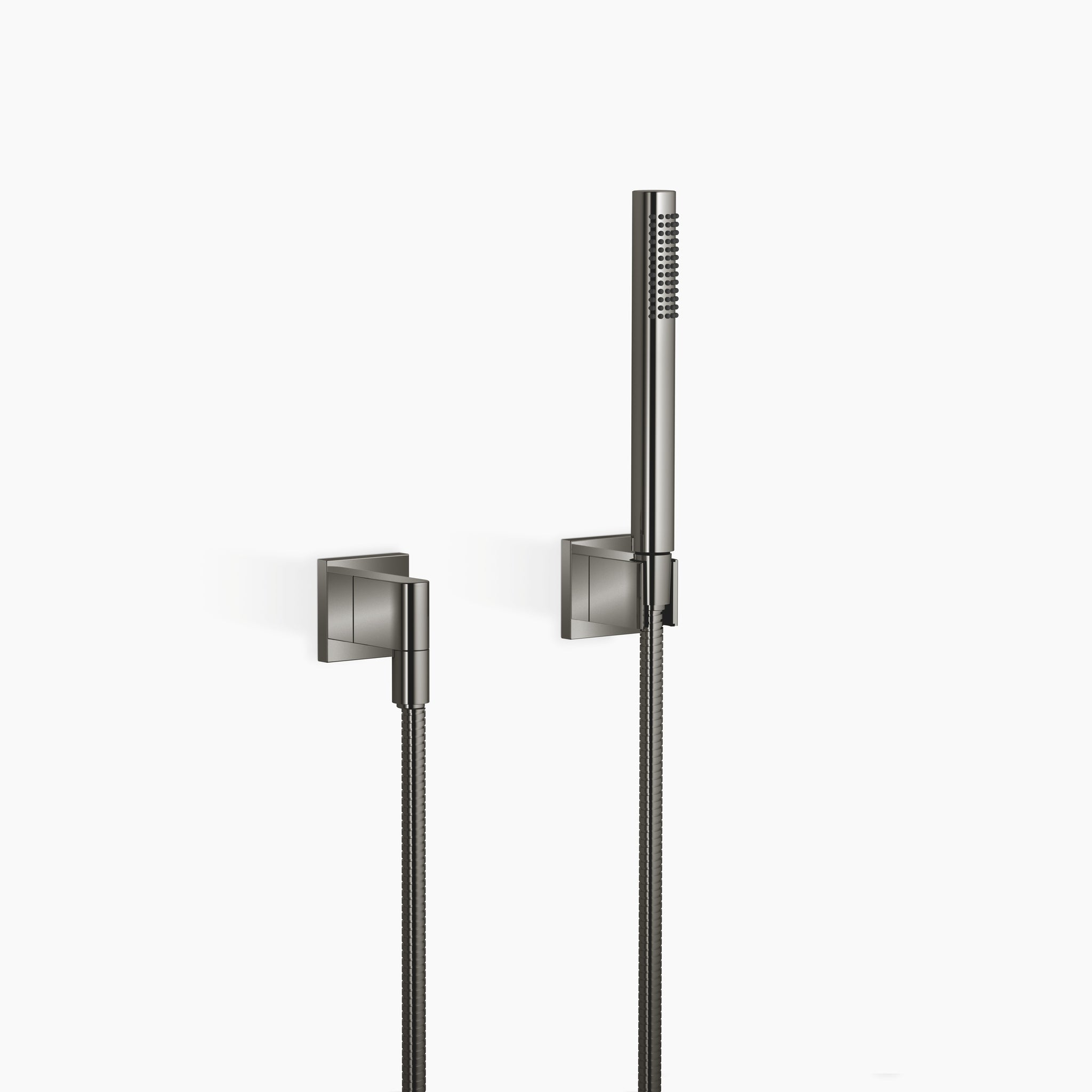

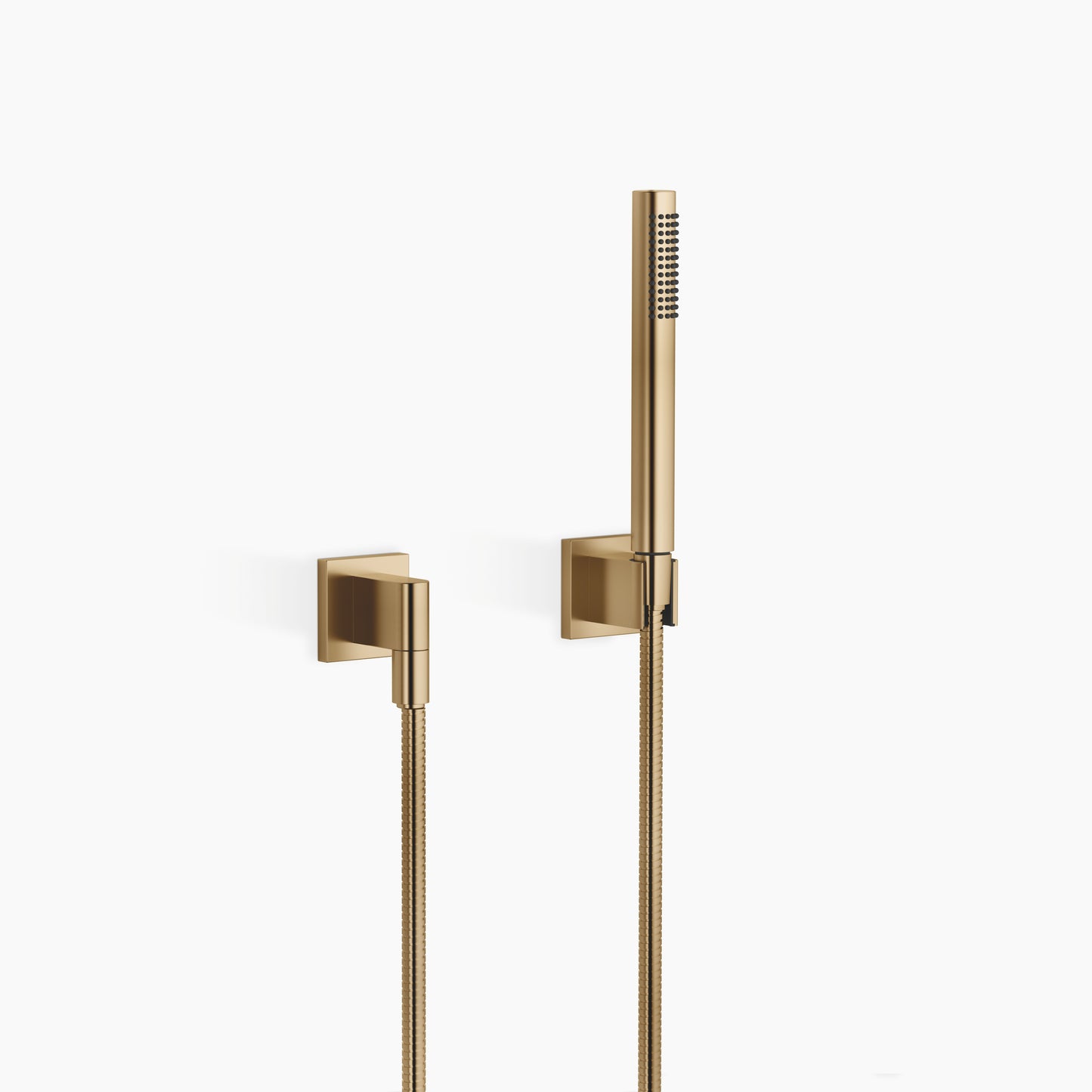

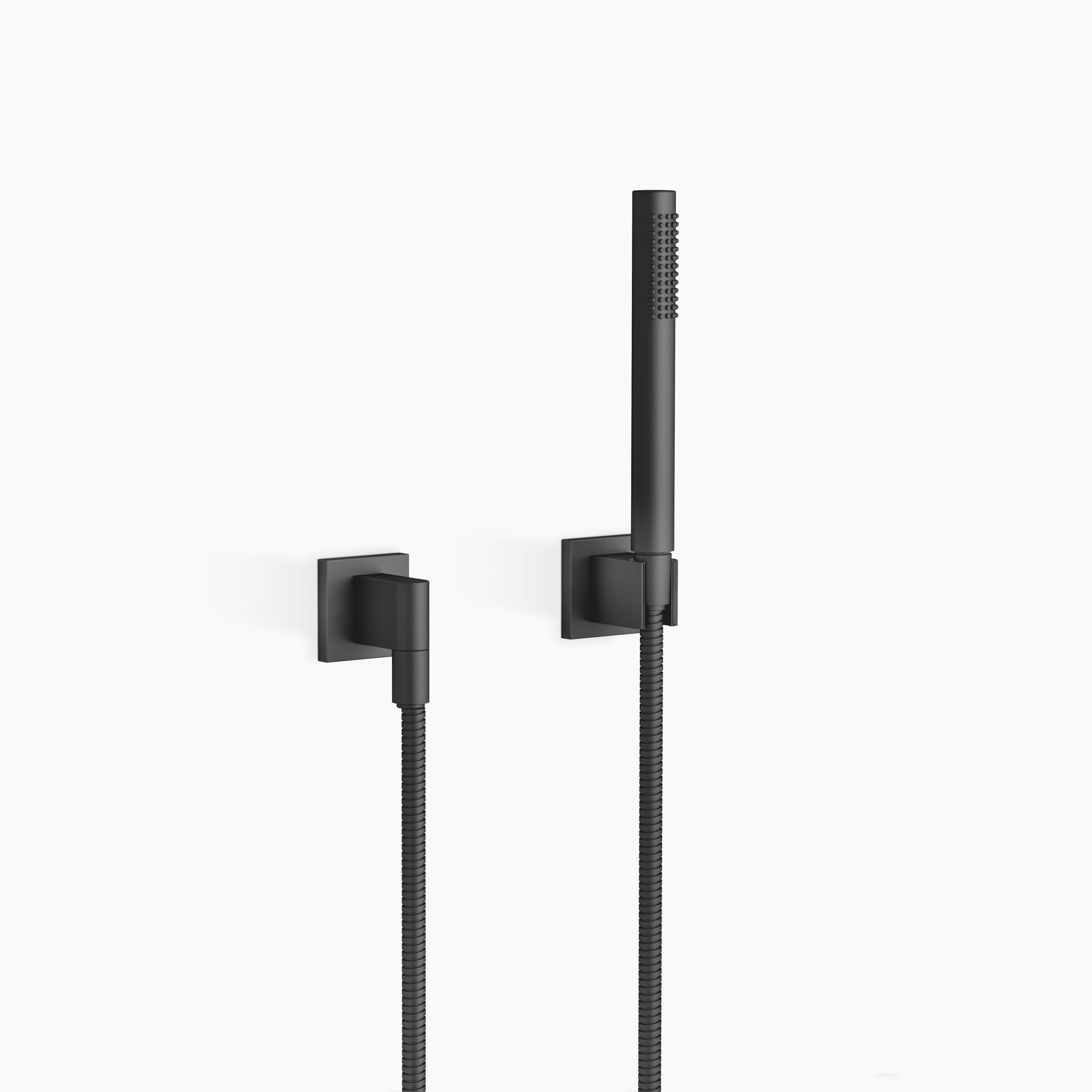

Dornbracht 27811980 Hand Shower Set With Individual Flanges

Product Info

Description

COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
Function from: 5 l/min
inherently safe from back flow
with anti-scale system
metal shower hose 1250mm with integrated anti-twist protection
rosette for wall elbow 60 x 60mm
rosette for shower holder 60 x 60mm
1/2" wall elbow
3/8" shower outlet
This product reduces water consumption by 28% (compared to requirements of EPAct '92)
This product can contribute to Water Use Reduction in LEED® Green Building Rating
This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
Mounting type: Surface wall mounting
Total height (mm): 265
Total Depth (mm): 63
Throat (mm): 65
Flow rate (l/min): 6.8
Spray types: normal flow
Recommended hot water temperature (°C): 60
Permissible flow pressure: 1 - 5 bar
Recommended flow pressure: 3 bar
Thermal disinfection (5:00 min.) ≤ 70 °C
Low pressure: No
Weight (kg): 1,28
5 year guarantee
Required miscellaneous: Alternatives 1: 1 x

Construction type	Surface wall mounting
Country of origin	DEU
Article height	265 mm
Article depth	63 mm
Flow rate 3 bar	6.8 l/min
Flow rate Max.	6.8 l/min
Net weight	1,28 kg

Additional Info

Brand:Dornbracht
Manufacturer Part #:27811980
