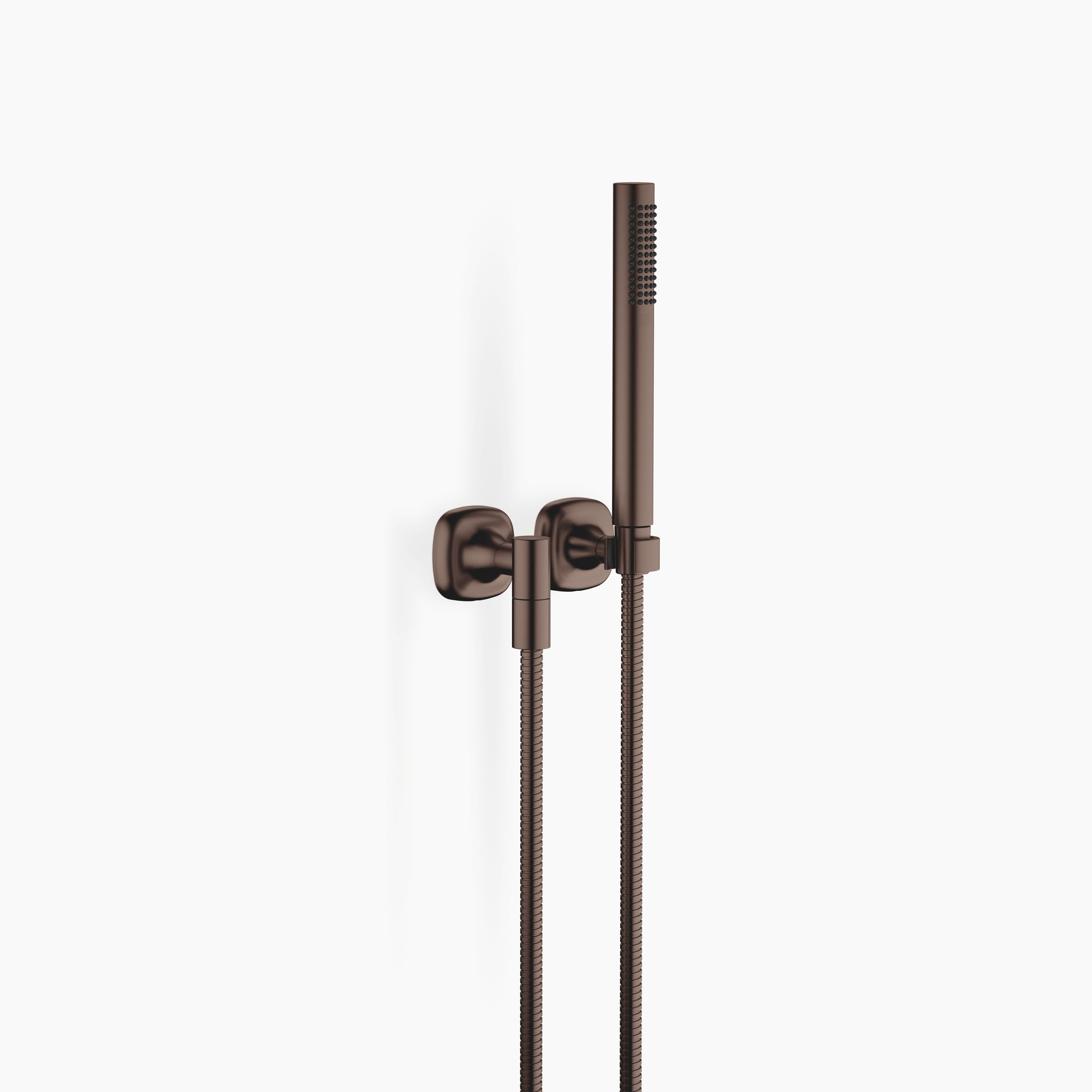

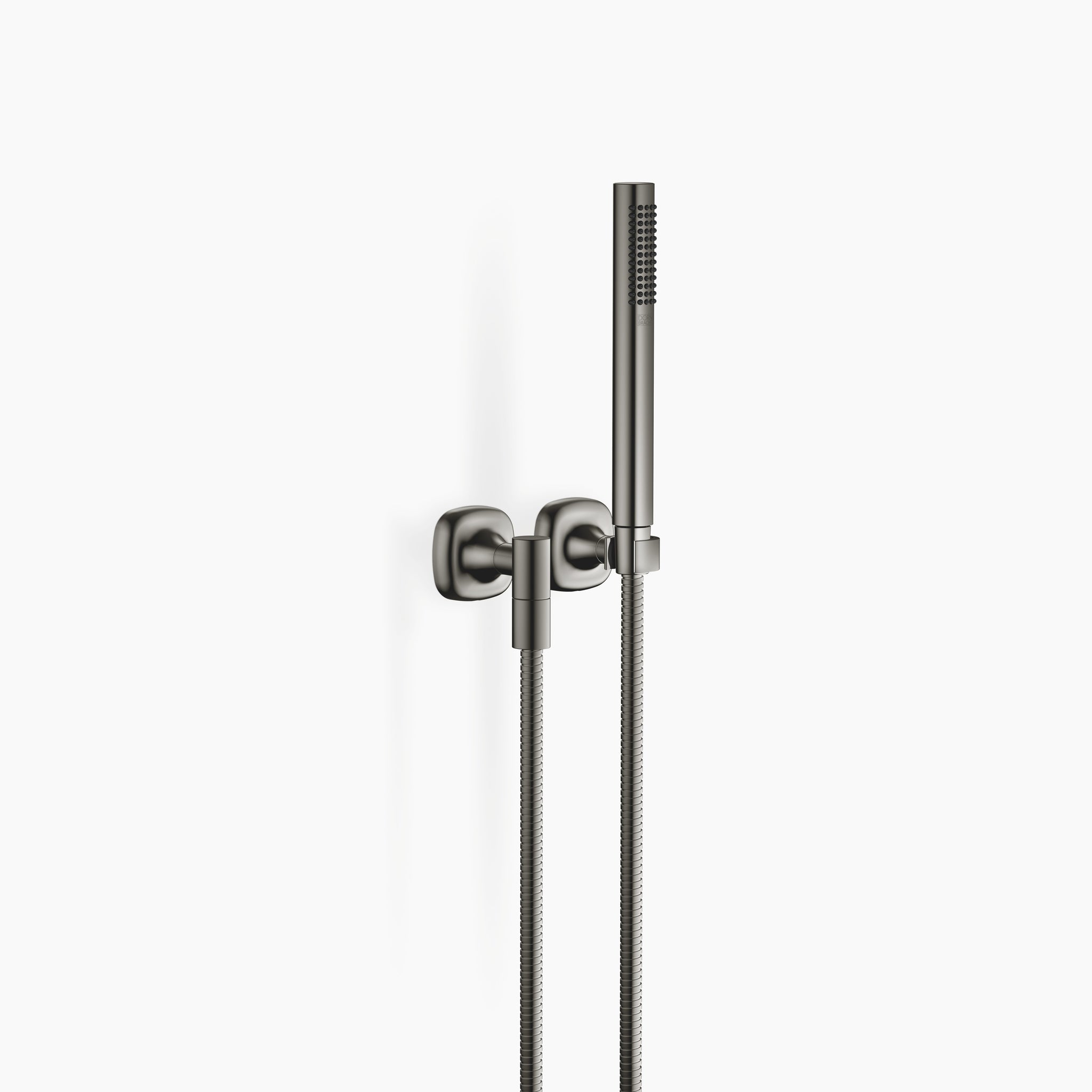

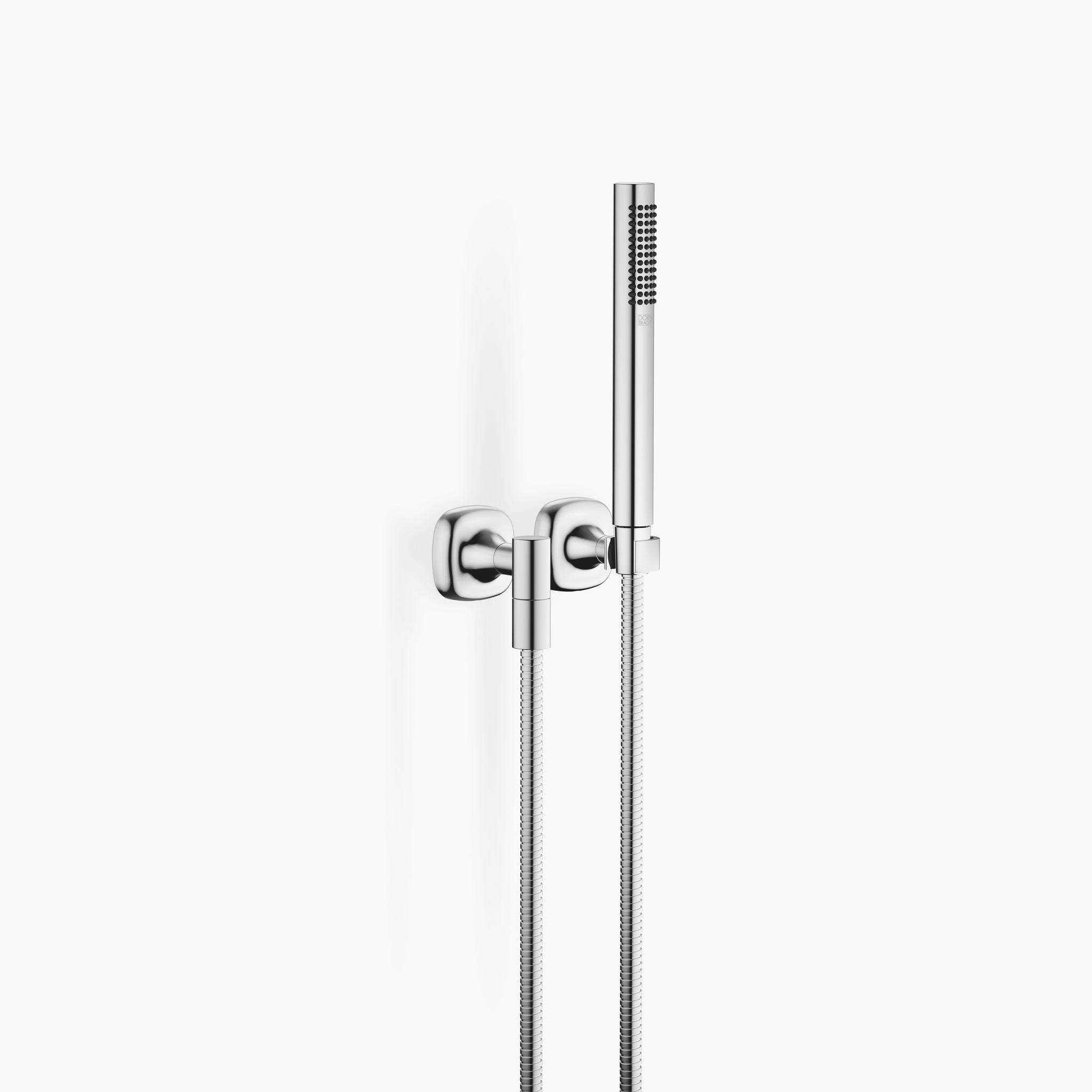

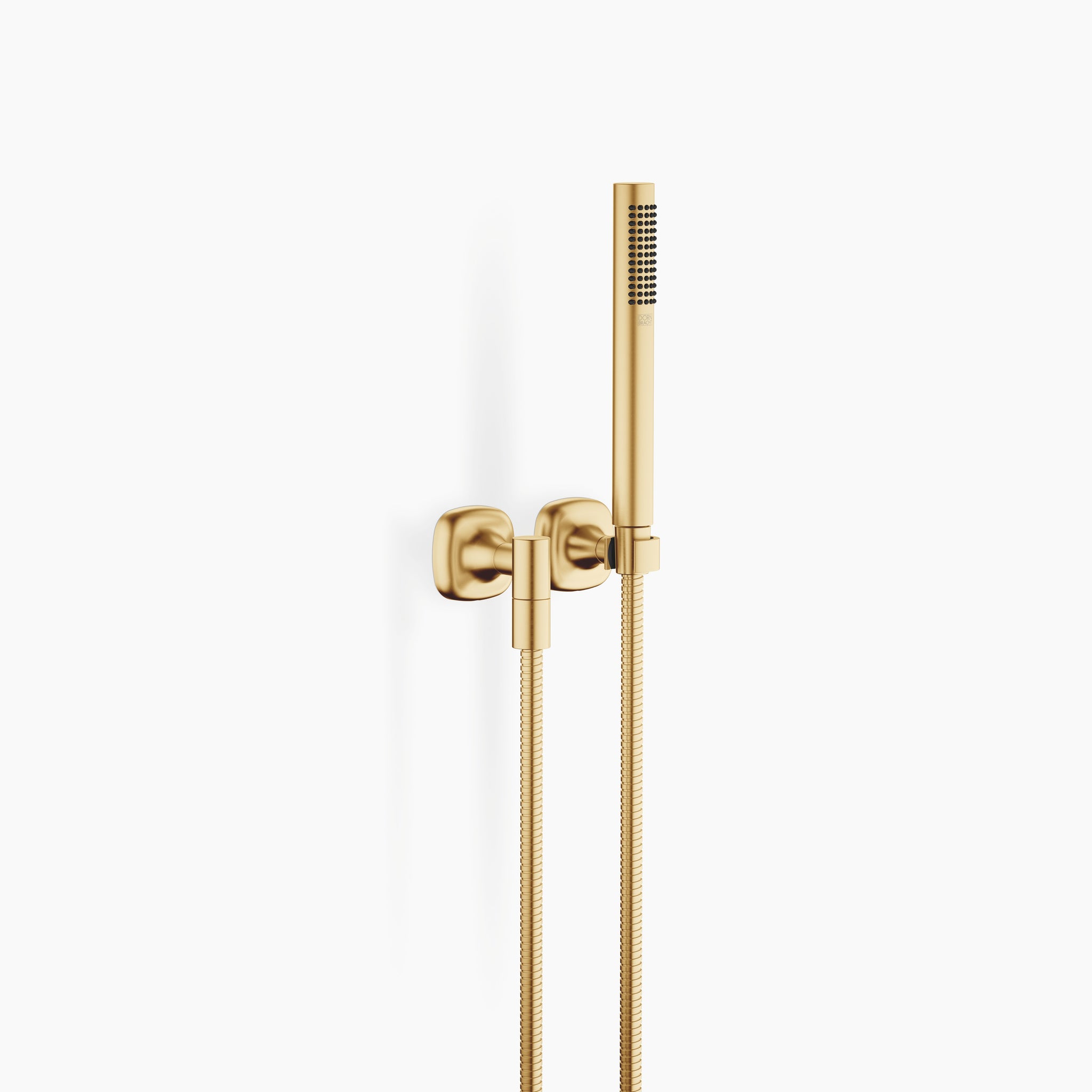

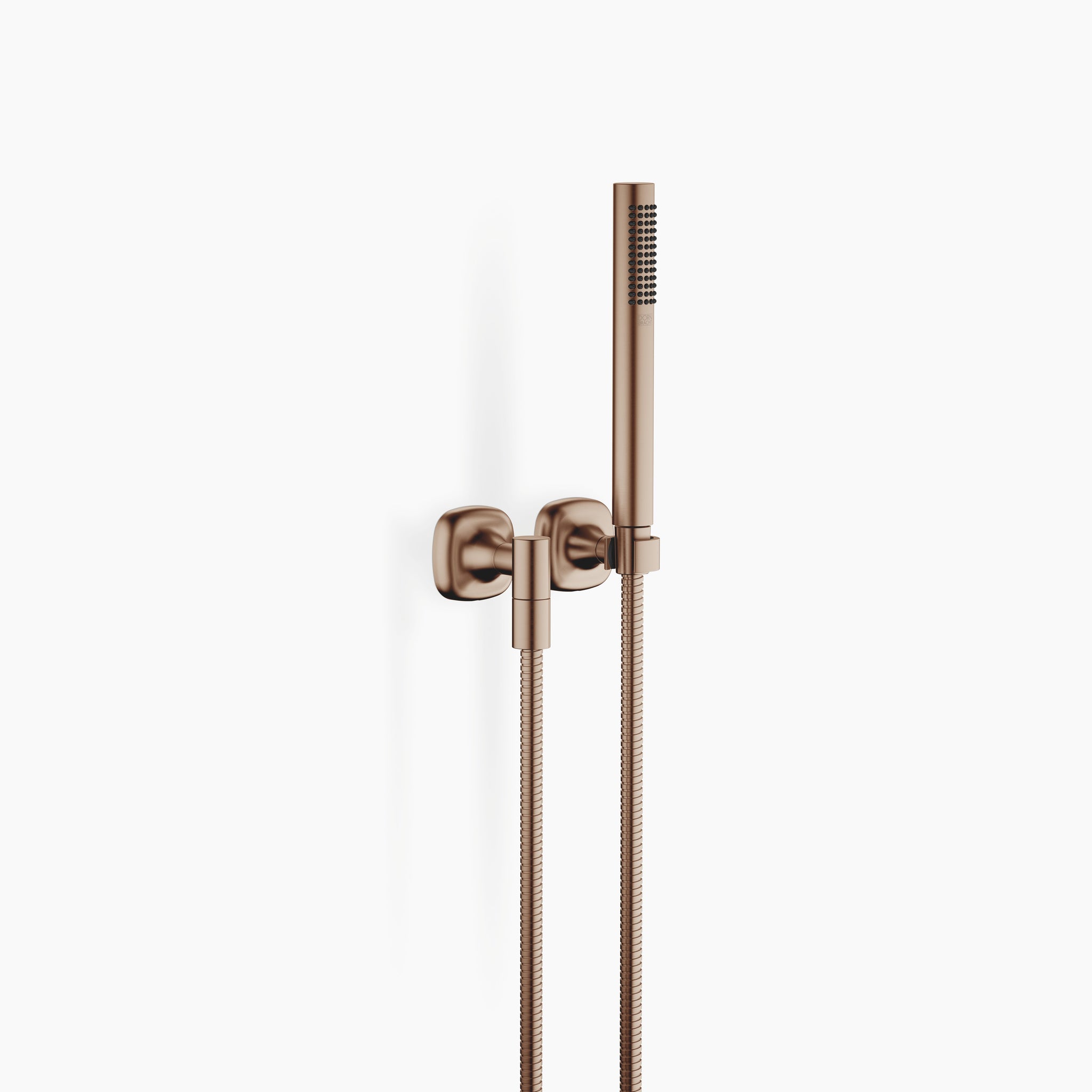

Dornbracht 27808404 Coya Hand Shower Set With Individual Flanges

Product Info

Description

COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
Function from: 5 l/min
inherently safe from back flow
with anti-scale system
metal shower hose 1250mm with integrated anti-twist protection
rosette for wall elbow Ø 60mm
rosette for shower holder Ø 60mm
1/2" wall elbow
3/8" shower outlet
Mounting type: Surface wall mounting
Connection dimension (DN/G): 1x 1/2" male
Total height (mm): 233
Total width (mm): 120
Total Depth (mm): 81
Flow rate (l/min): 6.8
Recommended hot water temperature (°C): 60
Permissible flow pressure: 1 - 5 bar
Recommended flow pressure: 3 bar
Thermal disinfection (5:00 min.) ≤ 70 °C
Low pressure: No
Weight (kg): 1,06
5 year guarantee
Required miscellaneous: Alternatives 1: 1 x

Construction type	Surface wall mounting
Country of origin	DEU
Article width	120 mm
Article height	233 mm
Article depth	81 mm
Flow rate 3 bar	6.8 l/min
Flow rate Max.	6.8 l/min
Net weight	1,06 kg

Additional Info

Brand:Dornbracht
Manufacturer Part #:27808404
