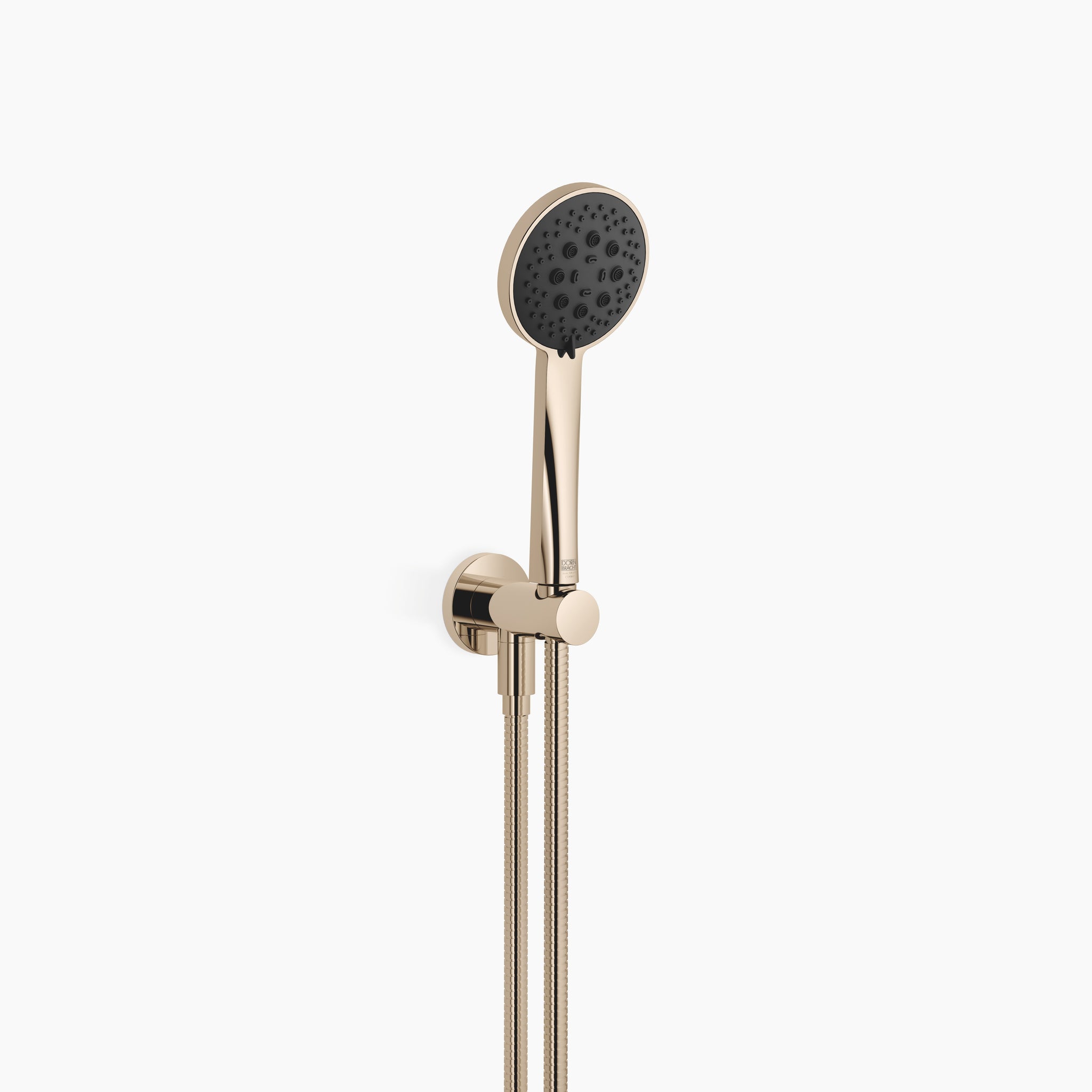

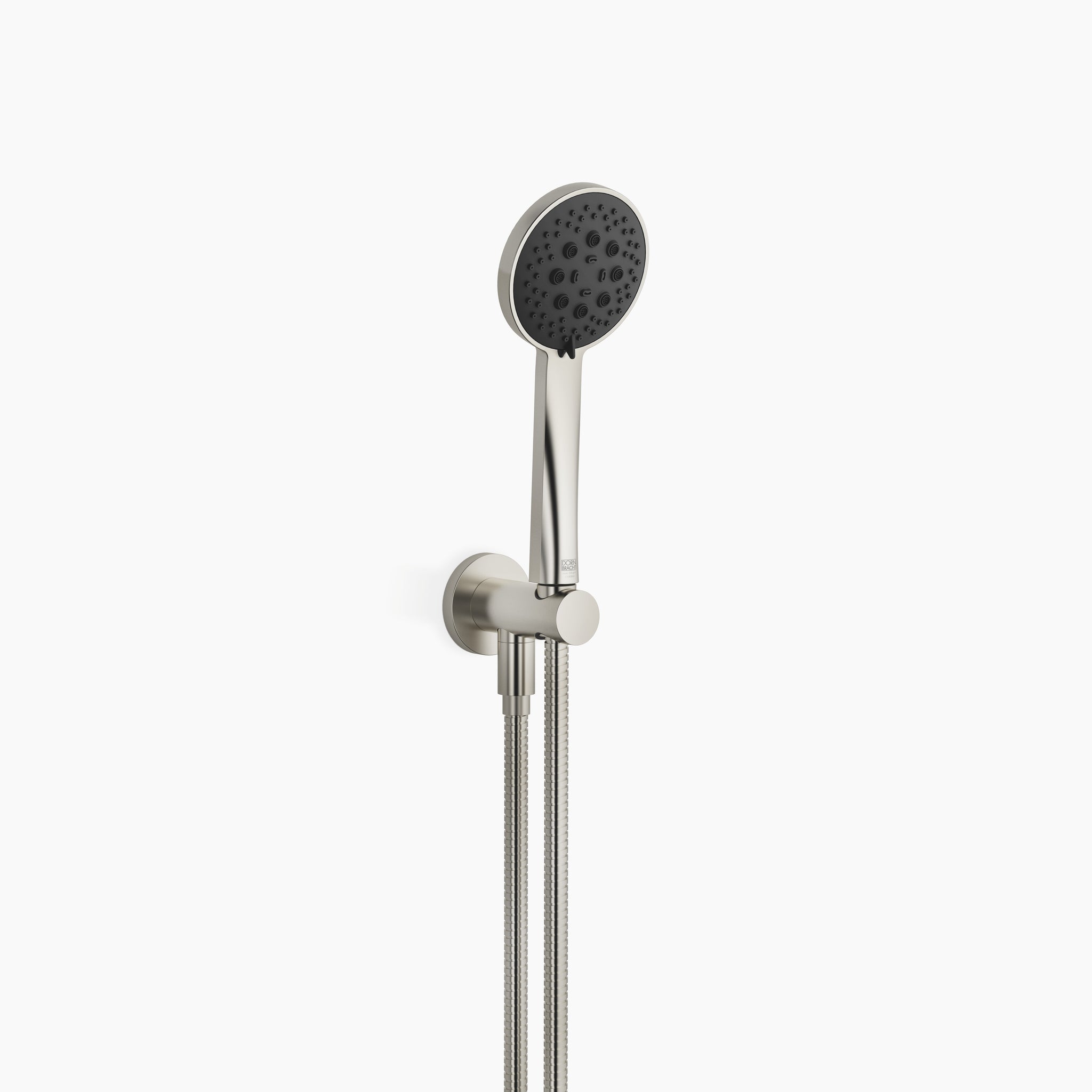

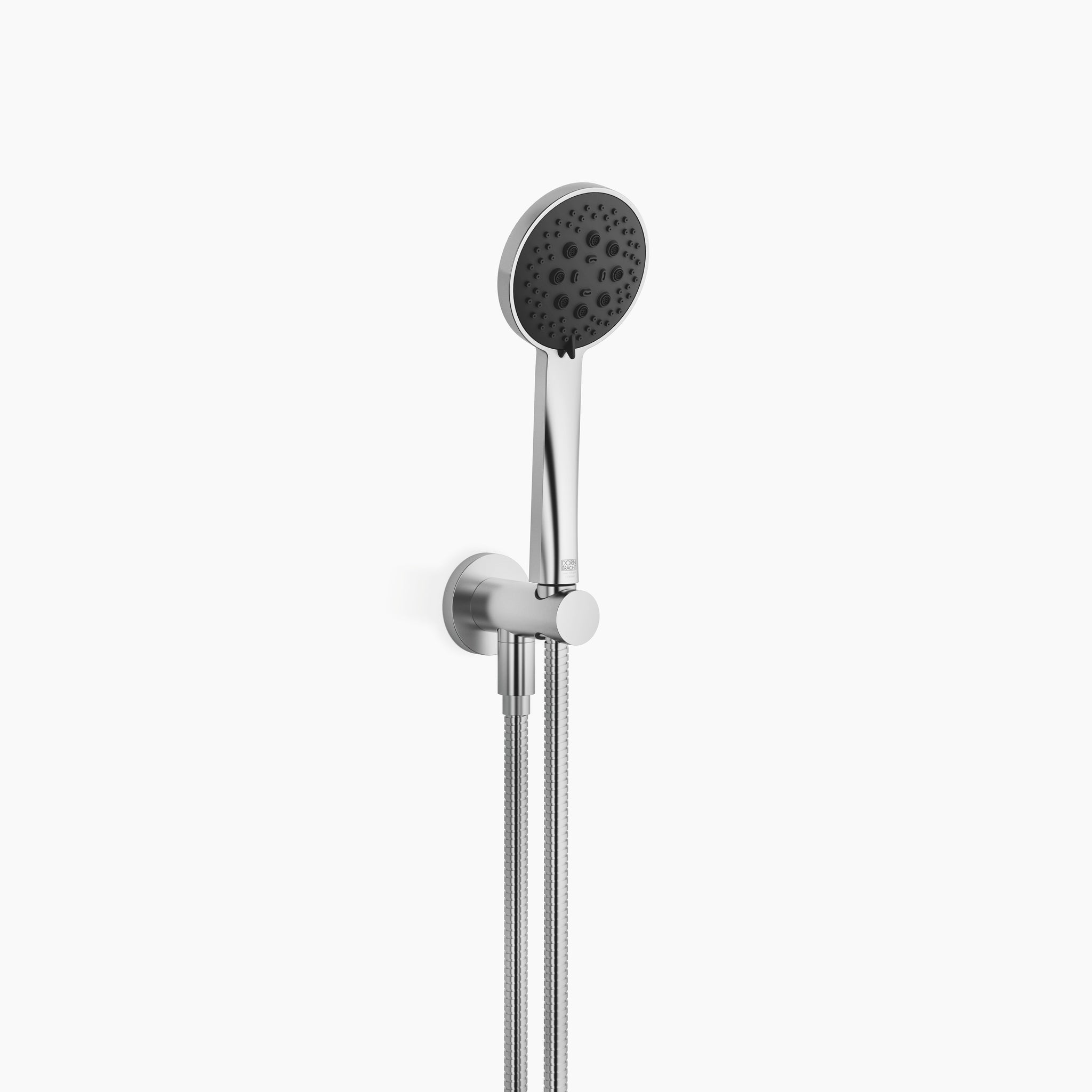

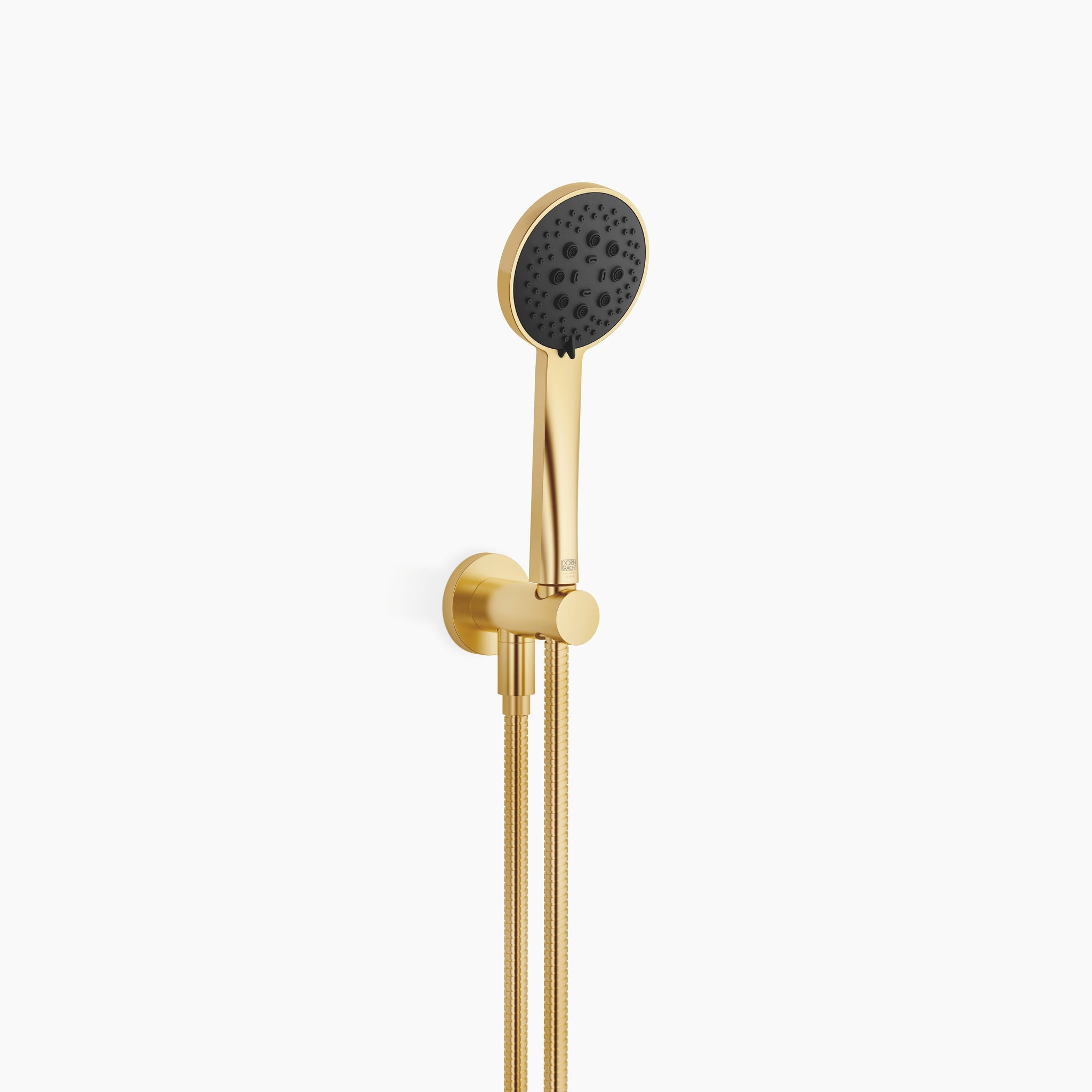

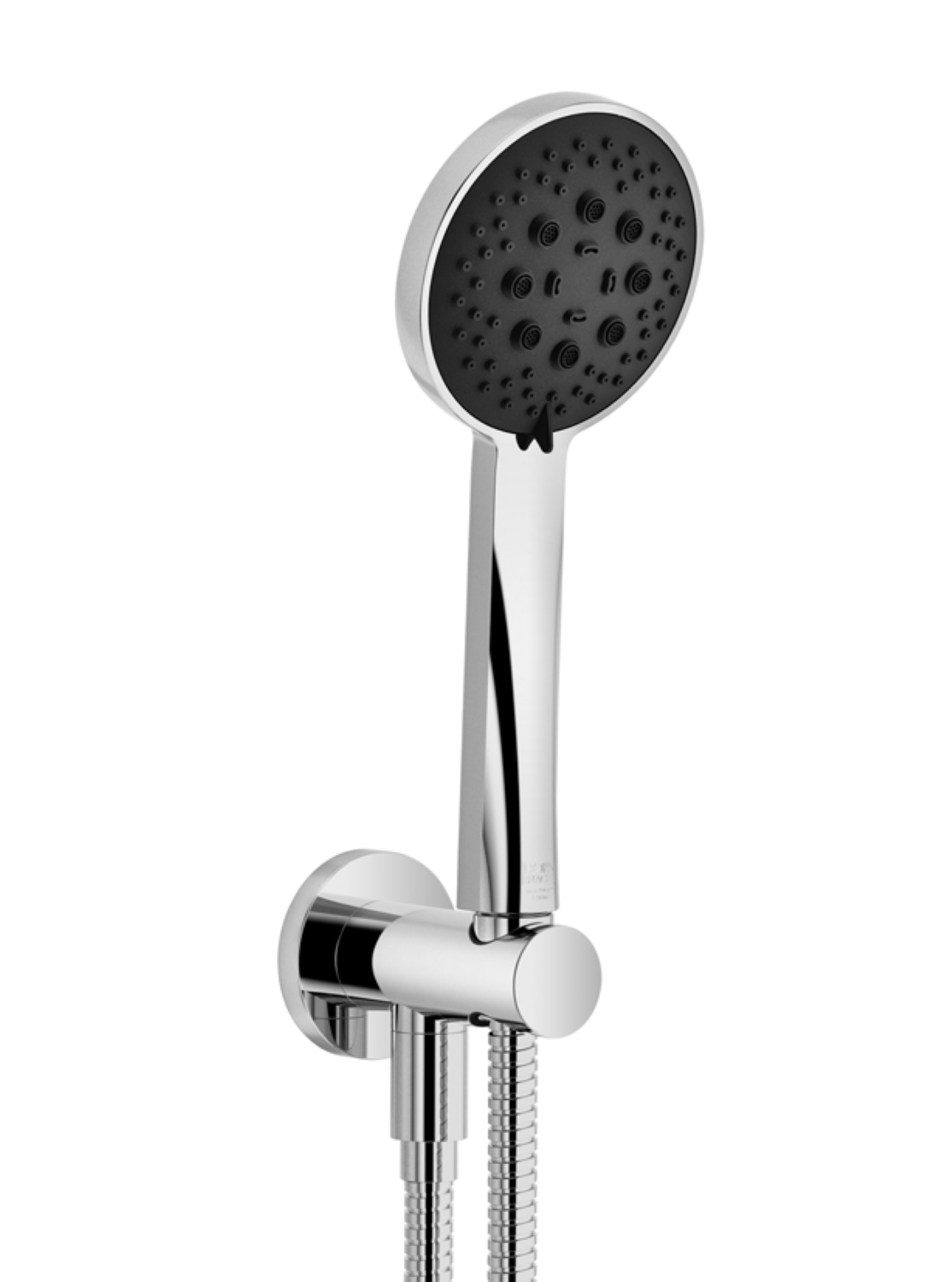

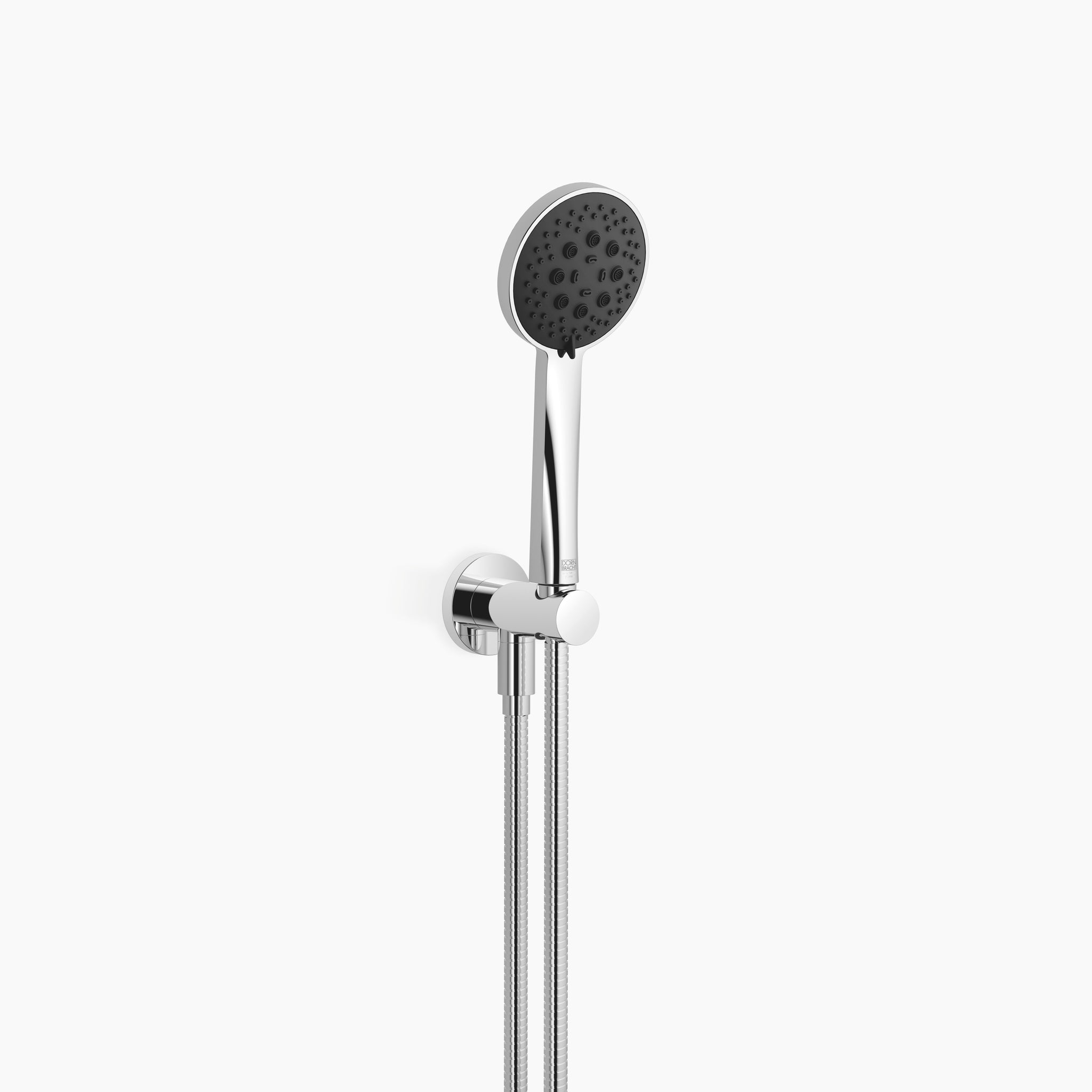

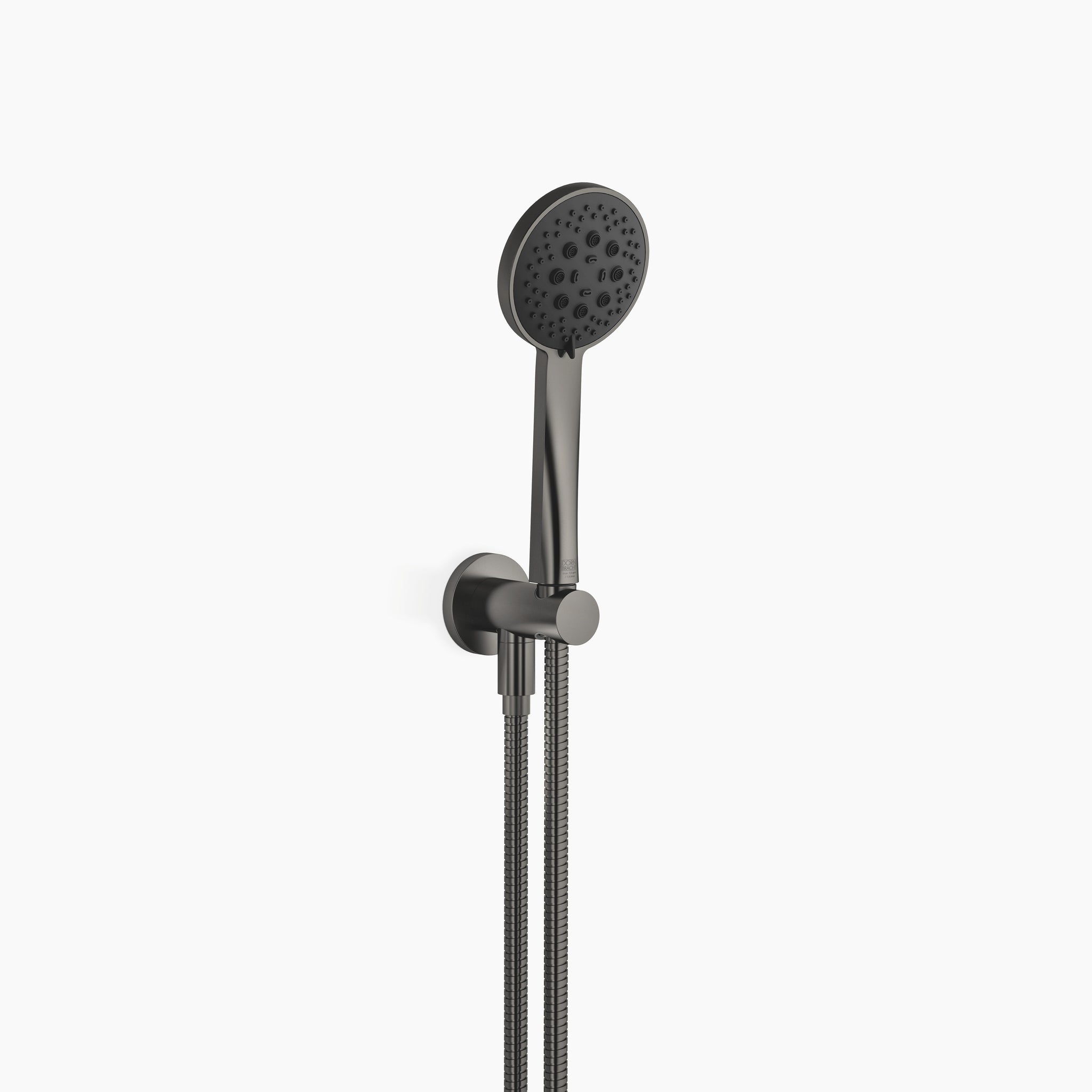

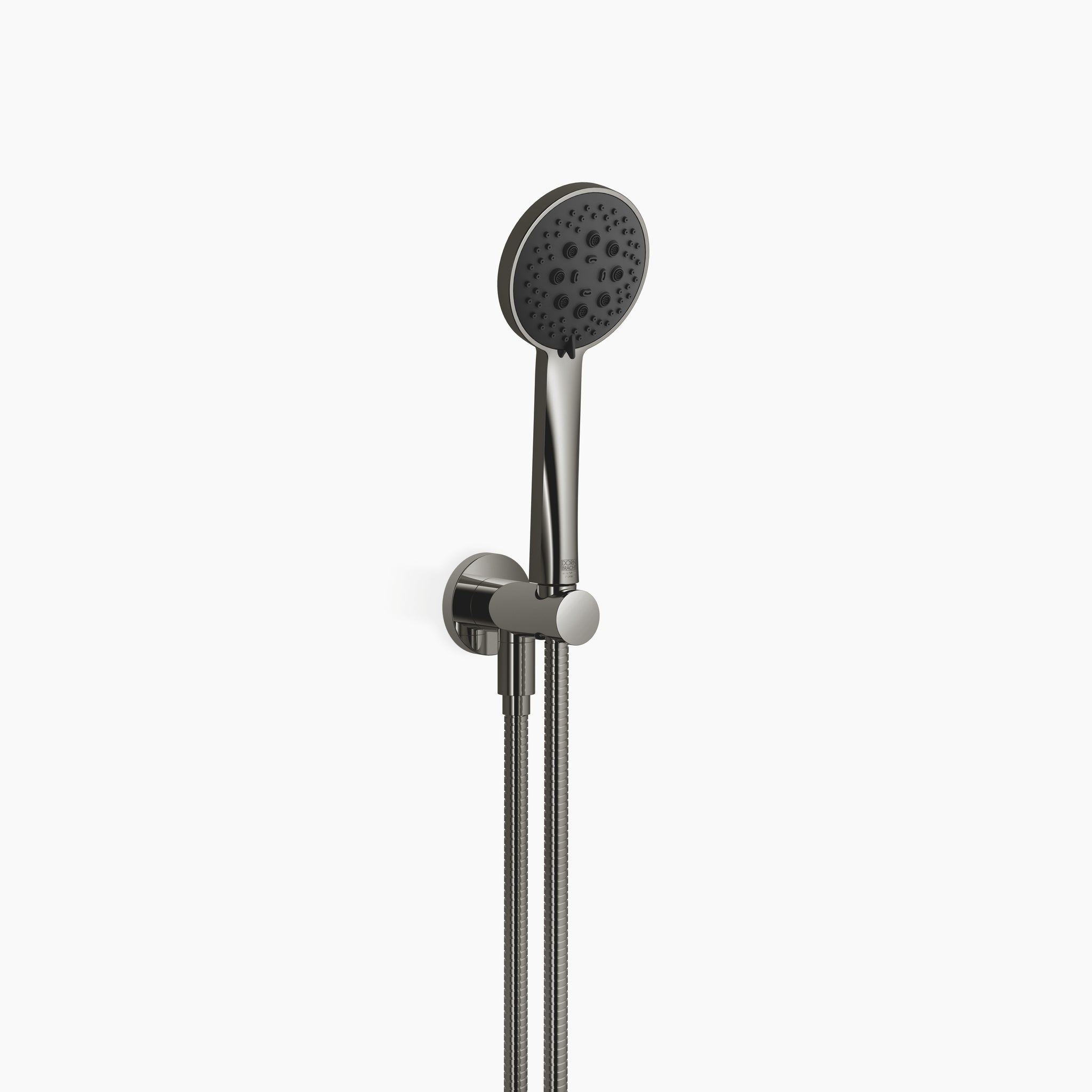

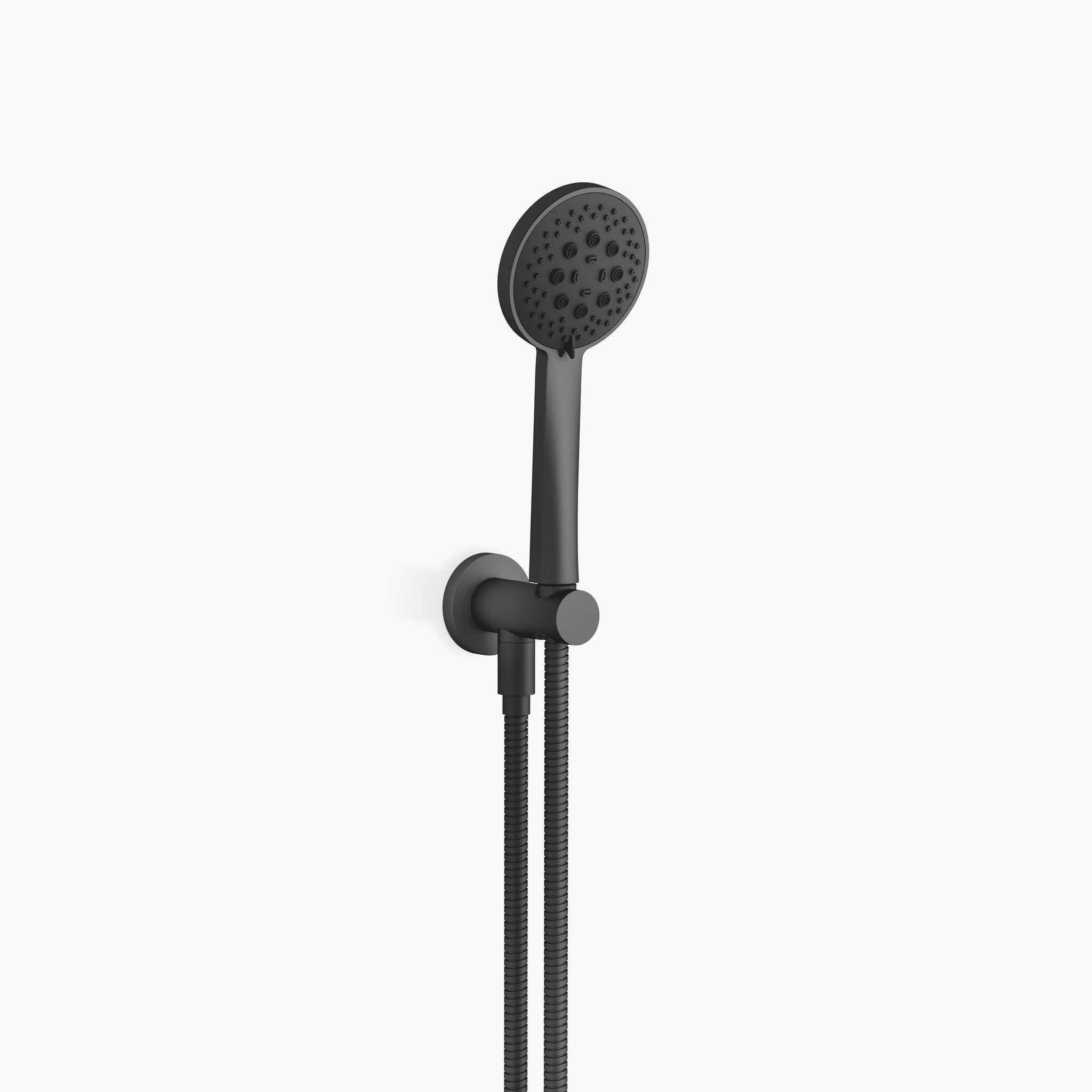

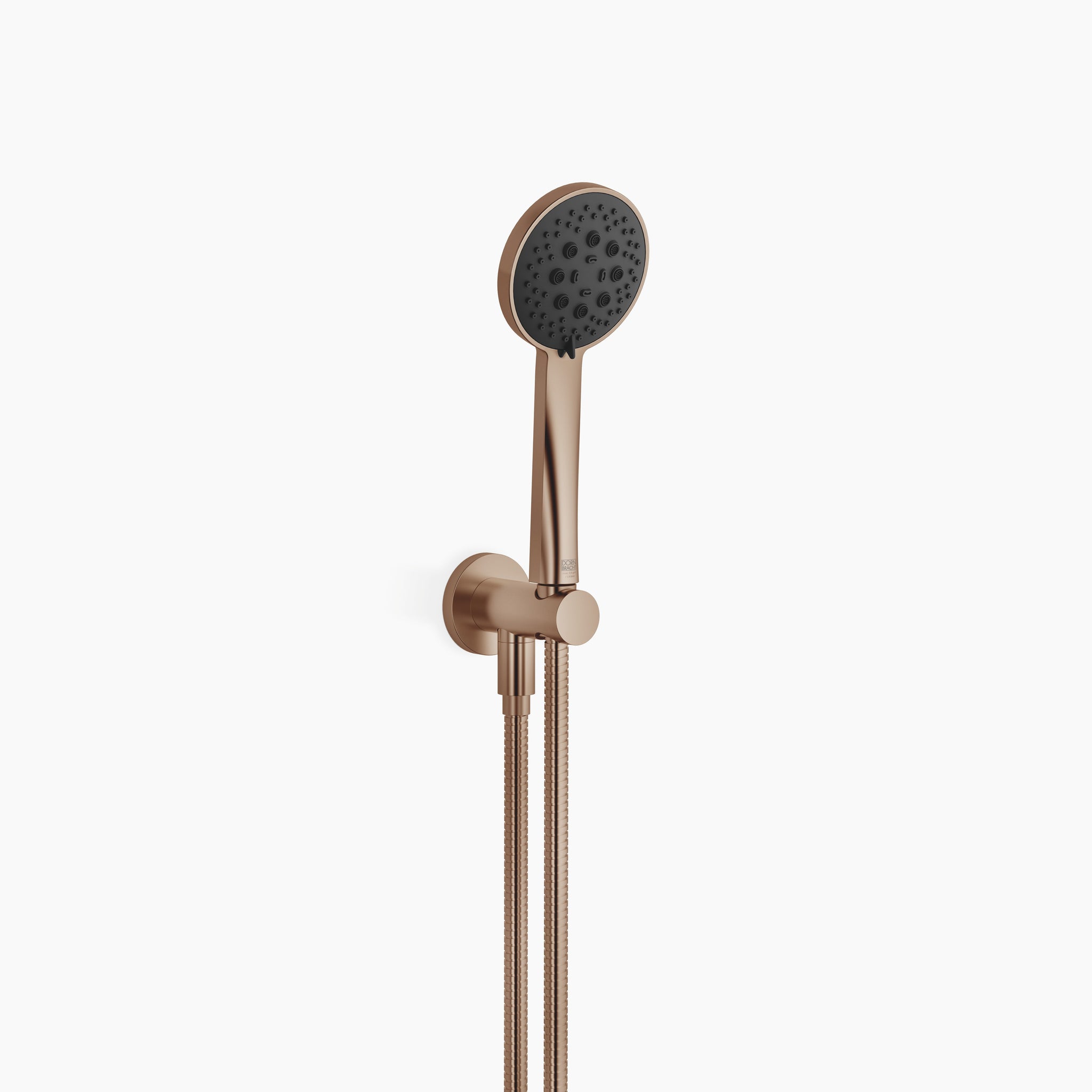

Dornbracht 27803660 Hand Shower Set With Integrated Wall Bracket

Product Info

Description

COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
three settings: normal flow, soft flow, massage flow
with anti-scale system
3/8" shower outlet
metal shower hose 1250mm with integrated anti-twist protection
rosette Ø 60 mm
1/2" connection
Function from: 6 l/min
This product reduces water consumption by 28% (compared to requirements of EPAct '92)
This product can contribute to Water Use Reduction in LEED® Green Building Rating
This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
Intrinsic protection against back flow.
Mounting type: Surface wall mounting
Total height (mm): 278
Total width (mm): 100
Total Depth (mm): 106
Throat (mm): 106
Flow rate (l/min): 6.8
Spray types: massage flow;normal flow;soft flow
Shower head diameter (mm):100
Recommended hot water temperature (°C): 60
Permissible flow pressure: 1 - 5 bar
Recommended flow pressure: 3 bar
Thermal disinfection (5:00 min.) ≤ 70 °C
Low pressure: No
Weight (kg): 1,34
5 year guarantee

Construction type	Surface wall mounting
Country of origin	DEU
Article width	100 mm
Article height	278 mm
Article depth	106 mm
Flow rate 3 bar	6.8 l/min
Flow rate Max.	6.8 l/min
Net weight	1,34 kg

Additional Info

Brand:Dornbracht
Manufacturer Part #:27803660
