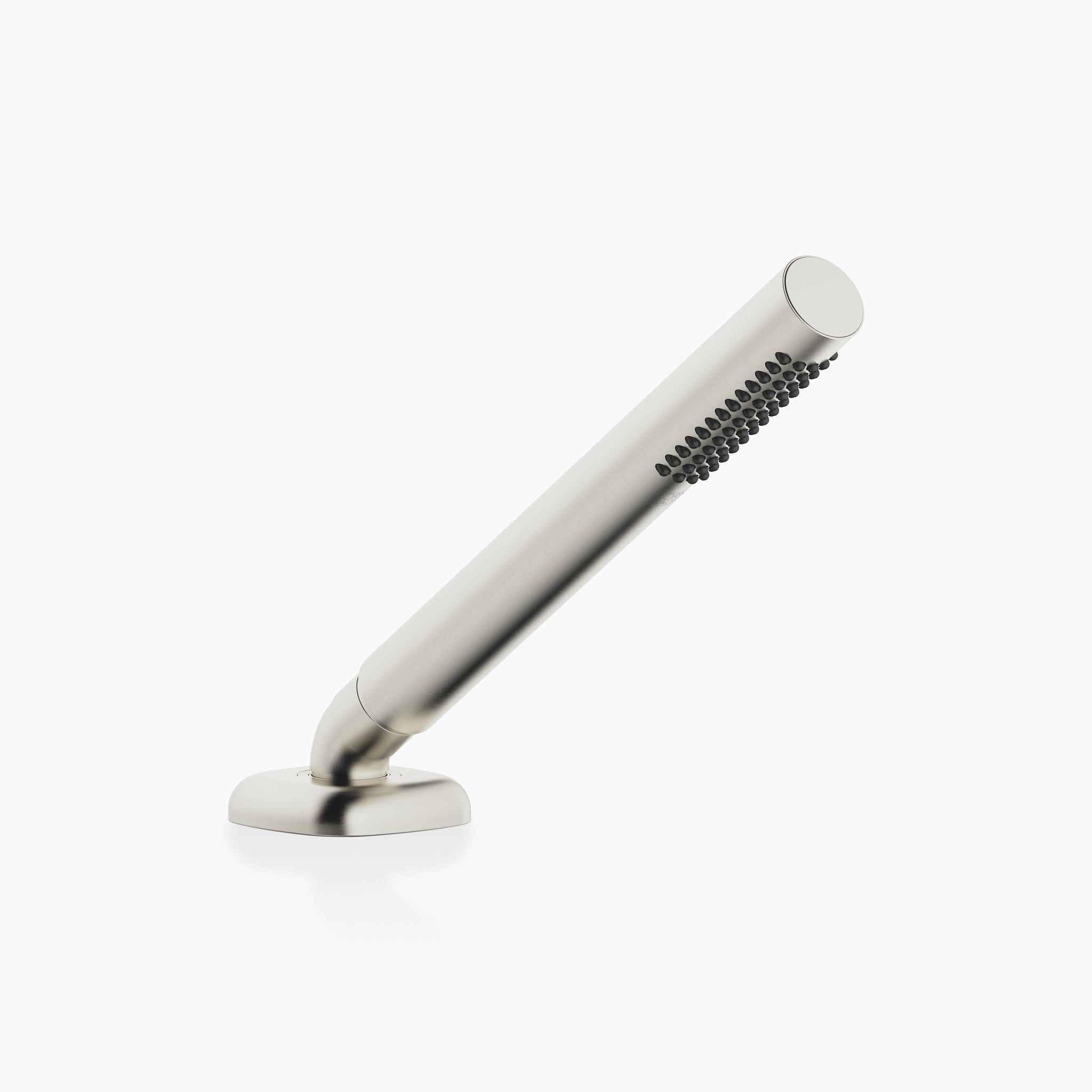

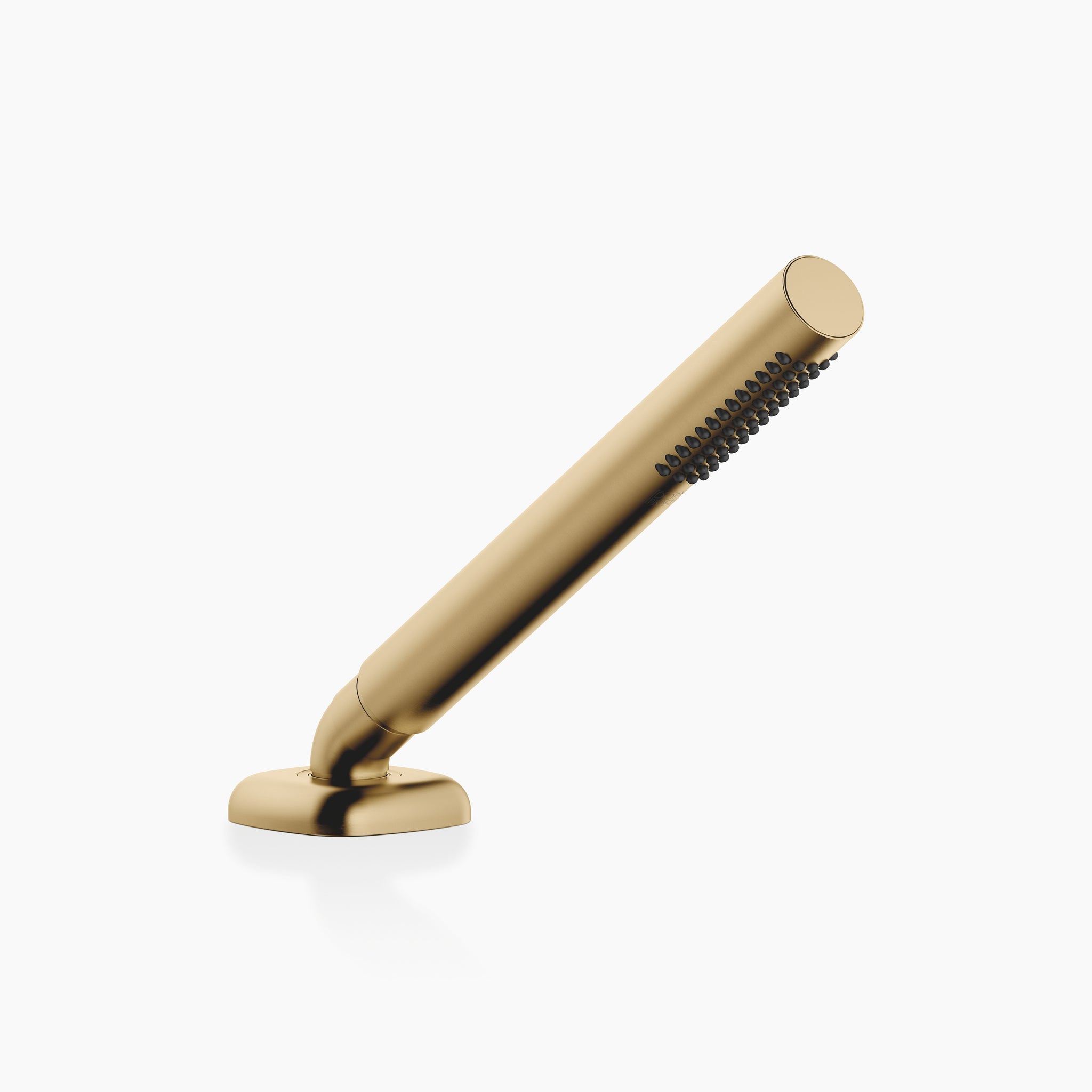

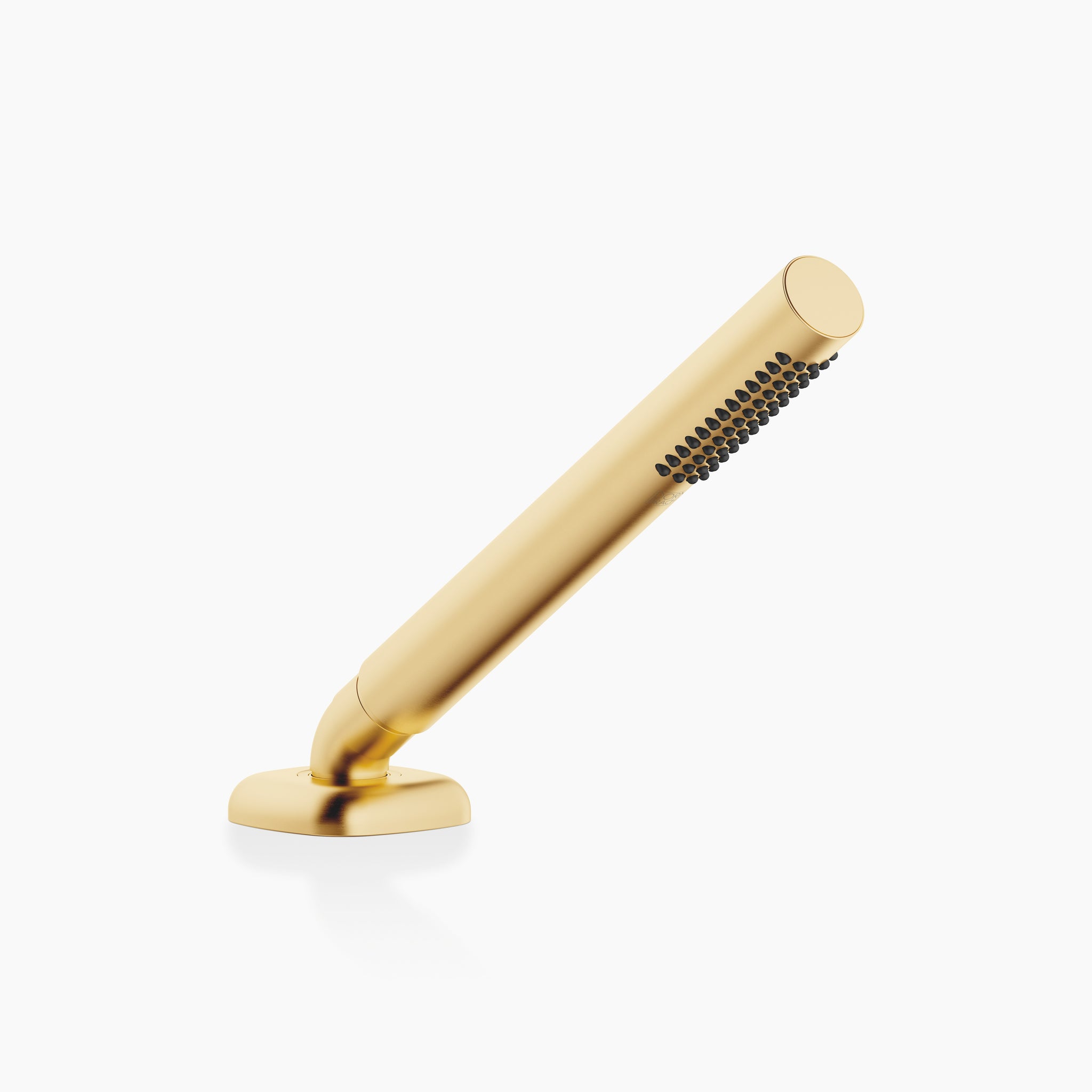

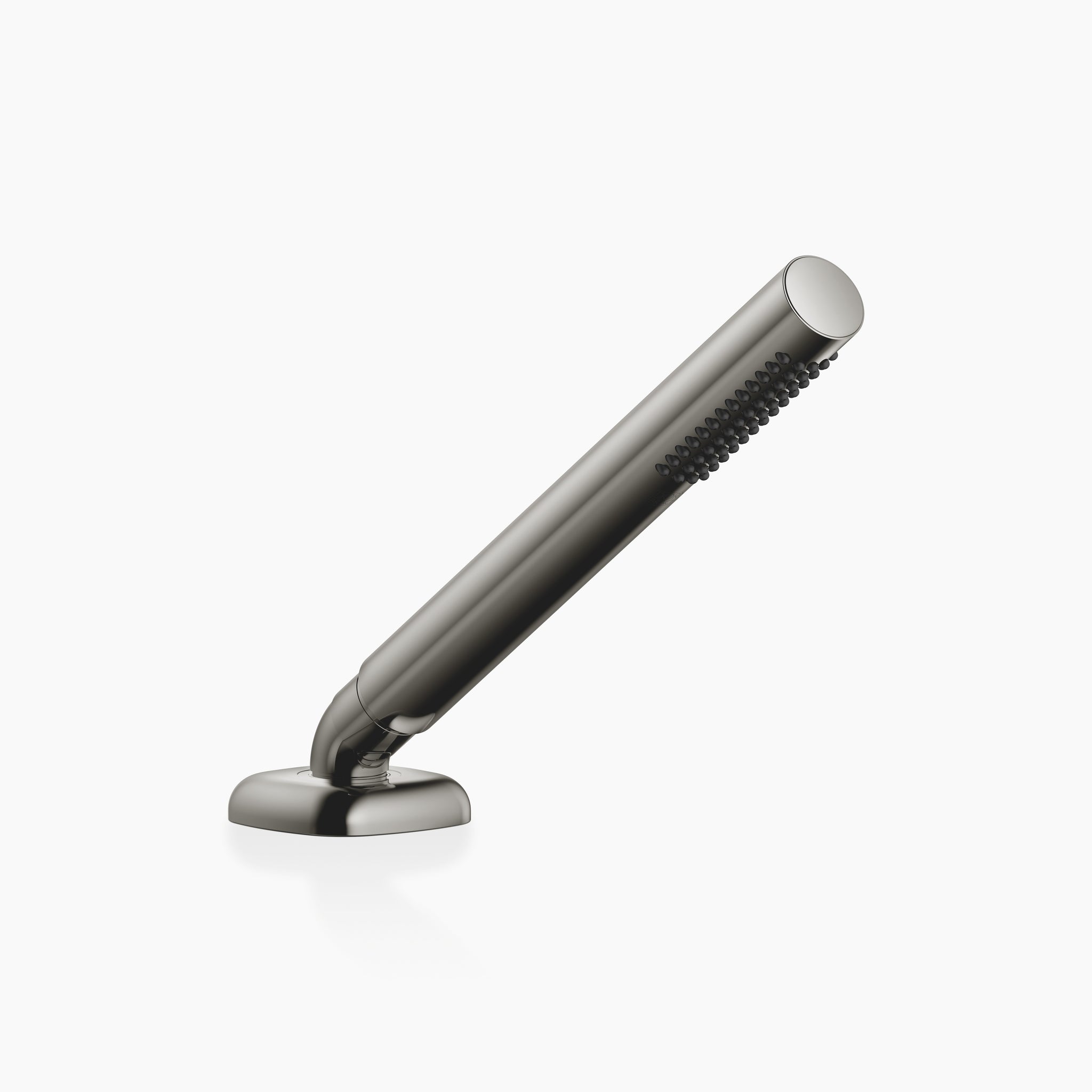

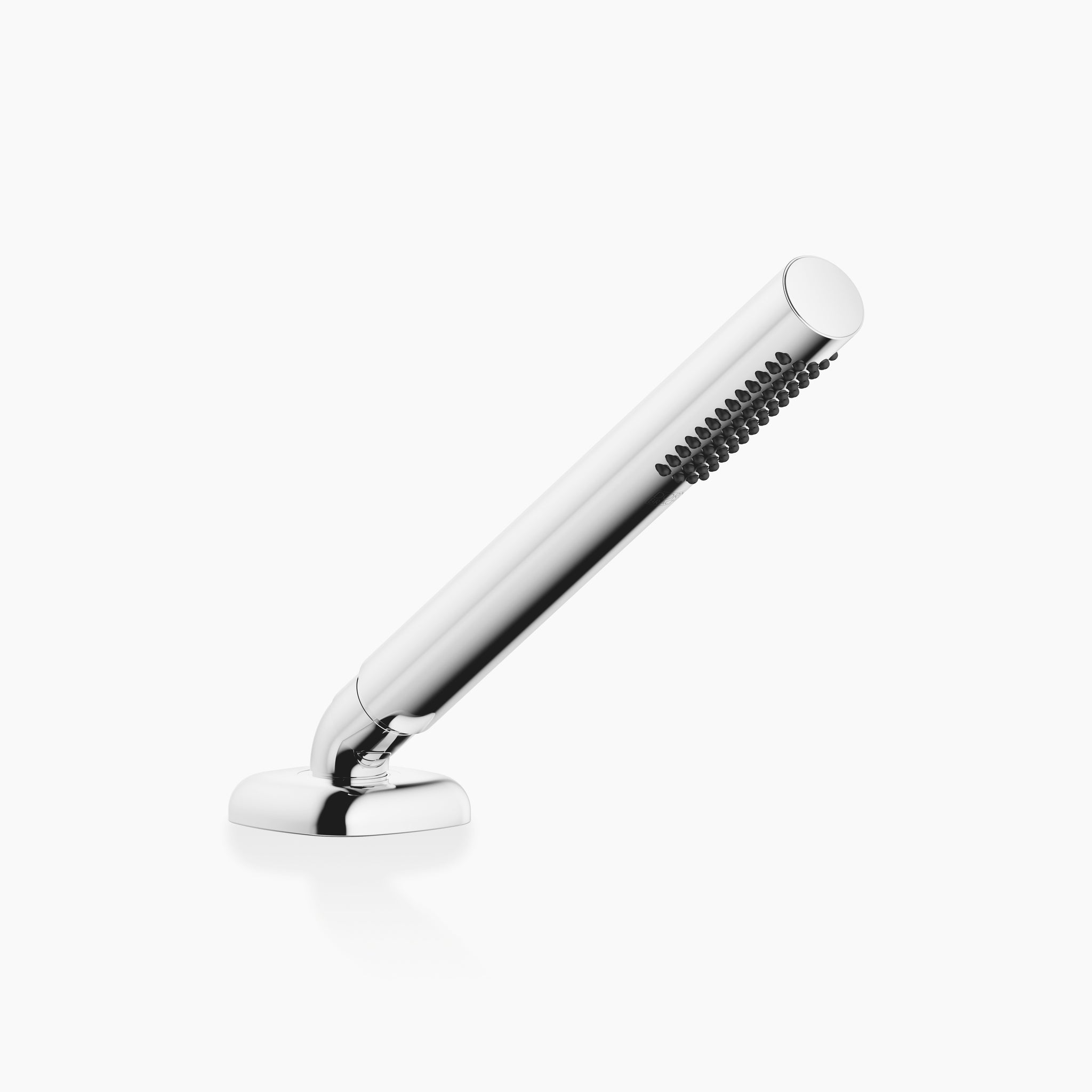

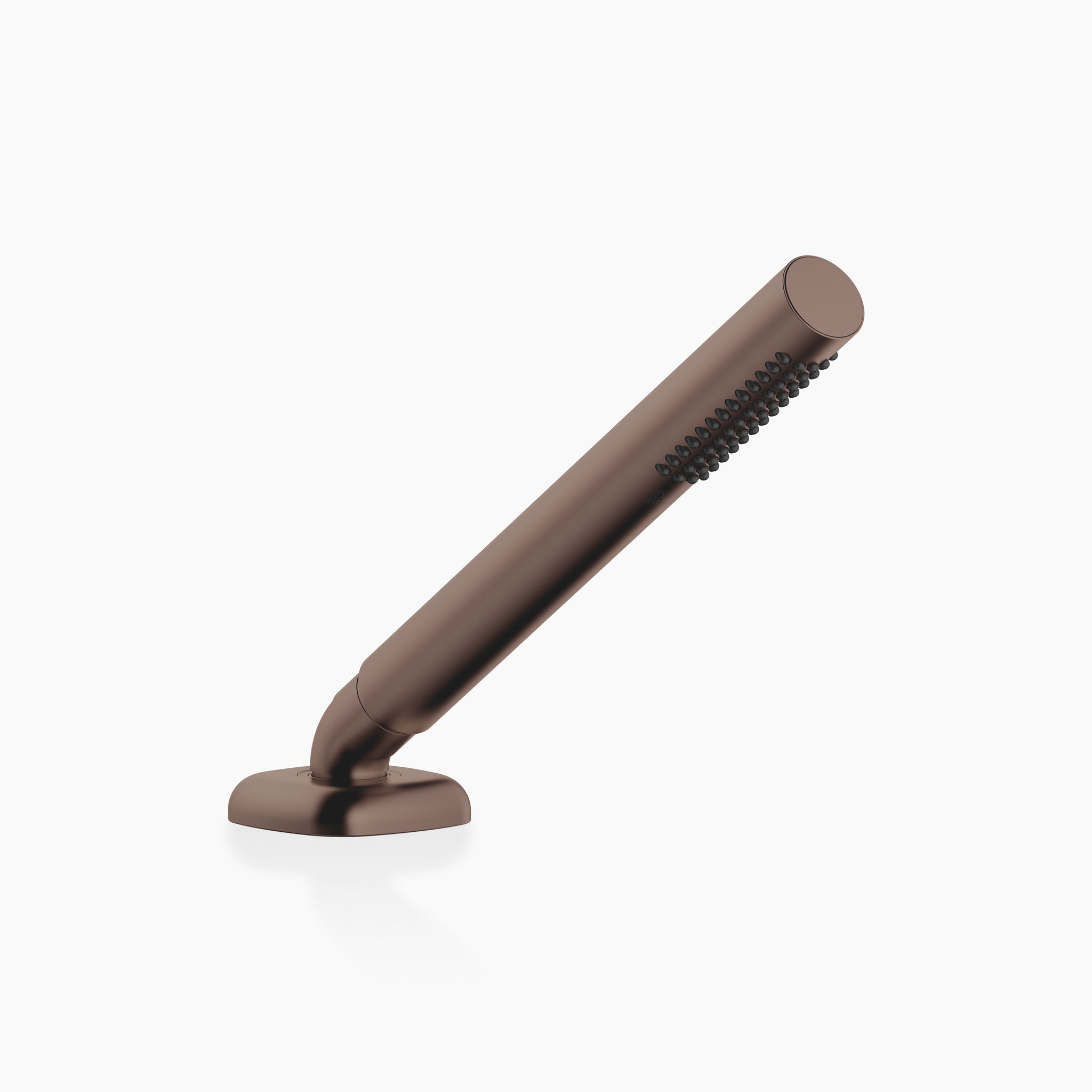

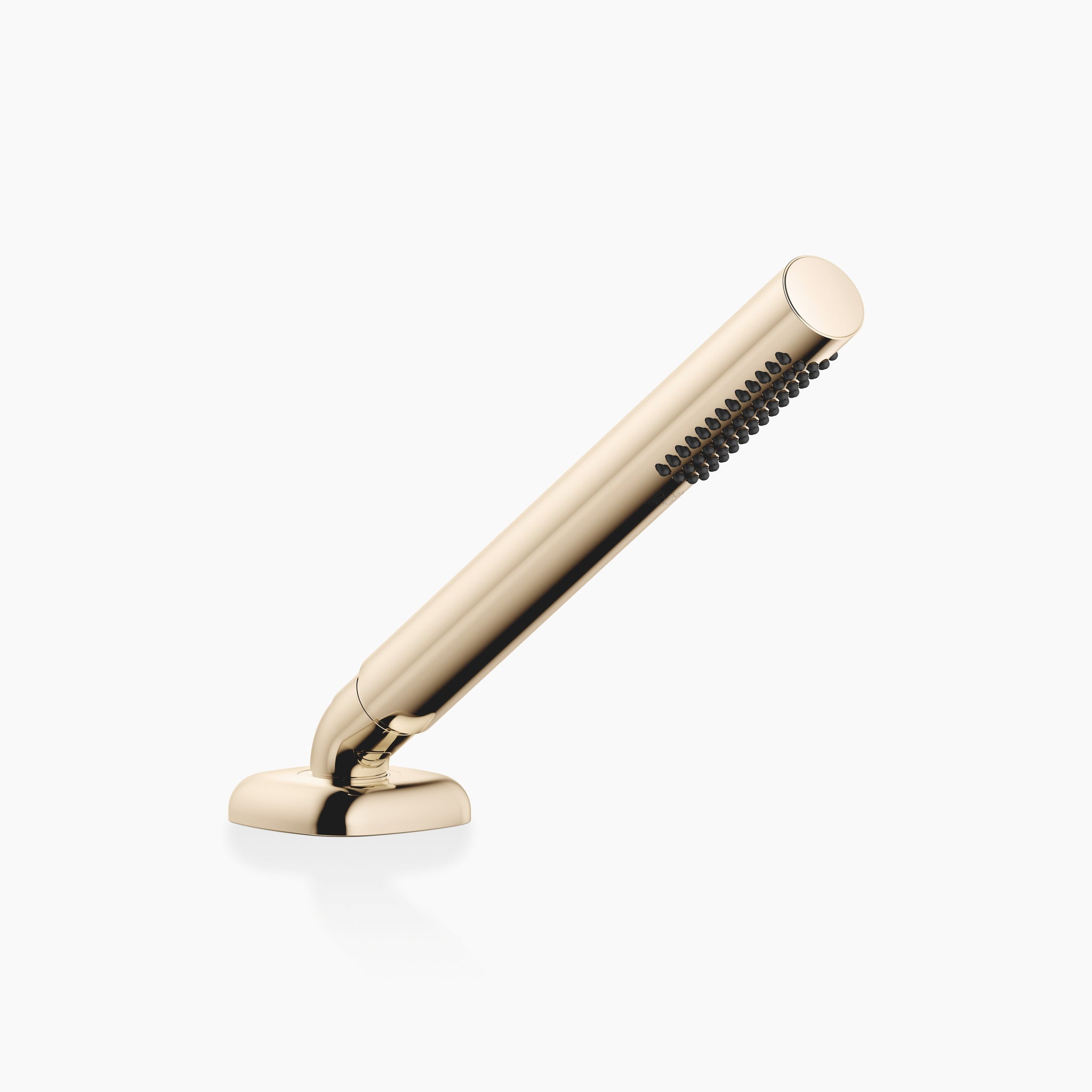

Dornbracht 27702404 Hand Shower Set For Deck-Mounted Tub Installation

Product Info

Description

COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
with anti-scale system
rosette 60 x 60 mm
hole diameter 32 mm
metal shower hose 1750mm with integrated anti-twist protection
Intrinsic protection against back flow.
Mounting type: Floor mounting
Connection dimension (DN/G): 1x 1/2" male
Total height (mm): 171
Total width (mm): 60
Total Depth (mm): 234
Throat (mm): 204
Flow rate (l/min): 6.8
Spray types: normal flow
Recommended hot water temperature (°C): 60
Permissible flow pressure: 1 - 5 bar
Recommended flow pressure: 3 bar
Thermal disinfection (5:00 min.) ≤ 70 °C
Low pressure: No
Weight (kg): 0,99
5 year guarantee

Application area	Bath
Construction type	Floor mounting
Country of origin	DEU
Article width	60 mm
Article height	171 mm
Article depth	234 mm
Flow rate 3 bar	6.8 l/min
Flow rate Max.	6.8 l/min
Net weight	0,99 kg

Additional Info

Brand:Dornbracht
Manufacturer Part #:27702404

Product Options

,DNB-27702404-00,DNB-27702404-06,DNB-27702404-19,DNB-27702404-28,DNB-27702404-39,DNB-27702404-42,DNB-27702404-43,DNB-27702404-46,DNB-27702404-47,DNB-27702404-99|,Chrome,Brushed Platinum,Dark Chrome,Brushed Durabrass (23kt Gold),Brushed Dark Brass (PVD),Brushed Bronze (PVD),Brushed Dark Bronze (PVD),Brushed Champagne (22kt Gold),Champagne (22kt Gold),Brushed Dark Platinum|,1238.50,1981.60,1857.70,2972.40,1981.60,1981.60,2229.30,2972.40,2972.40,1981.60|,990.80,1585.28,1486.16,2377.92,1585.28,1585.28,1783.44,2377.92,2377.92,1585.28||,45526046474431,45526046507199,45526046539967,45526046572735,45526046605503,45526046638271,45526046671039,45526046703807,45526046736575,45526046769343|,28,28,28,28,28,28,28,28,28,28|,27702404-00,27702404-06,27702404-19,27702404-28,27702404-39,27702404-42,27702404-43,27702404-46,27702404-47,27702404-99
