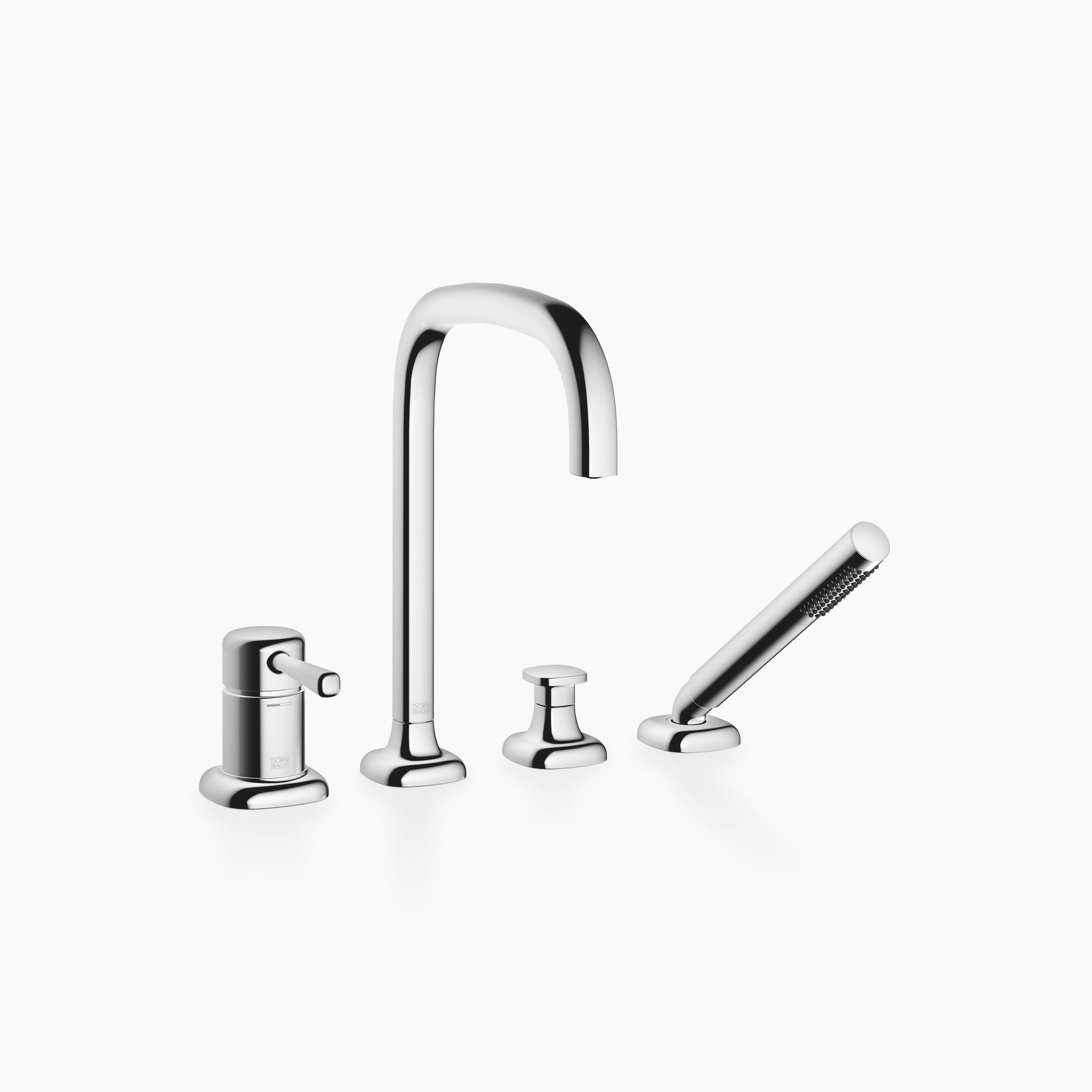

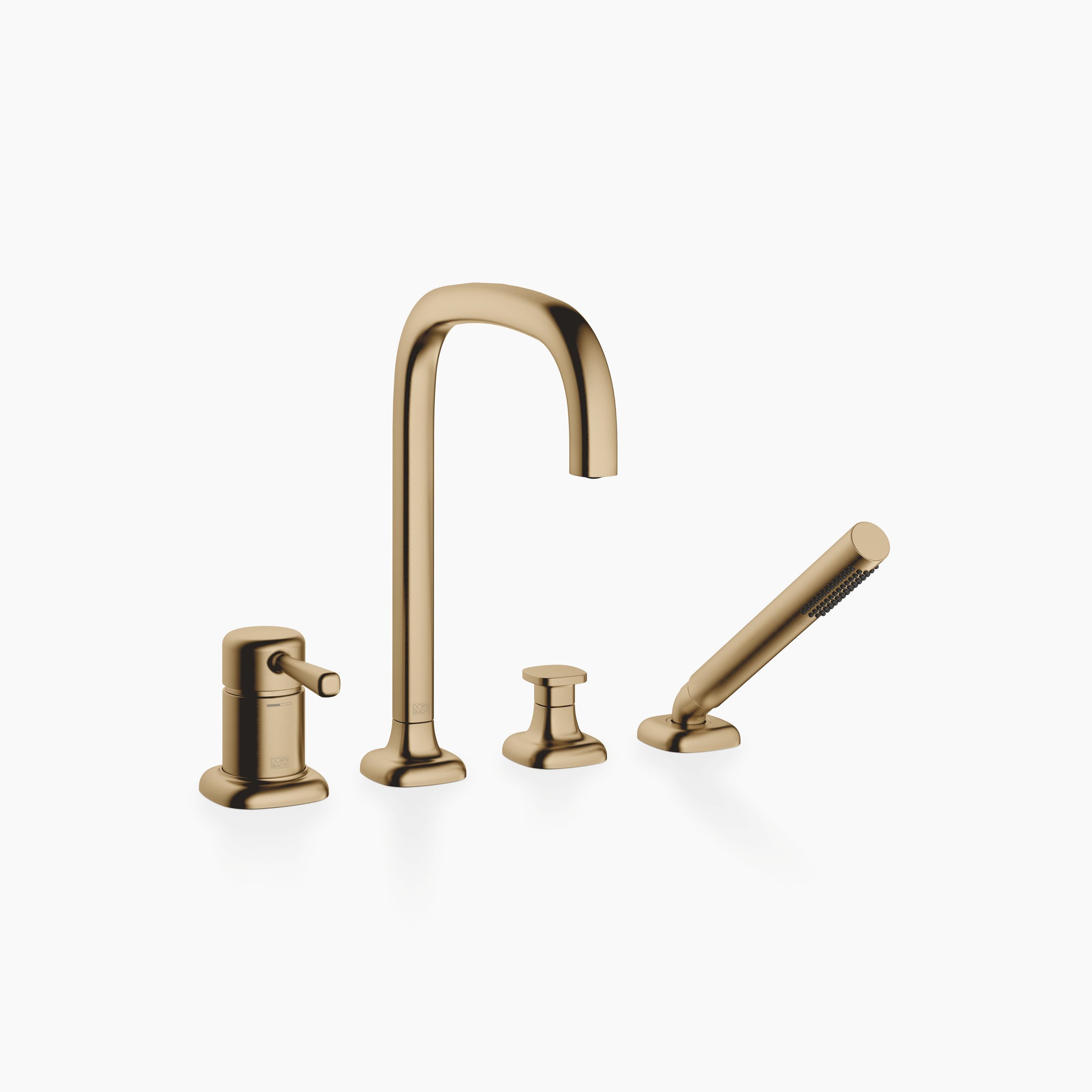

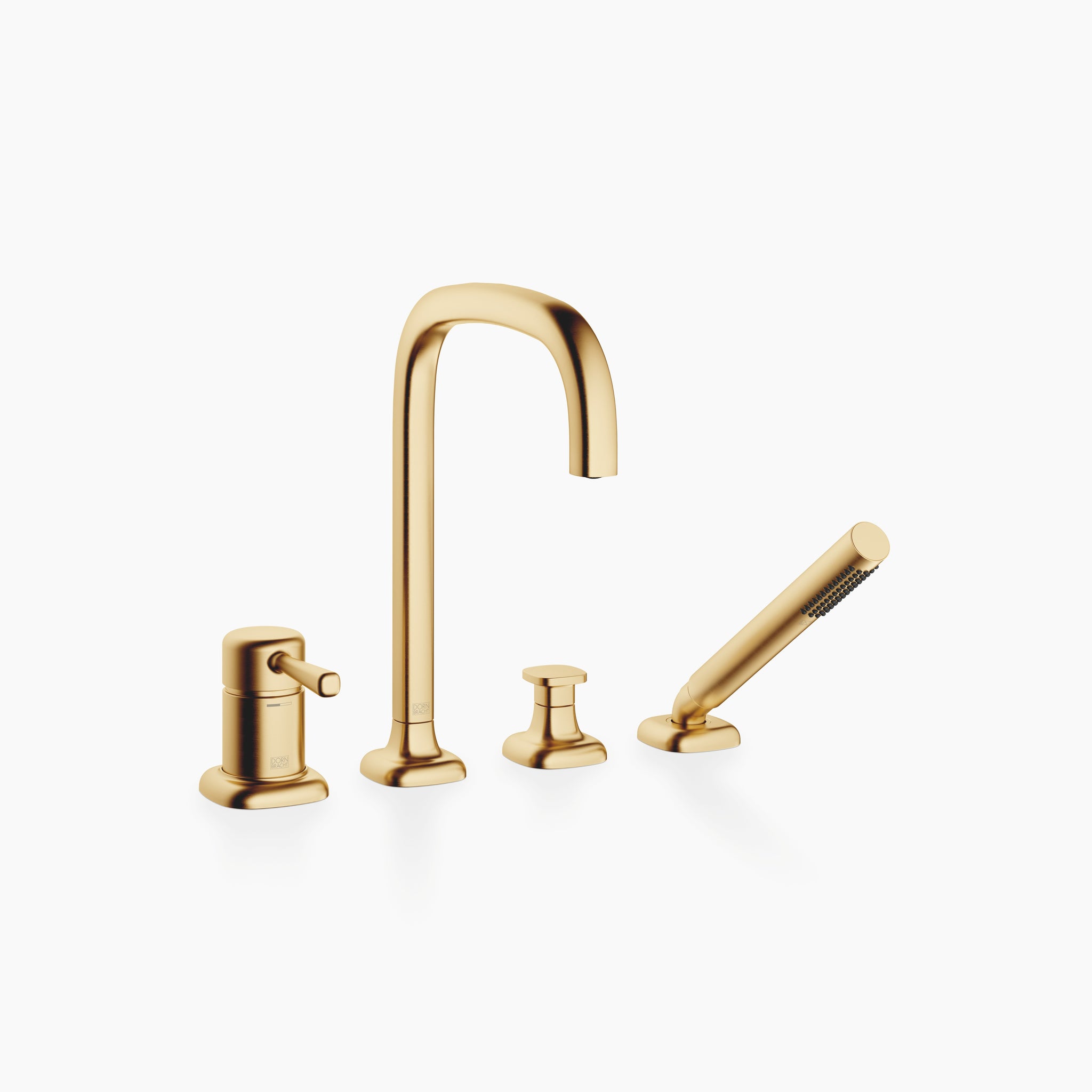

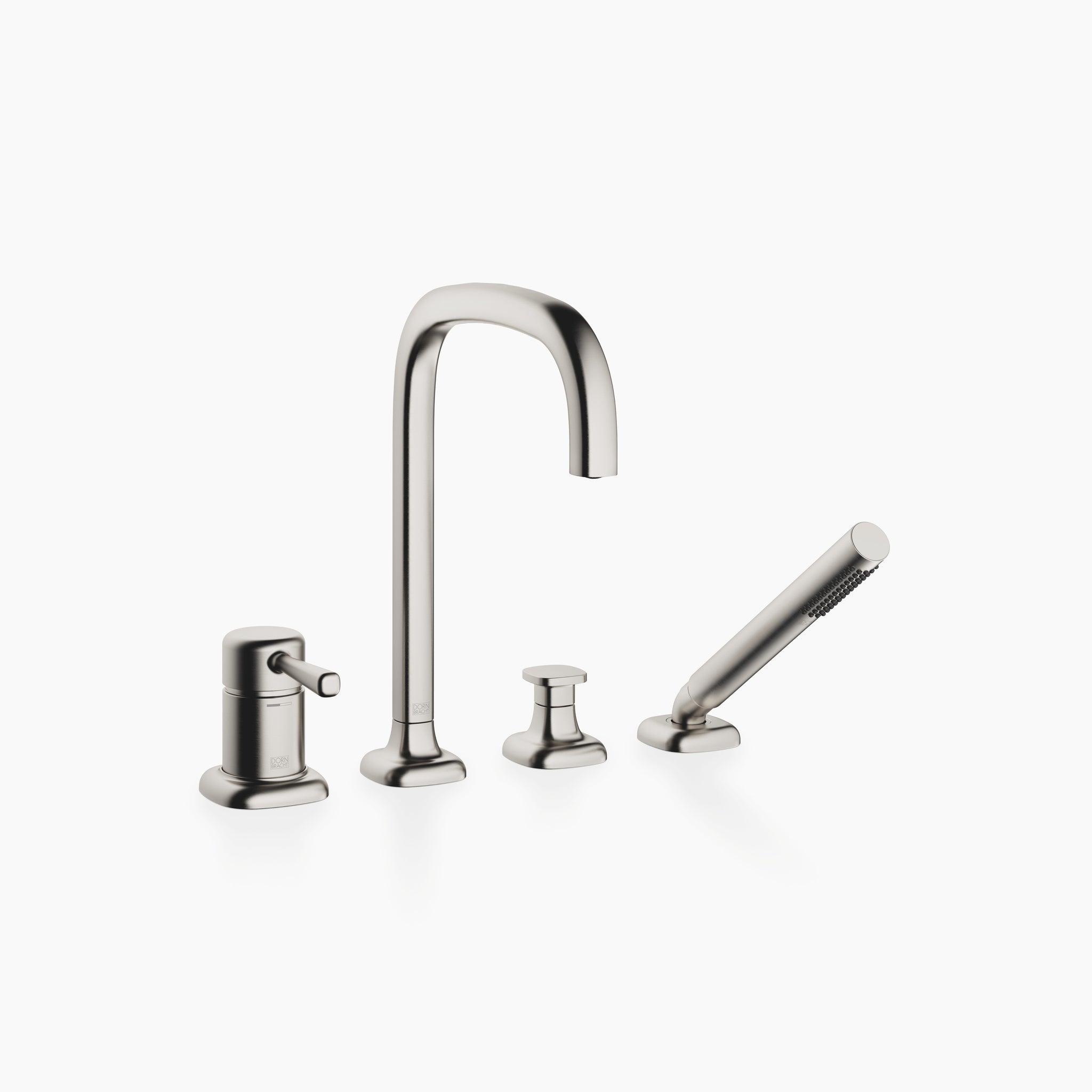

Dornbracht 27632404 Coya Deck-Mounted Tub Mixer, With Hand Shower Set

Product Info

Description

spout: circular, air-enriched flow
max. flow 18.2 l/min at 3 bar flow pressure
Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
complete hand shower set with anti-scale system
automatic bath/shower diverter
220mm projection
height of mixer 312 mm
height up to aerator 215 mm
hole diameter spout 32 mm
hole diameter single-lever mixer 35 mm
hole diameter for complete hand shower set 32 mm
rosette for spout Ø 60mm
rosette for single-lever mixer Ø 55mm
rosette for complete hand shower set Ø 60mm
metal shower hose 1750mm with integrated anti-twist protection
Intrinsic protection against back flow.
Mounting type: Floor mounting
Connection dimension (DN/G): 2 x 1/2" Male
Total height (mm): 312
Total width (mm): 367
Total Depth (mm): 262
Throat (mm): 220
Height to aerator (mm): 215
Flow rate (l/min): 18.2
Recommended hot water temperature (°C): 60
Permissible flow pressure: 1 - 5 bar
Recommended flow pressure: 3 bar
Thermal disinfection (5:00 min.) ≤ 70 °C
Low pressure: No
Weight (kg): 4,78
5 year guarantee

Additional Info

Brand:Dornbracht
Manufacturer Part #:27632404
