Brand: Dornbracht

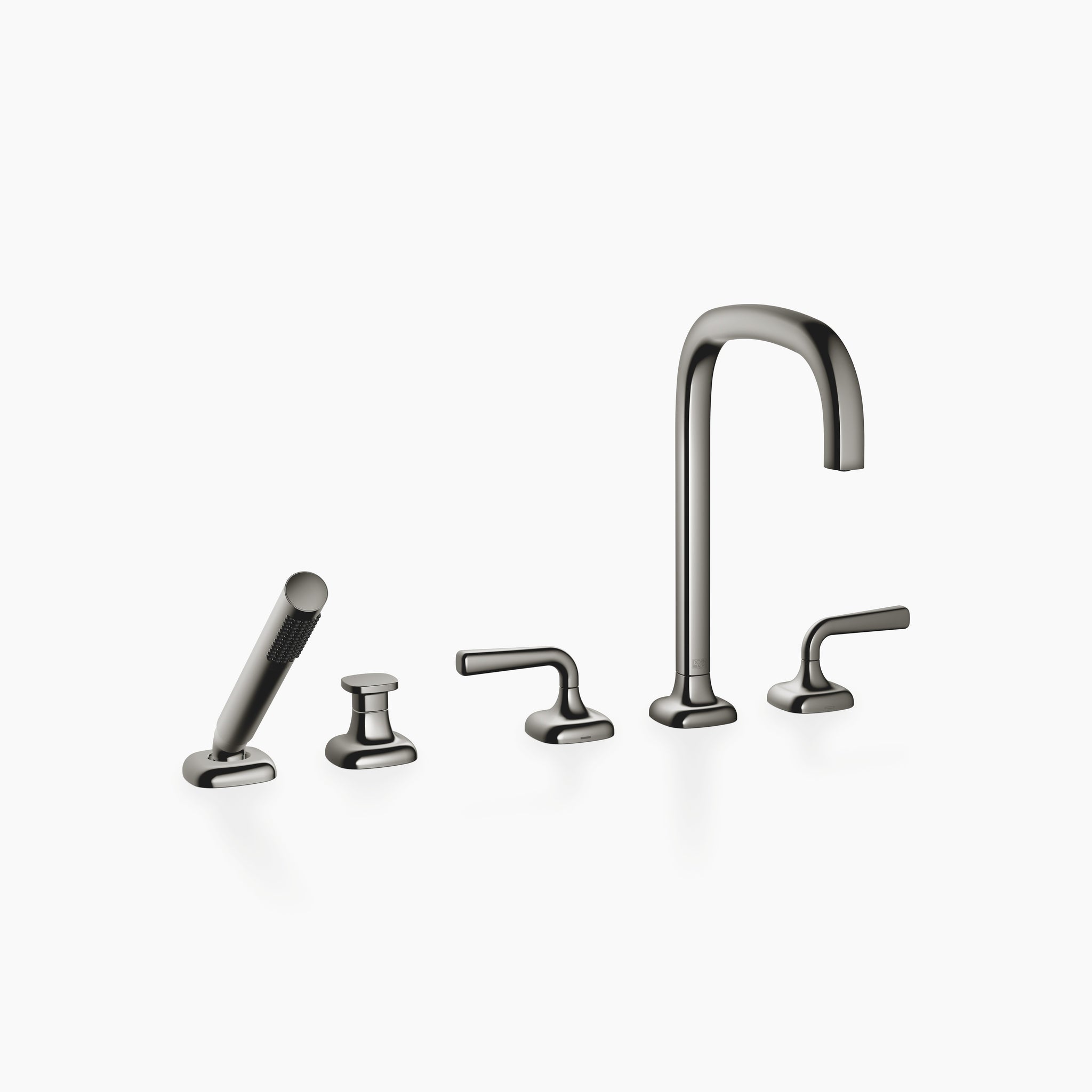

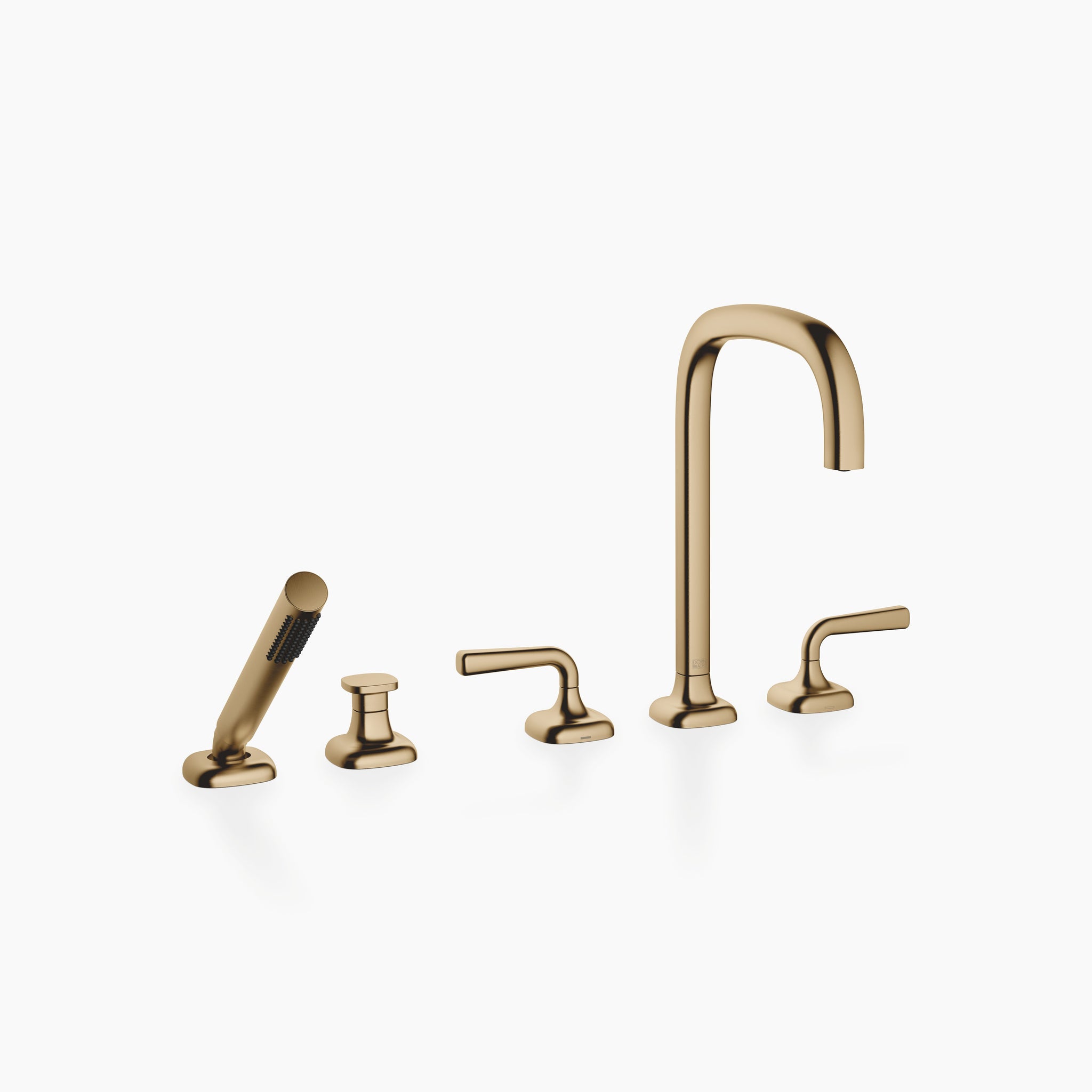

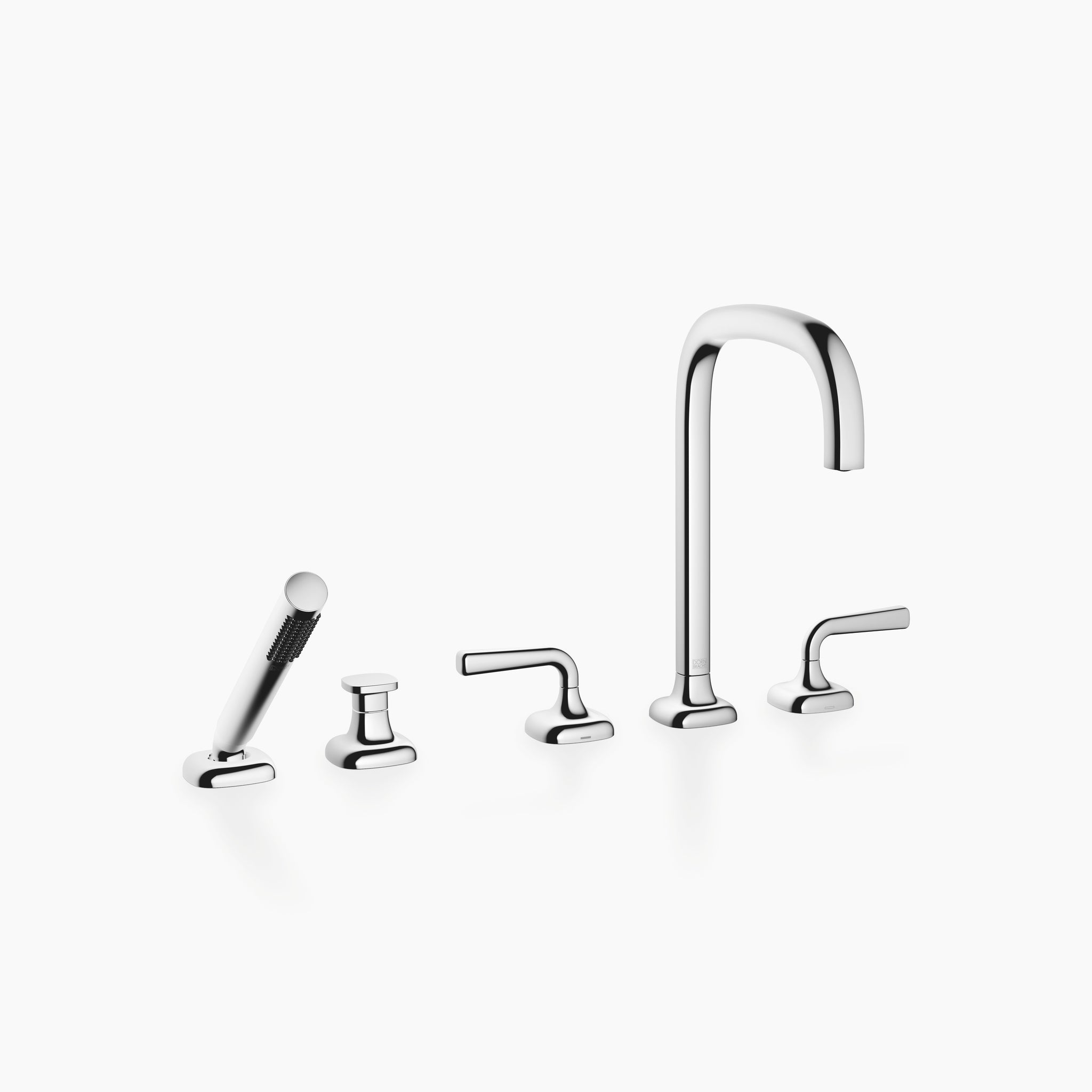

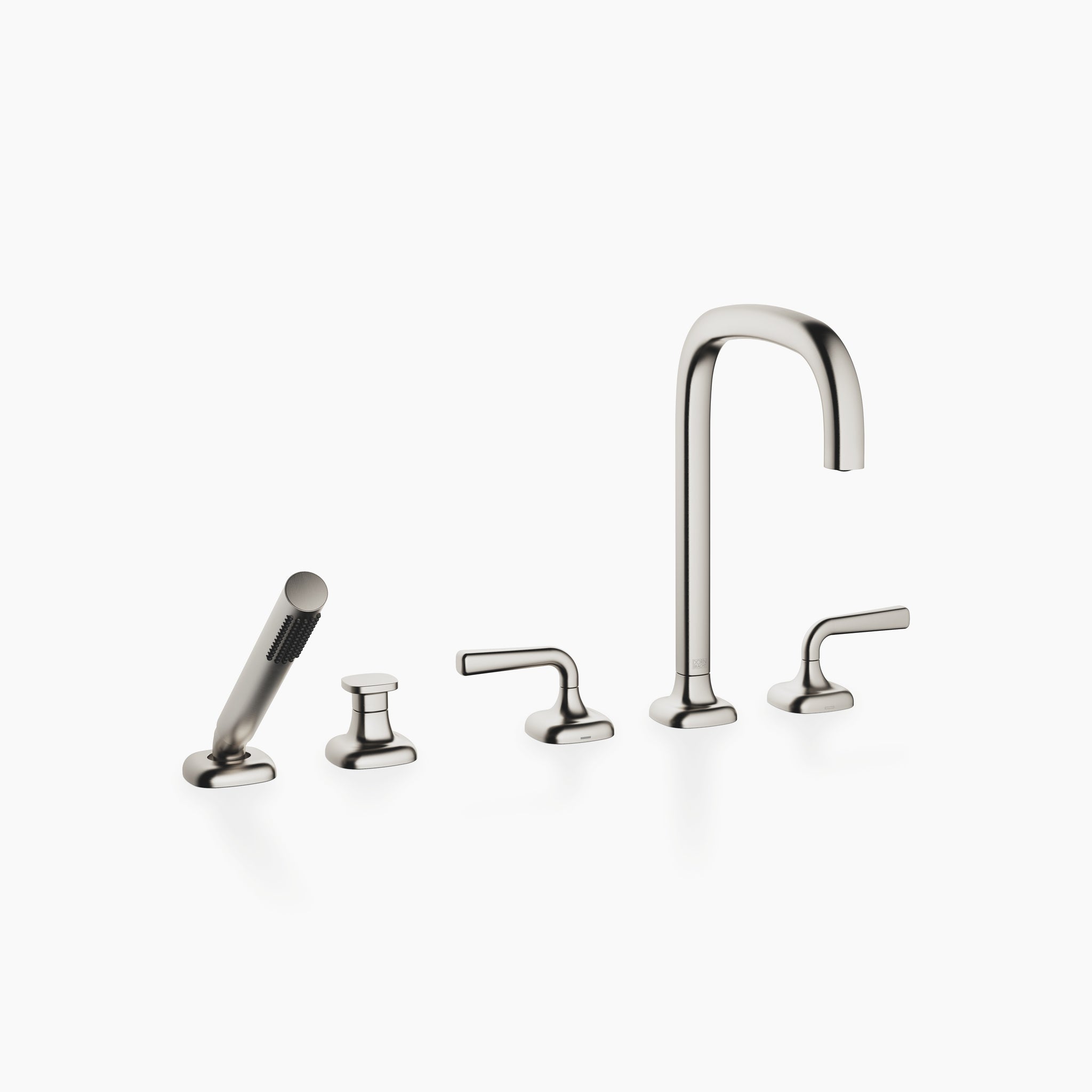

Dornbracht 27522414 Coya Five Hole Tub Set For Deck-Mounted Tub Installation With Diverter
Dornbracht 27522414 Coya Five Hole Tub Set For Deck-Mounted Tub Installation With Diverter
SKU: 27522414
$4,430.08
Unit price
per
$5,537.60
Save 20%
Free Shipping Included
5-7 Days
contact us for more details
NEED ASSISTANCE?
Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.
Product Info
Description
- spout: circular, air-enriched flow
- max. flow 20.4 l/min at 3 bar flow pressure
- Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
- complete hand shower set with anti-scale system
- 220mm projection
- automatic bath/shower diverter
- height of mixer 312 mm
- height up to aerator 215 mm
- hole diameter valve 32 mm
- hole diameter spout 32 mm
- hole diameter for complete hand shower set 32 mm
- rosette for complete hand shower set Ø 60mm
- rosette for spout Ø 60mm
- rosette for deck valve Ø 60mm
- metal shower hose 1750mm with integrated anti-twist protection
- Intrinsic protection against back flow.
- Lever Handle
- Mounting type: Floor mounting
- Connection dimension (DN/G): 2 x 1/2" Male
- Total height (mm): 312
- Total width (mm): 565
- Total Depth (mm): 262
- Throat (mm): 220
- Height to aerator (mm): 215
- Flow rate (l/min): 20.4
- Recommended hot water temperature (°C): 60
- Permissible flow pressure: 1 - 5 bar
- Recommended flow pressure: 3 bar
- Thermal disinfection (5:00 min.) ≤ 70 °C
- Low pressure: No
- Weight (kg): 4,21
- 5 year guarantee
| Application area | Bath |
|---|---|
| Construction type | Floor mounting |
| Country of origin | DEU |
| Article width | 565 mm |
| Article height | 312 mm |
| Article depth | 262 mm |
| Flow rate 3 bar | 20.4 l/min |
| Net weight | 4,21 kg |
Additional Info
- Brand:Dornbracht
- Manufacturer Part #:27522414
