Brand: Dornbracht

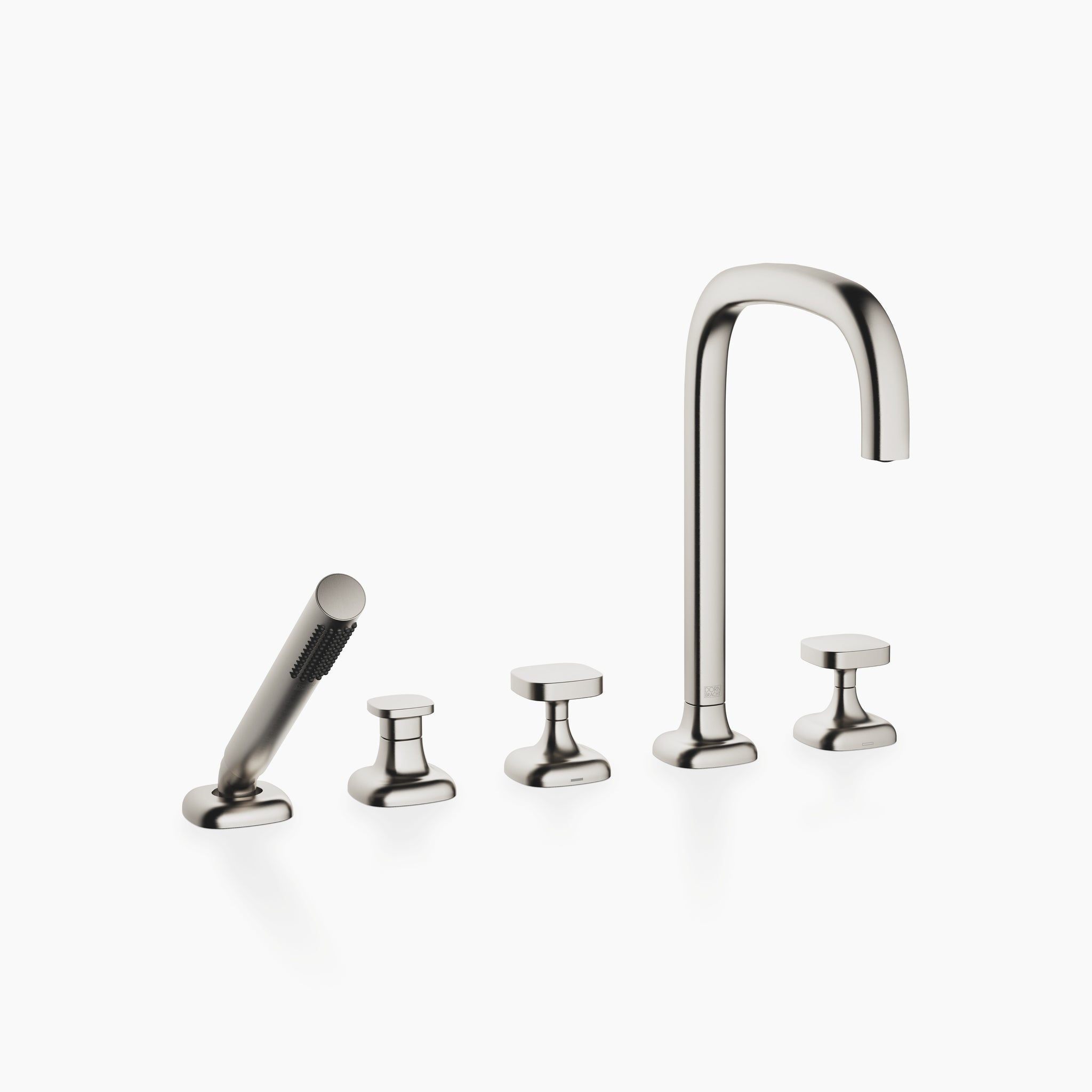

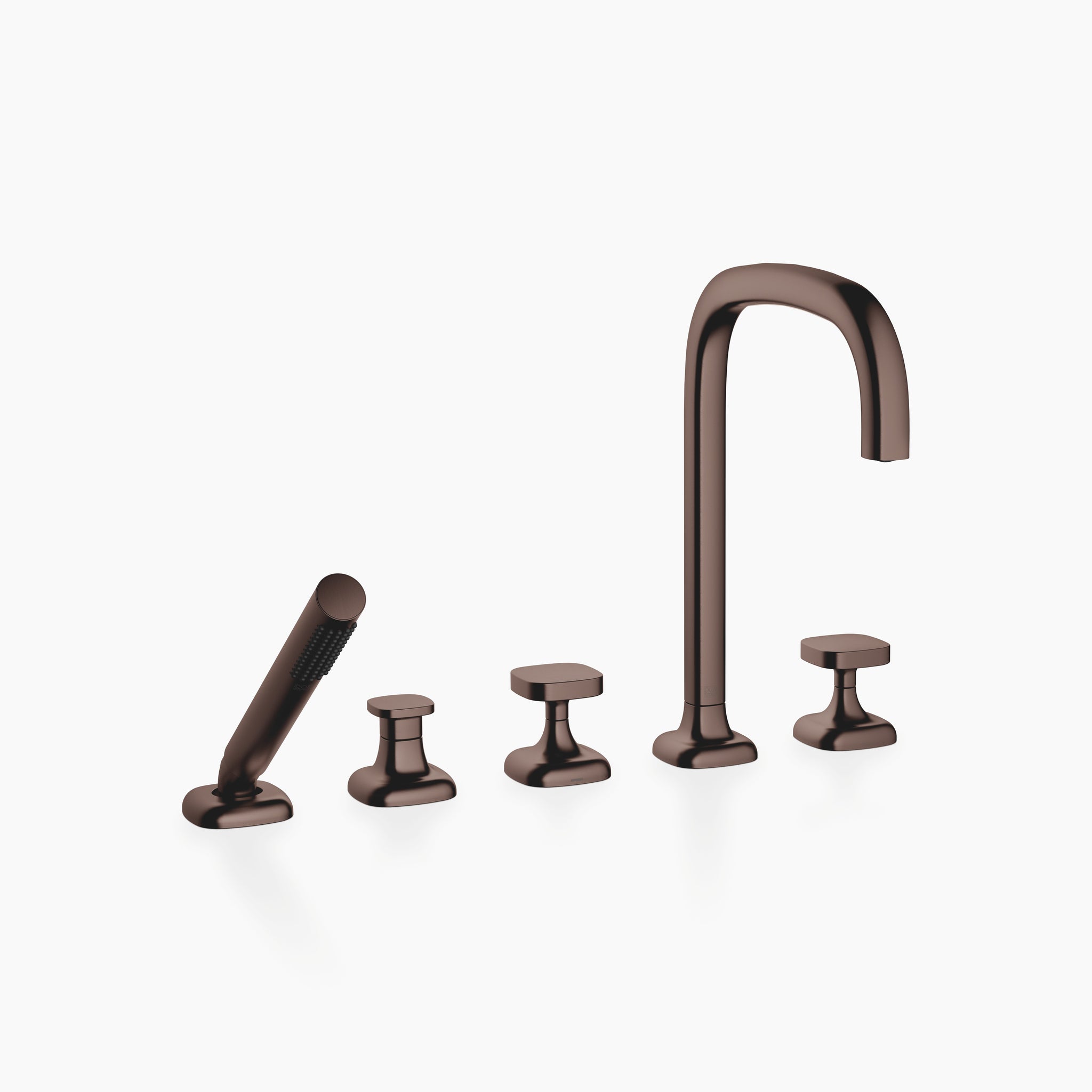

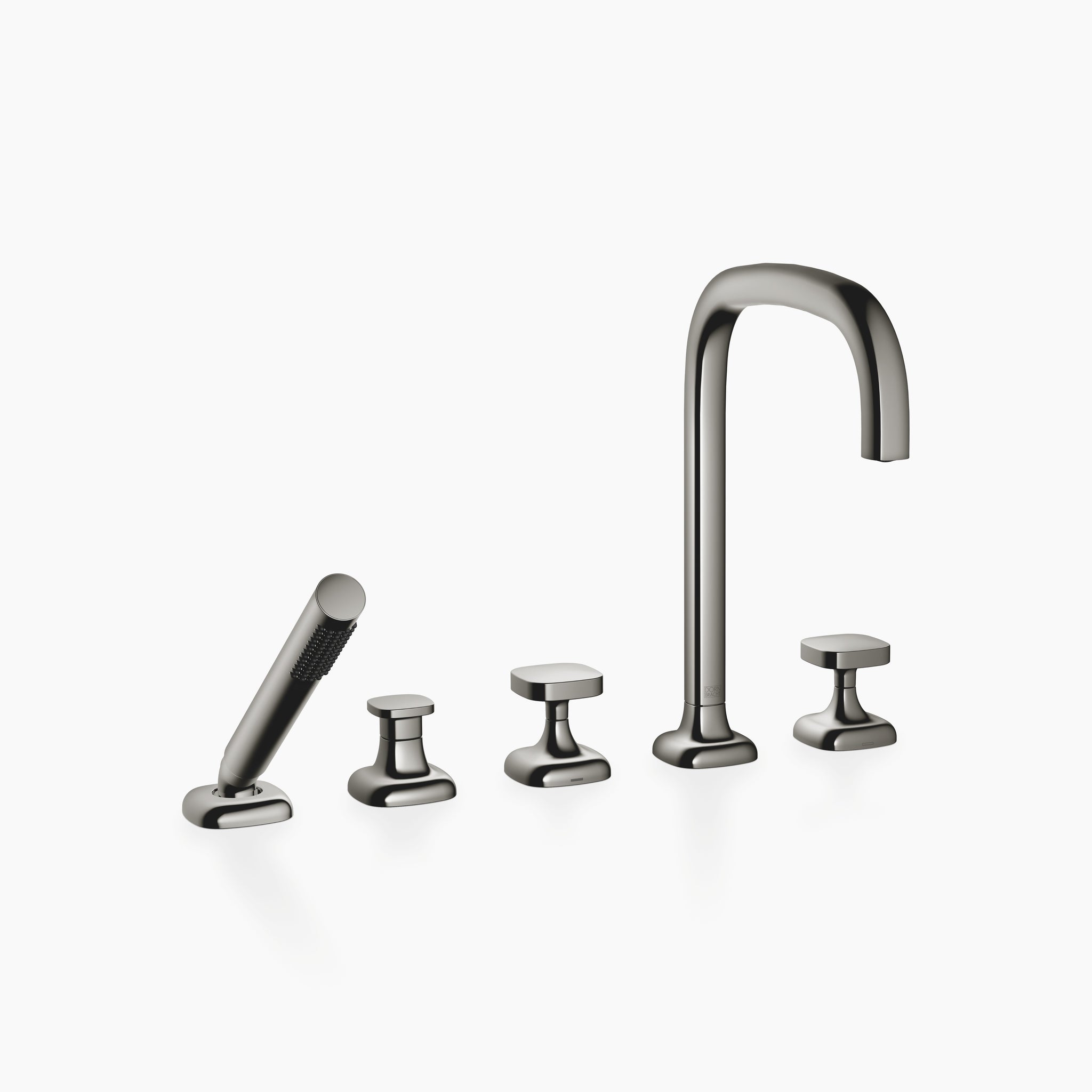

Dornbracht 27522404 Coya Five Hole Tub Set For Deck-Mounted Tub Installation With Diverter
Dornbracht 27522404 Coya Five Hole Tub Set For Deck-Mounted Tub Installation With Diverter
SKU: 27522404
$4,430.08
Unit price
per
$5,537.60
Save 20%
Free Shipping Included
5-7 Days
contact us for more details
NEED ASSISTANCE?
Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.
Product Info
Description
- spout: circular, air-enriched flow
- max. flow 20.4 l/min at 3 bar flow pressure
- Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
- complete hand shower set with anti-scale system
- 220mm projection
- automatic bath/shower diverter
- height of mixer 312 mm
- height up to aerator 215 mm
- hole diameter valve 32 mm
- hole diameter spout 32 mm
- hole diameter for complete hand shower set 32 mm
- rosette for complete hand shower set Ø 60mm
- rosette for spout Ø 60mm
- rosette for deck valve Ø 60mm
- metal shower hose 1750mm with integrated anti-twist protection
- Intrinsic protection against back flow.
- Knauf Handle
- Mounting type: Floor mounting
- Connection dimension (DN/G): 2 x 1/2" Male
- Total height (mm): 312
- Total width (mm): 510
- Total Depth (mm): 262
- Throat (mm): 220
- Height to aerator (mm): 215
- Flow rate (l/min): 20.4
- Recommended hot water temperature (°C): 60
- Permissible flow pressure: 1 - 5 bar
- Recommended flow pressure: 3 bar
- Thermal disinfection (5:00 min.) ≤ 70 °C
- Low pressure: No
- Weight (kg): 4,33
- 5 year guarantee
| Application area | Bath |
|---|---|
| Construction type | Floor mounting |
| Country of origin | DEU |
| Article width | 510 mm |
| Article height | 312 mm |
| Article depth | 262 mm |
| Flow rate 3 bar | 20.4 l/min |
| Net weight | 4,33 kg |
Additional Info
- Brand:Dornbracht
- Manufacturer Part #:27522404
Product Options
,DNB-27522404-00,DNB-27522404-06,DNB-27522404-19,DNB-27522404-28,DNB-27522404-39,DNB-27522404-42,DNB-27522404-43,DNB-27522404-46,DNB-27522404-47,DNB-27522404-99|,Chrome,Brushed Platinum,Dark Chrome,Brushed Durabrass (23kt Gold),Brushed Dark Brass (PVD),Brushed Bronze (PVD),Brushed Dark Bronze (PVD),Brushed Champagne (22kt Gold),Champagne (22kt Gold),Brushed Dark Platinum|,5537.60,8860.20,8306.40,13290.30,8860.20,8860.20,9967.70,13290.30,13290.30,8860.20|,4430.08,7088.16,6645.12,10632.24,7088.16,7088.16,7974.16,10632.24,10632.24,7088.16||,45526061187263,45526061220031,45526061252799,45526061285567,45526061318335,45526061351103,45526061383871,45526061416639,45526061449407,45526061482175|,28,28,28,28,28,28,28,28,28,28|,27522404-00,27522404-06,27522404-19,27522404-28,27522404-39,27522404-42,27522404-43,27522404-46,27522404-47,27522404-99
