Brand: Dornbracht

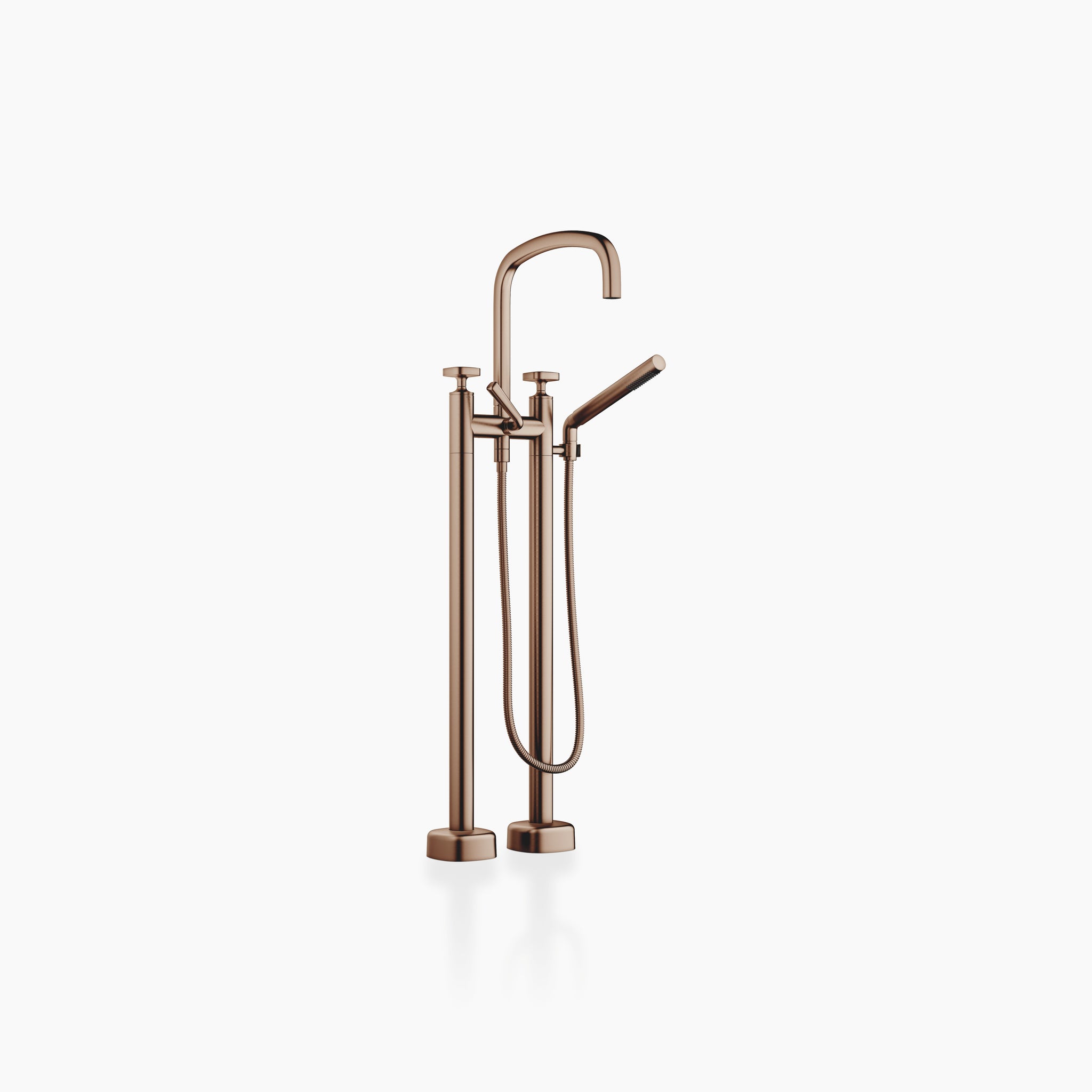

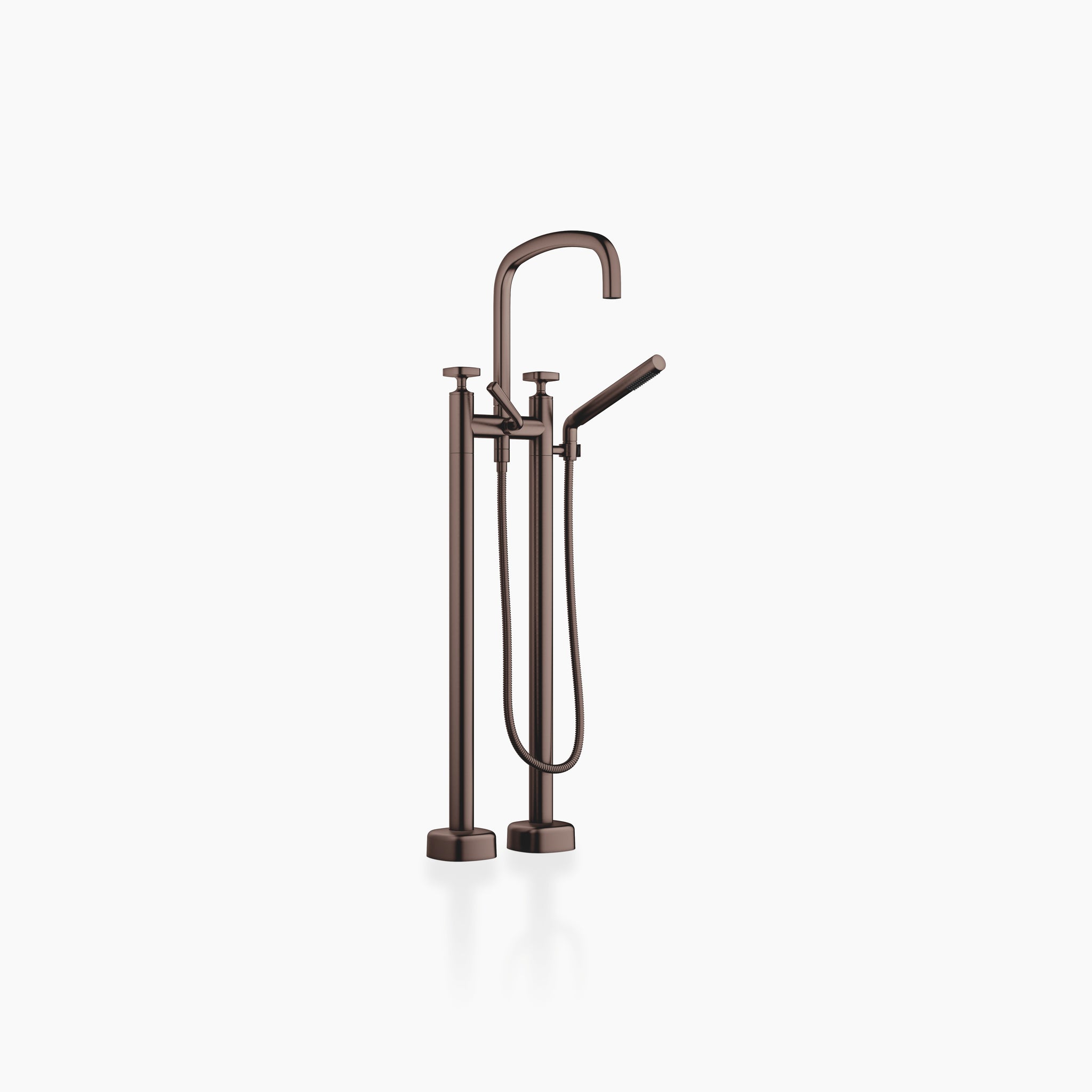

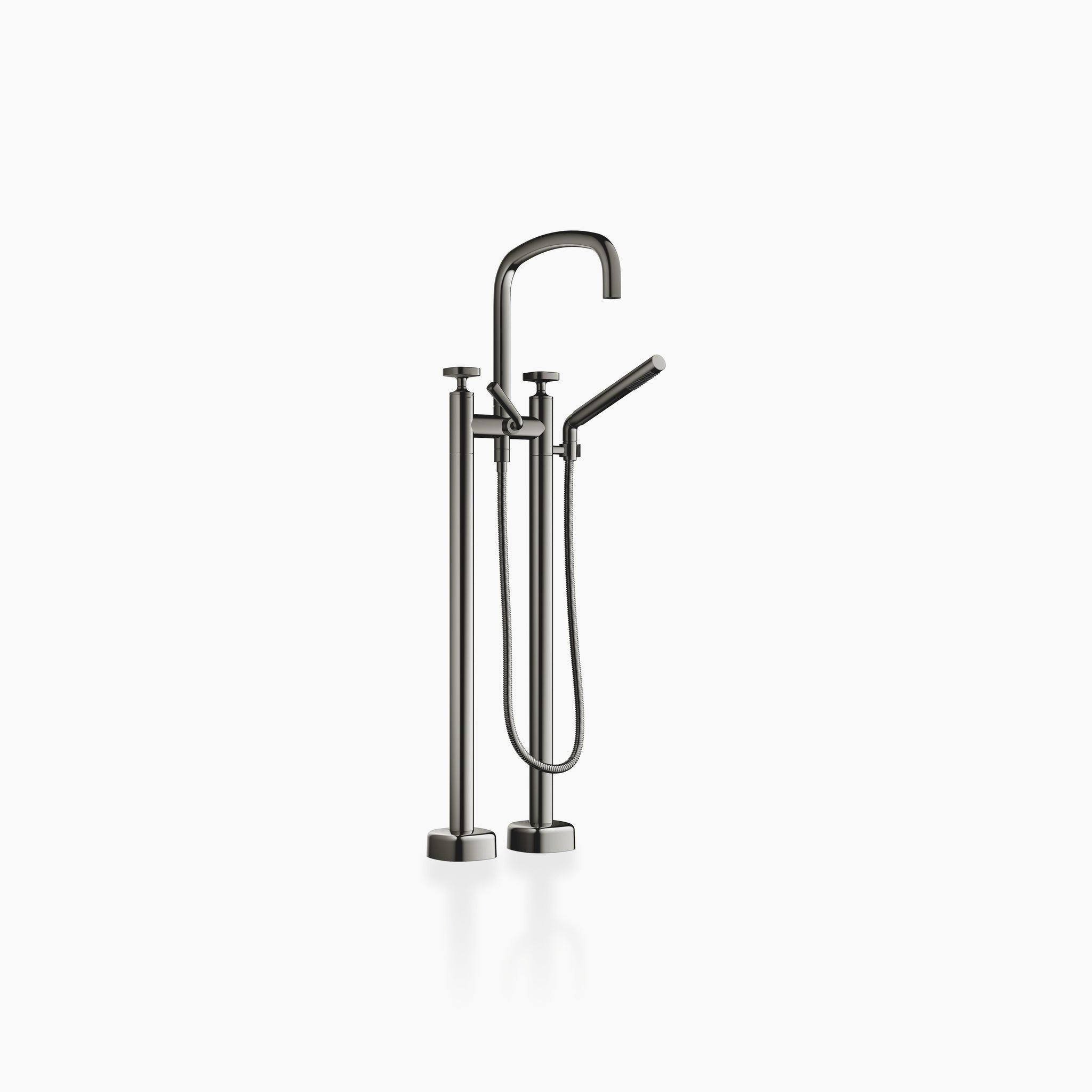

Dornbracht 25943404 Coya Two-Hole Tub Mixer For Freestanding Installation With Hand Shower Set
Dornbracht 25943404 Coya Two-Hole Tub Mixer For Freestanding Installation With Hand Shower Set
SKU: 25943404
$7,238.00
Unit price
per
$9,047.50
Save 20%
Free Shipping Included
5-7 Days
contact us for more details
NEED ASSISTANCE?
Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.
Product Info
Description
- spout: circular, air-enriched flow
- max. flow 24.6 l/min at 3 bar flow pressure
- Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
- hand shower with anti-scale system
- 280mm projection
- pivotable spout 360°
- rotary diverter for bath/shower
- total height 946 mm
- stand pipes height 661 mm
- height up to aerator 834 mm
- slide-on rosettes Ø 100 mm
- gauge 150 mm
- metal shower hose 1250mm with integrated anti-twist protection
- pivotable shower holder on the right foot
- Intrinsic protection against back flow.
- Knauf Handle
- Mounting type: Free-standing assembly
- Connection dimension (DN/G): via separate concealed rough part
- Total height (mm): 946
- Total width (mm): 270
- Total Depth (mm): 342
- Throat (mm): 280
- Height to aerator (mm): 834
- Flow rate (l/min): 24.6
- Recommended hot water temperature (°C): 60
- Permissible flow pressure: 1 - 5 bar
- Recommended flow pressure: 3 bar
- Thermal disinfection (5:00 min.) ≤ 70 °C
- Low pressure: No
- Weight (kg): 10,08
- 5 year guarantee
- Required miscellaneous: Alternatives 1: 1 x
| Application area | Bath |
|---|---|
| Construction type | Free-standing assembly |
| Country of origin | DEU |
| Article width | 270 mm |
| Article height | 946 mm |
| Article depth | 342 mm |
| Flow rate 3 bar | 24.6 l/min |
| Flow rate Max. | 25.2 l/min |
| Net weight | 10,08 kg |
Additional Info
- Brand:Dornbracht
- Manufacturer Part #:25943404
