Shop the Collection: Vaia
Brand: Dornbracht

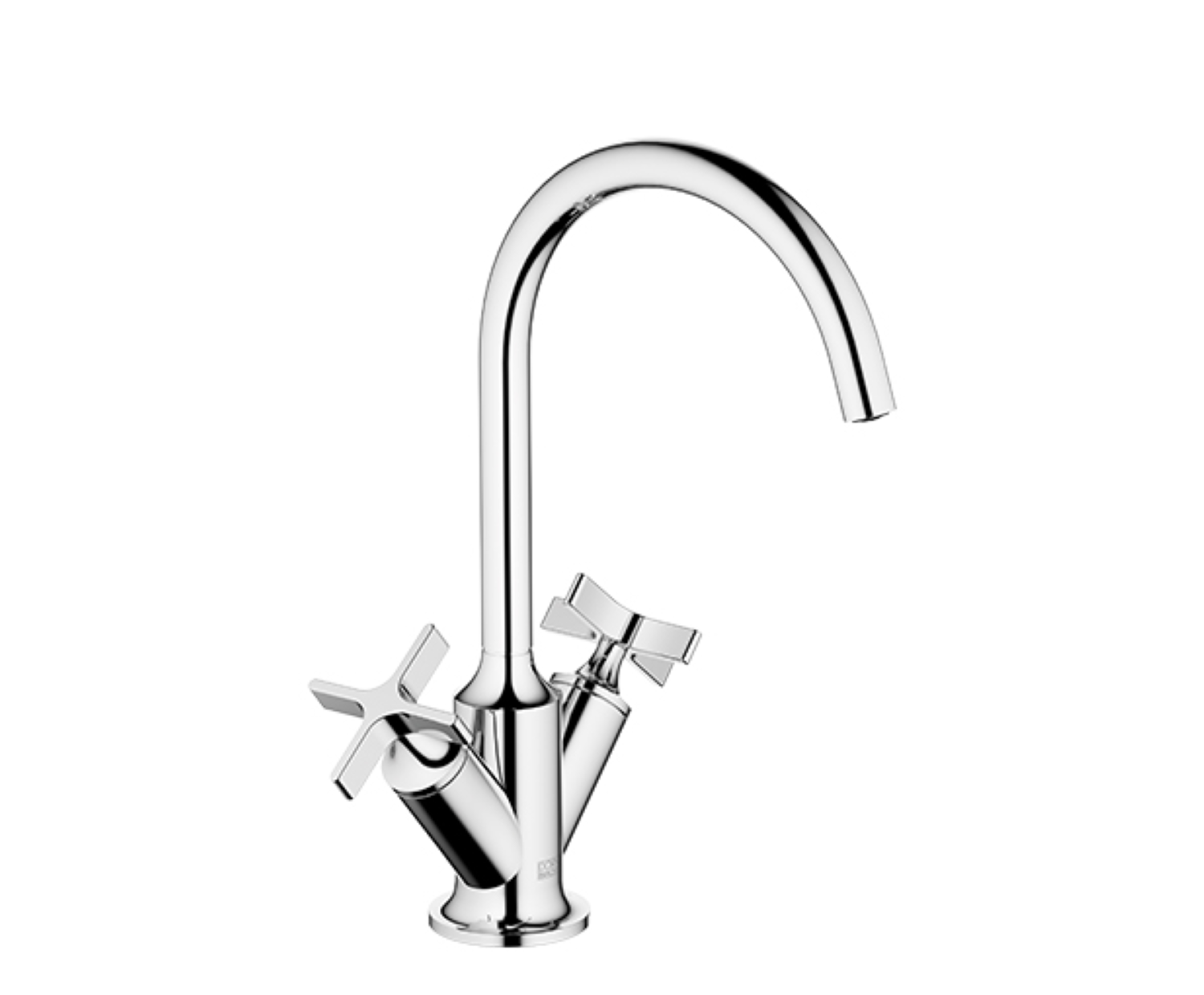

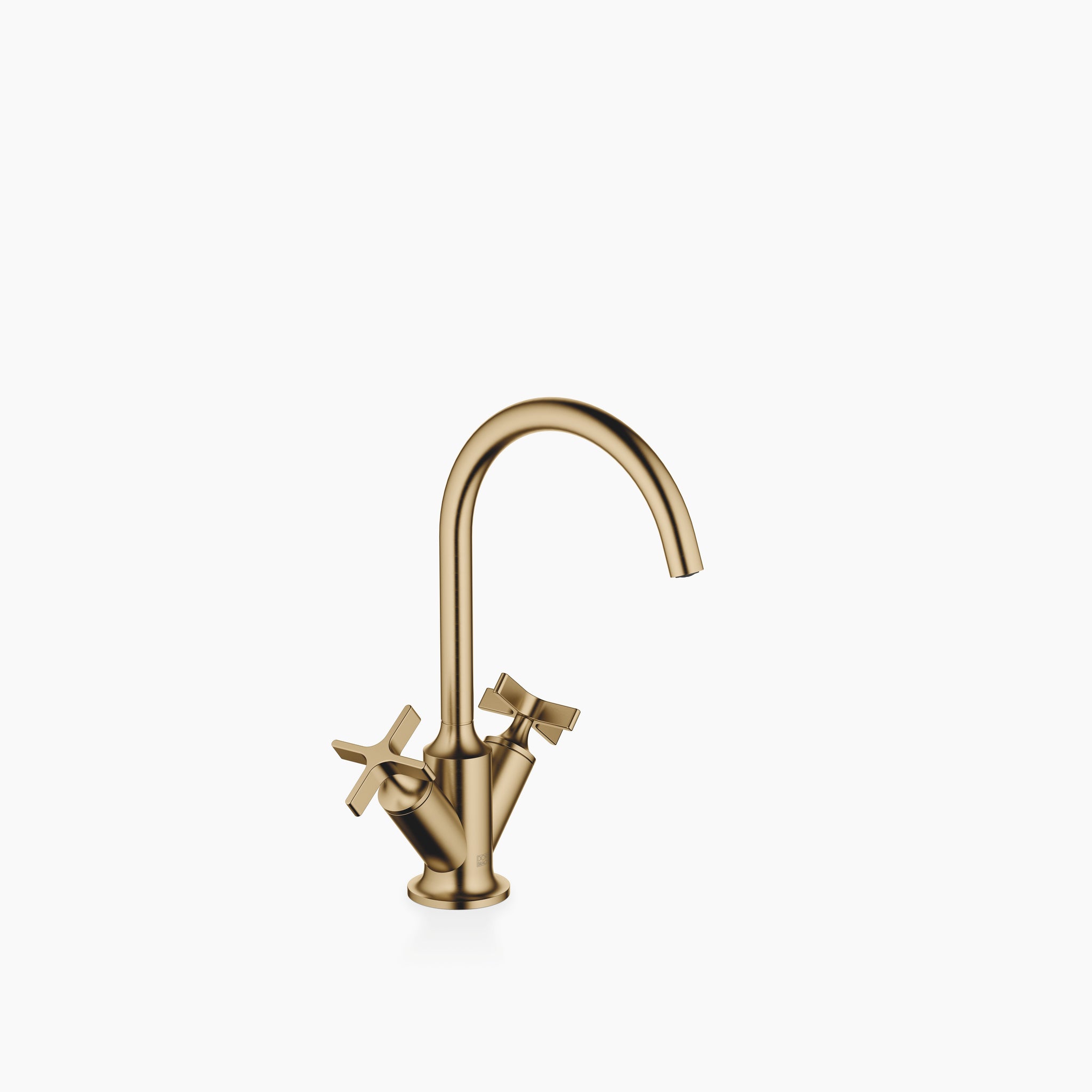

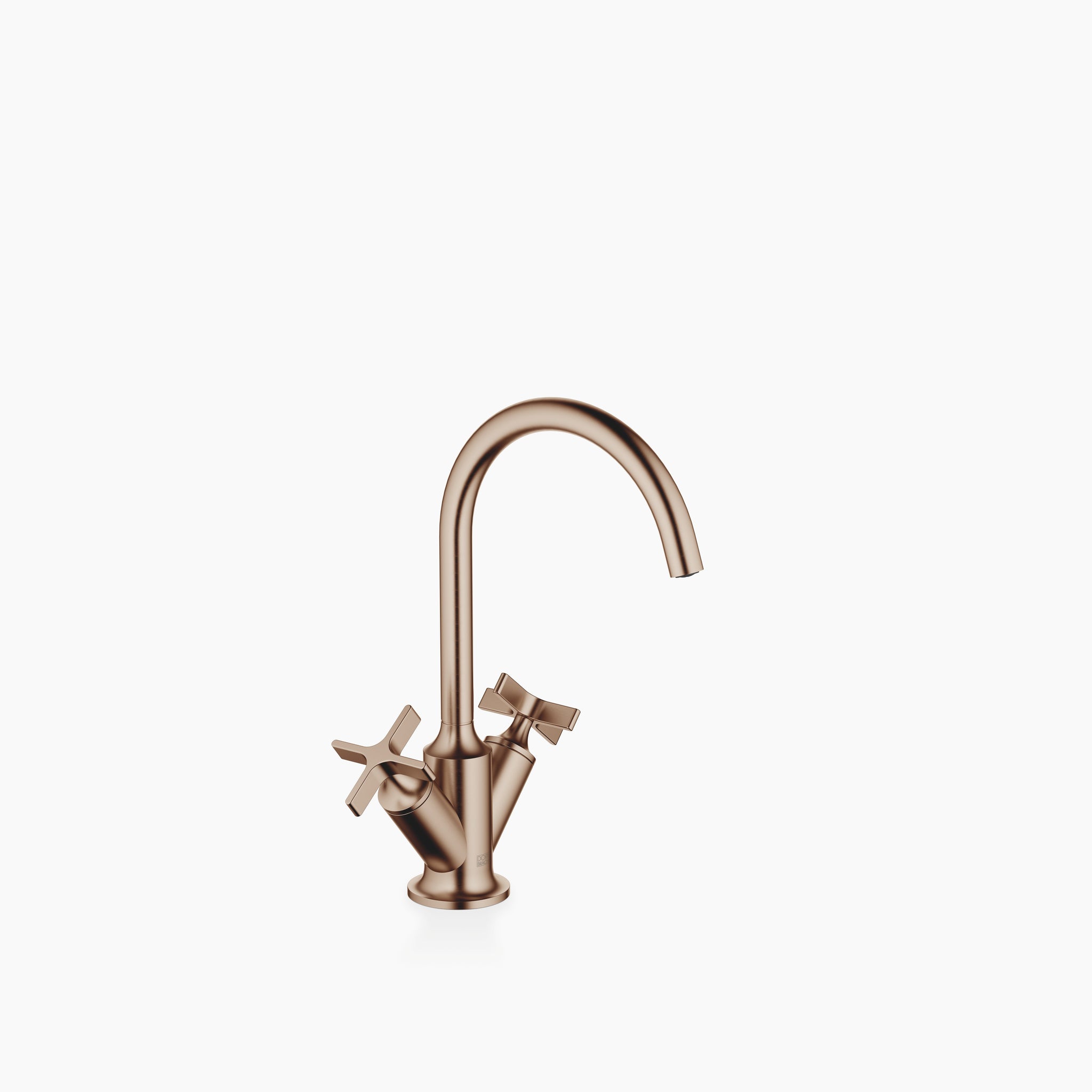

Dornbracht 22513809 Vaia Single-Hole Lavatory Mixer With Drain

Dornbracht 22513809 Vaia Single-Hole Lavatory Mixer With Drain

SKU: 22513809
$1,955.04
$2,443.80 Save 20%
Free Shipping Included
DESIGNERS AND PROFESSIONALSCALL TO DISCUSS YOUR PROJECT888-421-1941
{"name":"Finish","position":1,"values":["Chrome","Brushed Platinum","Platinum","Dark Chrome","Brushed Durabrass 23kt Gold","Brushed Dark Brass PVD","Brushed Bronze PVD","Brushed Dark Bronze PVD","Brushed Champagne 22kt Gold","Champagne 22kt Gold","Brushed Dark Platinum"]}
Finish: Chrome Item # 22513809-000010 View Specifications
TrustGuard
NEED ASSISTANCE?

Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.

Product Info

Description

  • 167mm projection
  • 1 1/4" pop-up waste
  • pivotable spout 360°
  • circular, air-enriched flow
  • height of mixer 307 mm
  • height up to aerator 221 mm
  • hole diameter 35 mm
  • rosette Ø 60 mm
  • 2x US pressure hose, 3/8"
  • max. flow 4.5 l/min
  • lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Only suitable for basins with an overflow.
  • Mounting type: Floor mounting
  • Tap hole variant: 1 tap hole
  • Drain fitting (with/without): 1" US pop-up waste with pull-rod activation
  • Total height (mm): 307
  • Total width (mm): 191
  • Total Depth (mm): 205
  • Throat (mm): 167
  • Height to aerator (mm): 221
  • Flow rate (l/min): 4.5
  • Recommended hot water temperature (°C): 60
  • Permissible flow pressure: 1 - 5 bar
  • Recommended flow pressure: 3 bar
  • Thermal disinfection (5:00 min.) ≤ 70 °C
  • Low pressure: No
  • Weight (kg): 2,6
  • 5 year guarantee

Additional Info

  • Brand:Dornbracht
  • Manufacturer Part #:22513809
