Brand: Dornbracht

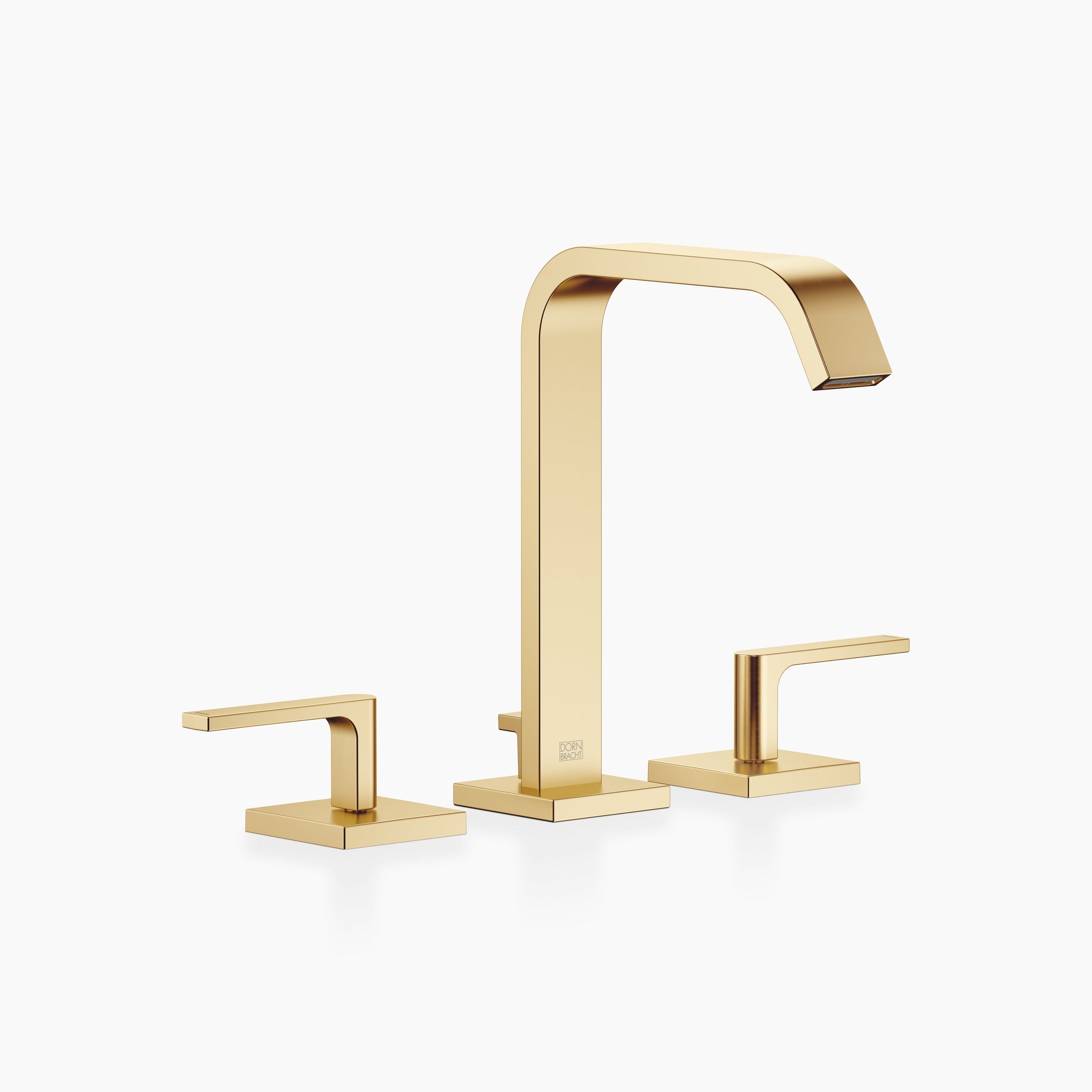

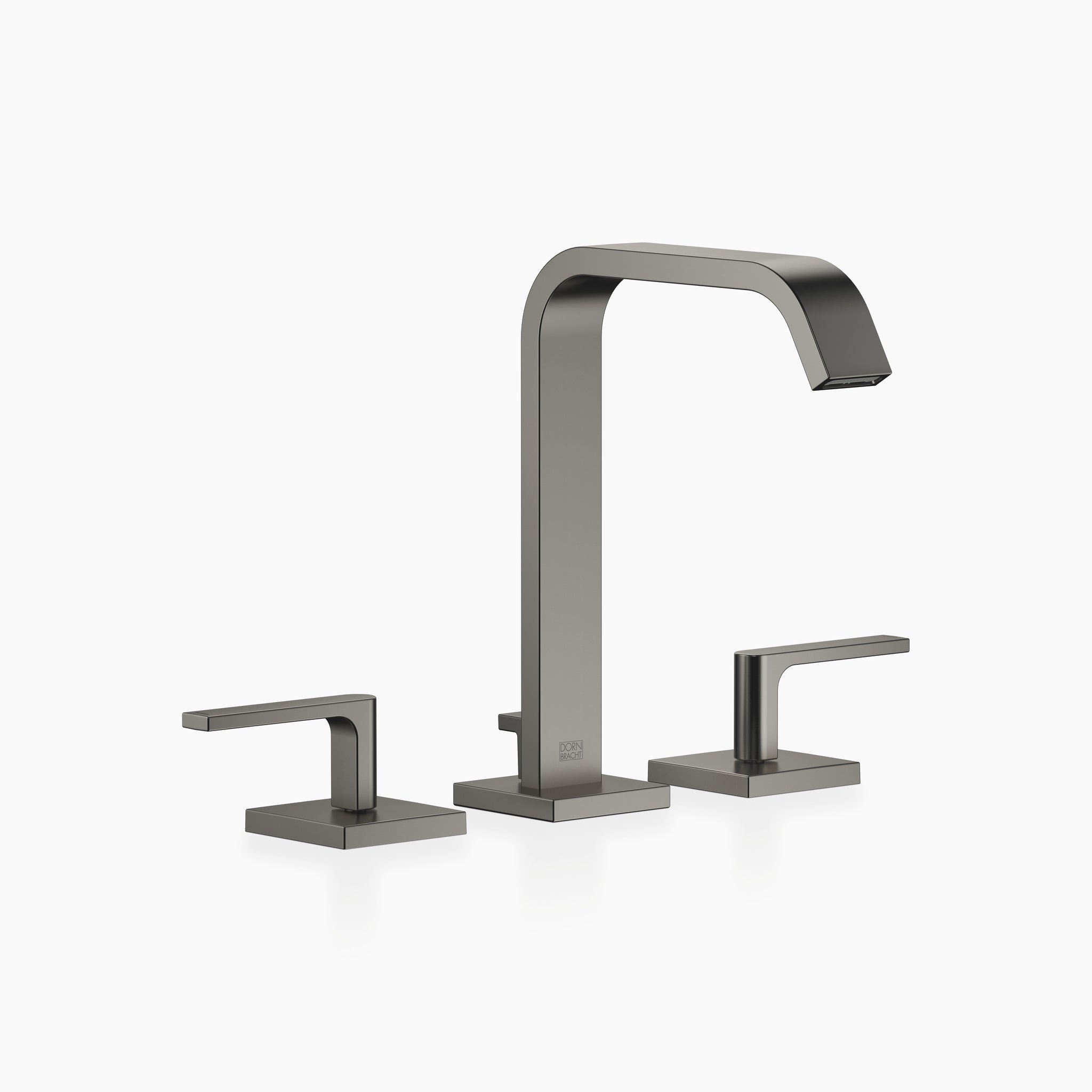

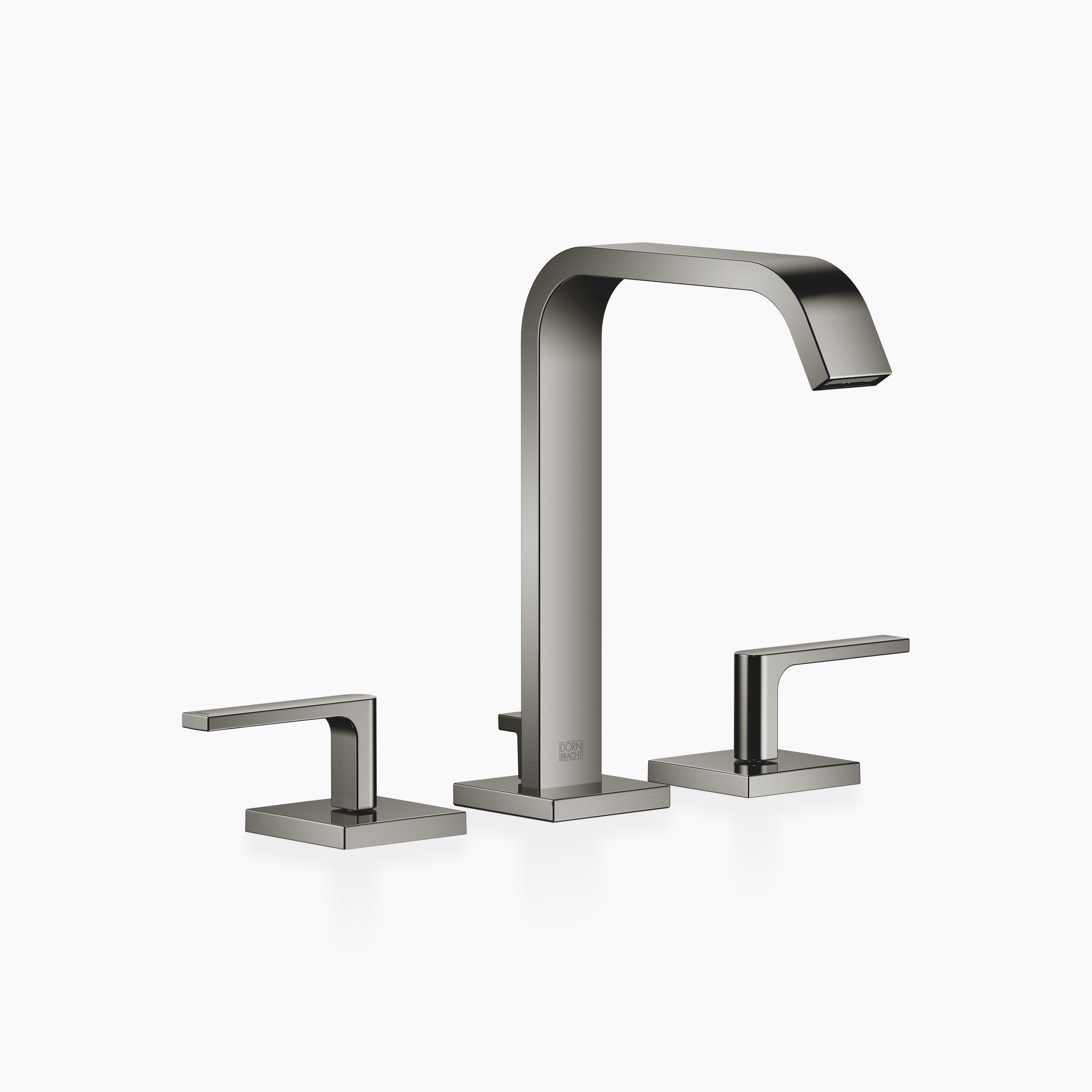

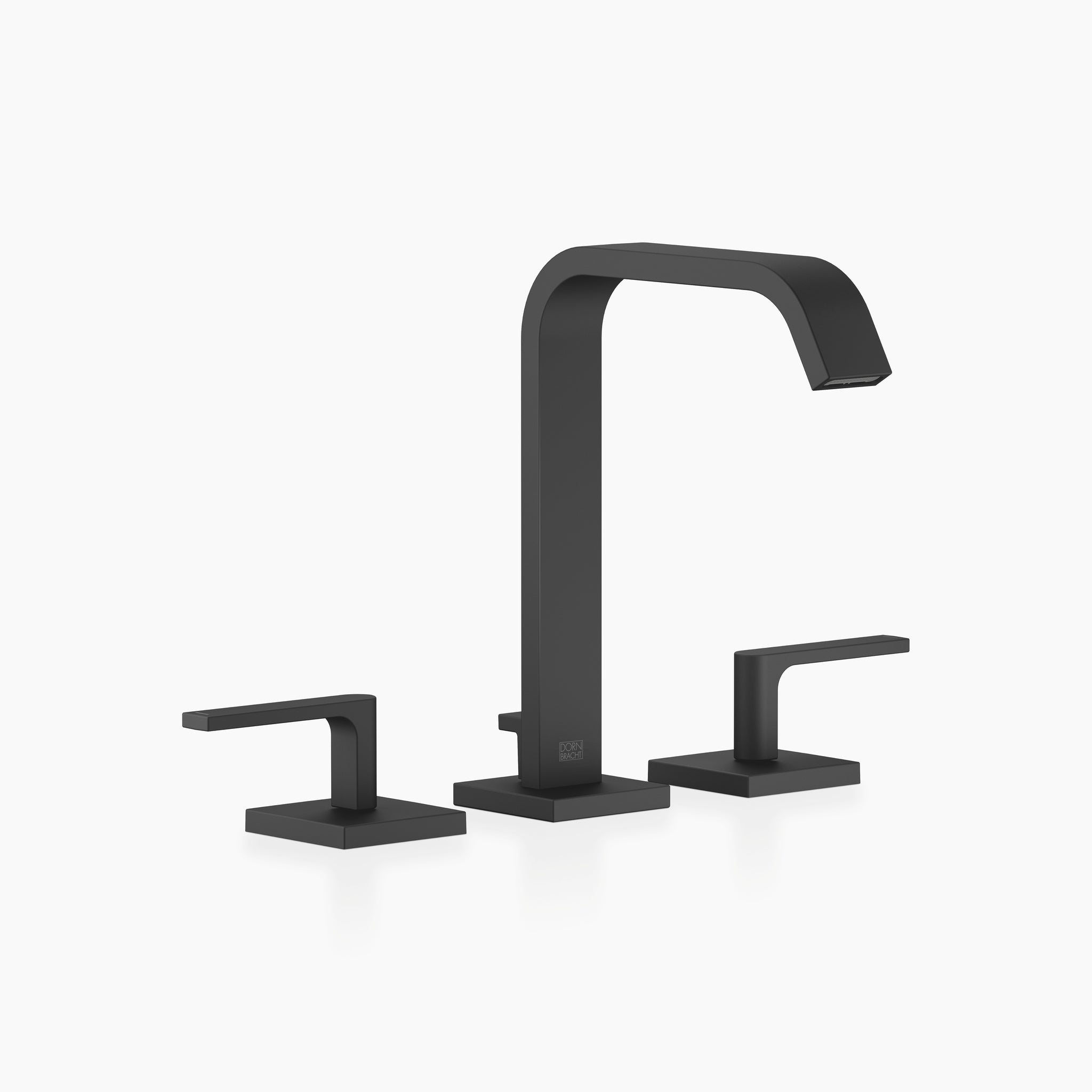

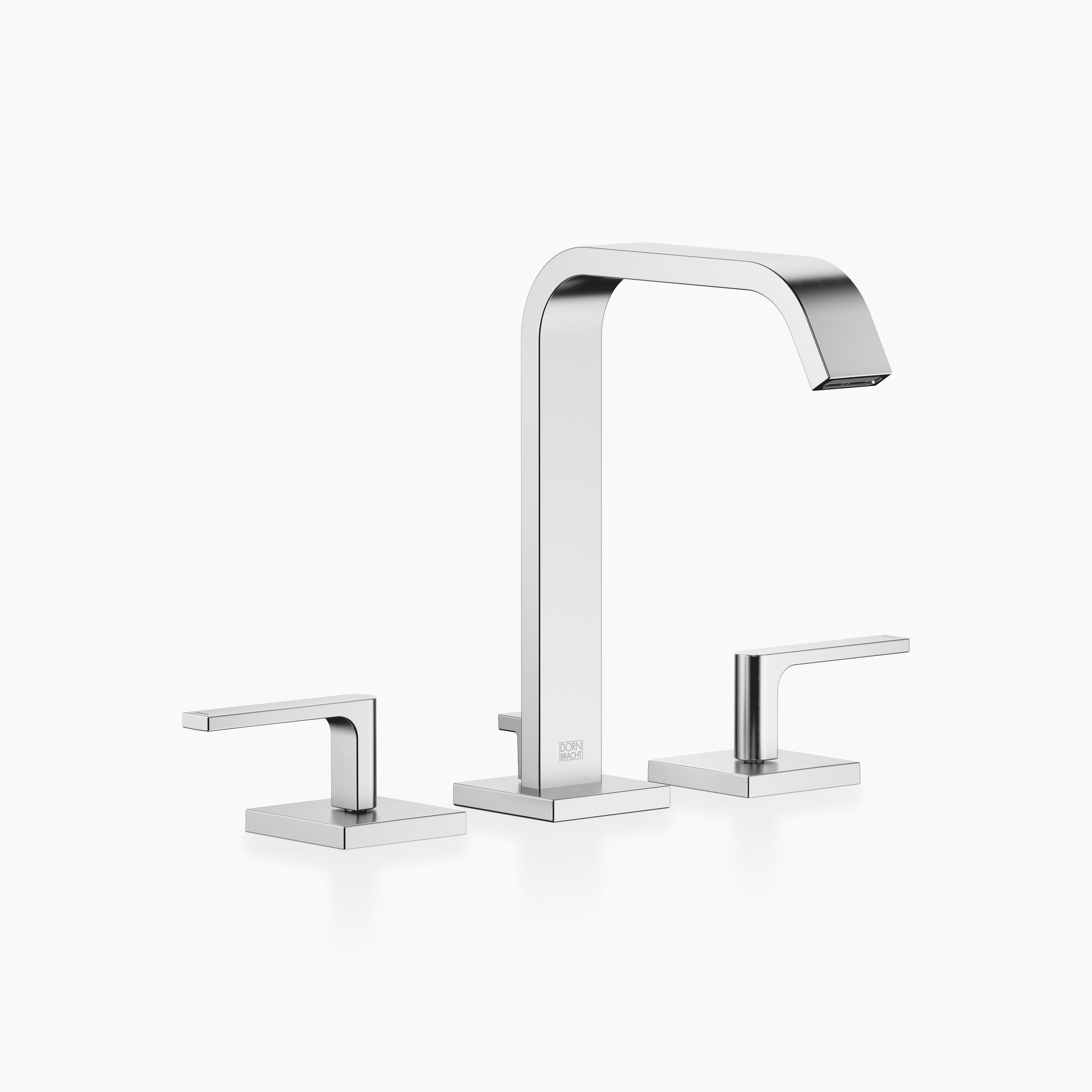

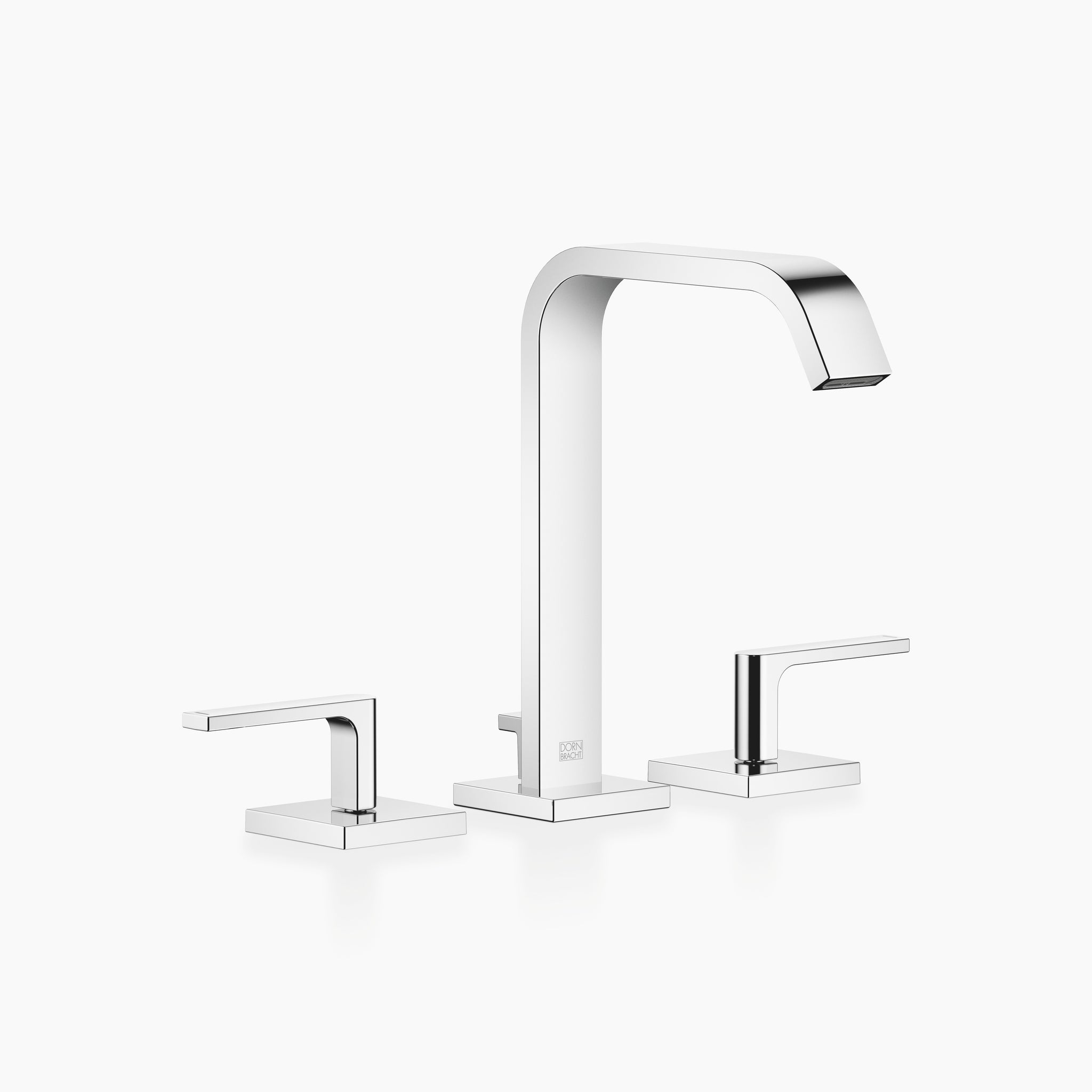

Dornbracht 20713671 Imo Three-Hole Lavatory Mixer With Drain
Dornbracht 20713671 Imo Three-Hole Lavatory Mixer With Drain
SKU: 20713671
$1,180.64
Unit price
per
$1,475.80
Save 20%
Free Shipping Included
5-7 Days
contact us for more details
NEED ASSISTANCE?
Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.
Product Info
Description
- 165mm projection
- 1 1/4" pop-up waste
- fixed spout
- rectangular, air-enriched flow
- height of mixer 220 mm
- height up to aerator 177 mm
- hole diameter valve 32 mm
- hole diameter spout 35 mm
- rosette 60 x 60 mm
- 2x screw-in M 10 x 1 pressure hose, leak-tested
- max. flow 4.5 l/min
- lead-free
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- Only suitable for basins with an overflow.
- Mounting type: Floor mounting
- Tap hole variant: 3 tap holes
- Drain fitting (with/without): 1" US pop-up waste with pull-rod activation
- Total height (mm): 220
- Total width (mm): 354
- Total Depth (mm): 170
- Throat (mm): 165
- Height to aerator (mm): 177
- Flow rate (l/min): 4.5
- Recommended hot water temperature (°C): 60
- Permissible flow pressure: 1 - 5 bar
- Recommended flow pressure: 3 bar
- Thermal disinfection (5:00 min.) ≤ 70 °C
- Low pressure: No
- Weight (kg): 3,24
- 5 year guarantee
| Application area | Basin |
|---|---|
| Construction type | Floor mounting |
| Hole version | 3 tap holes |
| Country of origin | DEU |
| Article width | 354 mm |
| Article height | 220 mm |
| Article depth | 170 mm |
| Flow rate 3 bar | 4.5 l/min |
| Flow rate Max. | 4.5 l/min |
| Net weight | 3,24 kg |
Additional Info
- Brand:Dornbracht
- Manufacturer Part #:20713671
Product Options
,DNB-20713671-000010,DNB-20713671-060010,DNB-20713671-190010,DNB-20713671-270010,DNB-20713671-330010,DNB-20713671-370010,DNB-20713671-930010,DNB-20713671-990010|,Chrome,Brushed Platinum,Dark Chrome,Brushed Light Gold (PVD),Matte Black,Brushed Gold (PVD),Brushed Chrome,Brushed Dark Platinum|,1475.80,2361.30,2213.80,2213.70,1992.40,2213.70,1918.60,2361.30|,1180.64,1889.04,1771.04,1770.96,1593.92,1770.96,1534.88,1889.04||,45526065643711,45526065676479,45526065709247,45526065742015,45526065774783,45526065807551,45526065840319,45526065873087|,28,28,28,28,28,28,28,28|,20713671-000010,20713671-060010,20713671-190010,20713671-270010,20713671-330010,20713671-370010,20713671-930010,20713671-990010
