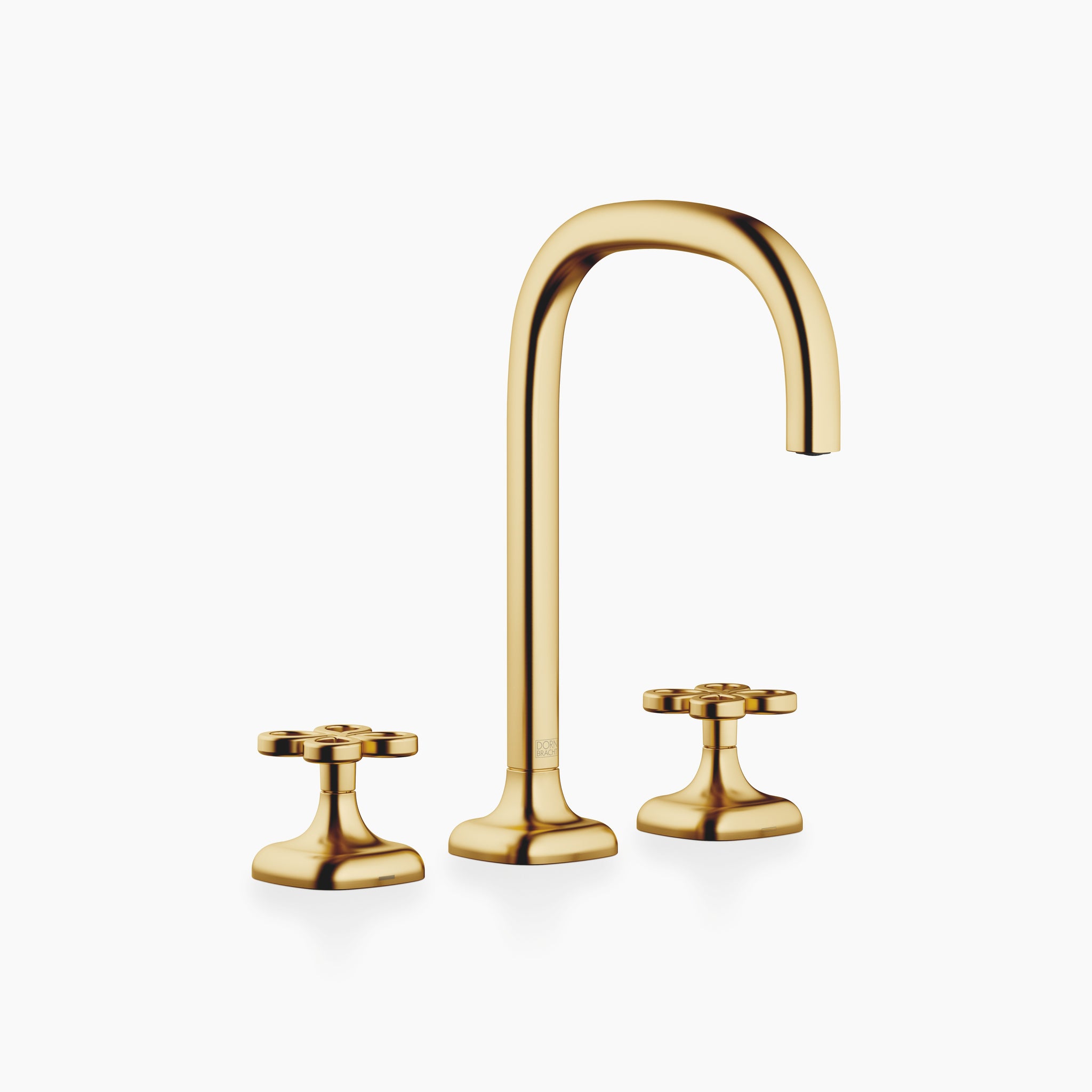

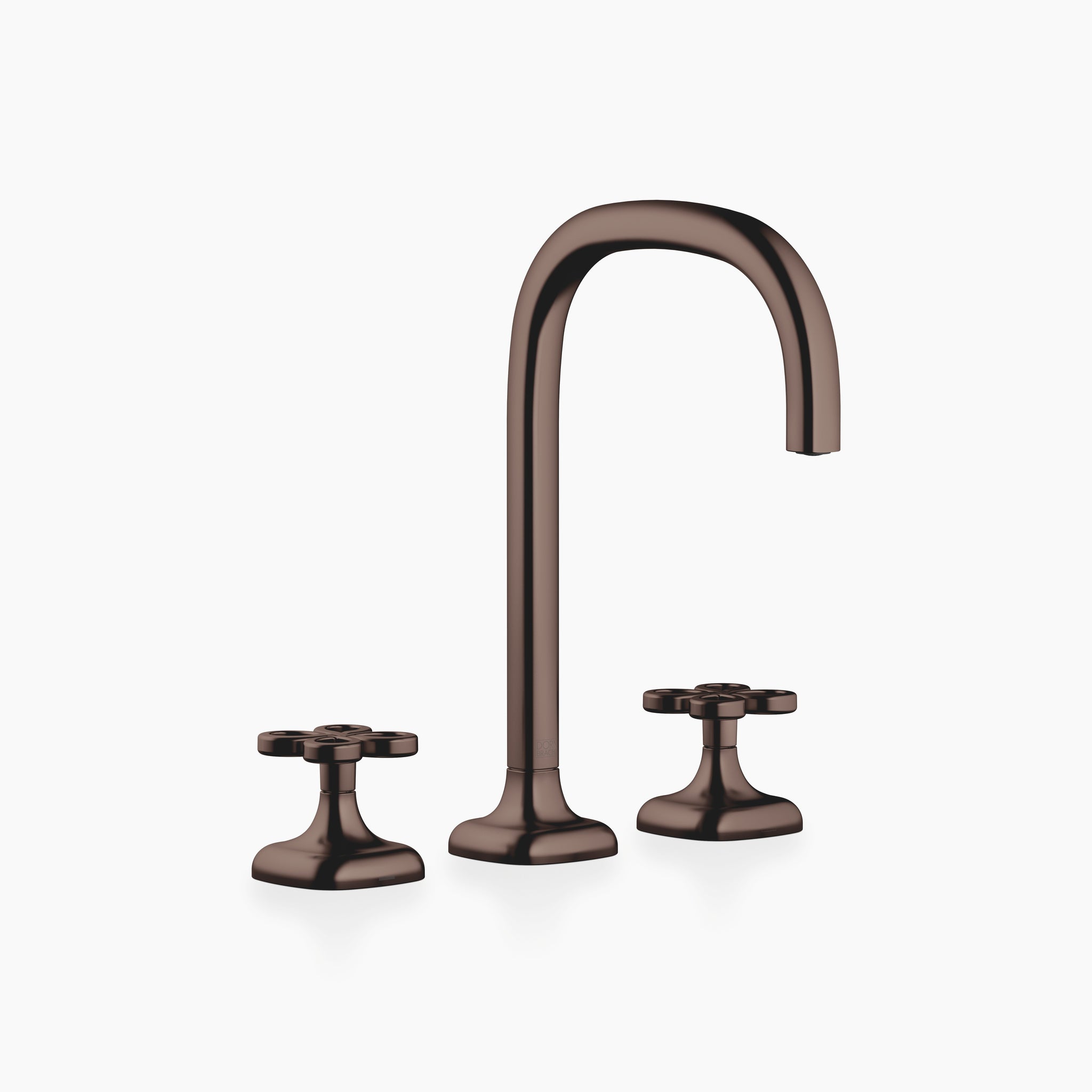

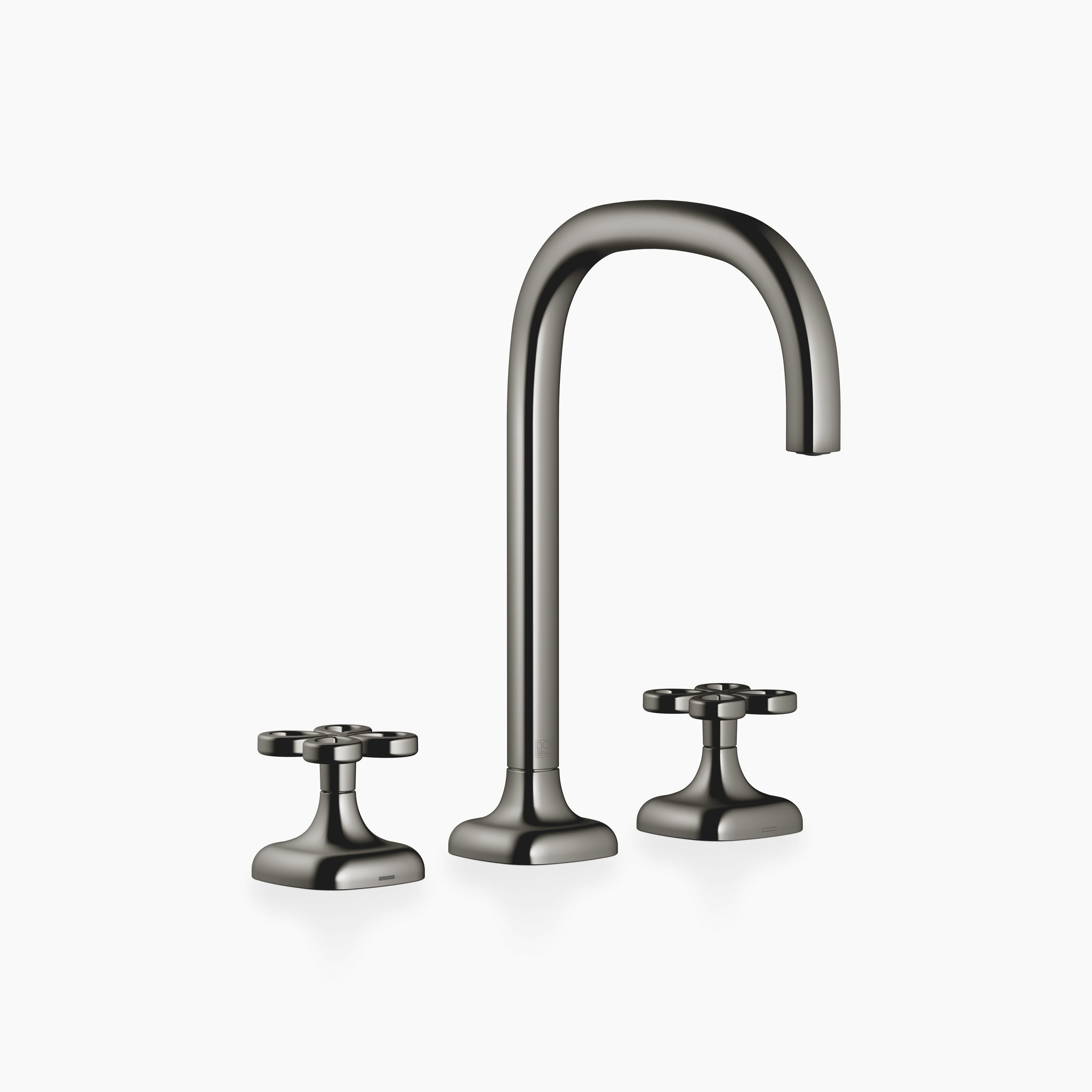

Dornbracht 20713424 Three-Hole Lavatory Mixer With Drain

Product Info

Description

165mm projection
fixed spout
circular, air-enriched flow
height of mixer 264 mm
height up to aerator 173 mm
hole diameter valve 32 mm
hole diameter spout 35 mm
rosette 60 x 60 mm
max. flow 4.5 l/min
lead-free
This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
Mounting type: Floor mounting
Connection dimension (DN/G): 2 x 1/2" Male
Tap hole variant: 3 tap holes
Drain fitting (with/without): 1" US pop-up waste with press closing
Total height (mm): 264
Total width (mm): 264
Total Depth (mm): 203
Throat (mm): 165
Height to aerator (mm): 173
Flow rate (l/min): 4.5
Recommended hot water temperature (°C): 60
Permissible flow pressure: 1 - 5 bar
Recommended flow pressure: 3 bar
Thermal disinfection (5:00 min.) ≤ 70 °C
Low pressure: No
Weight (kg): 2,87
5 year guarantee

Additional Info

Brand:Dornbracht
Manufacturer Part #:20713424

Product Options

,DNB-20713424-000010,DNB-20713424-060010,DNB-20713424-190010,DNB-20713424-280010,DNB-20713424-390010,DNB-20713424-420010,DNB-20713424-430010,DNB-20713424-460010,DNB-20713424-470010,DNB-20713424-990010|,Chrome,Brushed Platinum,Dark Chrome,Brushed Durabrass (23kt Gold),Brushed Dark Brass (PVD),Brushed Bronze (PVD),Brushed Dark Bronze (PVD),Brushed Champagne (22kt Gold),Champagne (22kt Gold),Brushed Dark Platinum|,3274.30,5238.80,4911.40,7858.20,5238.80,5238.80,5893.70,7858.20,7858.20,5238.80|,2619.44,4191.04,3929.12,6286.56,4191.04,4191.04,4714.96,6286.56,6286.56,4191.04||,45526454730943,45526454763711,45526454796479,45526454829247,45526454862015,45526454894783,45526454927551,45526454960319,45526454993087,45526455025855|,28,28,28,28,28,28,28,28,28,28|,20713424-000010,20713424-060010,20713424-190010,20713424-280010,20713424-390010,20713424-420010,20713424-430010,20713424-460010,20713424-470010,20713424-990010
