Brand: Dornbracht

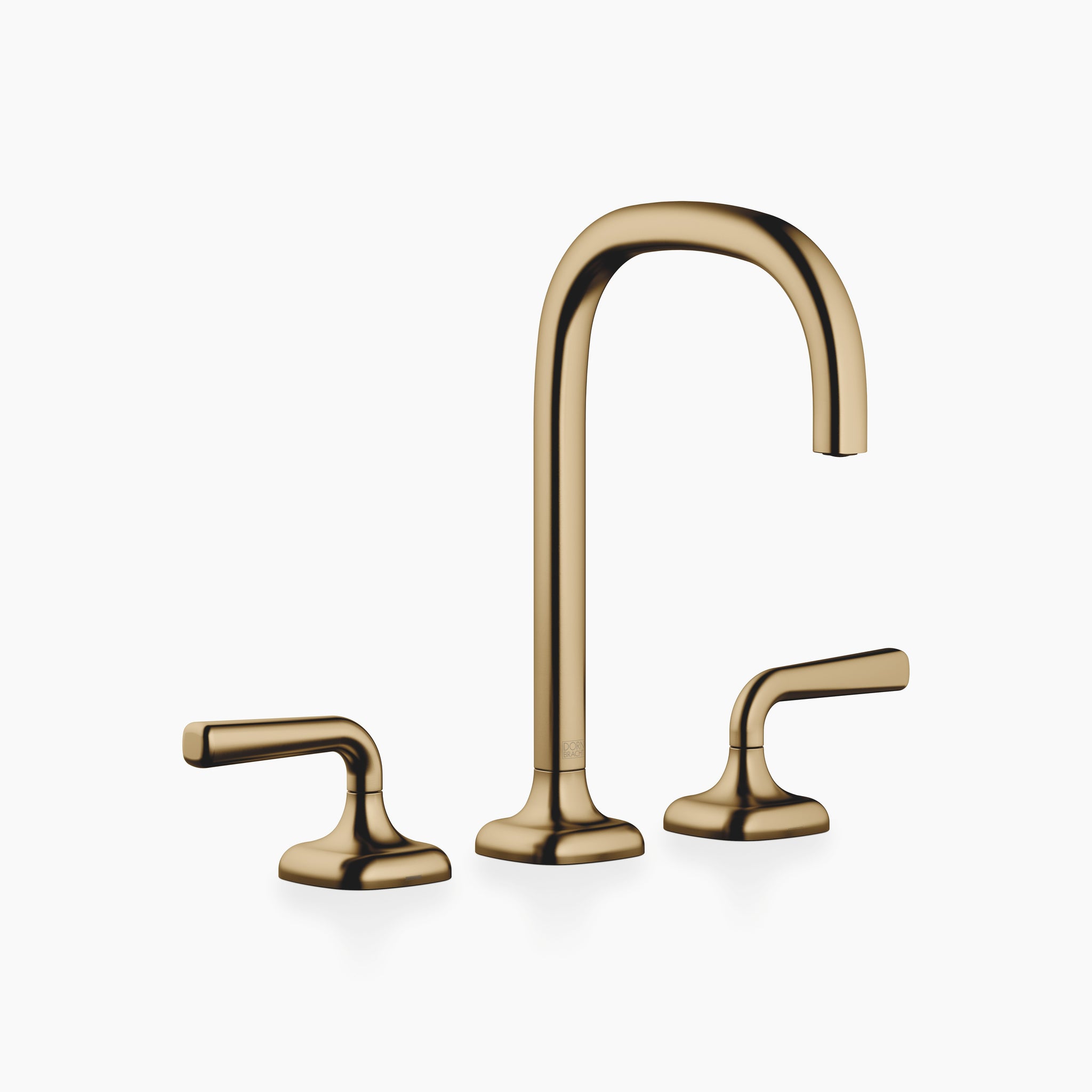

Dornbracht 20713414 Coya Three-Hole Lavatory Mixer With Drain
Dornbracht 20713414 Coya Three-Hole Lavatory Mixer With Drain
SKU: 20713414
$2,619.44
Unit price
per
$3,274.30
Save 20%
Free Shipping Included
5-7 Days
contact us for more details
NEED ASSISTANCE?
Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.
Product Info
Description
- 165mm projection
- fixed spout
- circular, air-enriched flow
- height of mixer 264 mm
- height up to aerator 173 mm
- hole diameter valve 32 mm
- hole diameter spout 35 mm
- rosette 60 x 60 mm
- max. flow 4.5 l/min
- lead-free
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- Mounting type: Floor mounting
- Connection dimension (DN/G): 2 x 1/2" Male
- Tap hole variant: 3 tap holes
- Drain fitting (with/without): 1" US pop-up waste with press closing
- Total height (mm): 264
- Total width (mm): 370
- Total Depth (mm): 203
- Throat (mm): 165
- Height to aerator (mm): 173
- Flow rate (l/min): 4.5
- Recommended hot water temperature (°C): 60
- Permissible flow pressure: 1 - 5 bar
- Recommended flow pressure: 3 bar
- Thermal disinfection (5:00 min.) ≤ 70 °C
- Low pressure: No
- Weight (kg): 2,74
- 5 year guarantee
| Application area | Basin |
|---|---|
| Construction type | Floor mounting |
| Hole version | 3 tap holes |
| Country of origin | DEU |
| Article width | 370 mm |
| Article height | 264 mm |
| Article depth | 203 mm |
| Flow rate 3 bar | 4.5 l/min |
| Flow rate Max. | 4.5 l/min |
| Net weight | 2,74 kg |
