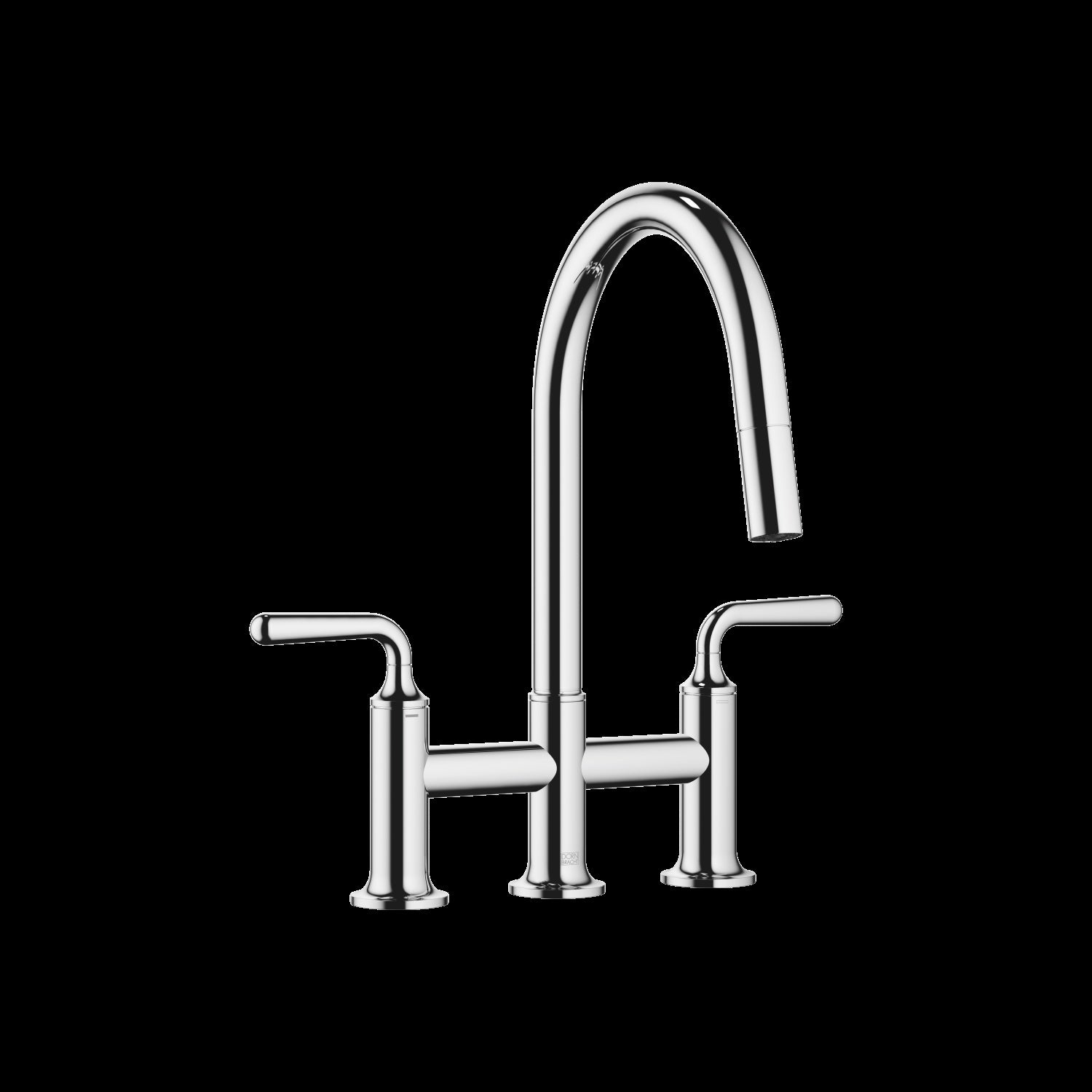

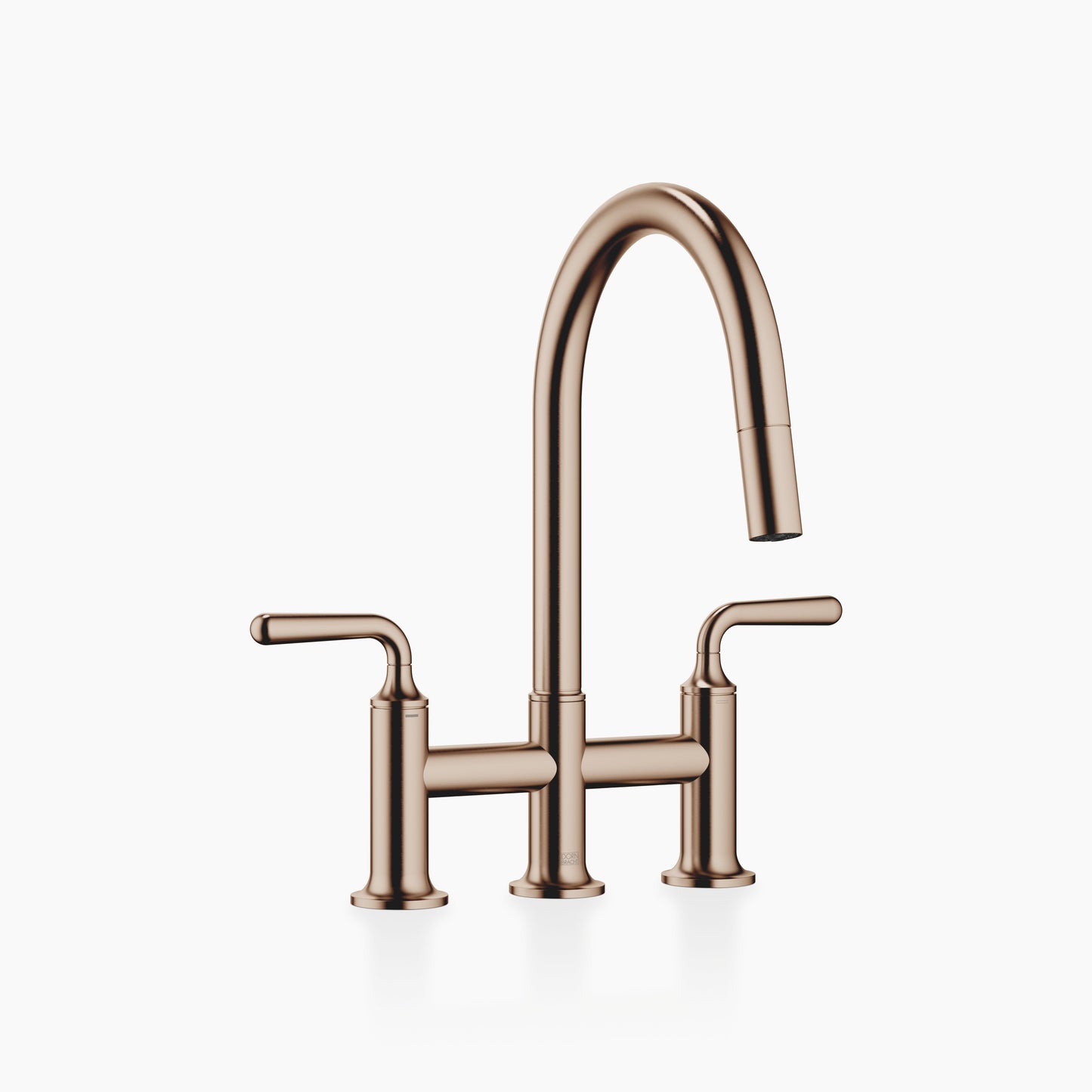

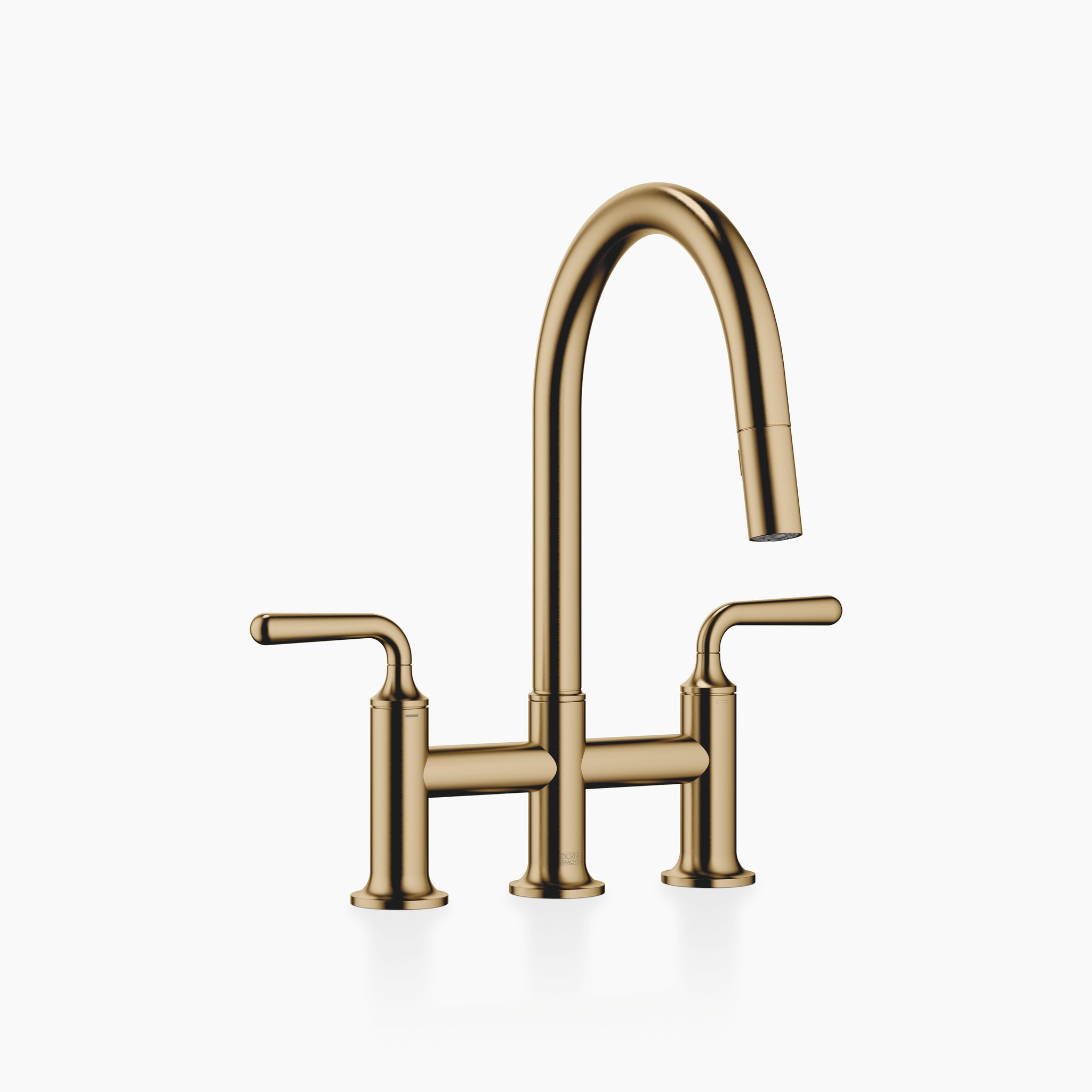

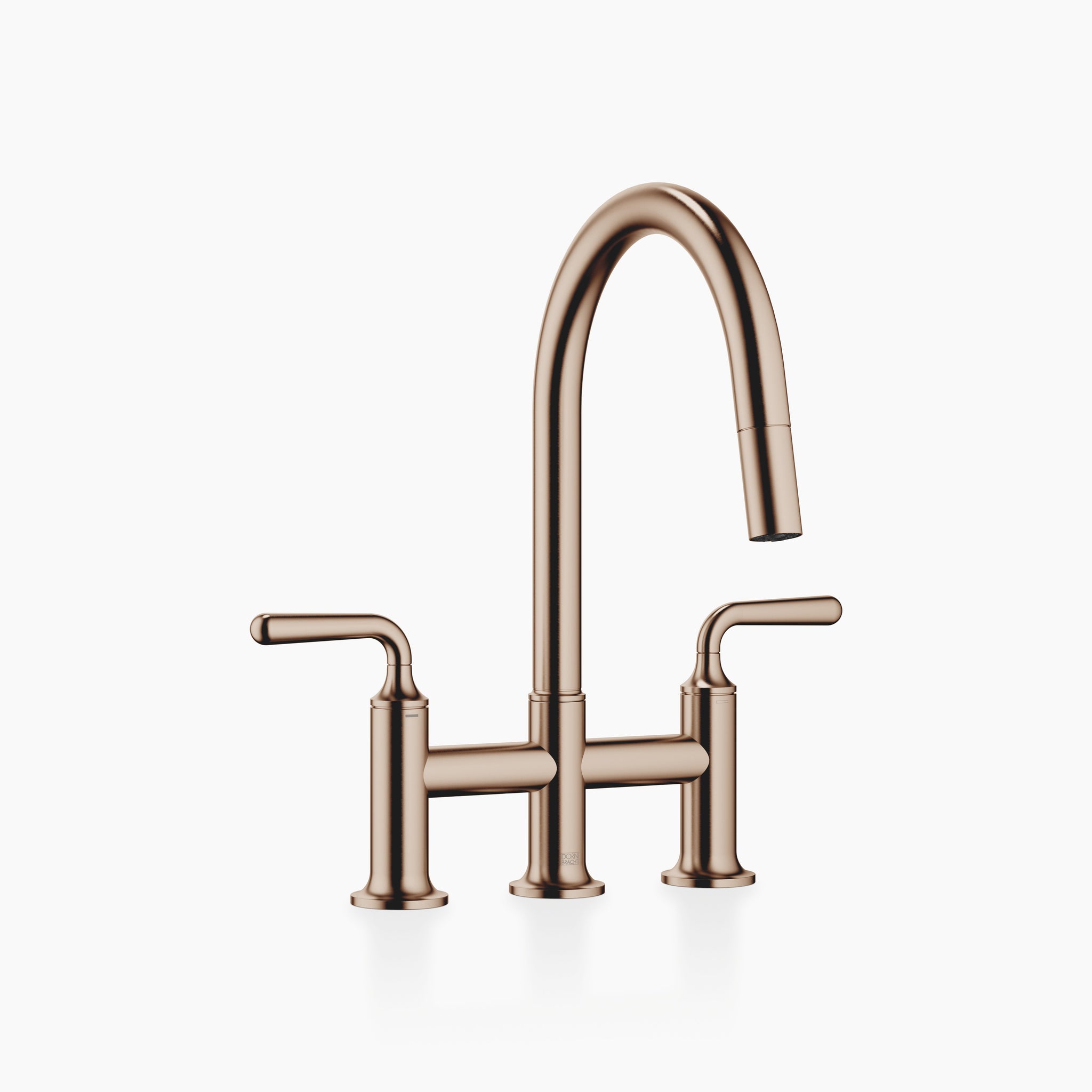

Dornbracht 19870809 Vaia Three-Hole Bridge Mixer Pull-Down With Spray Function
Dornbracht 19870809 Vaia Three-Hole Bridge Mixer Pull-Down With Spray Function
SKU: 19870809
$2,786.72
Unit price
/
per
$3,483.40
Save 20%
Free Shipping Included
5-7 Days
contact us for more details
{"name":"Finish","position":1,"values":["Chrome","Brushed Platinum","Platinum","Durabrass 23kt Gold","Dark Chrome","Brushed Durabrass 23kt Gold","Matte Black","Brushed Dark Brass PVD","Brushed Bronze PVD","Brushed Champagne 22kt Gold","Champagne 22kt Gold","Brushed Chrome","Brushed Dark Platinum"]}
Couldn't load pickup availability
NEED ASSISTANCE?
Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.
Product Info
Description
- 240mm projection
- pivotable spout 360°
- Optional swivel limiter available with swivel limiter set 12 823 970 90
- air-enriched flow and spray flow
- height of mixer 393 mm
- height up to laminar flow regulator 204 mm
- hole diameter 35 mm
- 2 x pressure hose with 3/8" cap nut
- 1800 mm metal shower hose
- sprayface with anti-scaling system
- max. flow 5.7 l/min at 3 bar flow pressure
- lead-free
- Flow modes can be changed while the water is running
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- Intrinsic protection against back flow.
- Mounting type: Floor mounting
- Tap hole variant: 2 tap holes
- Total height (mm): 393
- Total width (mm): 382
- Total Depth (mm): 281
- Throat (mm): 240
- Height to aerator (mm): 204
- Flow rate (l/min): 5.7
- Recommended hot water temperature (°C): 60
- Permissible flow pressure: 1 - 5 bar
- Recommended flow pressure: 3 bar
- Thermal disinfection (5:00 min.) ≤ 70 °C
- Low pressure: No
- Weight (kg): 3,92
- 5 year guarantee
Additional Info
- Brand:Dornbracht
- Manufacturer Part #:19870809
