Brand: Dornbracht

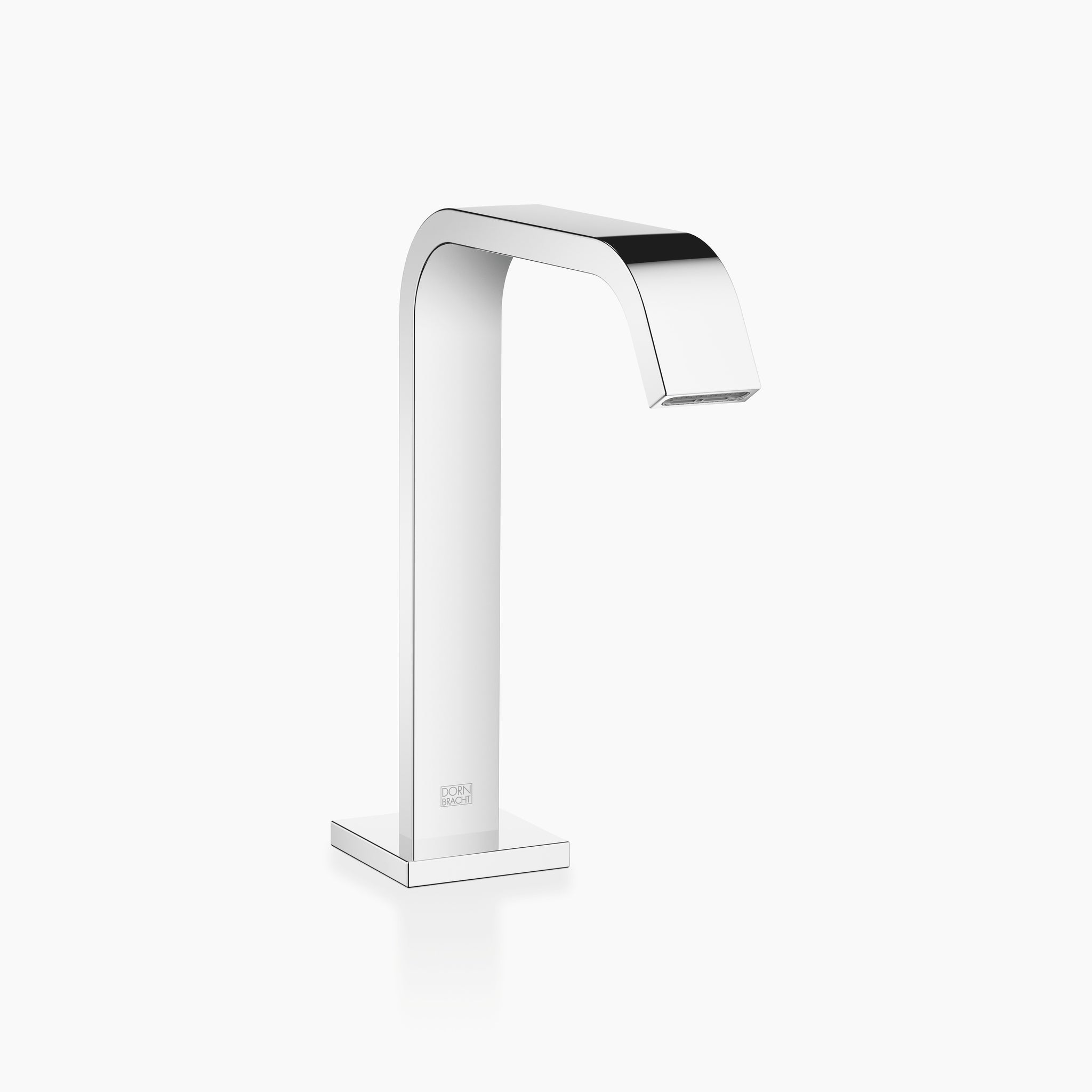

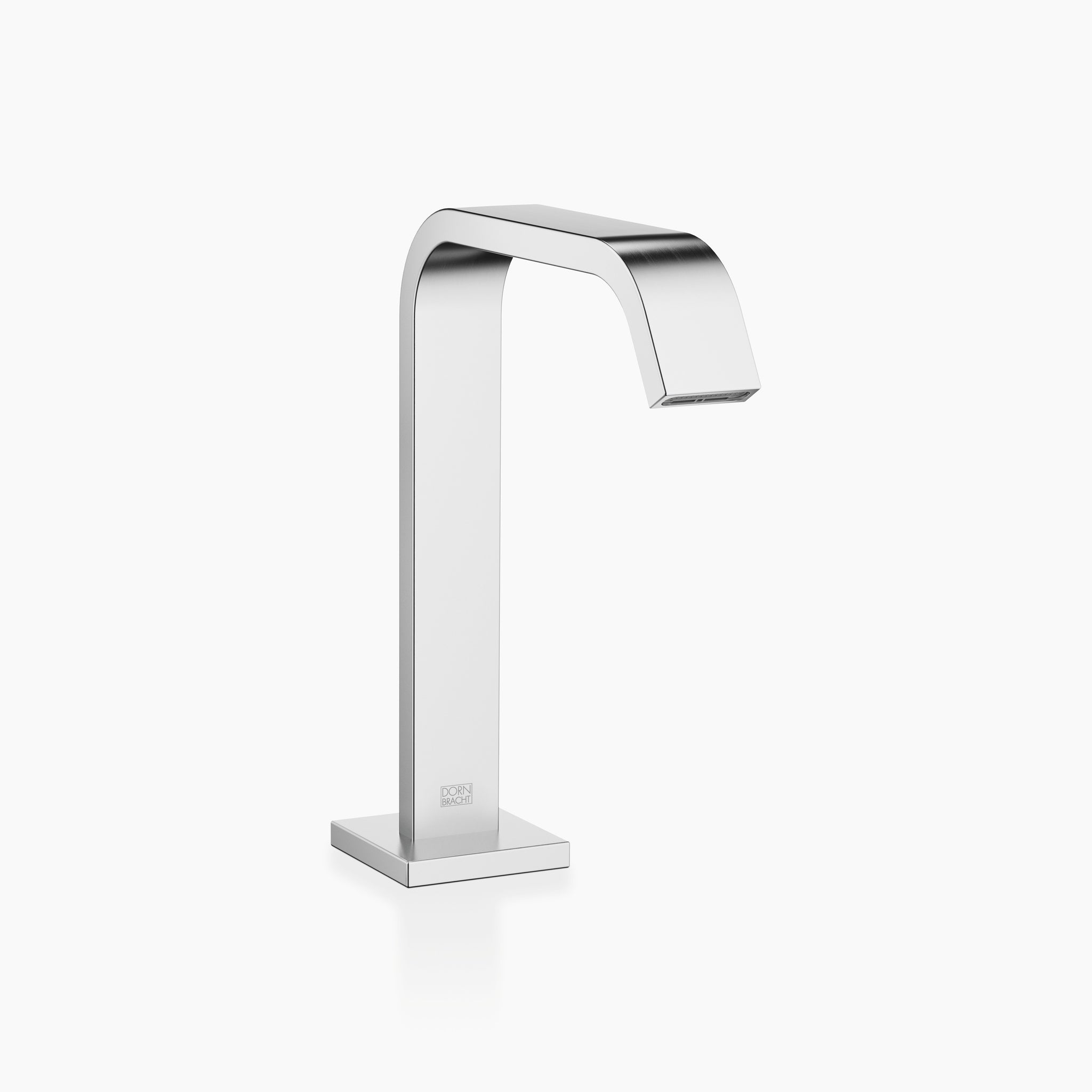

Dornbracht 13716671 Imo Lavatory Spout, Deck-Mounted Without Drain
Dornbracht 13716671 Imo Lavatory Spout, Deck-Mounted Without Drain
SKU: 13716671
$759.44
Unit price
per
$949.30
Save 20%
Free Shipping Included
5-7 Days
contact us for more details
NEED ASSISTANCE?
Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.
Product Info
Description
- 165mm projection
- fixed spout
- rectangular, air-enriched flow
- height of mixer 220 mm
- height up to aerator 176 mm
- hole diameter 35 mm
- rosette 60 x 60 mm
- 2x screw-in M 10 x 1 pressure hose, leak-tested
- max. flow 4.5 l/min
- lead-free
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- For Touchfree control please order eSet Touchfree with temperature adjustment
- Mounting type: Floor mounting
- Connection dimension (DN/G): 2x screw-in M 10 x 1/2" x 420mm pressure hose, leak-tested
- Drain fitting (with/without): without pop-up waste
- Total height (mm): 220
- Total width (mm): 60
- Total Depth (mm): 200
- Throat (mm): 165
- Height to aerator (mm): 176
- Recommended hot water temperature (°C): 60
- Permissible flow pressure: 1 - 5 bar
- Recommended flow pressure: 3 bar
- Thermal disinfection (5:00 min.) ≤ 70 °C
- Low pressure: No
- Weight (kg): 1,32
- 5 year guarantee
Additional Info
- Brand:Dornbracht
- Manufacturer Part #:13716671
