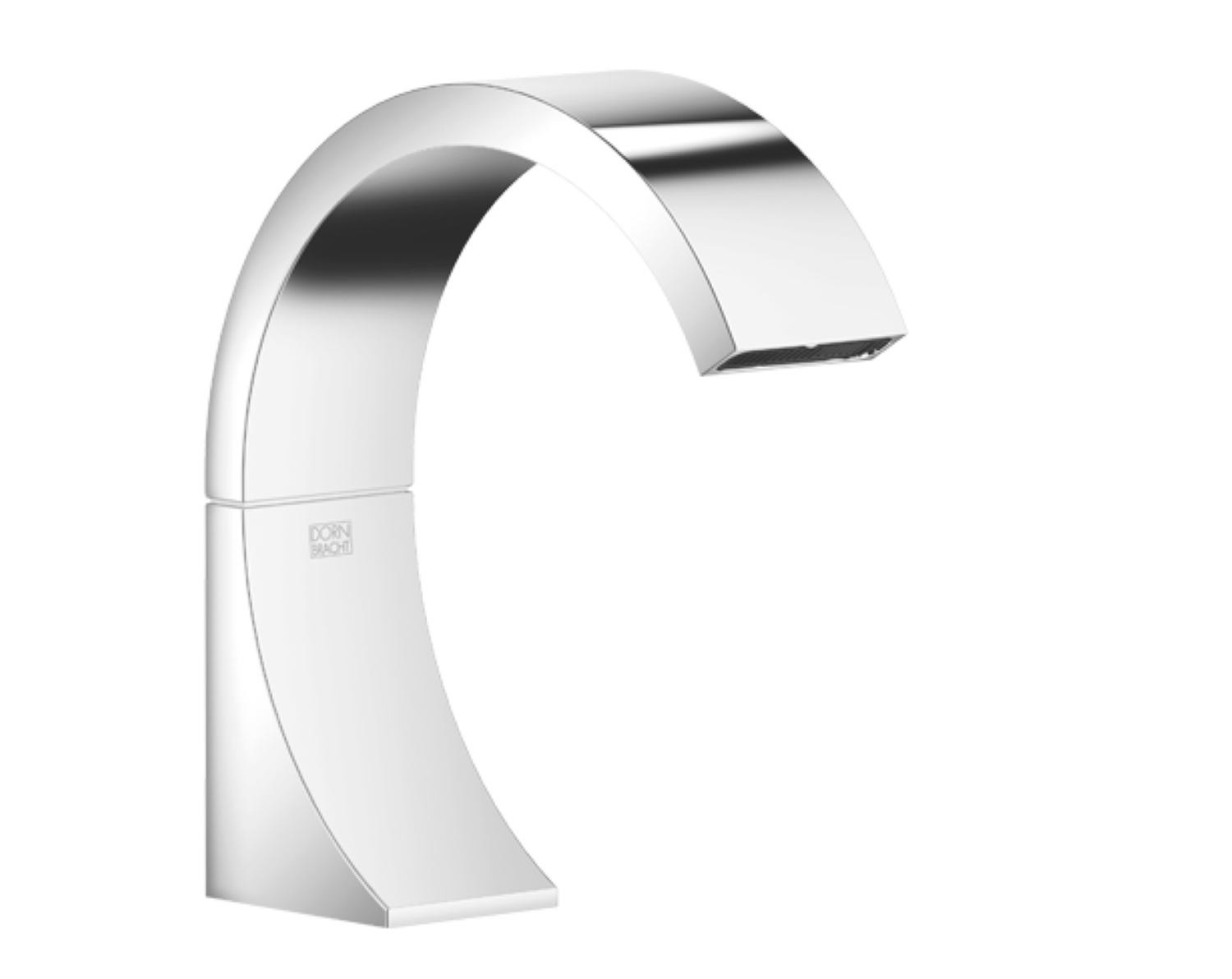

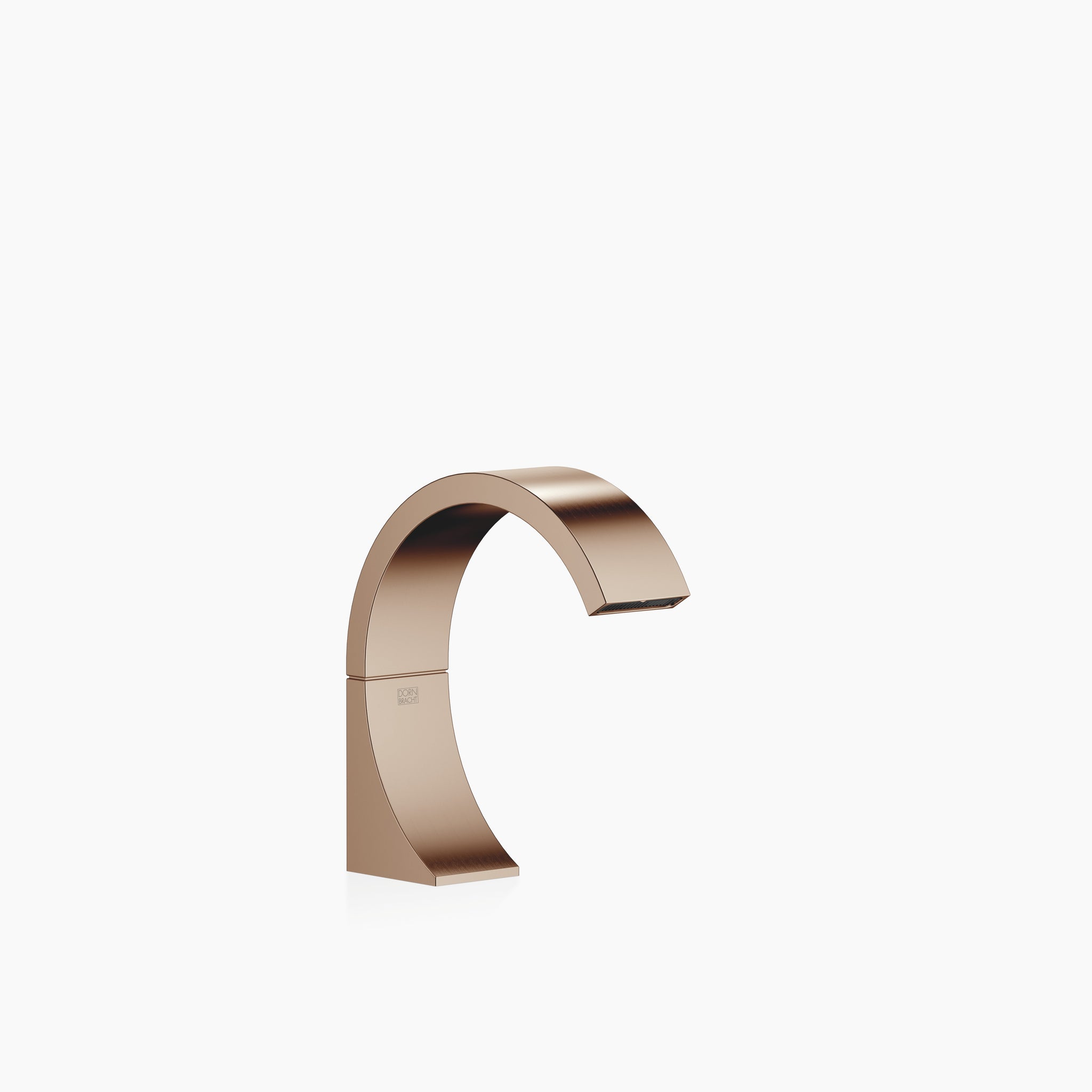

Dornbracht 13715811 Cyo Lavatory Spout, Deck-Mounted Without Drain

Dornbracht 13715811 Cyo Lavatory Spout, Deck-Mounted Without Drain

SKU: 13715811
$1,531.76
$1,914.70 Save 20%
Free Shipping Included
DESIGNERS AND PROFESSIONALSCALL TO DISCUSS YOUR PROJECT888-421-1941
{"name":"Finish","position":1,"values":["Polished Chrome","Platinum Matte","Dark Chrome","Brushed Durabrass","Platinum \/ Platinum Matte","Durabrass \/ Brushed Durabrass","Brushed Bronze PVD","Dark platinum matte"]}
Finish: Polished Chrome Item # 13715811-00 View Specifications
TrustGuard
NEED ASSISTANCE?

Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.

Product Info

Description

  • 133mm projection
  • fixed spout
  • rectangular, air-enriched flow
  • height of mixer 180 mm
  • height up to aerator 128 mm
  • hole diameter 35 mm
  • 2x 1/2" x 1/2" high pressure hose
  • max. flow 4.5 l/min
  • lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • WRAS
  • Mounting type: Floor mounting
  • Connection dimension (DN/G): 2x 1/2" x 1/2" x 400mm high pressure hose
  • Drain fitting (with/without): without pop-up waste
  • Total height (mm): 180
  • Total width (mm): 48
  • Total Depth (mm): 169
  • Throat (mm): 133
  • Height to aerator (mm): 128
  • Flow rate (l/min): 4.5
  • Recommended hot water temperature (°C): 60
  • Permissible flow pressure: 1 - 5 bar
  • Recommended flow pressure: 3 bar
  • Thermal disinfection (5:00 min.) ≤ 70 °C
  • Low pressure: No
  • Weight (kg): 2,44
  • 5 year guarantee

Additional Info

  • Brand:Dornbracht
  • Manufacturer Part #:13715811
