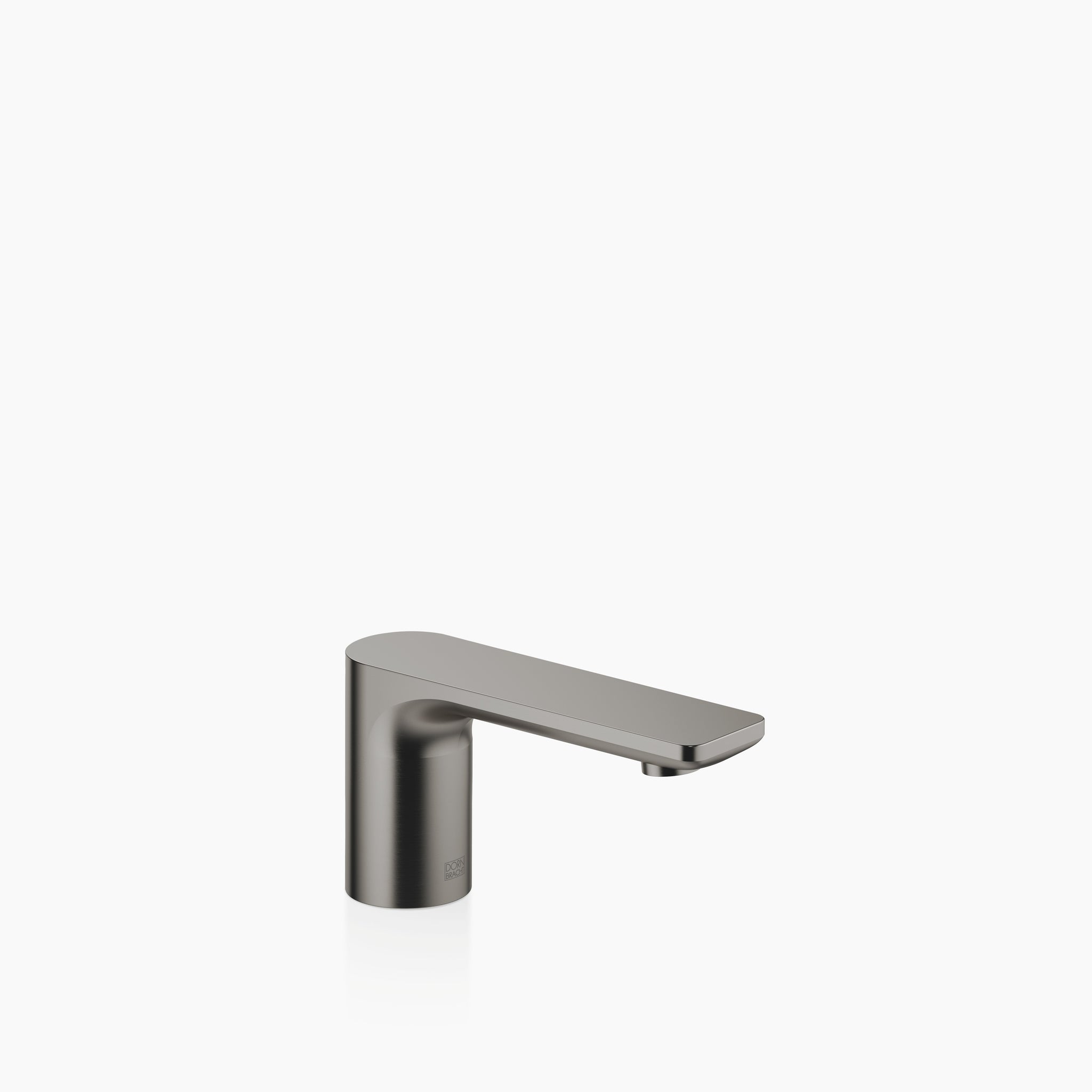

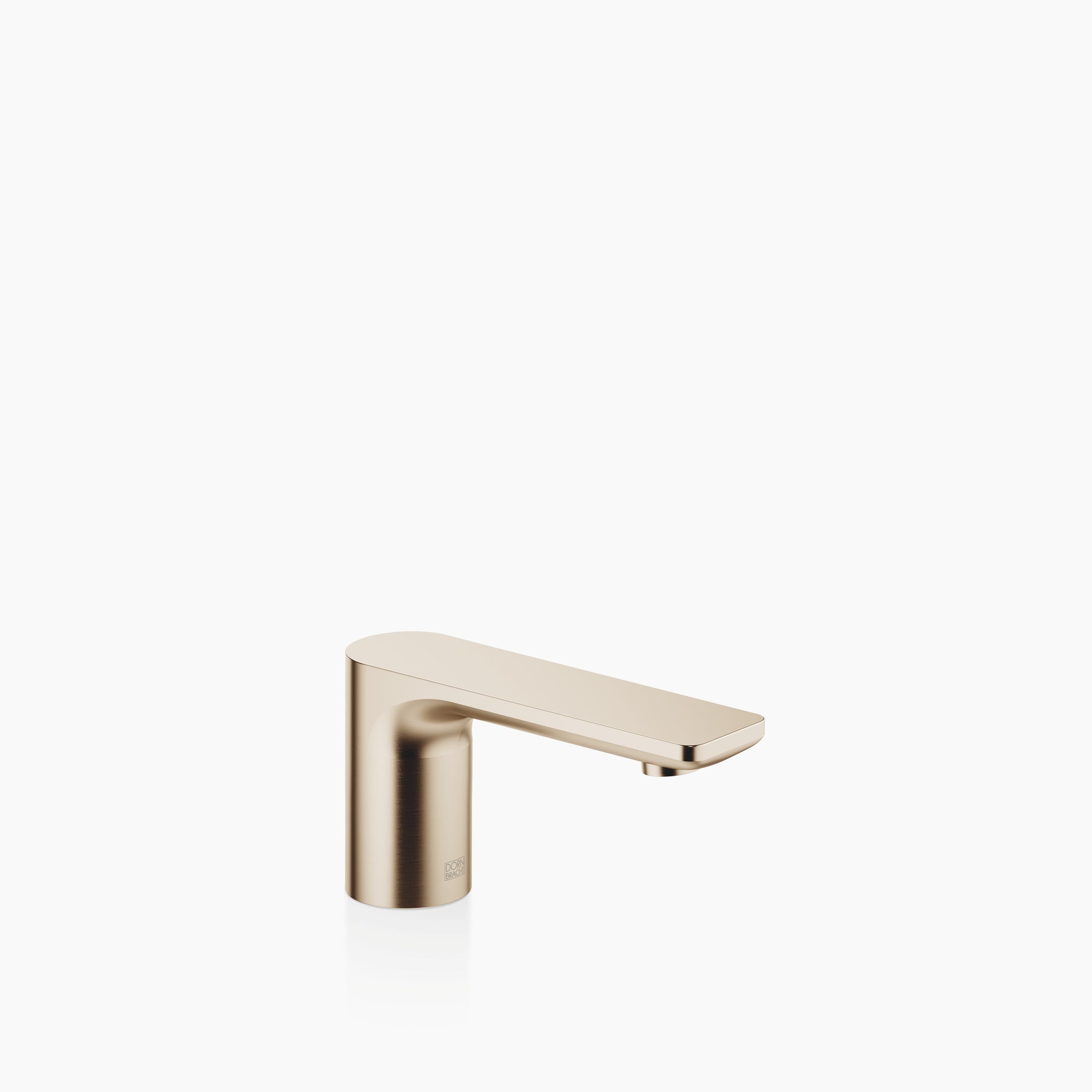

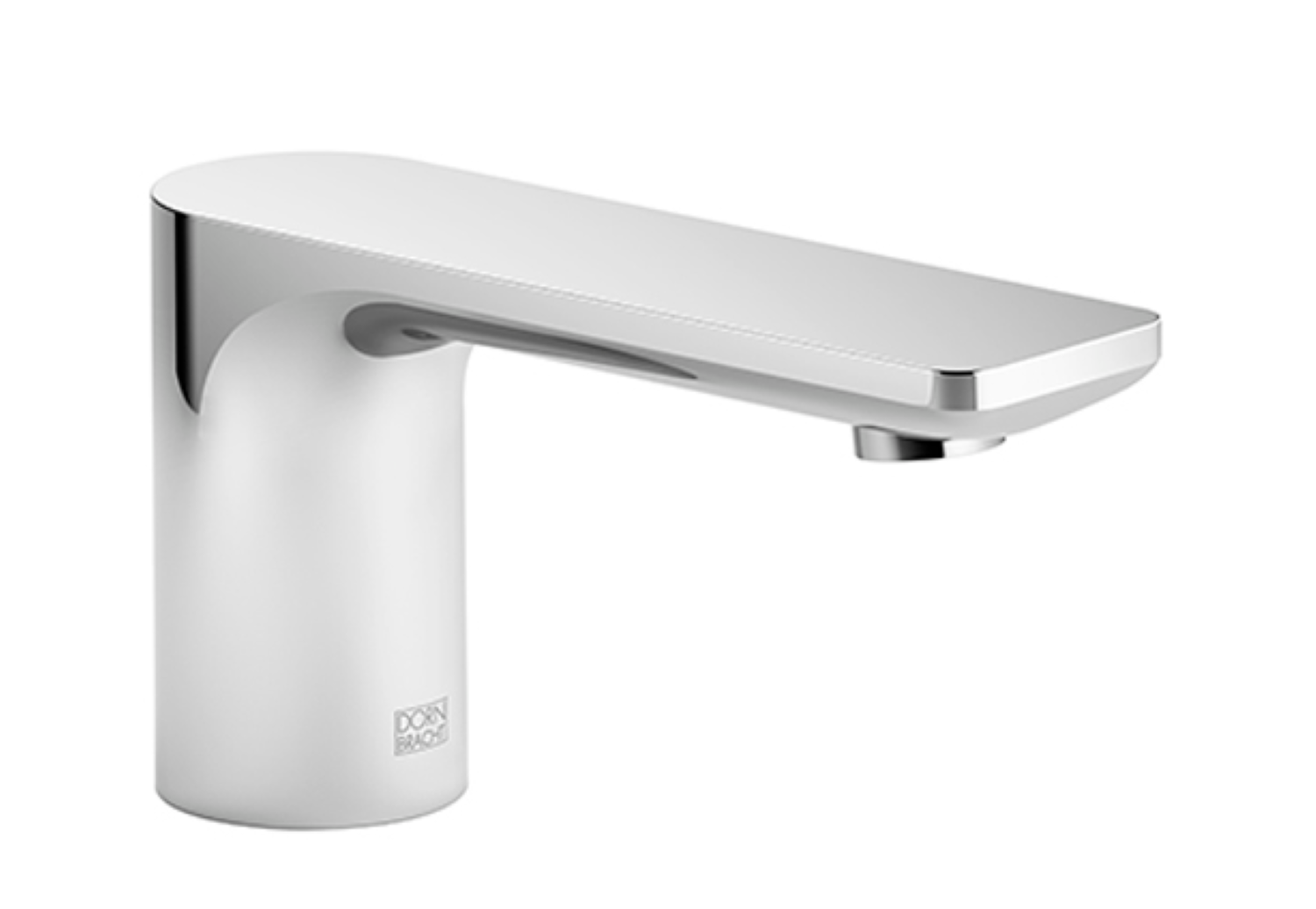

Dornbracht 13700845 Lissé Lavatory Spout, Deck-Mounted Without Drain
Dornbracht 13700845 Lissé Lavatory Spout, Deck-Mounted Without Drain
SKU: 13700845
$577.20
Unit price
/
per
$721.50
Save 20%
Free Shipping Included
5-7 Days
contact us for more details
{"name":"Finish","position":1,"values":["Polished Chrome","Brushed Platinum","Dark Chrome","Brushed Light Gold PVD","Matte Black","Chrome Matte","Brushed Dark Platinum"]}
Couldn't load pickup availability
NEED ASSISTANCE?
Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.
Product Info
Description
- 130mm projection
- fixed spout
- circular, air-enriched flow
- height of mixer 95 mm
- height up to aerator 75 mm
- hole diameter 35 mm
- 1/2" connection
- max. flow 5.7 l/min
- lead-free
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- WRAS
- For Touchfree control please order eSet Touchfree with temperature adjustment
- Mounting type: Floor mounting
- Connection dimension (DN/G): 2x screw-in M 10 x 1/2" x 420mm pressure hose, leak-tested
- Drain fitting (with/without): without pop-up waste
- Total height (mm): 95
- Total width (mm): 49
- Total Depth (mm): 185
- Throat (mm): 130
- Height to aerator (mm): 75
- Swivel range: rigid
- Flow rate (l/min): 5.7
- Recommended hot water temperature (°C): 60
- Permissible flow pressure: 1 - 5 bar
- Recommended flow pressure: 3 bar
- Thermal disinfection (5:00 min.) ≤ 70 °C
- Low pressure: No
- Weight (kg): 1,55
- 5 year guarantee
