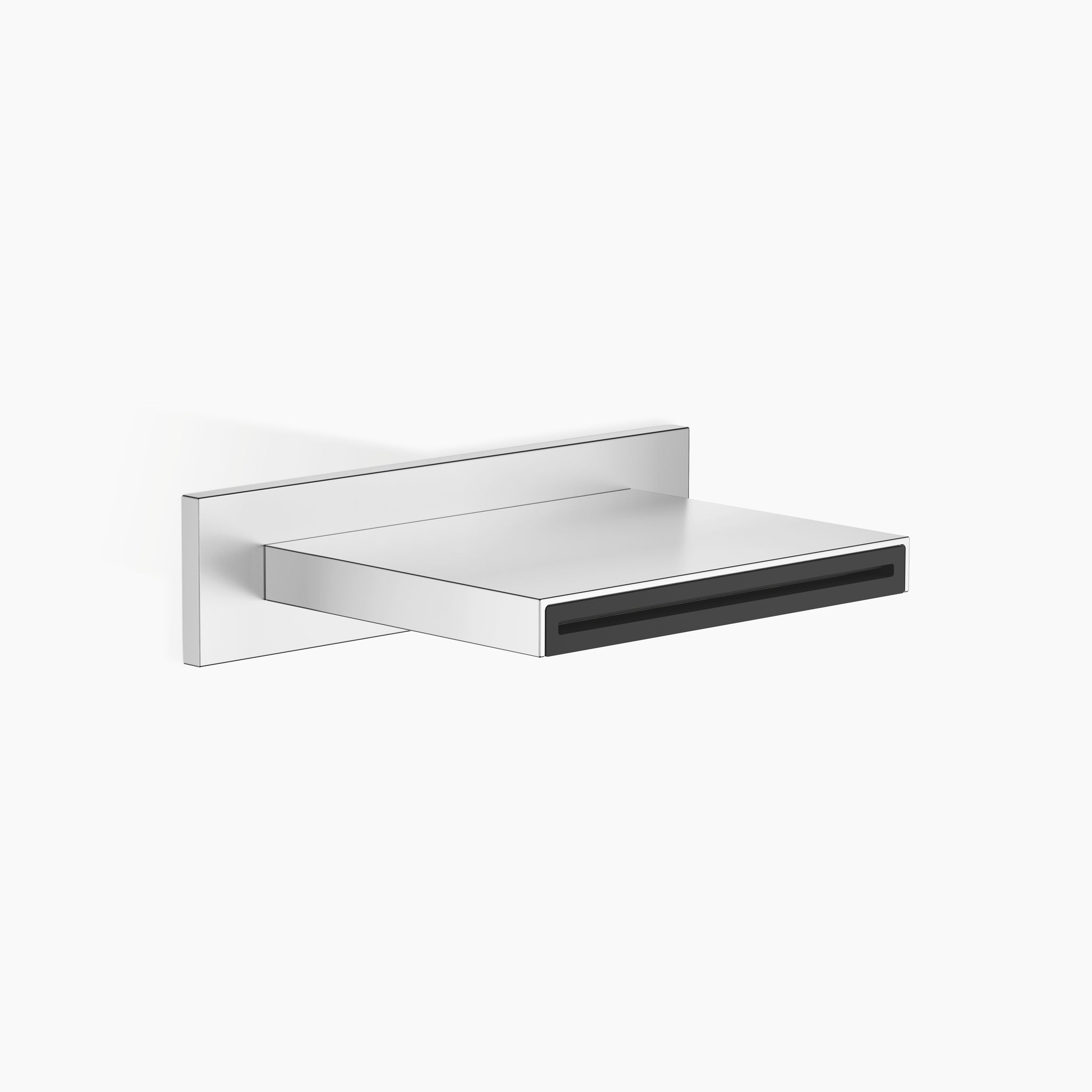

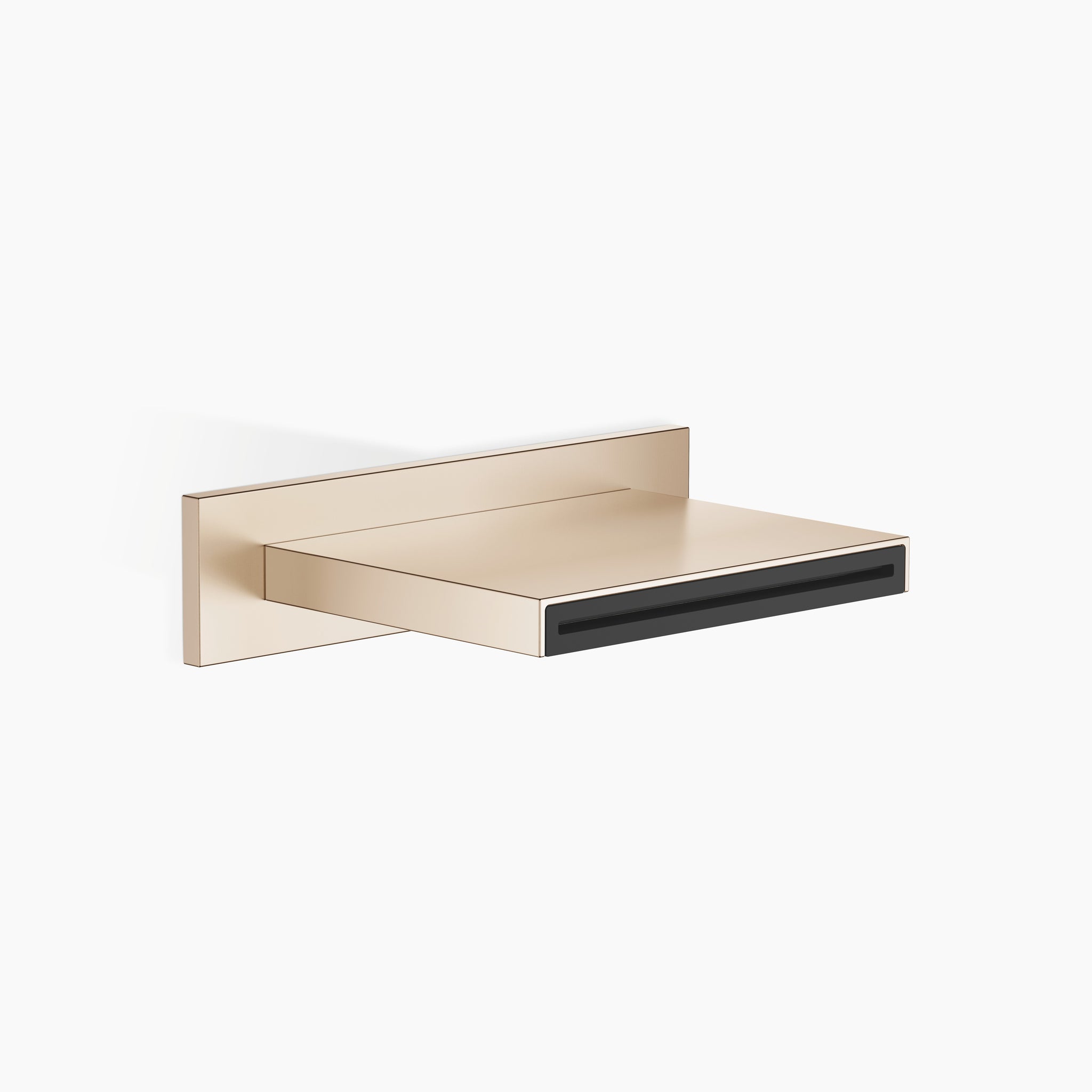

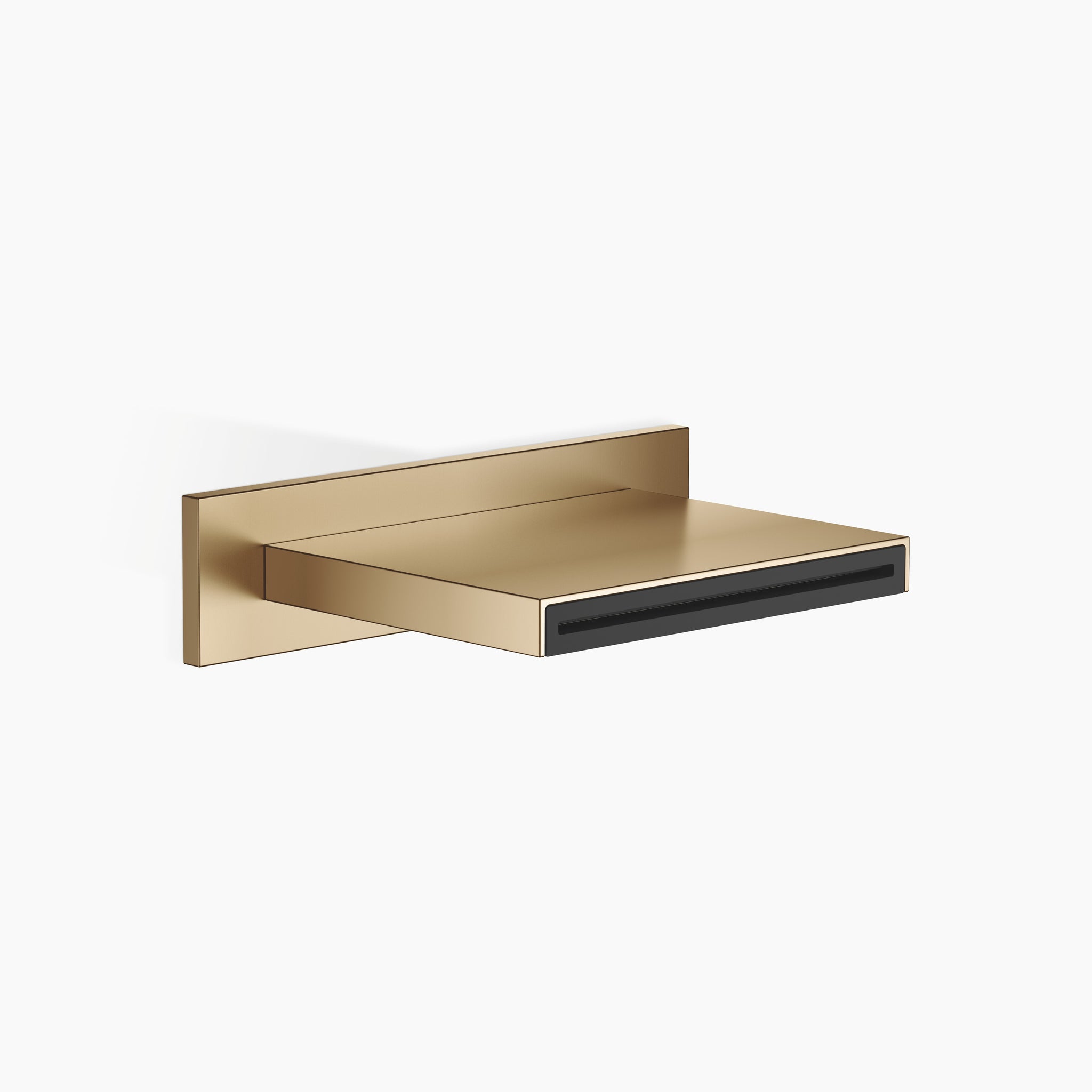

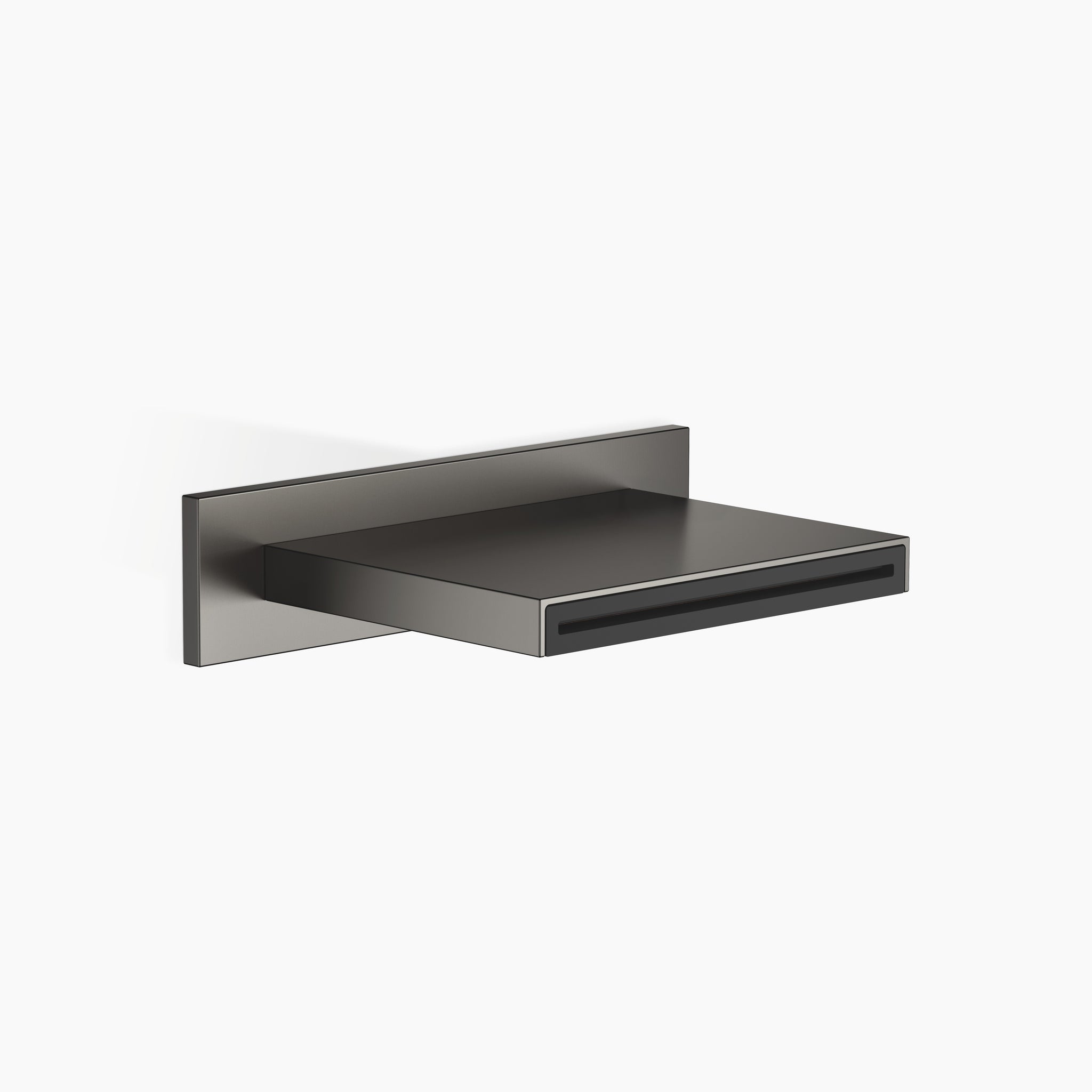

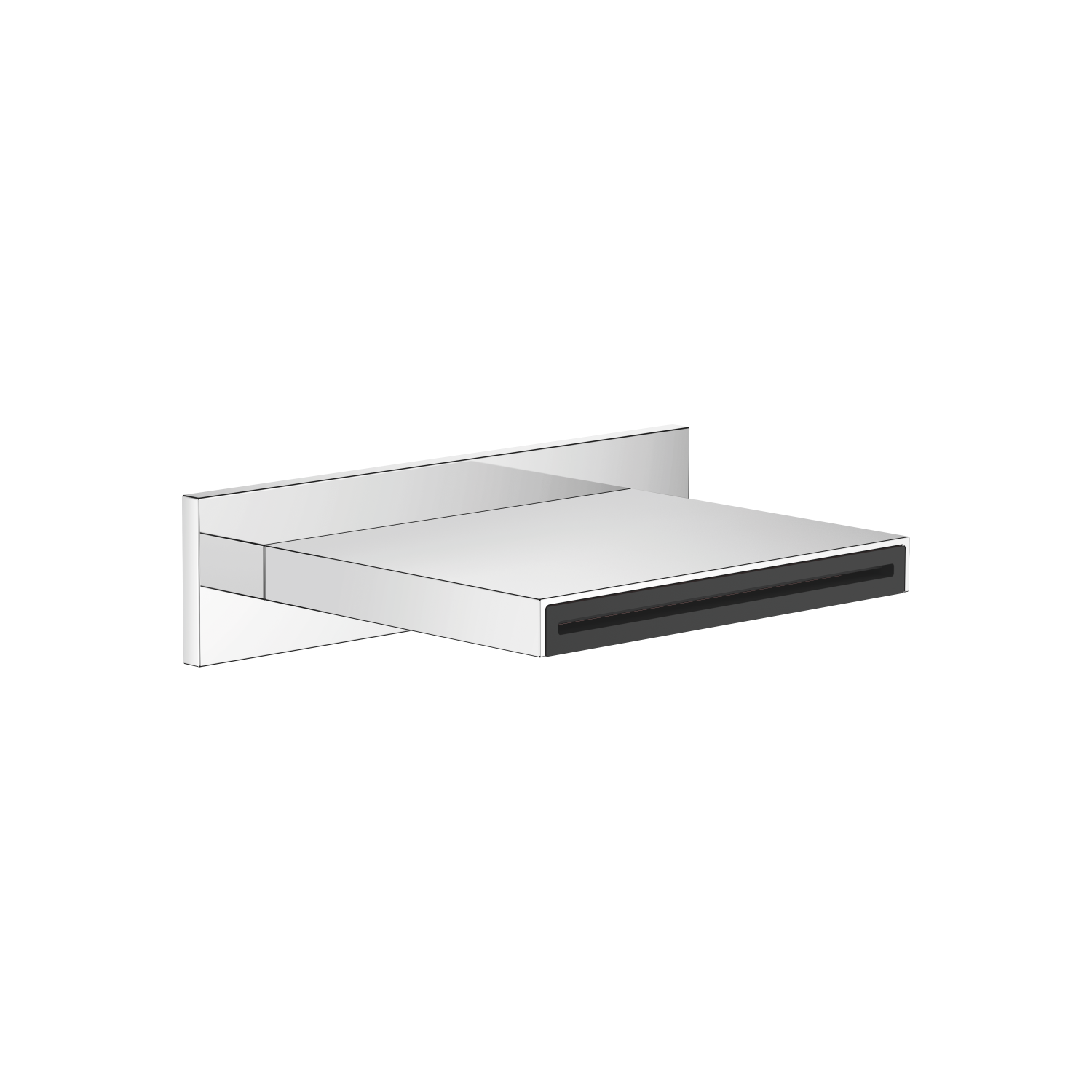

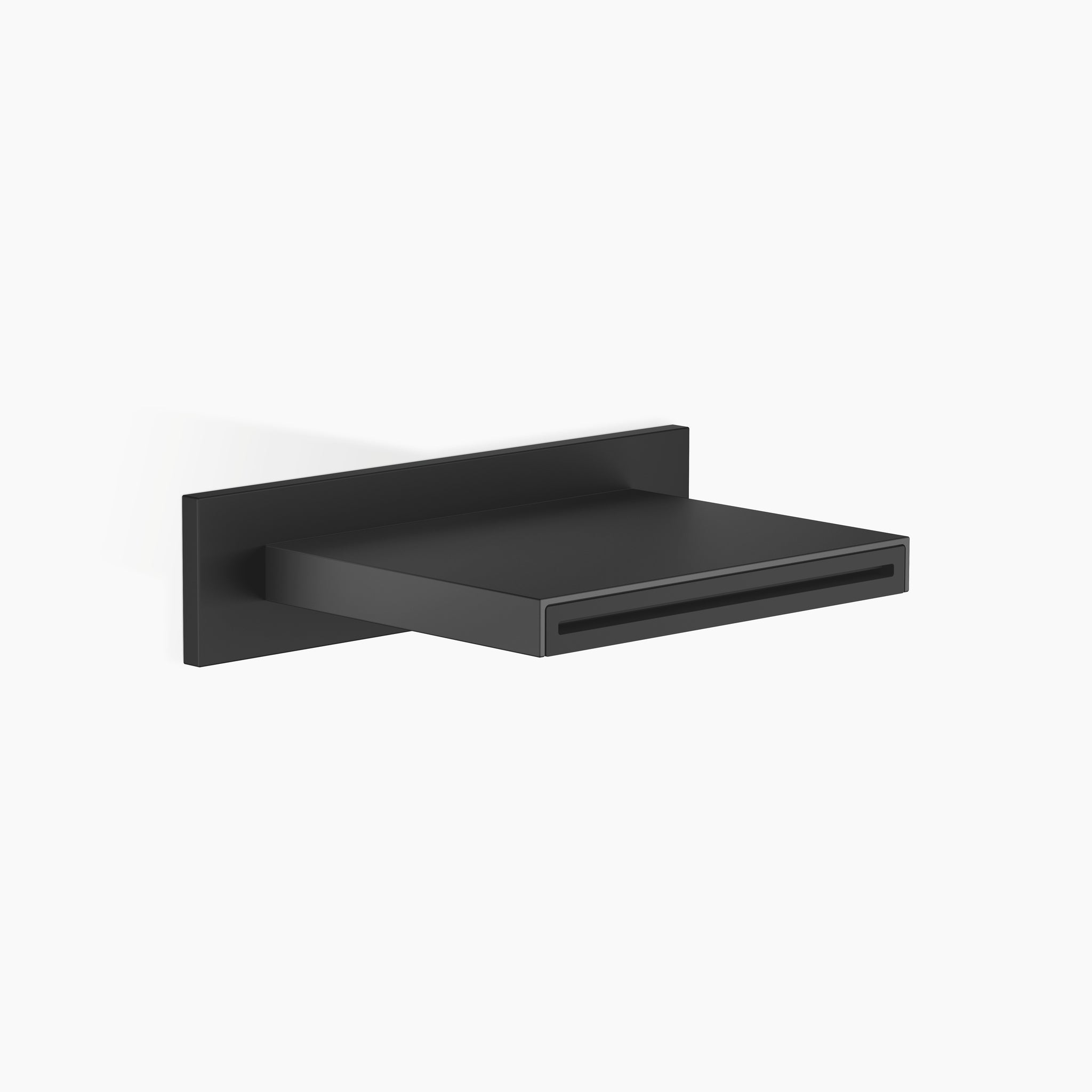

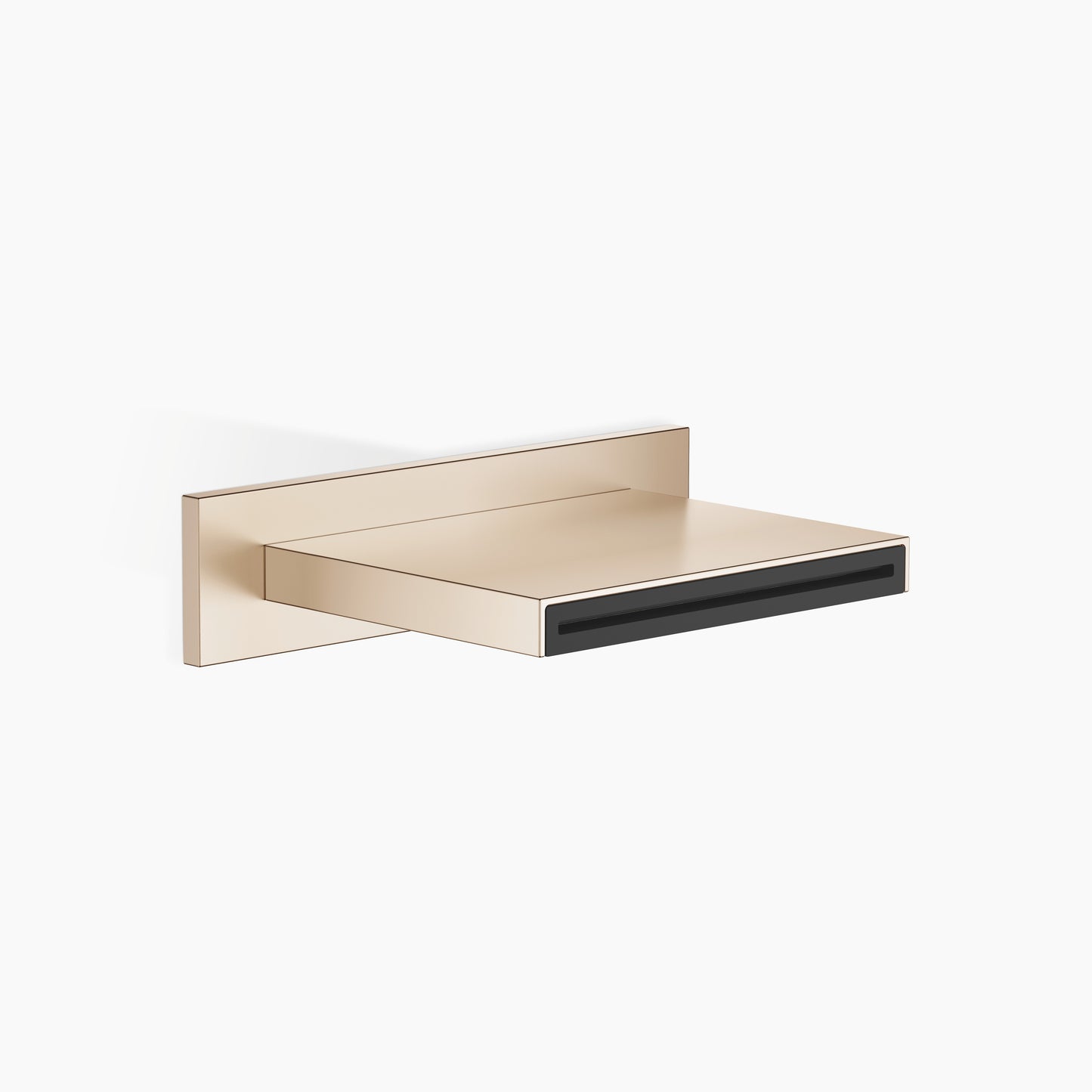

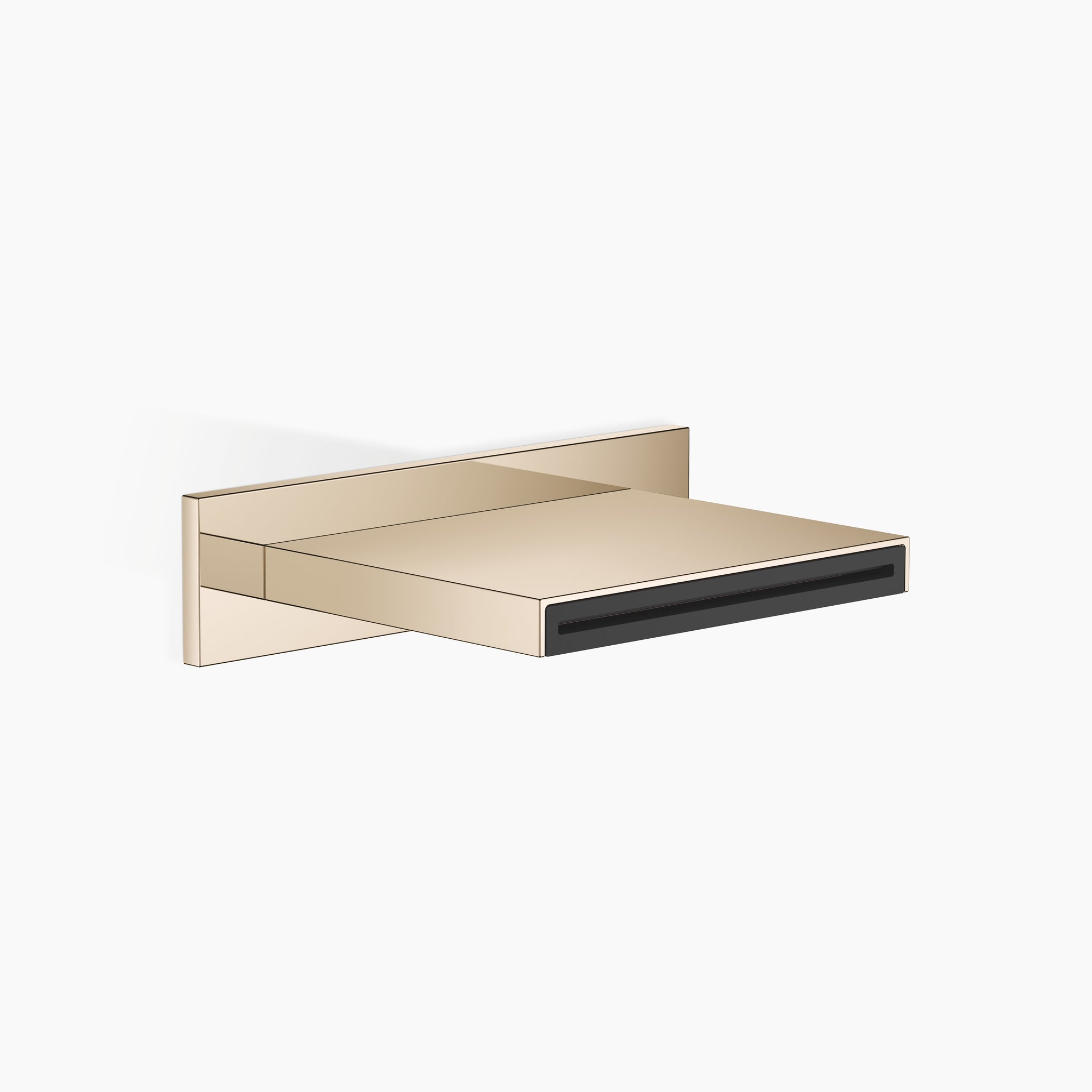

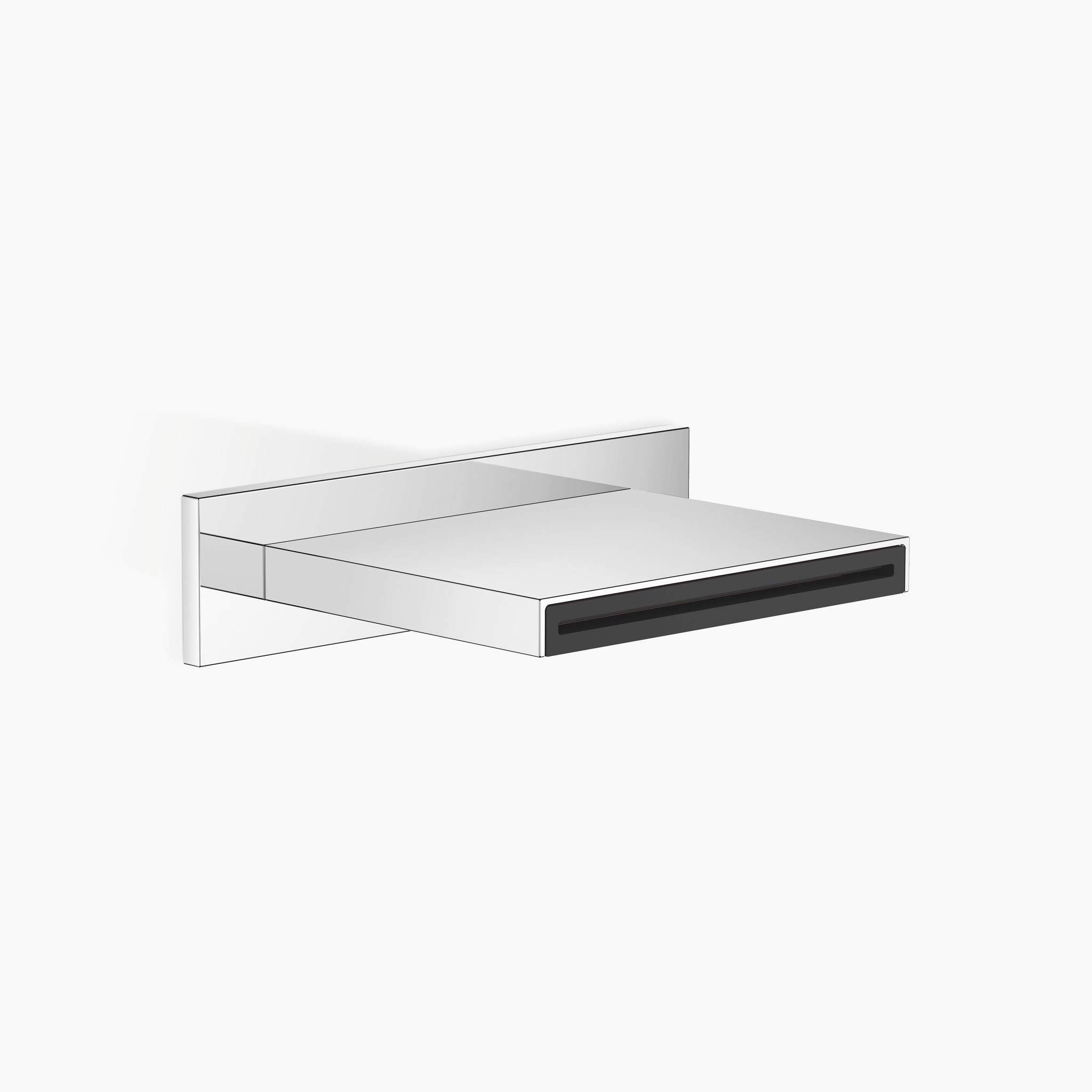

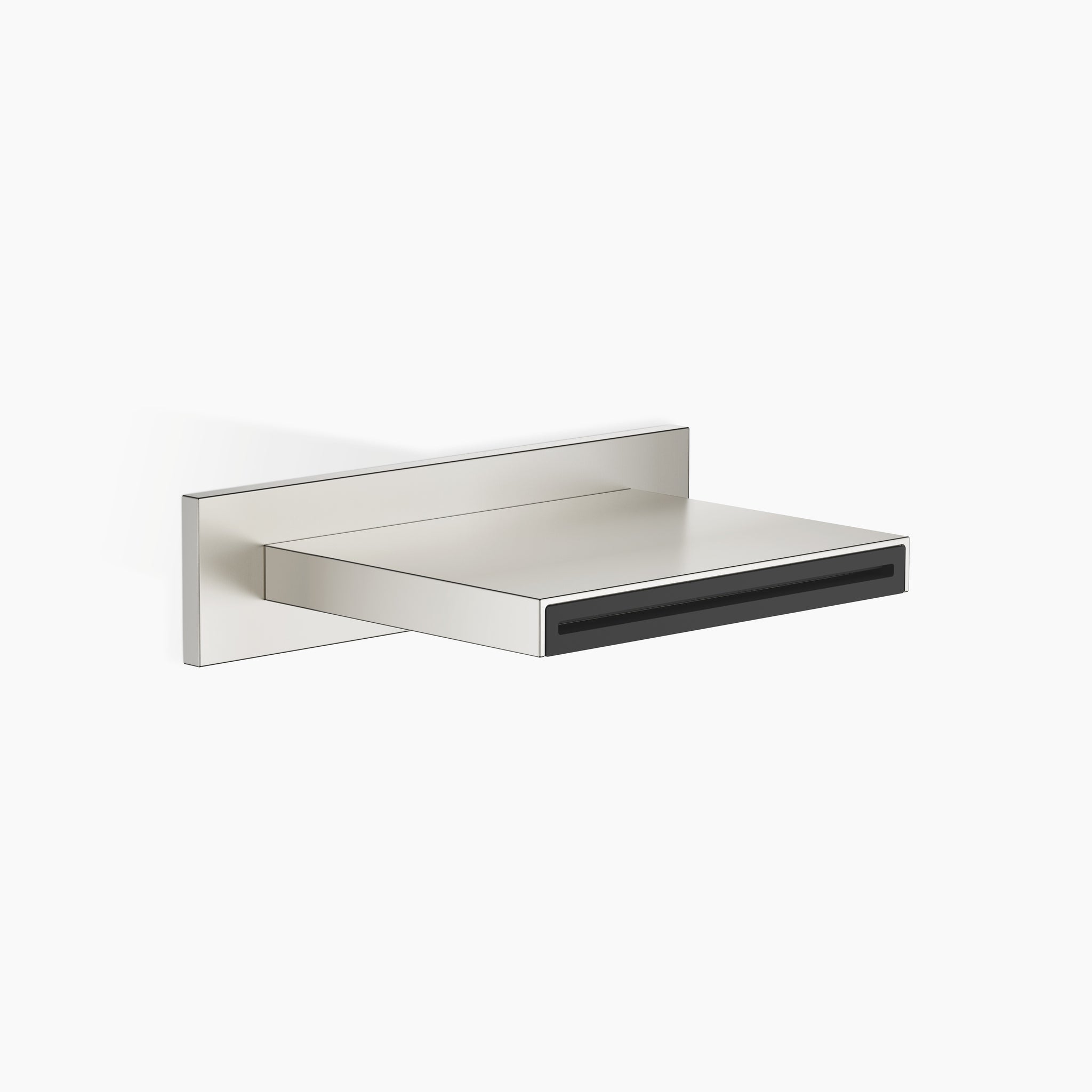

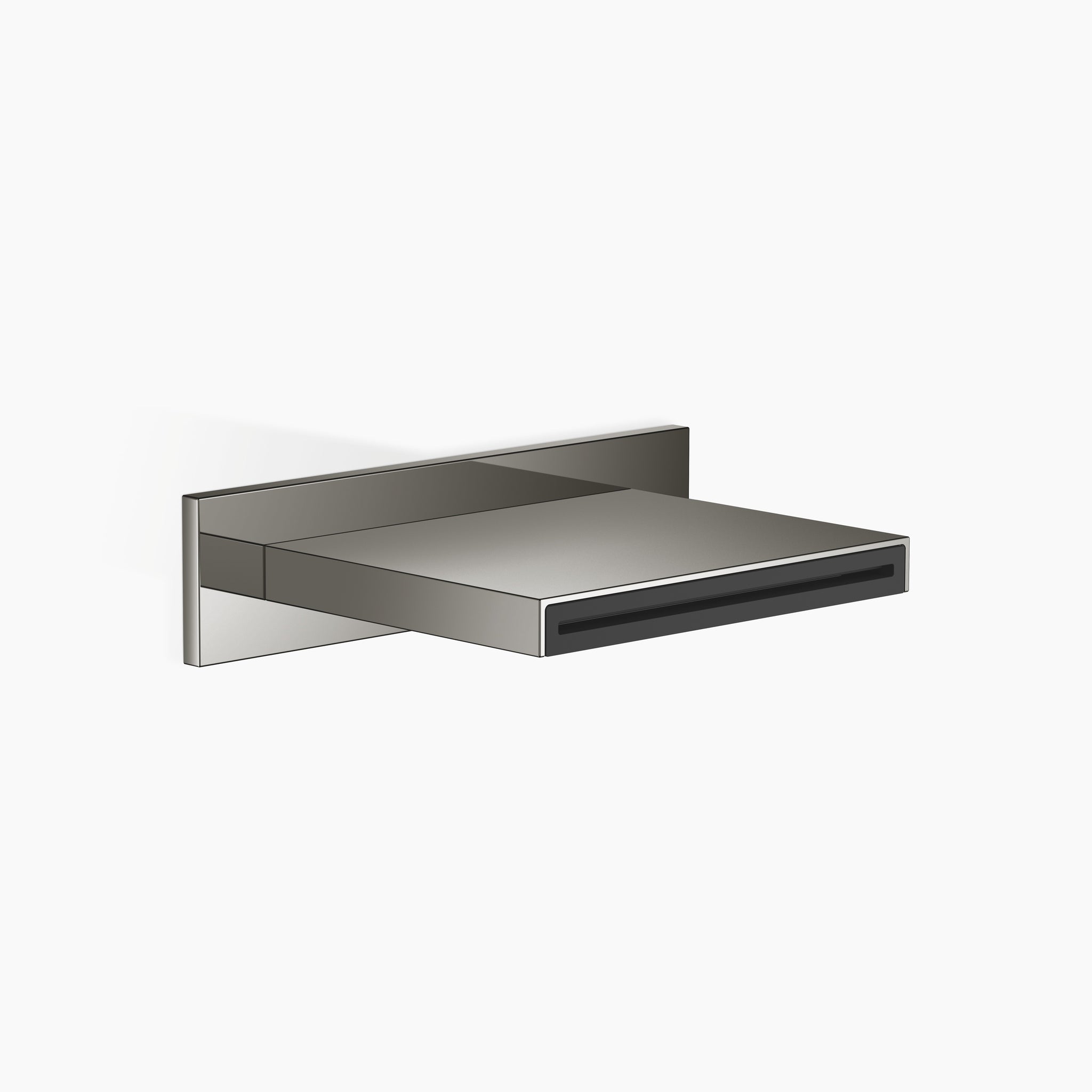

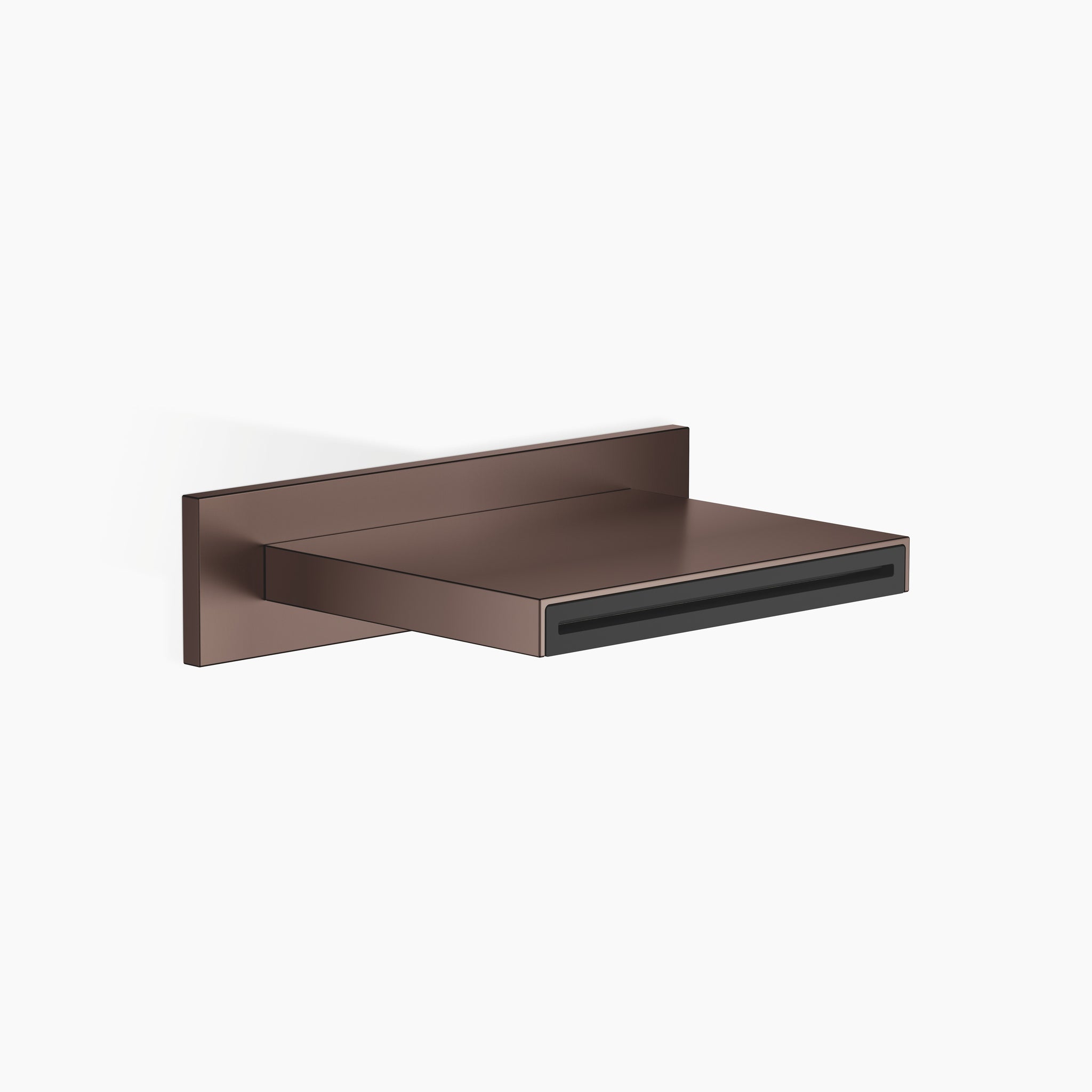

Dornbracht 13415979 Water Sheet Cascade Spout For Wall-Mounted Install

Product Info

Description

CASCADE, max. flow rate 26.5 l/min (at 3 bar)
Function from: 22.5 l/min
with anti-scale system
cover plate 240 x 60 mm
150mm projection
1/2" connection
plug-link mounting
Mounting type: Surface wall mounting
Total height (mm): 60
Total width (mm): 240
Total Depth (mm): 150
Throat (mm): 150
Flow rate (l/min): 26.5
Spray types: cascade
Recommended hot water temperature (°C): 60
Permissible flow pressure: 1 - 5 bar
Recommended flow pressure: 3 bar
Thermal disinfection (5:00 min.) ≤ 70 °C
Low pressure: No
Weight (kg): 3,36
5 year guarantee
Required miscellaneous: Alternatives 1: 1 x

Additional Info

Brand:Dornbracht
Manufacturer Part #:13415979
