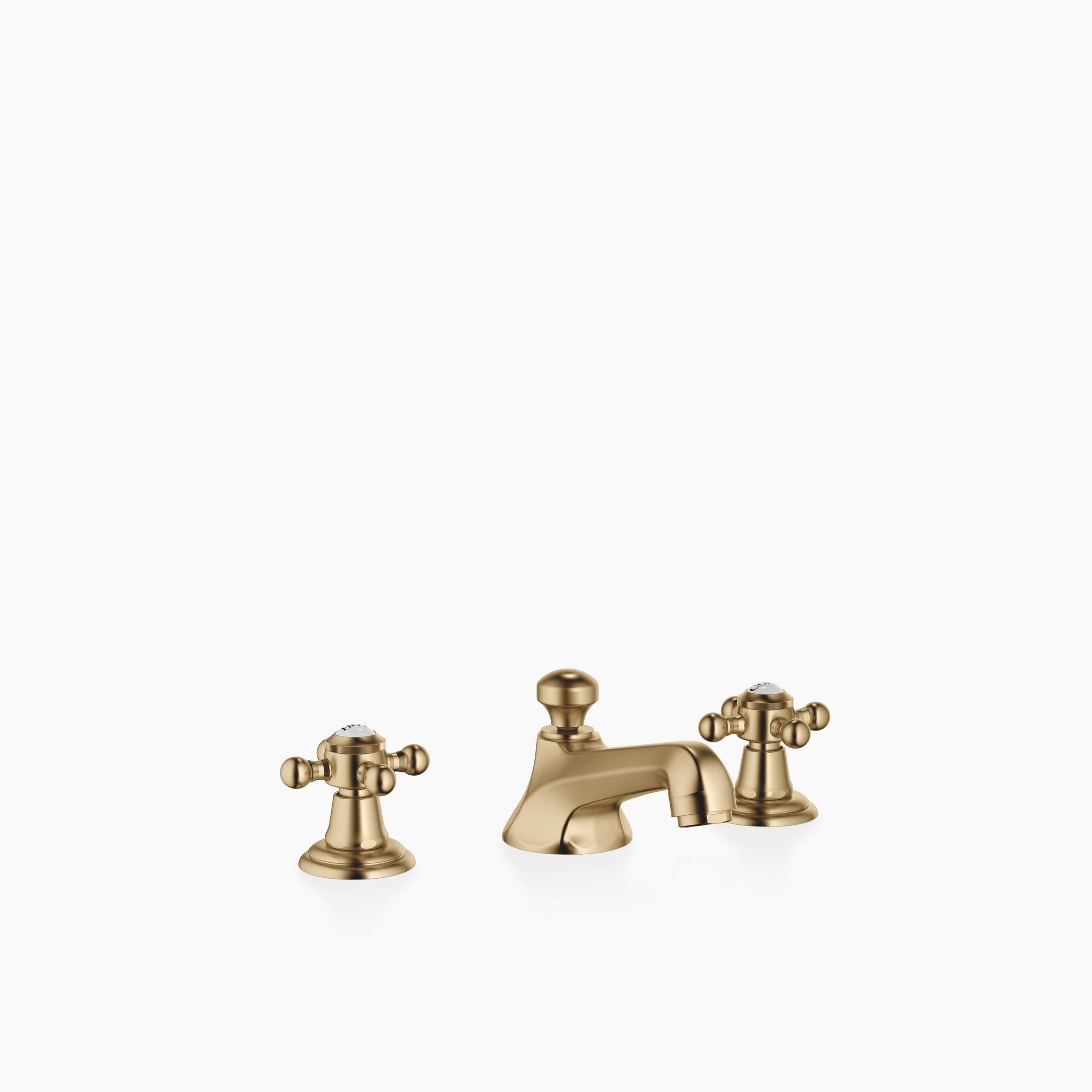

Dornbracht 20700360 Madison Three-Hole Lavatory Mixer With Drain

Dornbracht 20700360 Madison Three-Hole Lavatory Mixer With Drain

SKU: 20700360
$2,082.16
$2,602.70 Save 20%
Free Shipping Included
DESIGNERS AND PROFESSIONALSCALL TO DISCUSS YOUR PROJECT888-421-1941
{"name":"Finish","position":1,"values":["Polished Chrome","Platinum Matte","Platinum","Durabrass","Brushed Durabrass","Brushed Dark Brass PVD","Brushed Bronze PVD","Brushed Dark Bronze PVD","Dark platinum matte"]}
Finish: Polished Chrome Item # 20700360-000010 View Specifications
TrustGuard
NEED ASSISTANCE?

Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.

Product Info

Description

  • 135mm projection
  • 1 1/4" pop-up waste
  • fixed spout
  • circular, air-enriched flow
  • height of mixer 72 mm
  • height up to aerator 40 mm
  • hole diameter valve 32 mm
  • hole diameter spout 35 mm
  • without rosette
  • 2x 1/2" x 1/2" high pressure hose
  • max. flow 4.5 l/min
  • lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Only suitable for basins with an overflow.
  • Mounting type: Floor mounting
  • Tap hole variant: 3 tap holes
  • Drain fitting (with/without): 1" US pop-up waste with pull-rod activation
  • Total height (mm): 72
  • Total width (mm): 294
  • Total Depth (mm): 180
  • Throat (mm): 135
  • Height to aerator (mm): 40
  • Swivel range: rigid
  • Recommended hot water temperature (°C): 60
  • Permissible flow pressure: 1 - 5 bar
  • Recommended flow pressure: 3 bar
  • Thermal disinfection (5:00 min.) ≤ 70 °C
  • Low pressure: No
  • Weight (kg): 2,99
  • 5 year guarantee

Additional Info

  • Brand:Dornbracht
  • Manufacturer Part #:20700360
  • Number of Handles:2
