Shop the Collection: Meta
Brand: Dornbracht

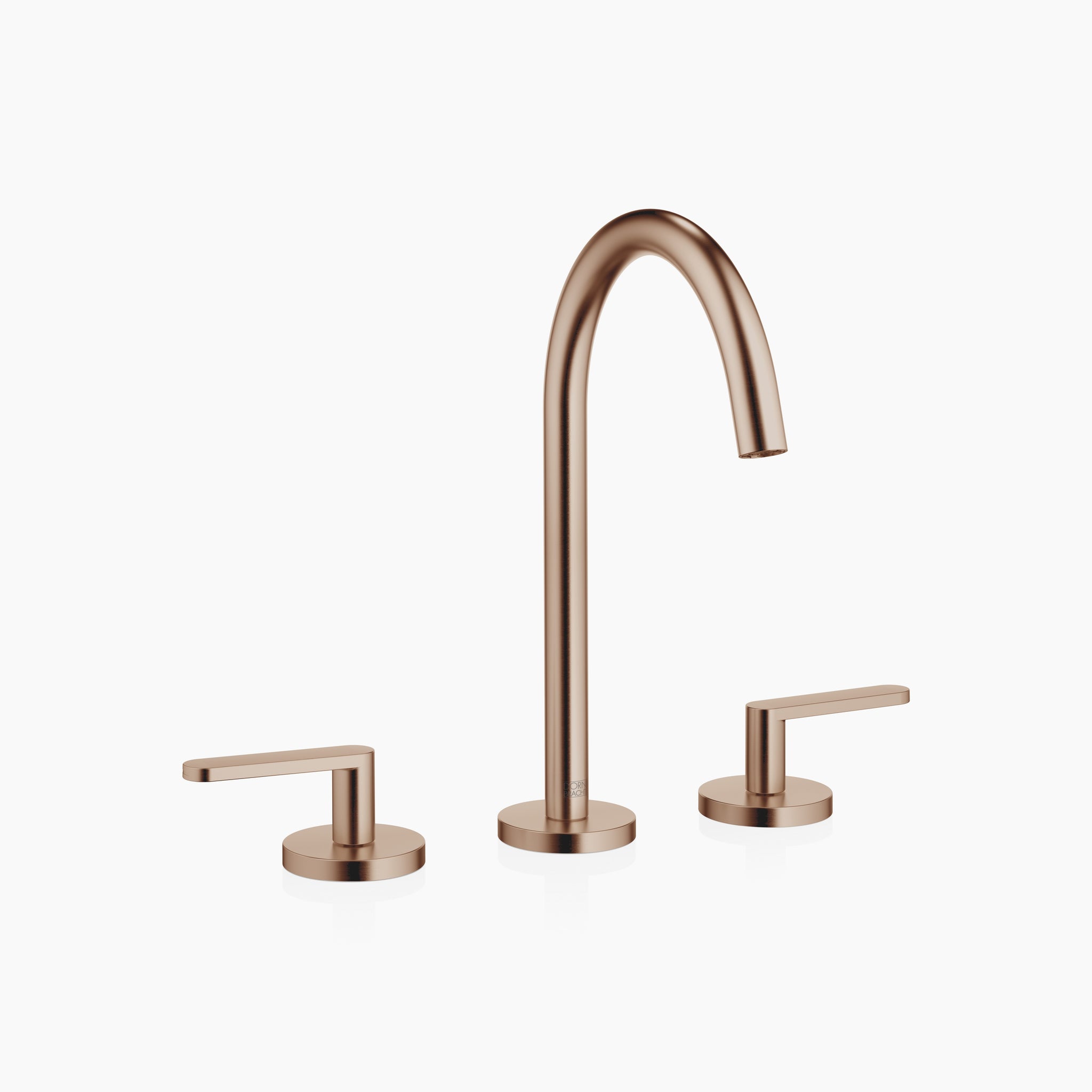

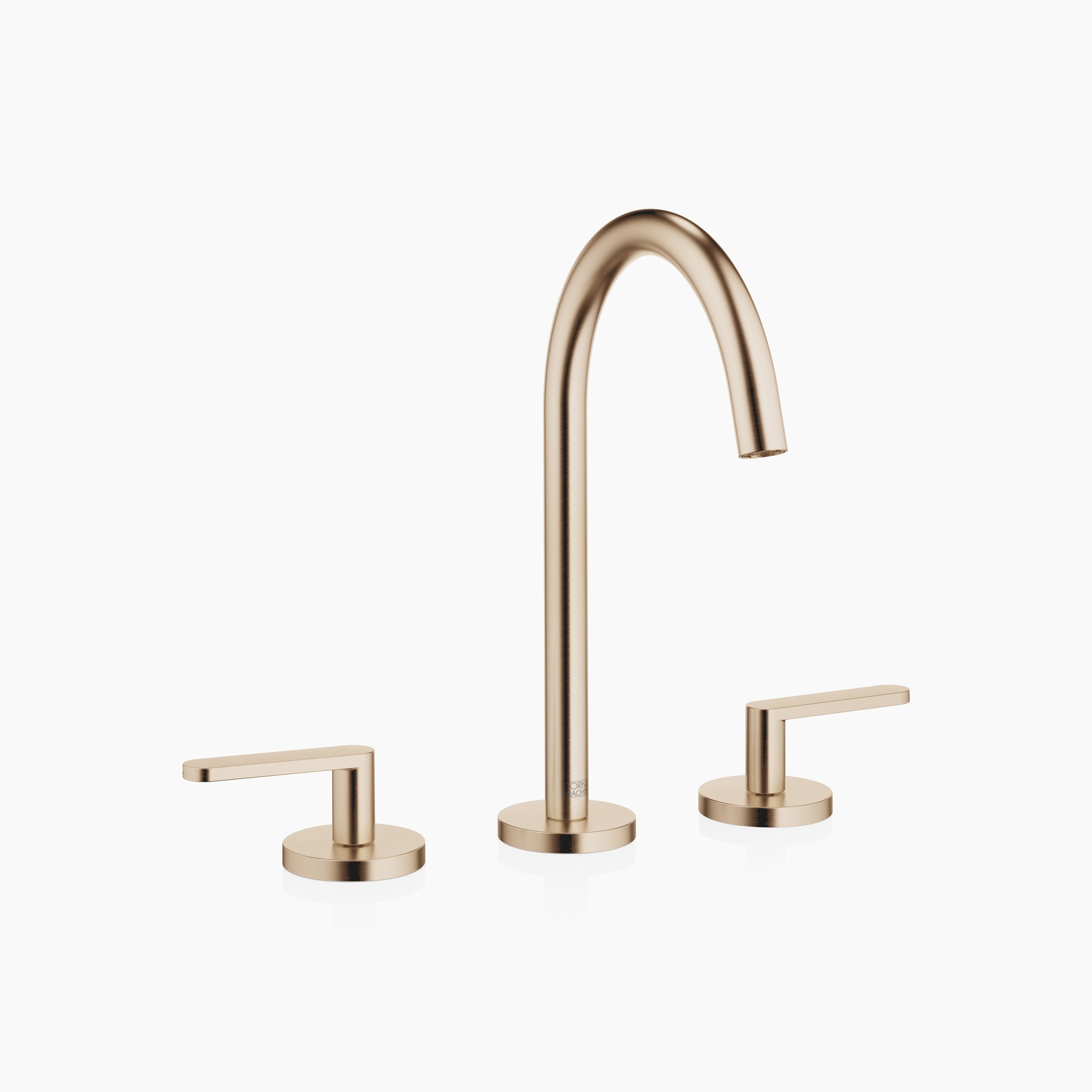

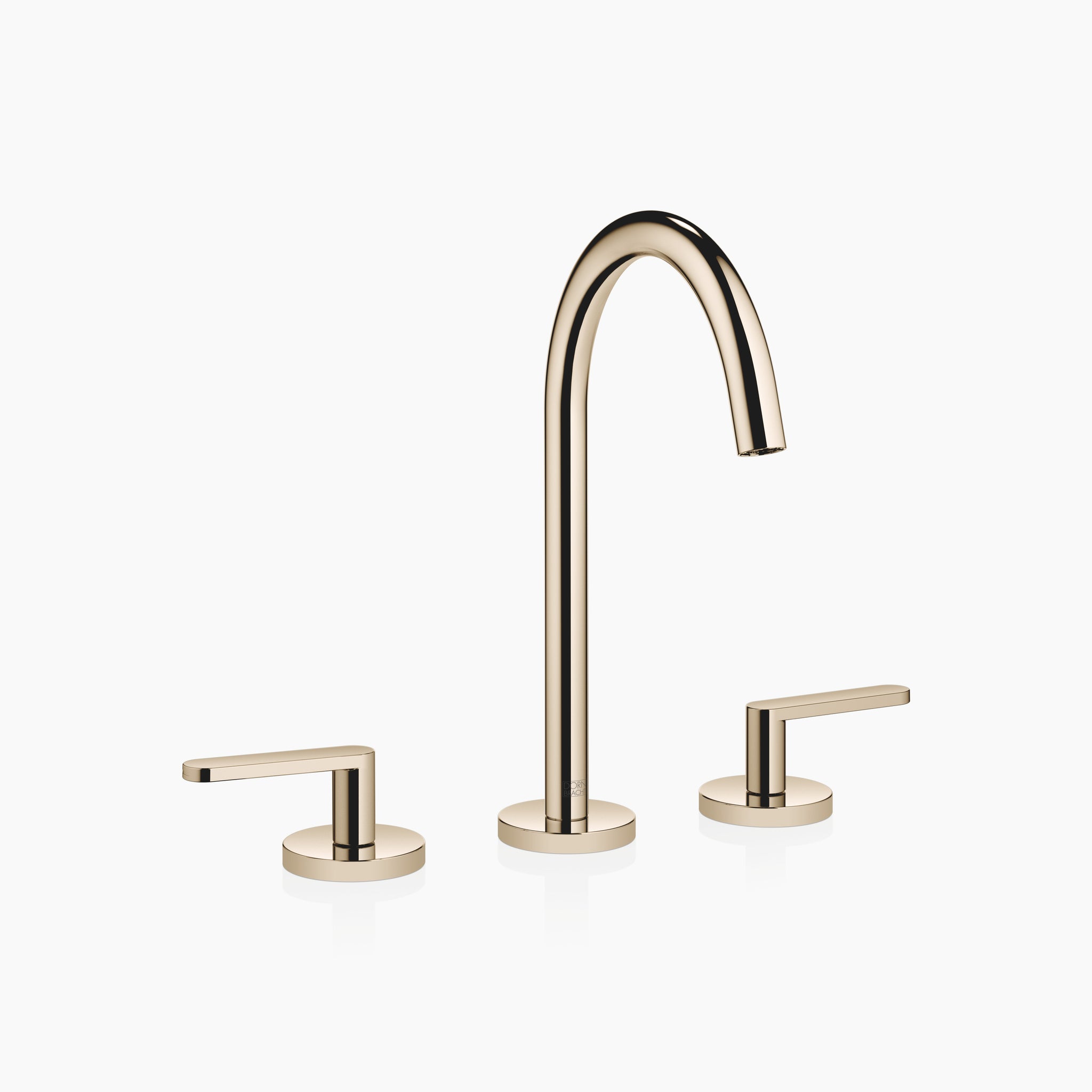

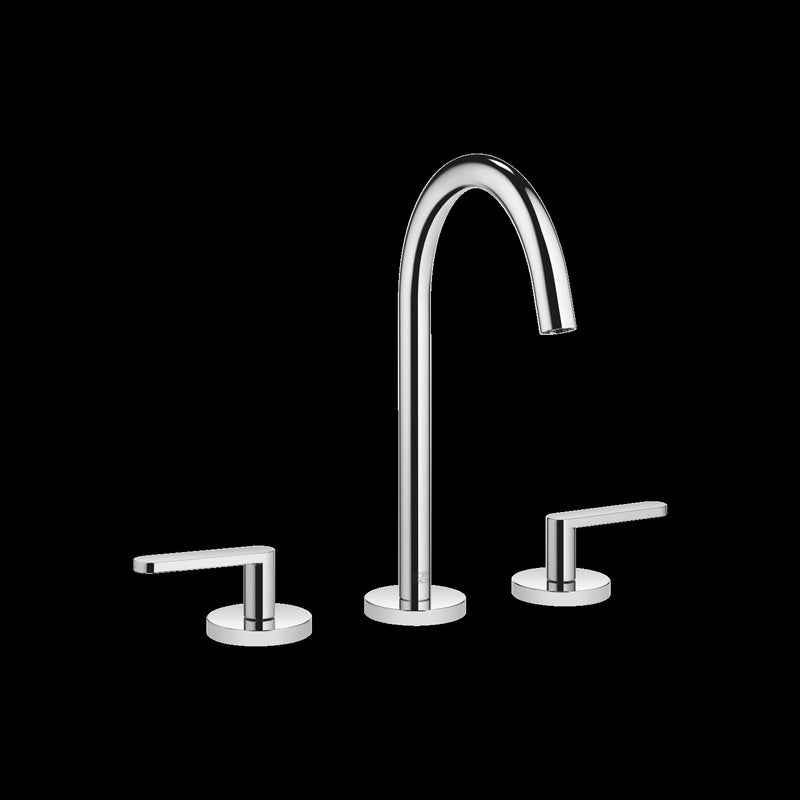

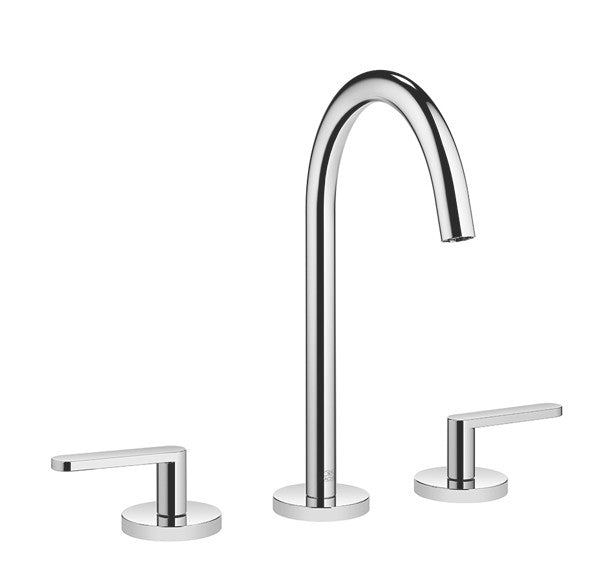

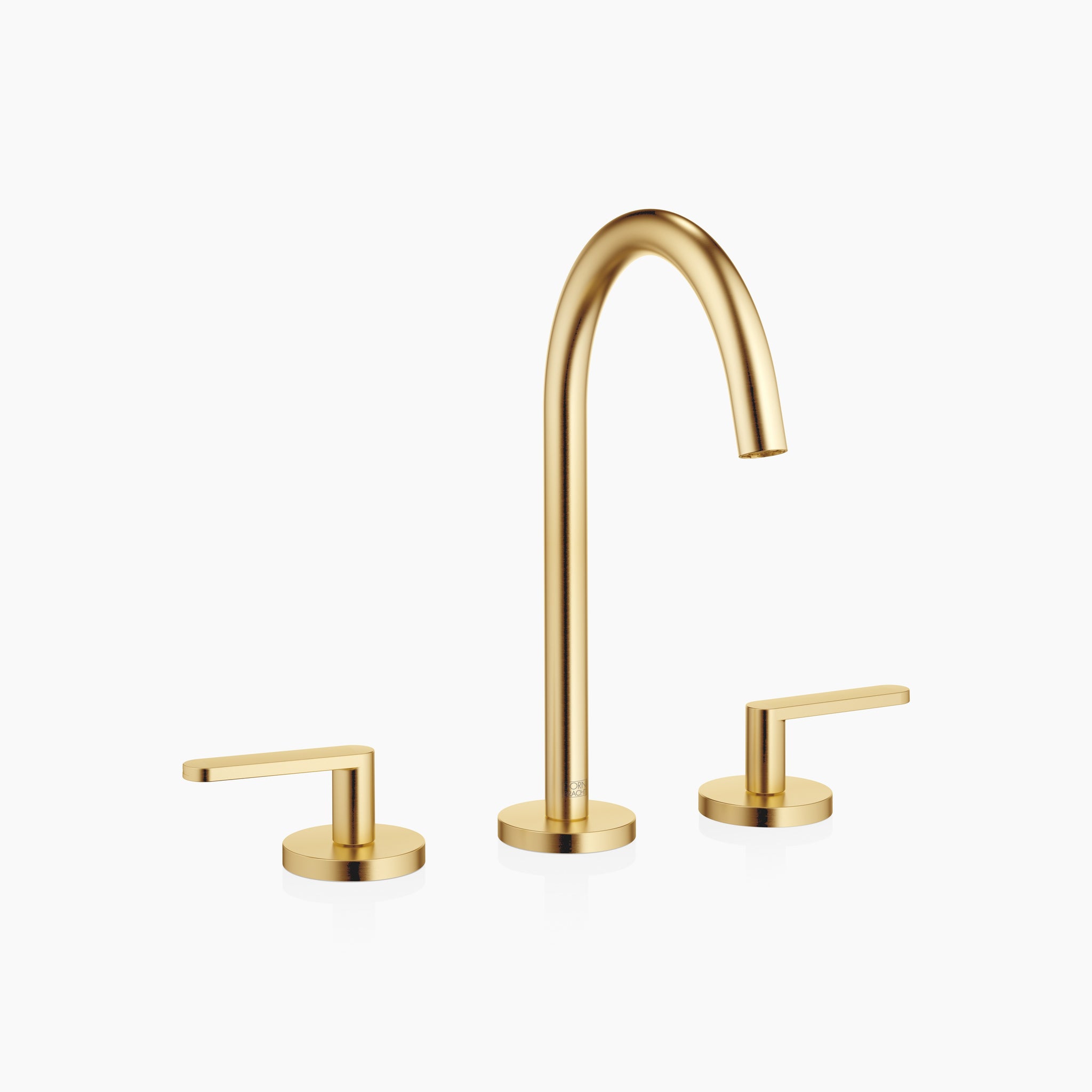

Dornbracht 20713661 Meta Three-Hole Lavatory Mixer With Drain

Dornbracht 20713661 Meta Three-Hole Lavatory Mixer With Drain

SKU: 20713661
$1,271.76
$1,589.70 Save 20%
Free Shipping Included
DESIGNERS AND PROFESSIONALSCALL TO DISCUSS YOUR PROJECT888-421-1941
{"name":"Finish","position":1,"values":["Polished Chrome","Platinum Matte","Dark Chrome","Light Gold PVD","Brushed Light Gold PVD","Matte Black","Brushed Gold PVD","Brushed Dark Brass PVD","Brushed Bronze PVD","Brushed Dark Bronze PVD","Chrome Matte","Brushed Dark Platinum"]}
Finish: Polished Chrome Item # 20713661-000010 View Specifications
TrustGuard
NEED ASSISTANCE?

Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.

Product Info

Description

  • 168mm projection
  • 1 1/4" pop-up waste
  • pivotable spout 360°
  • circular, air-enriched flow
  • height of mixer 280 mm
  • height up to aerator 191 mm
  • hole diameter valve 32 mm
  • hole diameter spout 35 mm
  • rosette Ø 60 mm
  • 2x screw-in M 8 x 1 pressure hose, leak-tested
  • max. flow 4.5 l/min
  • lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Only suitable for basins with an overflow.
  • Mounting type: Floor mounting
  • Tap hole variant: 3 tap holes
  • Drain fitting (with/without): 1" US pop-up waste with press closing
  • Total height (mm): 280
  • Total width (mm): 350
  • Total Depth (mm): 207
  • Throat (mm): 168
  • Height to aerator (mm): 191
  • Swivel range: pivoting
  • Flow rate (l/min): 4.5
  • Recommended hot water temperature (°C): 60
  • Permissible flow pressure: 1 - 5 bar
  • Recommended flow pressure: 3 bar
  • Thermal disinfection (5:00 min.) ≤ 70 °C
  • Low pressure: No
  • Weight (kg): 2,87
  • 5 year guarantee

Additional Info

  • Brand:Dornbracht
  • Manufacturer Part #:20713661
  • Number of Handles:2
  • Number of Faucet Holes:3

Product Options

,DNB-20713661-000010,DNB-20713661-060010,DNB-20713661-190010,DNB-20713661-330010,DNB-20713661-930010,DNB-20713661-260010,DNB-20713661-270010,DNB-20713661-370010,DNB-20713661-390010,DNB-20713661-420010,DNB-20713661-430010,DNB-20713661-990010|,Polished Chrome,Platinum Matte,Dark Chrome,Matte Black,Chrome Matte,Light Gold PVD,Brushed Light Gold PVD,Brushed Gold PVD,Brushed Dark Brass PVD,Brushed Bronze PVD,Brushed Dark Bronze PVD,Brushed Dark Platinum|,1589.70,2543.50,2384.40,2146.10,2066.60,2384.40,2384.40,2384.60,2543.50,2543.50,2861.50,2543.50|,1271.76,2034.80,1907.52,1716.88,1653.28,1907.52,1907.52,1907.68,2034.80,2034.80,2289.20,2034.80||,43279726870719,43279726903487,43279726936255,43279726969023,43279727067327,45526066364607,45526066397375,45526066430143,45526066462911,45526066495679,45526066528447,45526066561215|,28,28,28,28,28,28,28,28,28,28,28,28|,20713661-000010,20713661-060010,20713661-190010,20713661-330010,20713661-930010,20713661-260010,20713661-270010,20713661-370010,20713661-390010,20713661-420010,20713661-430010,20713661-990010
