Shop the Collection: Mem
Brand: Dornbracht

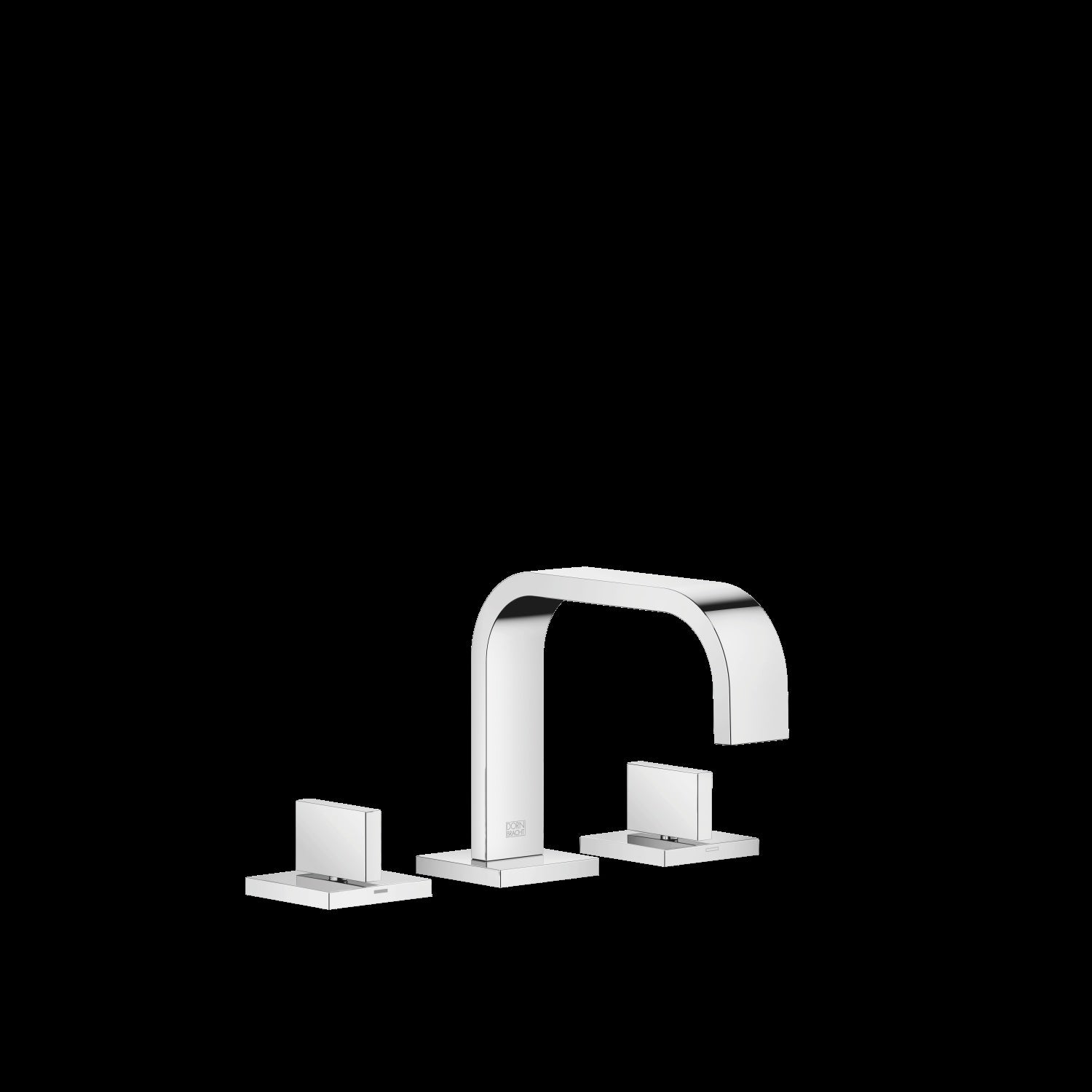

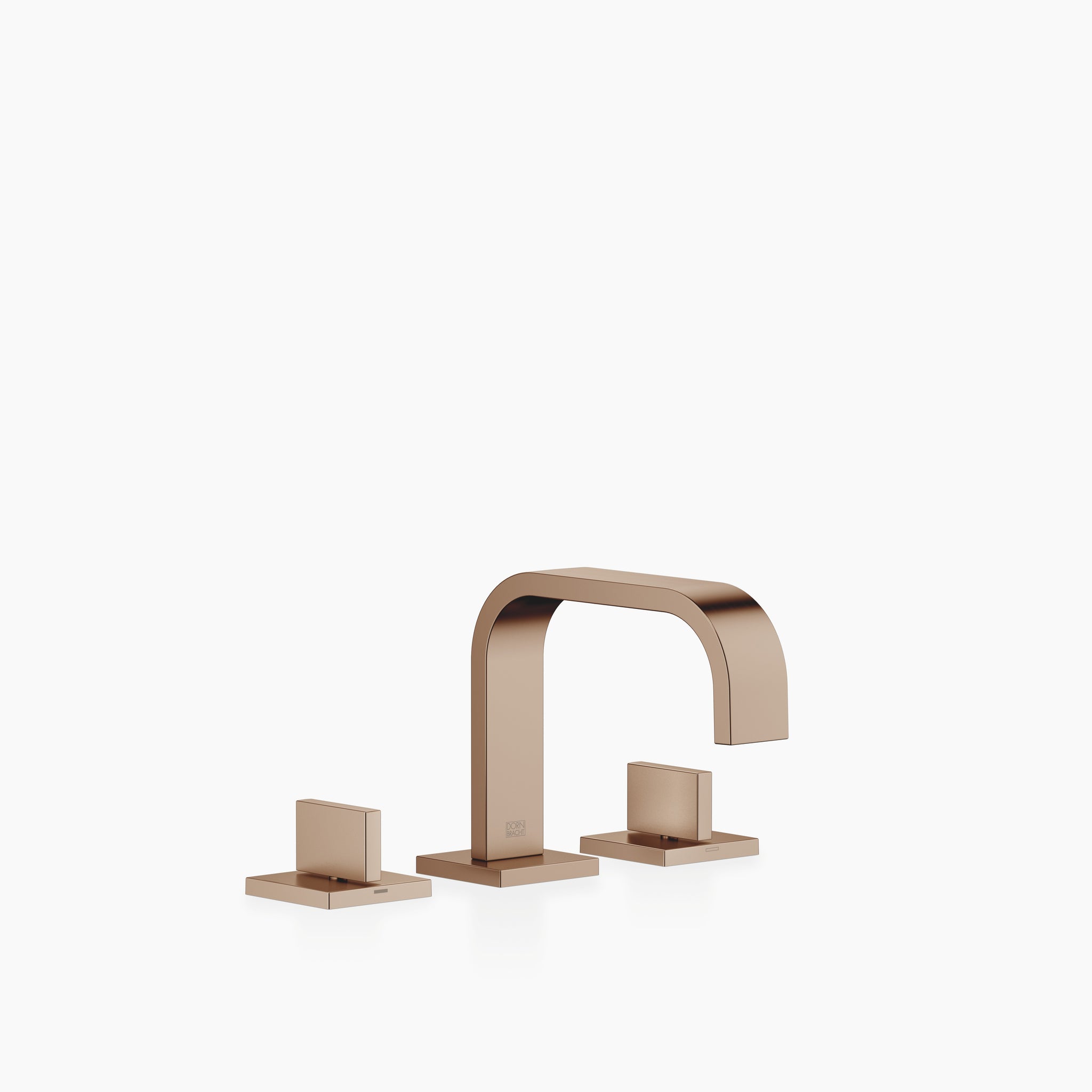

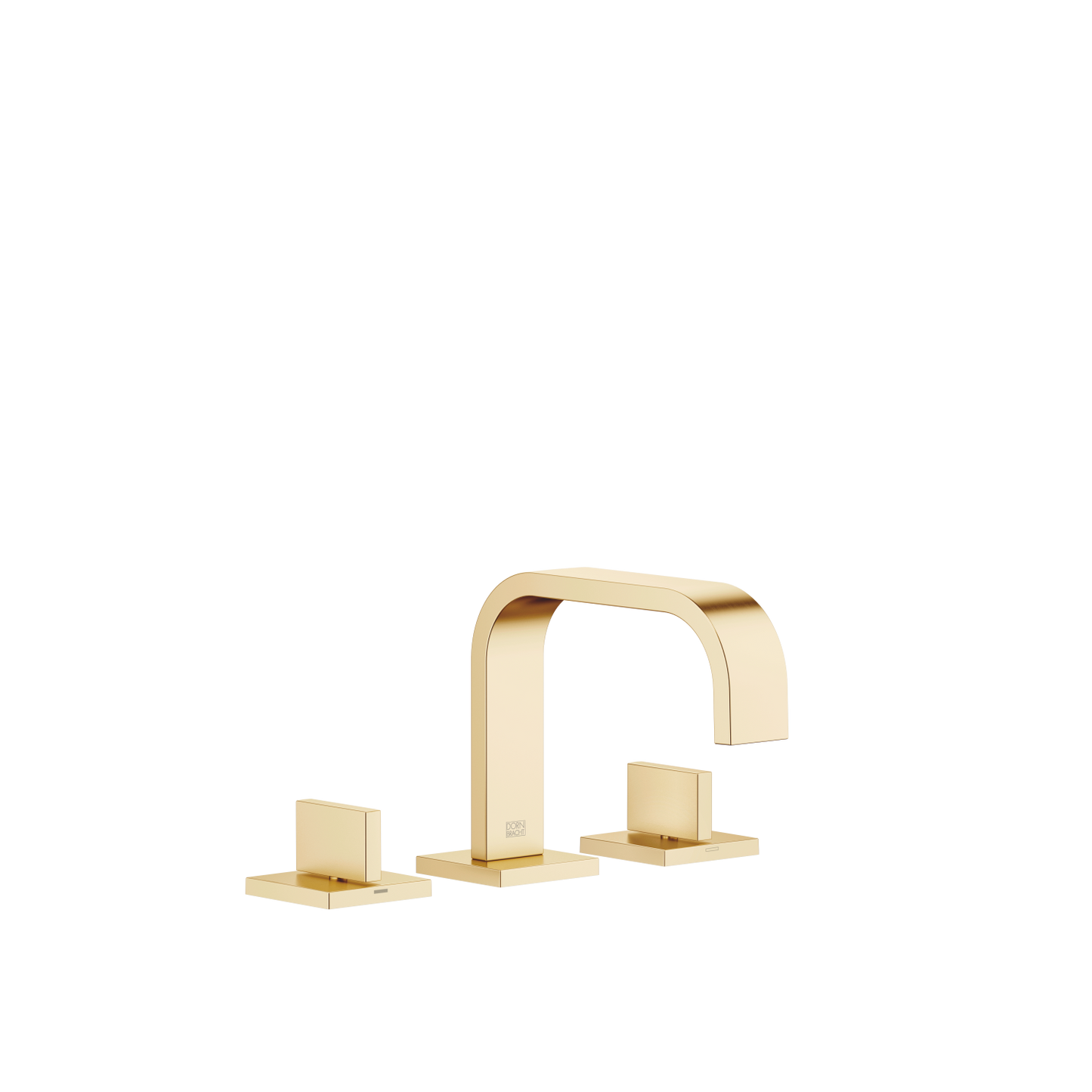

Dornbracht 20705782 Mem Three-Hole Lavatory Mixer With Drain

Dornbracht 20705782 Mem Three-Hole Lavatory Mixer With Drain

SKU: 20705782
$2,346.00
$2,932.50 Save 20%
Free Shipping Included
DESIGNERS AND PROFESSIONALSCALL TO DISCUSS YOUR PROJECT888-421-1941
{"name":"Finish","position":1,"values":["Chrome","Brushed Platinum","Platinum","Dark Chrome","Brushed Durabrass 23kt Gold","Brushed Dark Brass PVD","Brushed Bronze PVD","Brushed Champagne 22kt Gold","Champagne 22kt Gold","Brushed Dark Platinum"]}
Finish: Chrome Item # 20705782-000010 View Specifications
TrustGuard
NEED ASSISTANCE?

Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.

Product Info

Description

  • 165mm projection
  • fixed spout
  • rectangular, air-enriched flow
  • height of mixer 144 mm
  • height up to aerator 78 mm
  • hole diameter spout 35 mm
  • hole diameter valve 32 mm
  • rosette 60 x 60 mm
  • 2x screw-in M 10 x 1 pressure hose, leak-tested
  • max. flow 4.5 l/min
  • lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Only suitable for basins with an overflow.
  • Mounting type: Floor mounting
  • Tap hole variant: 3 tap holes
  • Drain fitting (with/without): 1" US pop-up waste with press closing
  • Total height (mm): 144
  • Total width (mm): 260
  • Total Depth (mm): 201
  • Throat (mm): 165
  • Height to aerator (mm): 78
  • Flow rate (l/min): 4.5
  • Recommended hot water temperature (°C): 60
  • Permissible flow pressure: 1 - 5 bar
  • Recommended flow pressure: 3 bar
  • Thermal disinfection (5:00 min.) ≤ 70 °C
  • Low pressure: No
  • Weight (kg): 2,14
  • 5 year guarantee

Additional Info

  • Brand:Dornbracht
  • Manufacturer Part #:20705782
  • Number of Handles:2

Product Options

,DNB-20705782-000010,DNB-20705782-060010,DNB-20705782-080010,DNB-20705782-190010,DNB-20705782-280010,DNB-20705782-460010,DNB-20705782-470010,DNB-20705782-990010,DNB-20705782-390010,DNB-20705782-420010|,Chrome,Brushed Platinum,Platinum,Dark Chrome,Brushed Durabrass 23kt Gold,Brushed Champagne 22kt Gold,Champagne 22kt Gold,Brushed Dark Platinum,Brushed Dark Brass PVD,Brushed Bronze PVD|,2932.50,4691.90,4691.90,4398.80,7038.00,7038.00,7038.00,4691.90,4602.60,4602.60|,2346.00,3753.52,3753.52,3519.04,5630.40,5630.40,5630.40,3753.52,3682.08,3682.08||,43210619420863,43210619551935,43210619617471,43210619650239,43210619715775,43210619781311,43210619453631,43210619519167,45526468460735,45526468493503|,28,28,28,28,28,28,28,28,28,28|,20705782-000010,20705782-060010,20705782-080010,20705782-190010,20705782-280010,20705782-460010,20705782-470010,20705782-990010,20705782-390010,20705782-420010
