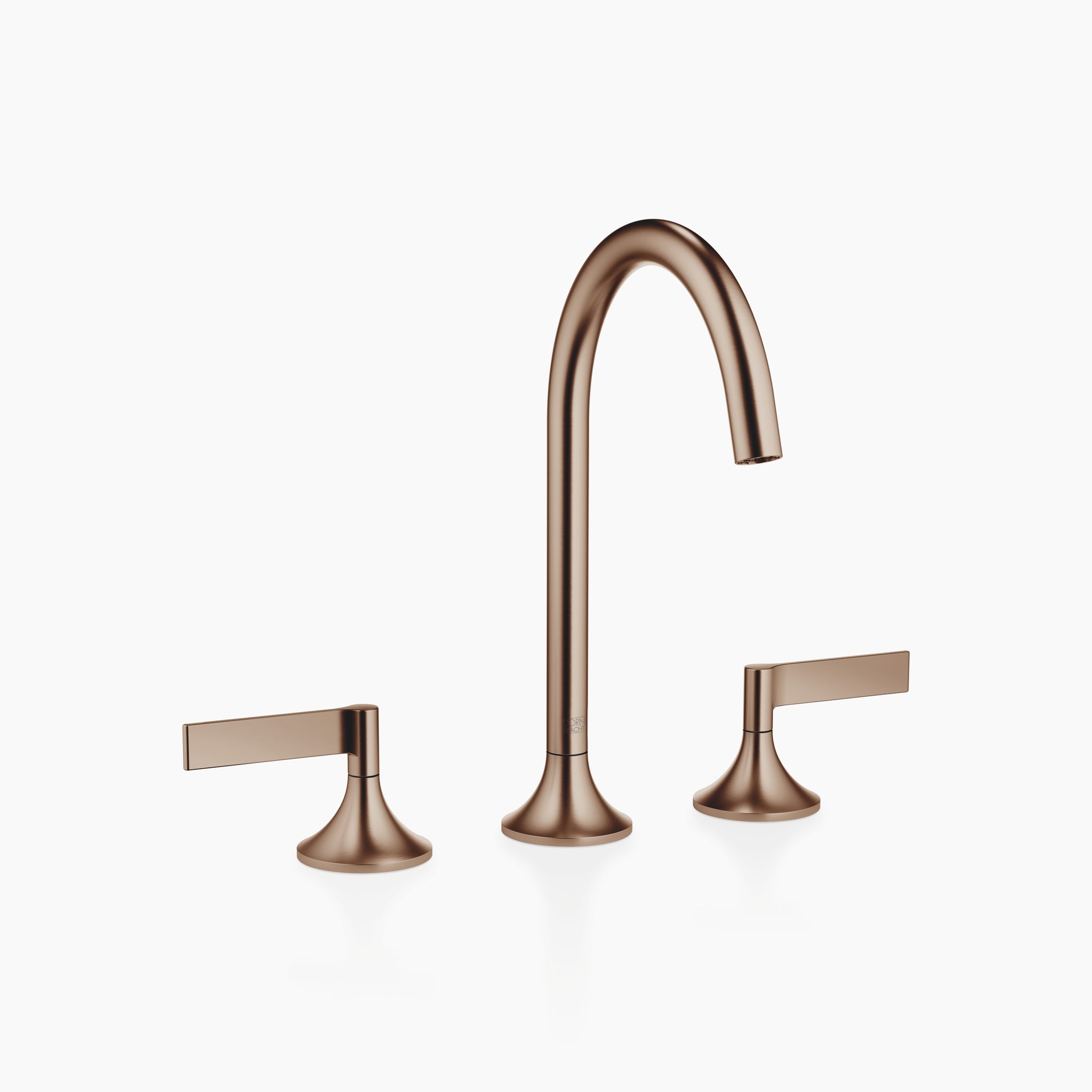

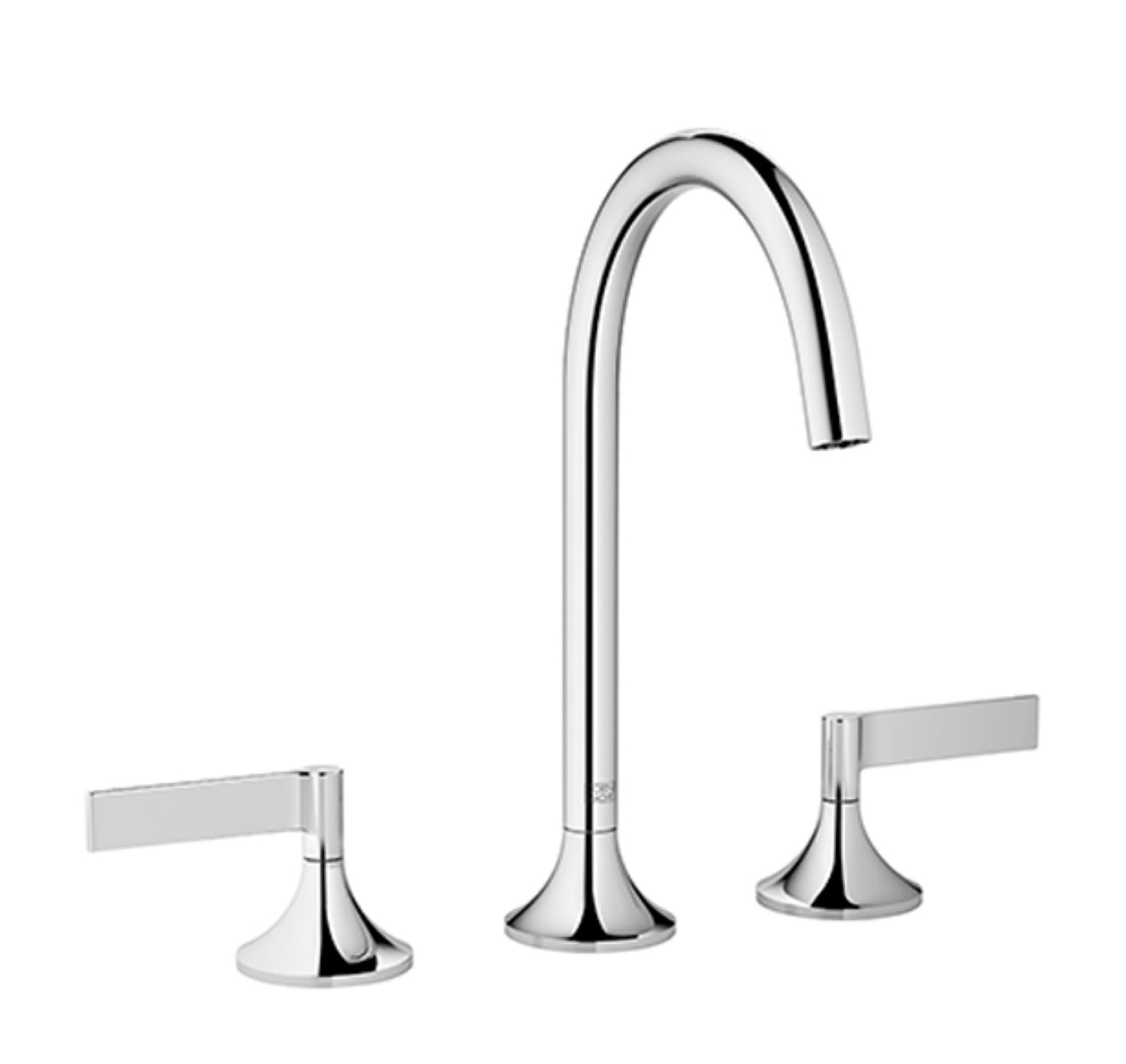

Dornbracht 20713819 Vaia Three-Hole Lavatory Mixer With Drain

Dornbracht 20713819 Vaia Three-Hole Lavatory Mixer With Drain

SKU: 20713819
$2,500.32
$3,125.40 Save 20%
Free Shipping Included
DESIGNERS AND PROFESSIONALSCALL TO DISCUSS YOUR PROJECT888-421-1941
{"name":"Finish","position":1,"values":["Polished Chrome","Platinum Matte","Platinum","Dark Chrome","Brushed Durabrass","Brushed Dark Brass PVD","Brushed Bronze PVD","Brushed Dark Bronze PVD","Brushed Champagne 22kt Gold","Champagne 22kt Gold","Dark platinum matte"]}
Finish: Polished Chrome Item # 20713819-000010 View Specifications
TrustGuard
NEED ASSISTANCE?

Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.

Product Info

Description

  • 168mm projection
  • 1 1/4" pop-up waste
  • pivotable spout 360°
  • circular, air-enriched flow
  • height of mixer 280 mm
  • height up to aerator 191 mm
  • hole diameter valve 32 mm
  • hole diameter spout 35 mm
  • rosette Ø 60 mm
  • max. flow 4.5 l/min
  • lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Only suitable for basins with an overflow.
  • Mounting type: Floor mounting
  • Tap hole variant: 3 tap holes
  • Drain fitting (with/without): 1" US pop-up waste with press closing
  • Total height (mm): 280
  • Total width (mm): 366
  • Total Depth (mm): 207
  • Throat (mm): 168
  • Height to aerator (mm): 191
  • Swivel range: pivoting
  • Recommended hot water temperature (°C): 60
  • Permissible flow pressure: 1 - 5 bar
  • Recommended flow pressure: 3 bar
  • Thermal disinfection (5:00 min.) ≤ 70 °C
  • Low pressure: No
  • Weight (kg): 2,64
  • 5 year guarantee

Additional Info

  • Brand:Dornbracht
  • Manufacturer Part #:20713819
  • Number of Handles:2
