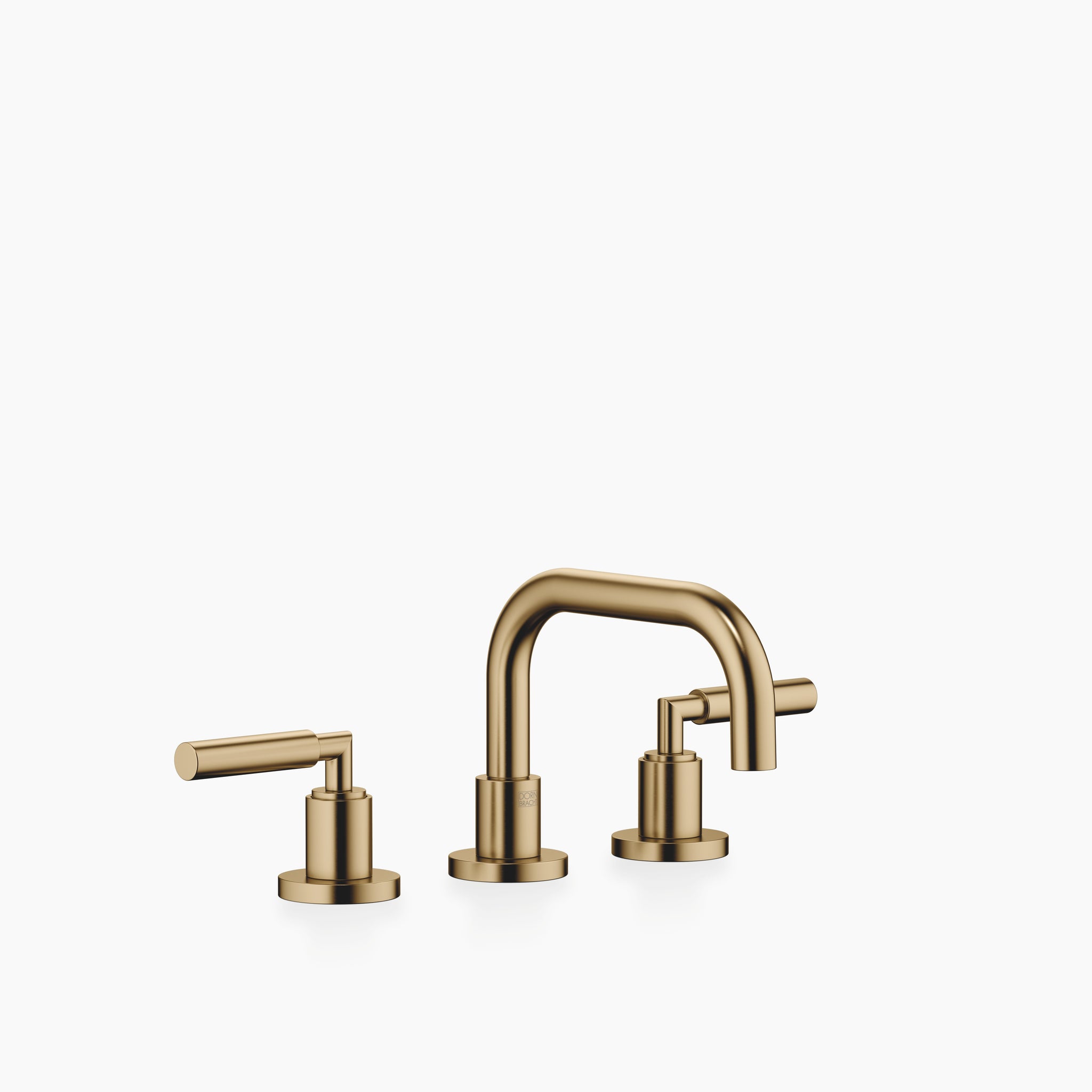

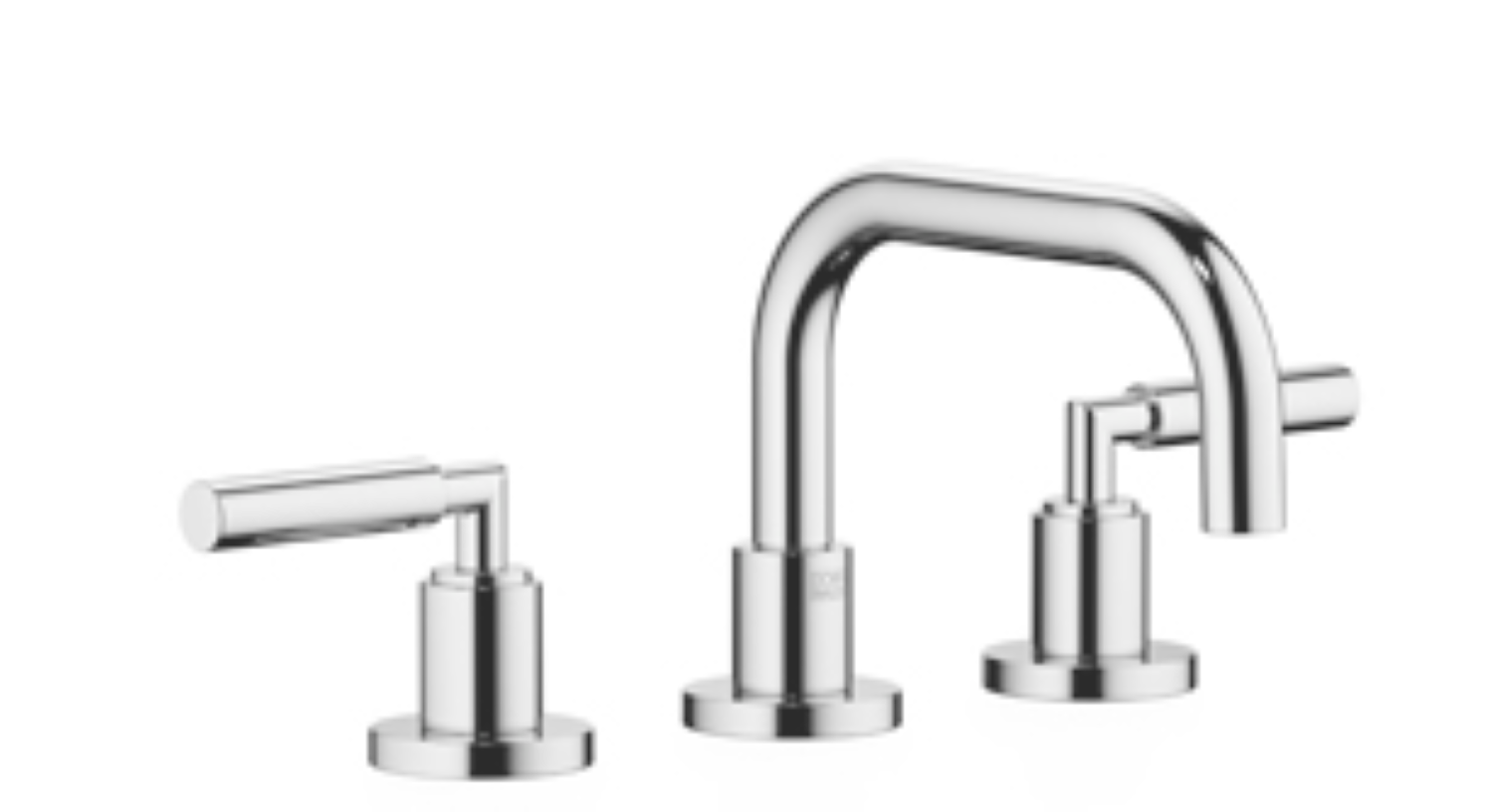

Dornbracht 20705882 Tara Three-Hole Lavatory Mixer With Drain
Dornbracht 20705882 Tara Three-Hole Lavatory Mixer With Drain
SKU: 20705882
$1,675.68
Unit price
/
per
$2,094.60
Save 20%
Free Shipping Included
5-7 Days
contact us for more details
{"name":"Finish","position":1,"values":["Chrome","Brushed Platinum","Platinum","Dark Chrome","Brushed Durabrass 23kt Gold","Matte Black","Brushed Dark Brass PVD","Brushed Bronze PVD","Brushed Dark Bronze PVD","Brushed Champagne 22kt Gold","Champagne 22kt Gold","Brushed Chrome","Brushed Dark Platinum"]}
Couldn't load pickup availability
NEED ASSISTANCE?
Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.
Product Info
Description
- 166mm projection
- 1 1/4" pop-up waste
- pivotable spout 360°
- circular, air-enriched flow
- height of mixer 145 mm
- height up to aerator 65 mm
- hole diameter valve 32 mm
- hole diameter spout 35 mm
- rosette Ø 55 mm
- 2x screw-in M 10 x 1 pressure hose, leak-tested
- max. flow 4.5 l/min
- lead-free
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- Only suitable for basins with an overflow.
- Mounting type: Floor mounting
- Tap hole variant: 3 tap holes
- Drain fitting (with/without): 1" US pop-up waste with press closing
- Total height (mm): 145
- Total width (mm): 374
- Total Depth (mm): 204
- Throat (mm): 166
- Height to aerator (mm): 65
- Flow rate (l/min): 4.5
- Recommended hot water temperature (°C): 60
- Permissible flow pressure: 1 - 5 bar
- Recommended flow pressure: 3 bar
- Thermal disinfection (5:00 min.) ≤ 70 °C
- Low pressure: No
- Weight (kg): 2,87
- 5 year guarantee
Additional Info
- Brand:Dornbracht
- Manufacturer Part #:20705882
- Number of Handles:2
