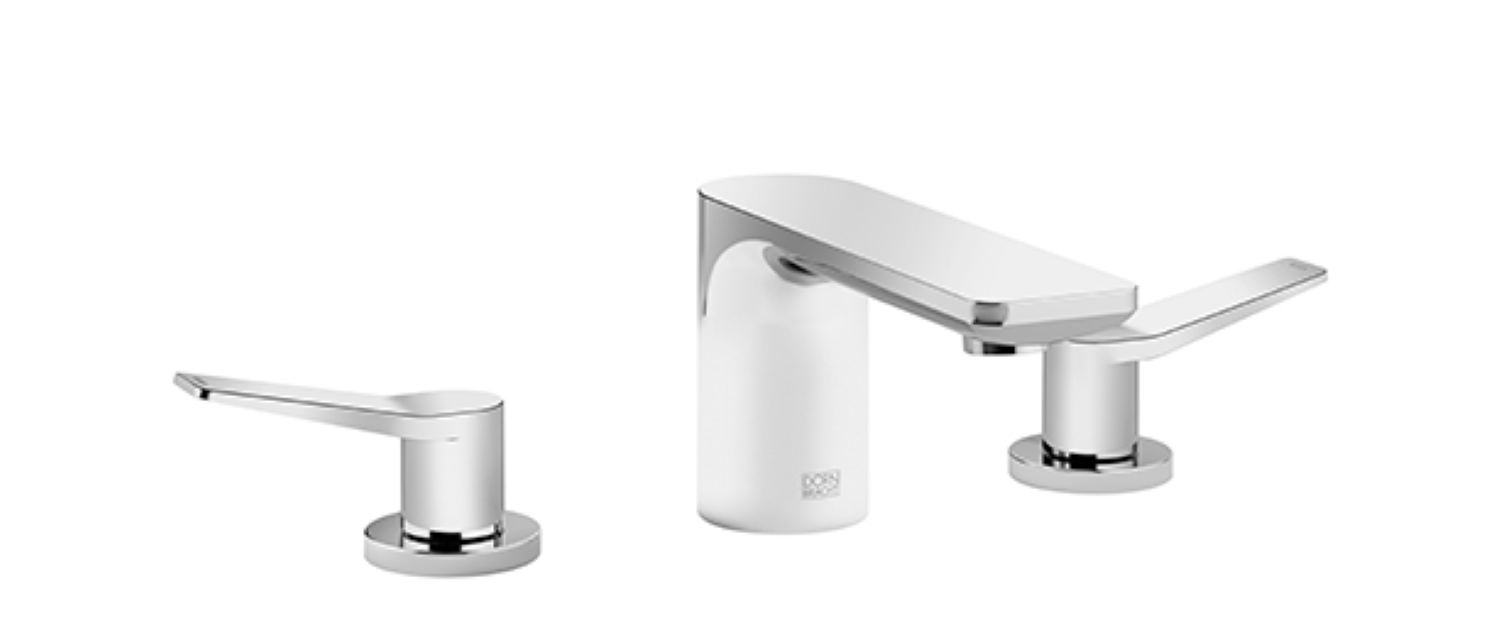

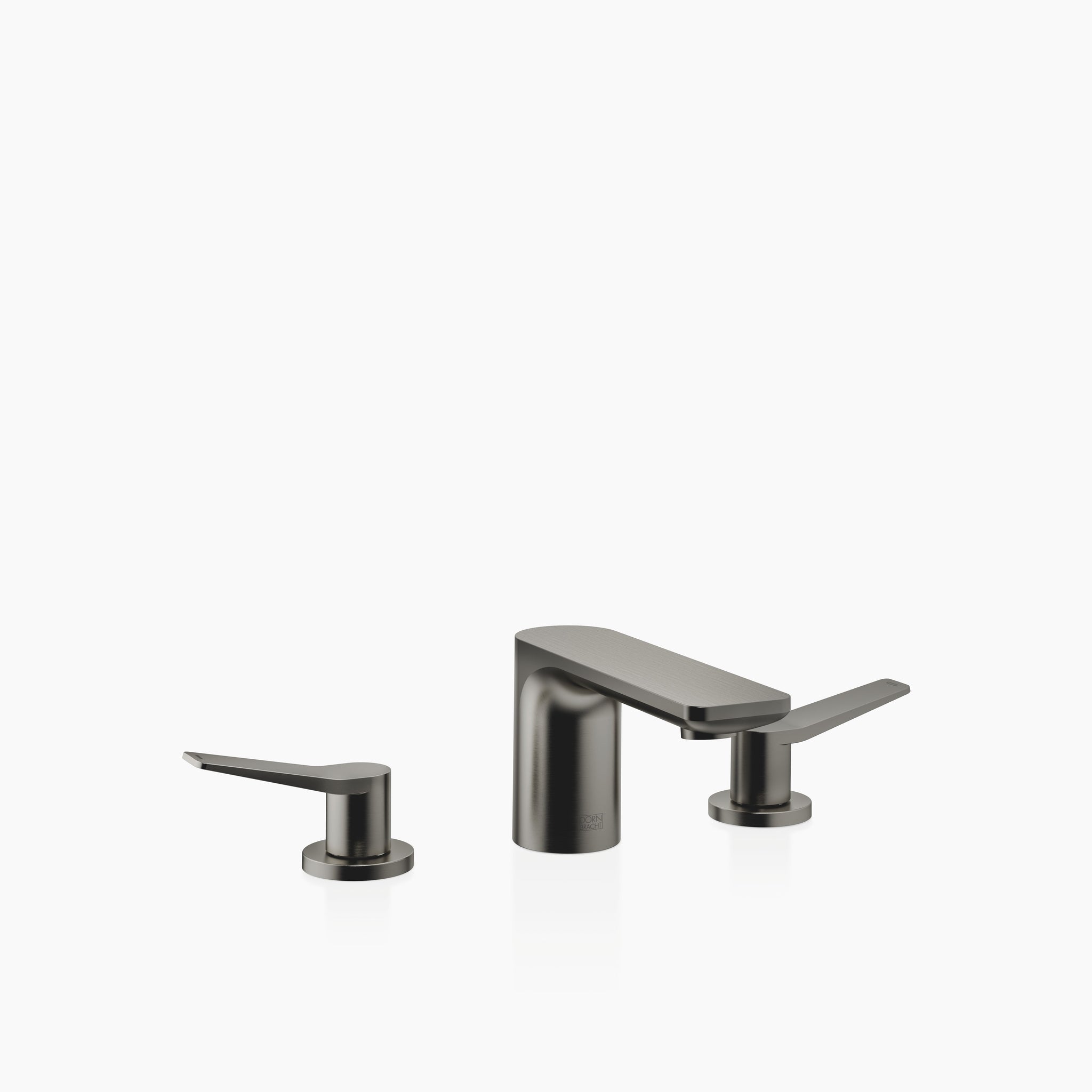

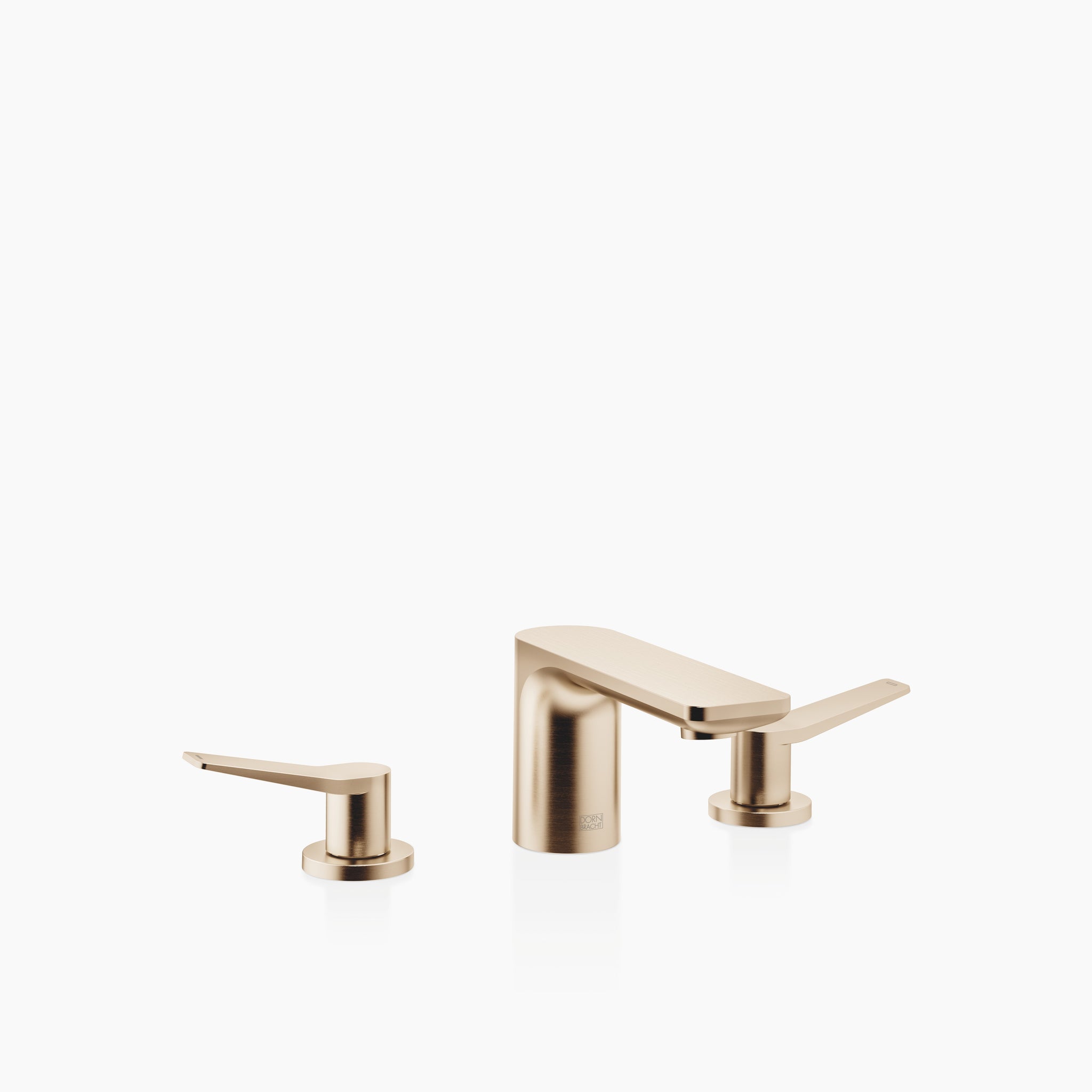

Dornbracht 20713845 Lissé Three-Hole Lavatory Mixer With Drain
Dornbracht 20713845 Lissé Three-Hole Lavatory Mixer With Drain
SKU: 20713845
$994.96
Unit price
/
per
$1,243.70
Save 20%
Free Shipping Included
5-7 Days
contact us for more details
{"name":"Finish","position":1,"values":["Polished Chrome","Platinum Matte","Dark Chrome","Brushed Light Gold PVD","Matte Black","Chrome Matte","Brushed Dark Platinum"]}
Couldn't load pickup availability
NEED ASSISTANCE?
Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.
Product Info
Description
- 130mm projection
- 1 1/4" pop-up waste
- fixed spout
- circular, air-enriched flow
- height of mixer 95 mm
- height up to aerator 75 mm
- hole diameter valve 32 mm
- hole diameter spout 35 mm
- rosette Ø 48 mm
- max. flow 4.5 l/min
- lead-free
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- Only suitable for basins with an overflow.
- Mounting type: Floor mounting
- Tap hole variant: 3 tap holes
- Drain fitting (with/without): 1" US pop-up waste with pull-rod activation
- Total height (mm): 95
- Total width (mm): 356
- Total Depth (mm): 200
- Throat (mm): 130
- Height to aerator (mm): 75
- Swivel range: rigid
- Recommended hot water temperature (°C): 60
- Permissible flow pressure: 1 - 5 bar
- Recommended flow pressure: 3 bar
- Thermal disinfection (5:00 min.) ≤ 70 °C
- Low pressure: No
- Weight (kg): 2,79
- 5 year guarantee
Additional Info
- Brand:Dornbracht
- Manufacturer Part #:20713845
- Number of Handles:2
- Number of Faucet Holes:3
Product Options
,DNB-20713845-000010,DNB-20713845-060010,DNB-20713845-190010,DNB-20713845-330010,DNB-20713845-930010,DNB-20713845-270010,DNB-20713845-990010|,Polished Chrome,Platinum Matte,Dark Chrome,Matte Black,Chrome Matte,Brushed Light Gold PVD,Brushed Dark Platinum|,1243.70,1989.80,1865.60,1680.00,1616.80,1865.60,1990.10|,994.96,1591.84,1492.48,1344.00,1293.44,1492.48,1592.08||,43210619912383,43210619977919,43210620010687,43210620076223,43210620141759,45526452797631,45526452830399|,28,28,28,28,28,28,28|,20713845-000010,20713845-060010,20713845-190010,20713845-330010,20713845-930010,20713845-270010,20713845-990010
