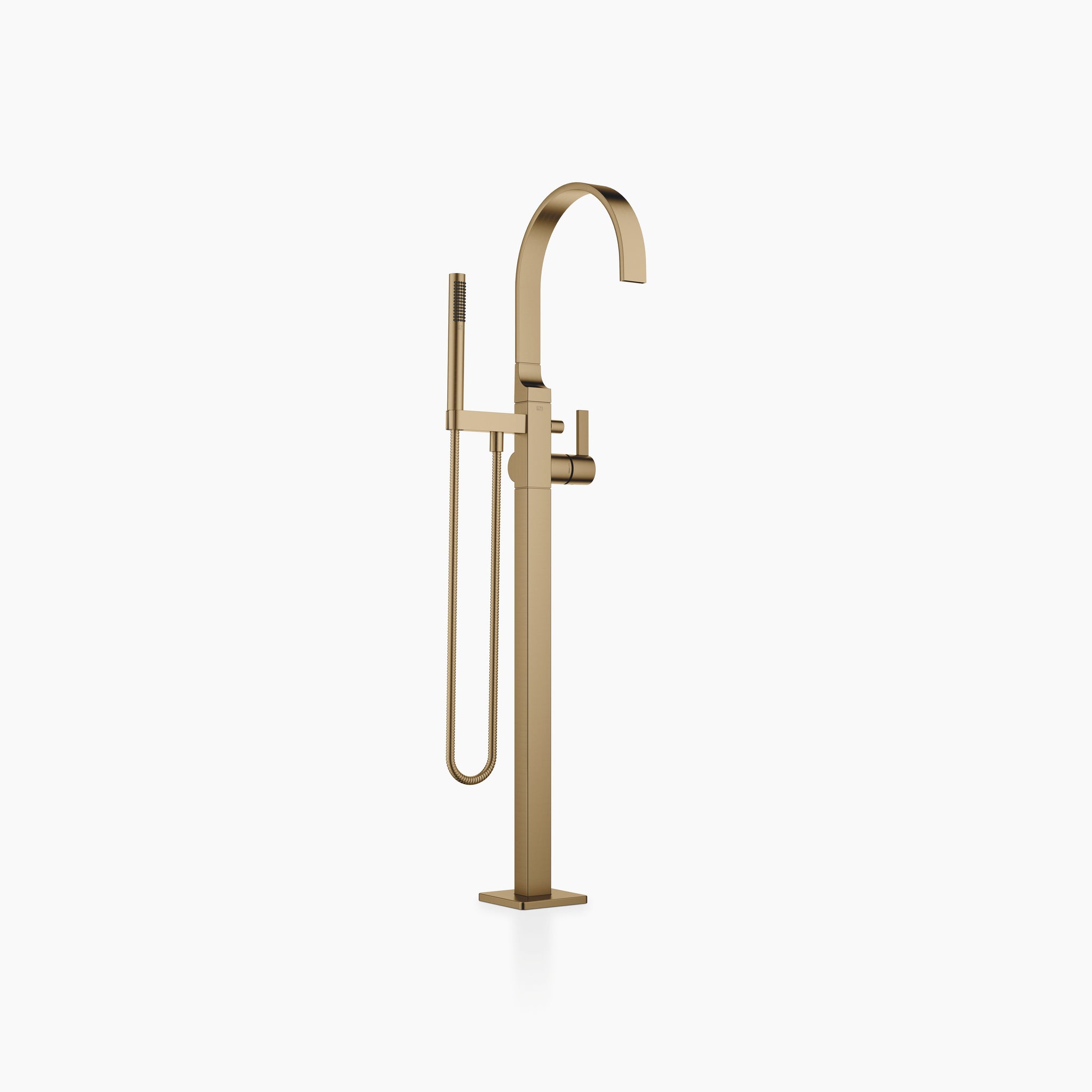

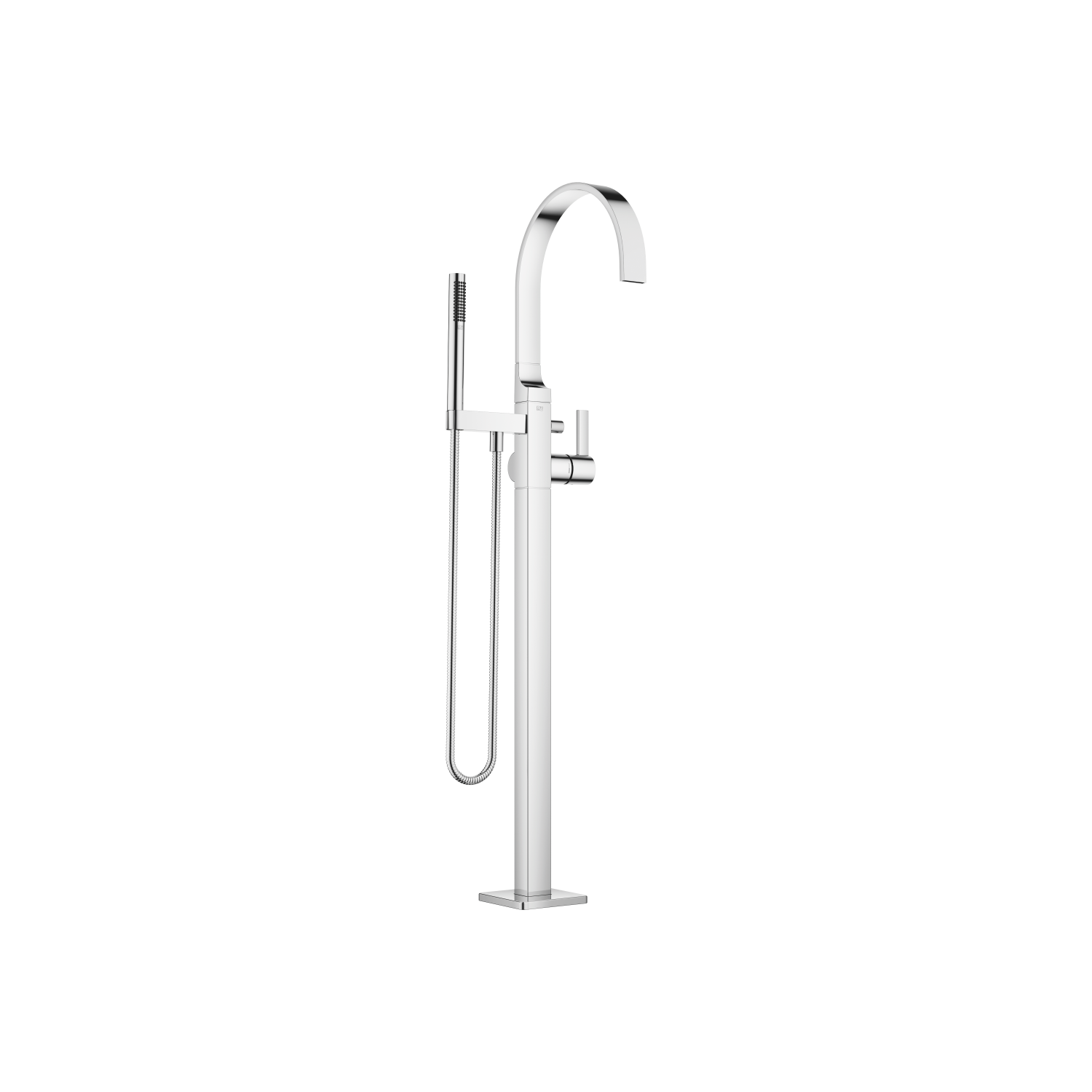

Dornbracht 25863782 Mem Single-Lever Tub Mixer With Stand Pipe For Freestanding Installation With Hand Shower Set
Dornbracht 25863782 Mem Single-Lever Tub Mixer With Stand Pipe For Freestanding Installation With Hand Shower Set
SKU: 25863782
$5,864.88
Unit price
/
per
$7,331.10
Save 20%
Free Shipping Included
5-7 Days
contact us for more details
{"name":"Finish","position":1,"values":["Chrome","Brushed Platinum","Platinum","Dark Chrome","Brushed Durabrass 23kt Gold","Brushed Dark Brass PVD","Brushed Bronze PVD","Brushed Champagne 22kt Gold","Champagne 22kt Gold","Brushed Dark Platinum"]}
Couldn't load pickup availability
NEED ASSISTANCE?
Please contact us with any questions you have. We are here to serve you Monday through Friday from 8:00 AM to 5:00 PM Pacific Standard Time via phone, email & live chat.
Product Info
Description
- 267mm projection
- spout: cascade
- max. flow 25.1 l/min at 3 bar flow pressure
- Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
- bar-type hand shower with anti-scale system
- wall bracket
- automatic bath/shower diverter
- total height 1139 - 1209 mm
- stand pipe height 598 - 668 mm
- height up to aerator 968 – 1038 mm
- push-on rosette 131 x 131 mm
- metal shower hose 1250mm with integrated anti-twist protection
- WRAS
- Mounting type: Free-standing assembly
- Total height (mm): 1138
- Total width (mm): 268
- Total Depth (mm): 337
- Throat (mm): 267
- Height to aerator (mm): 968
- Flow rate (l/min): 25.1
- Recommended hot water temperature (°C): 60
- Permissible flow pressure: 1 - 5 bar
- Recommended flow pressure: 3 bar
- Thermal disinfection (5:00 min.) ≤ 70 °C
- Low pressure: No
- Weight (kg): 8,51
- 5 year guarantee
